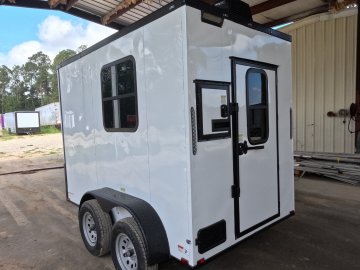

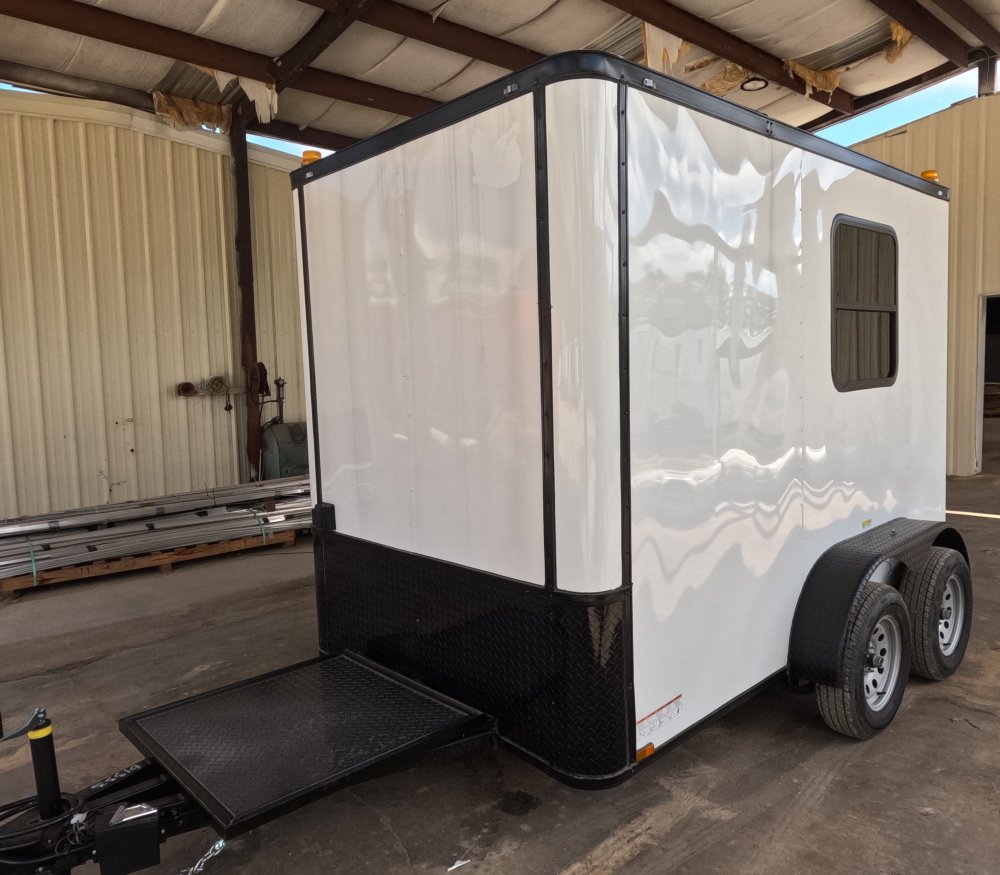

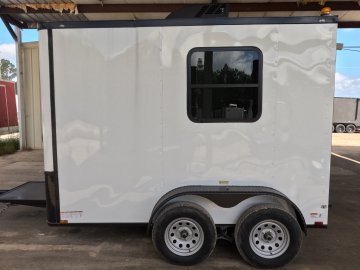

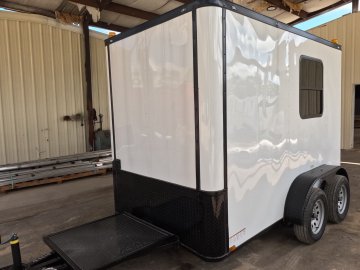

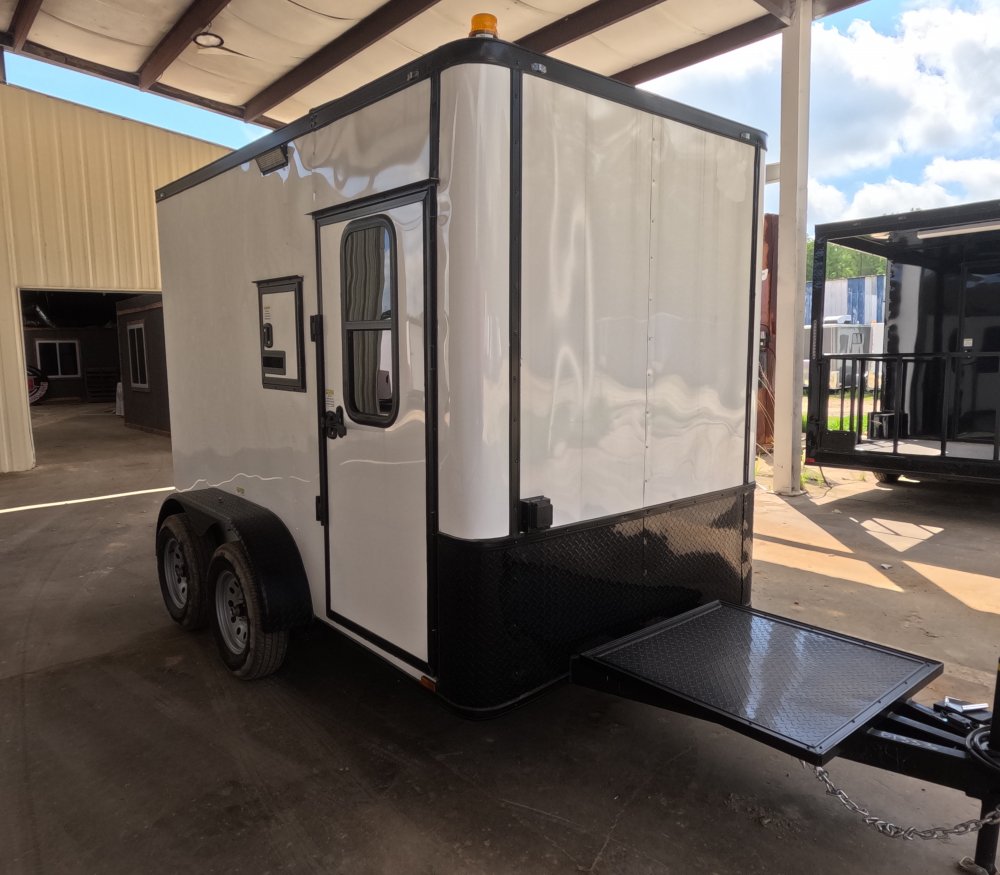

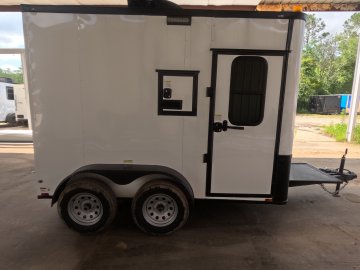

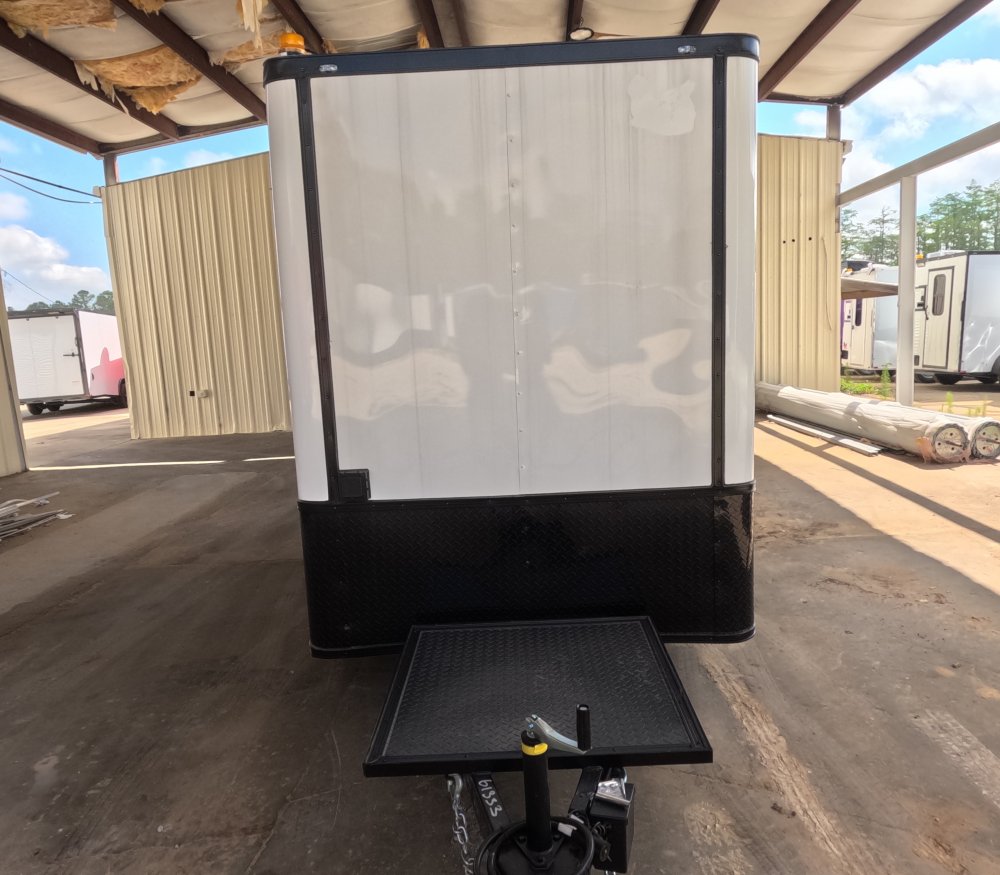

6'x10' Quality Cargo Enclosed Fiber Splicing Trailer
Standard Specifications
Exterior & Frame:
White metal exterior
2" coupler
Aluminum fenders with lights
24" Stoneguard on front
Screwed metal exterior
Galvalume roof
V-Nose with vertical ATP trim
32" RV style side door with flush lock
Double rear doors with bar lock or ramp
2x4" steel tube main rails
Structure & Build:
Tandem 3500-lb spring axles with 4" drop and EZ Lube hubs
75" (6'3") interior height
¾" plywood floor (painted underneath)
Premium 3/8" plywood sidewalls
1" x 1½" steel tube in walls and ceiling
Wall members 16" O.C.
Floor crossmembers 16" O.C.
Roof members 24" O.C.
2000-lb tongue jack
Lighting & Electrical:
12V dome light with switch
LED strip tail lights
Non-powered roof vent or sidewall
7-way Bargman plug
Structure Upgrades

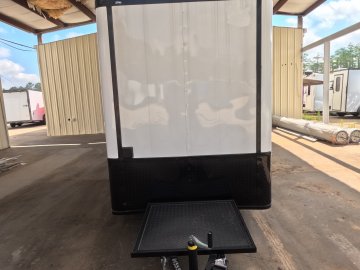

Flat front design
9" extra height
66" extended tongue
1-piece roof

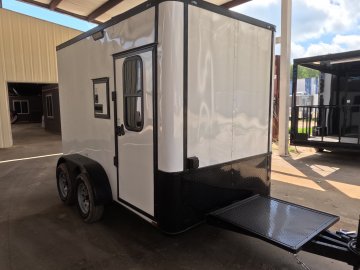

36" x 36" ATP generator platform on tongue
Exterior Upgrades
.030 White metal exterior
Blackout package
ATP fenders

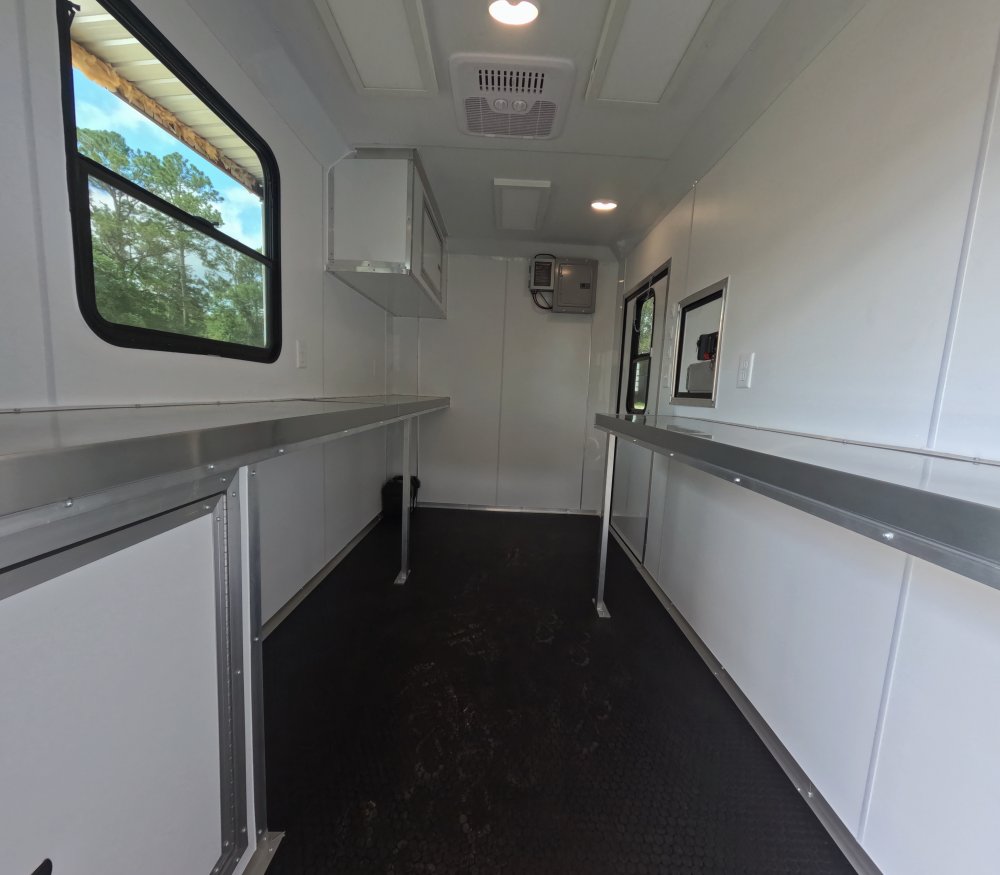

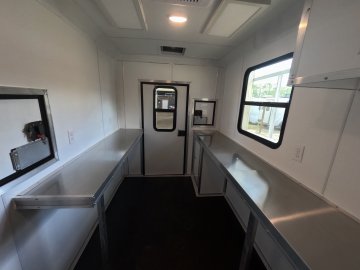

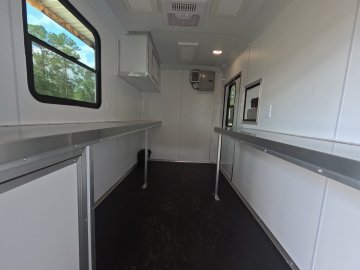

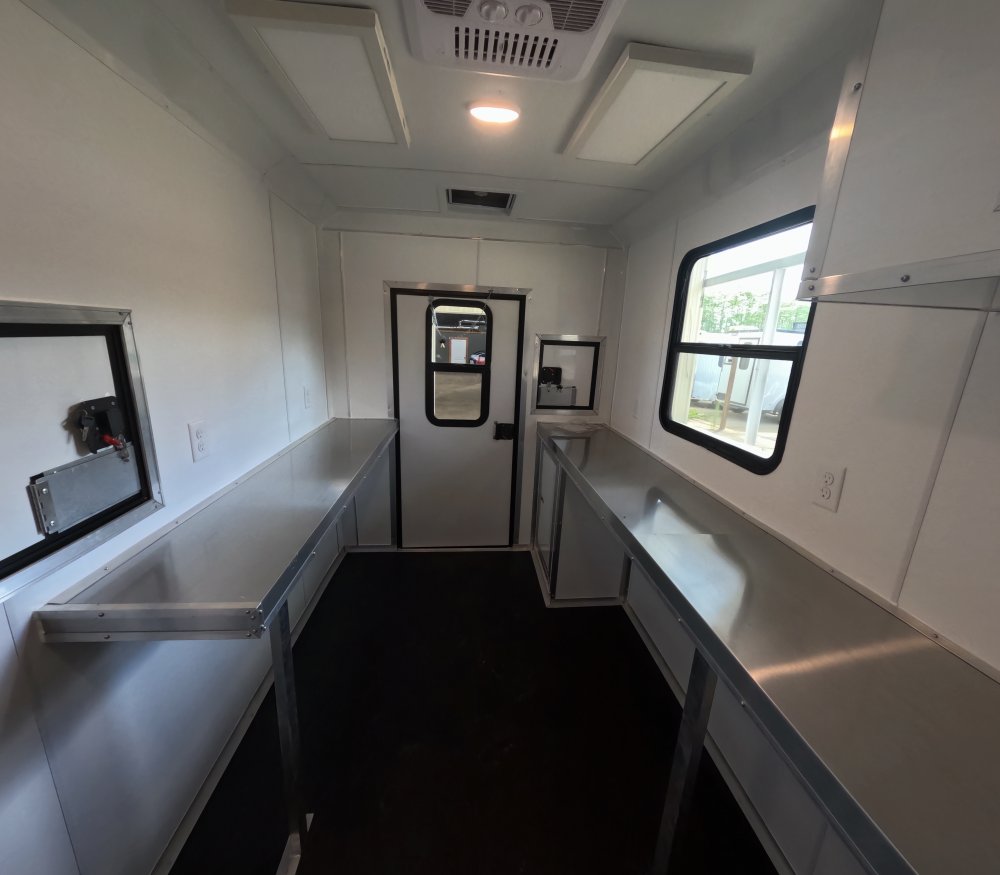

Interior Features
Insulated walls
Insulated ceiling
White vinyl walls
White vinyl ceiling
Rubber coin flooring

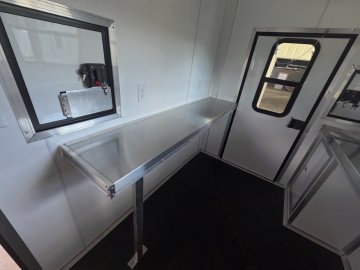

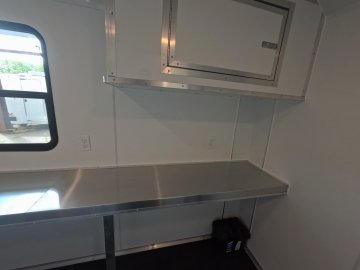

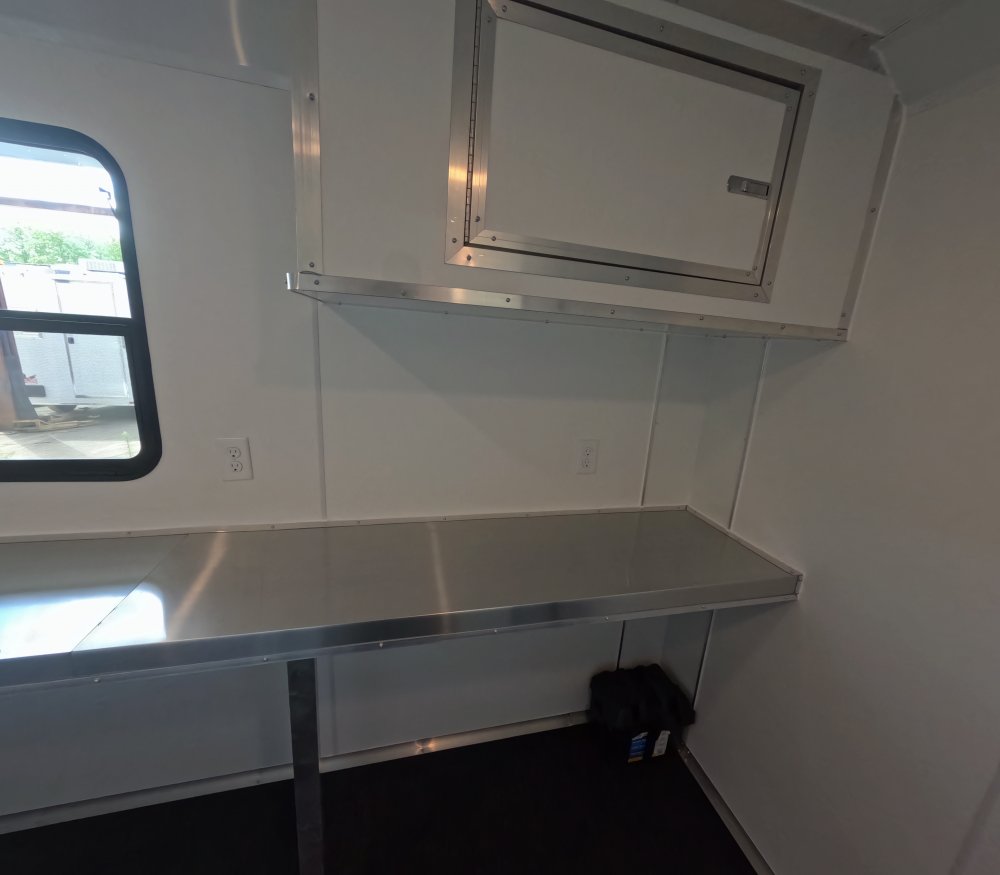

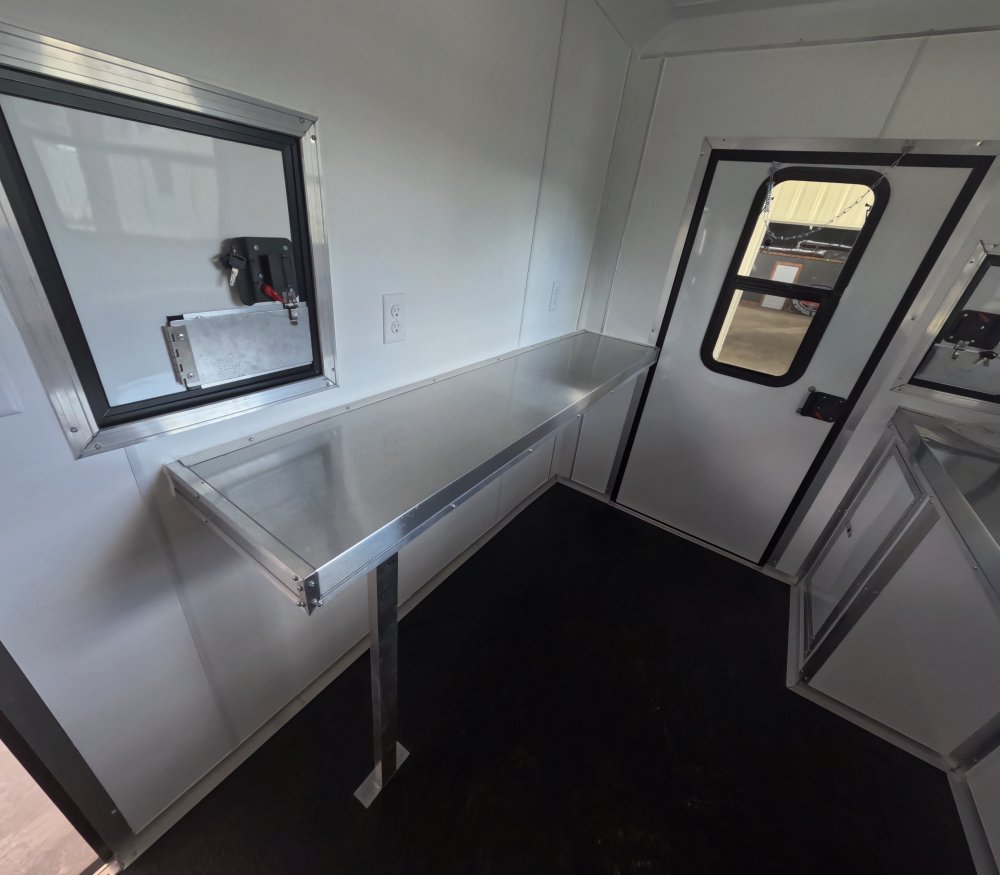

6' x 2' mill finish countertop (no lip, aluminum edges folded)

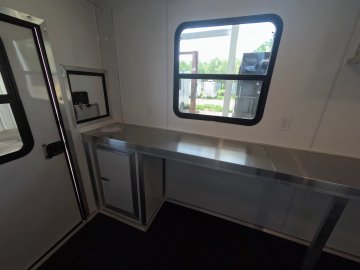

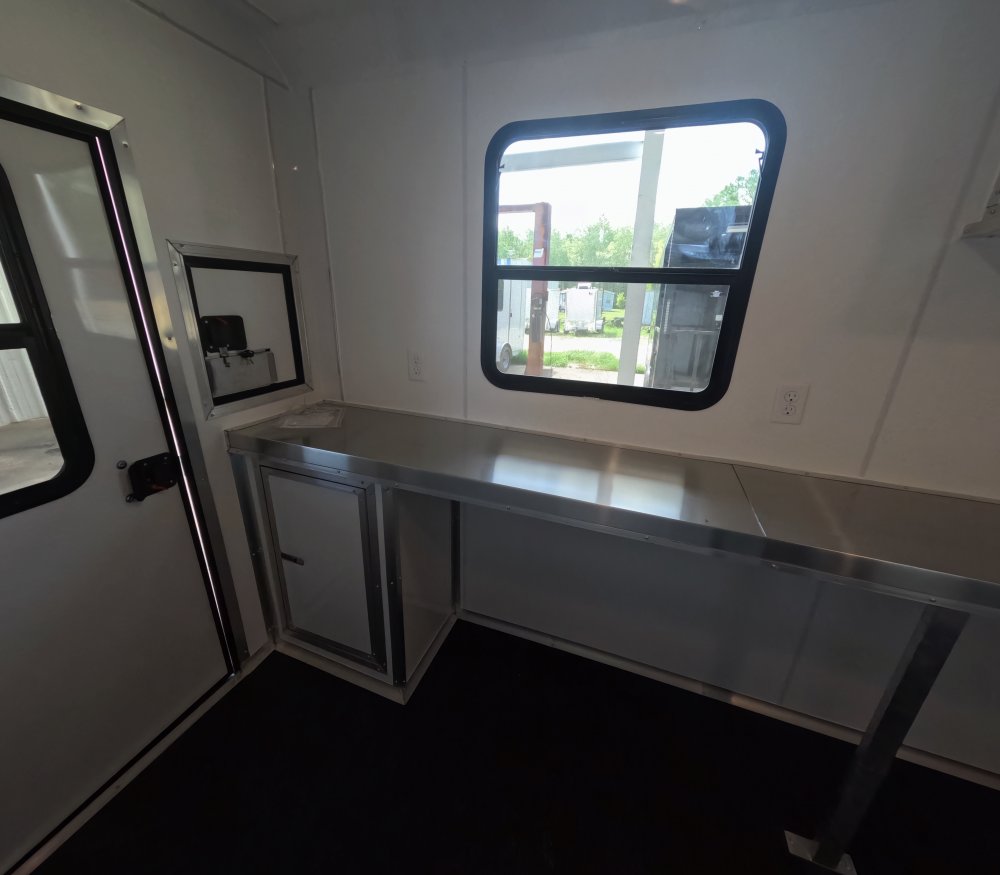

10' x 18" mill finish countertop (no lip, aluminum edges folded)
2' cabinet on driver side wall
4' overhead cabinet
Tires & Wheels
Silver Mod wheels
Chrome center lug covers
Sand foot
Doors, Ramps & Windows

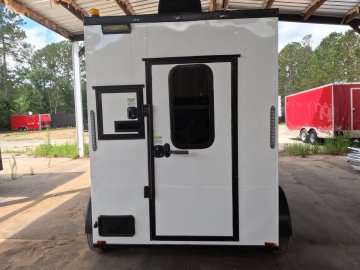

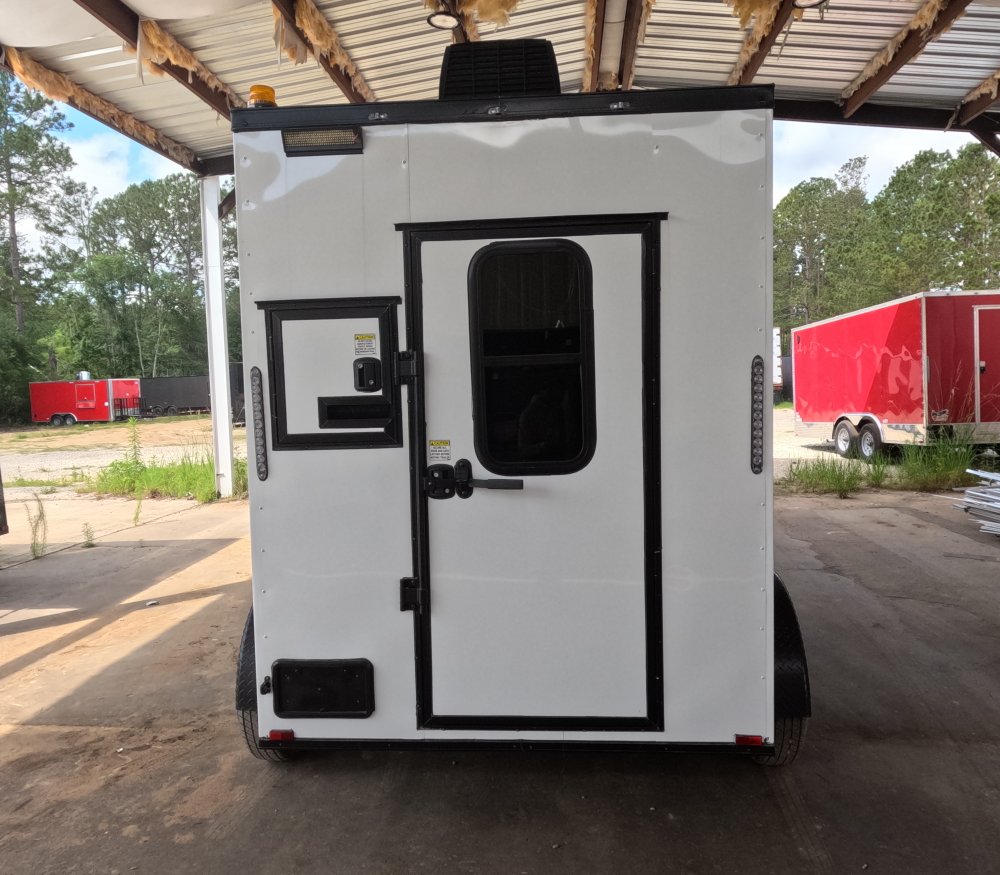

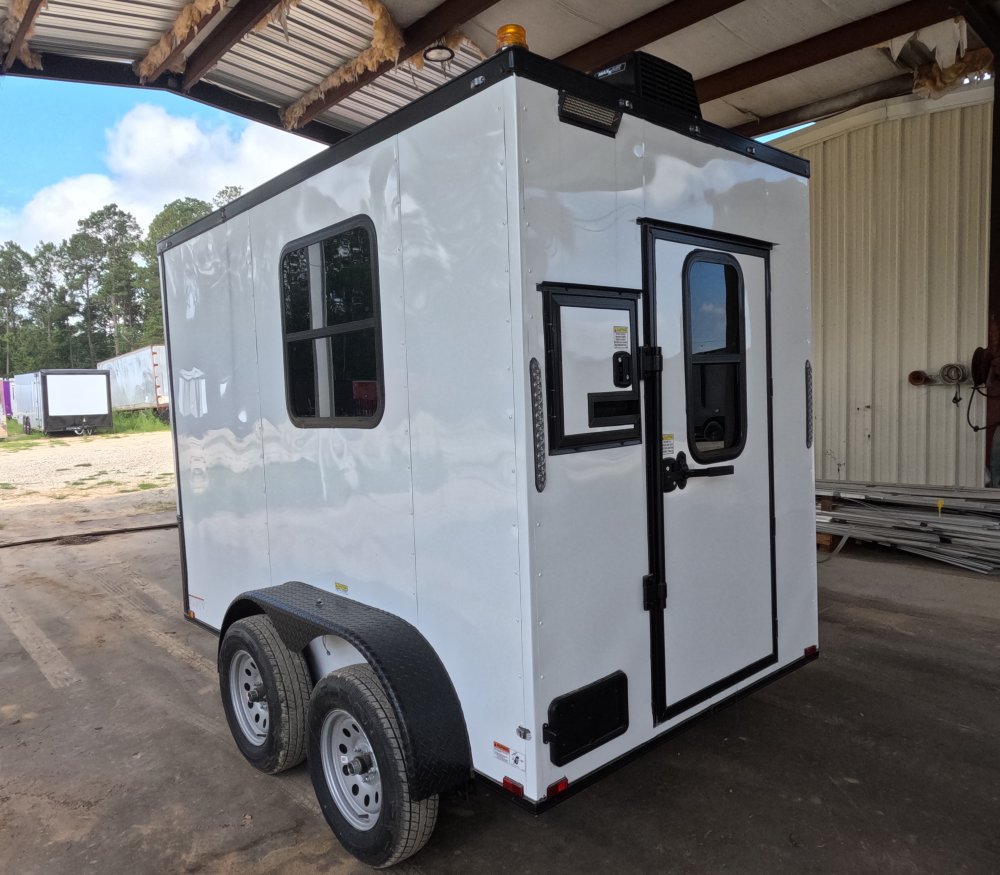

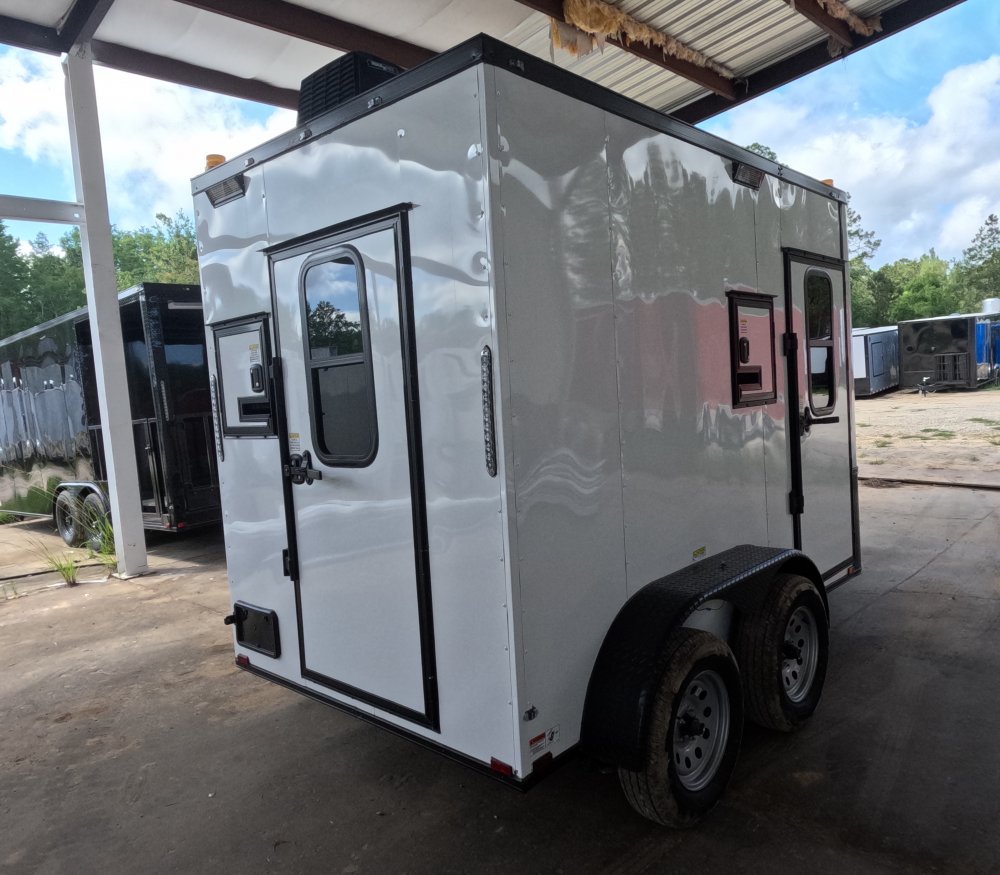

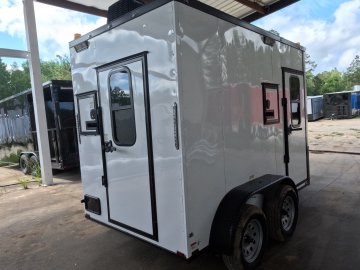

(2) 32" RV doors with 15x30 windows and bar locks
(2) 16" x 18" splicing doors with brush seals

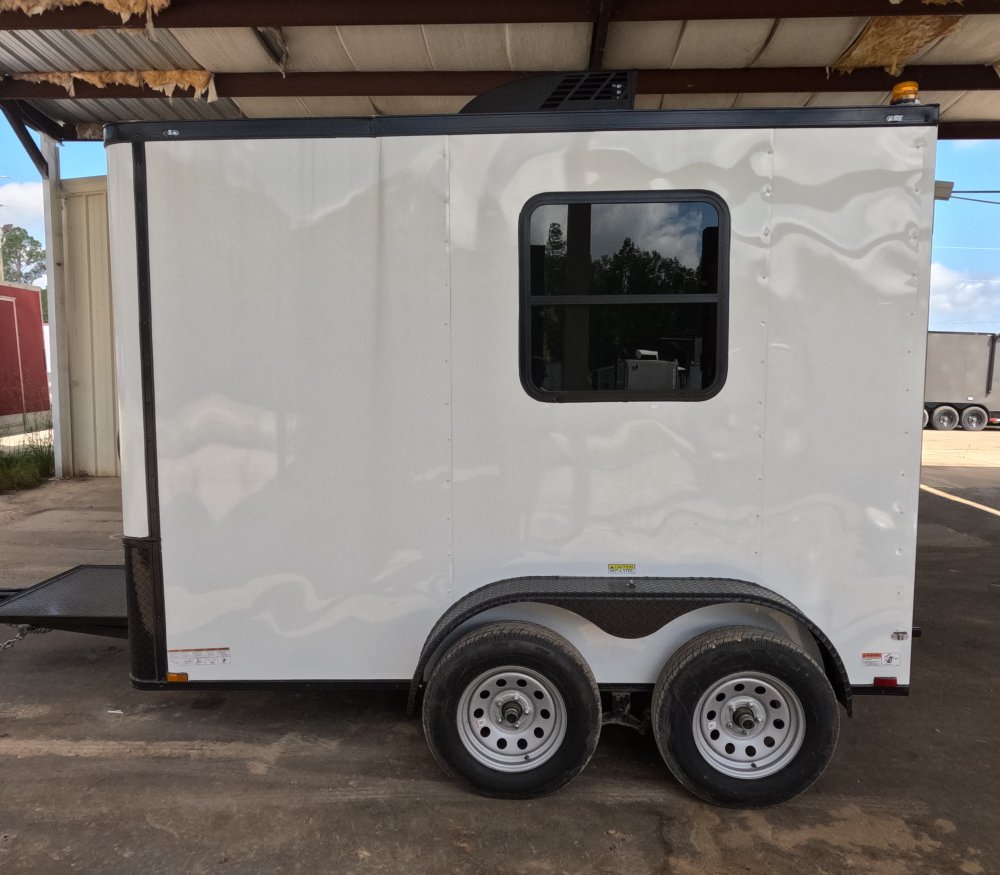

(1) 30" x 30" window, positioned 30" from rear
Vents & A/C
(1) Roof vent with Maxxair vent cover
13.5K BTU A/C unit
Electrical System
(2) Dome lights
50 Amp electrical package
50 Amp motorbase plug
12V battery with converter
3 extra 110V receptacles (5 total)
(1) Extra 4' interior light (3 total)
(2) Amber strobe lights
(2) 10" race lights
