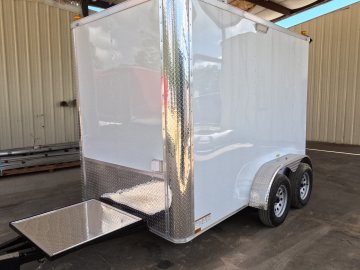

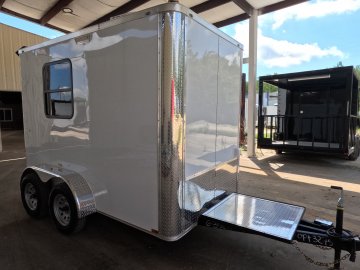

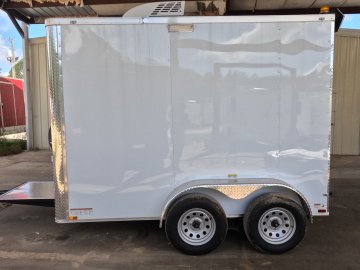

6'x10' Quality Cargo Fiber Optic Splicing Trailer Fiber Splicing Trailer




Standard Specifications

Exterior & Frame:

White metal exterior

Flat front with vertical ATP trim

Double rear doors with bar lock or ramp

32" RV style side door with flush lock

24" Stoneguard on front

2" coupler

Aluminum fenders with lights

Screwed metal exterior

Galvalume roof

2x4" steel tube main rails

Structure & Build:

Tandem 3500-lb spring axles with 4" drop and EZ Lube hubs

75" (6'3") interior height

¾" plywood floor (painted underneath)

Premium 3/8" plywood sidewalls

1" x 1½" steel tubing in walls and ceiling

Wall members 16" O.C.

Floor crossmembers 16" O.C.

Roof members 24" O.C.

2000-lb tongue jack

Lighting & Electrical:

12V dome light with switch

LED strip tail lights

Non-powered roof vent or sidewall

4-way Bargman plug

Structure Upgrades

Flat front design

.080 White metal upgrade

ATP fenders

9" extra interior height

66" extended tongue

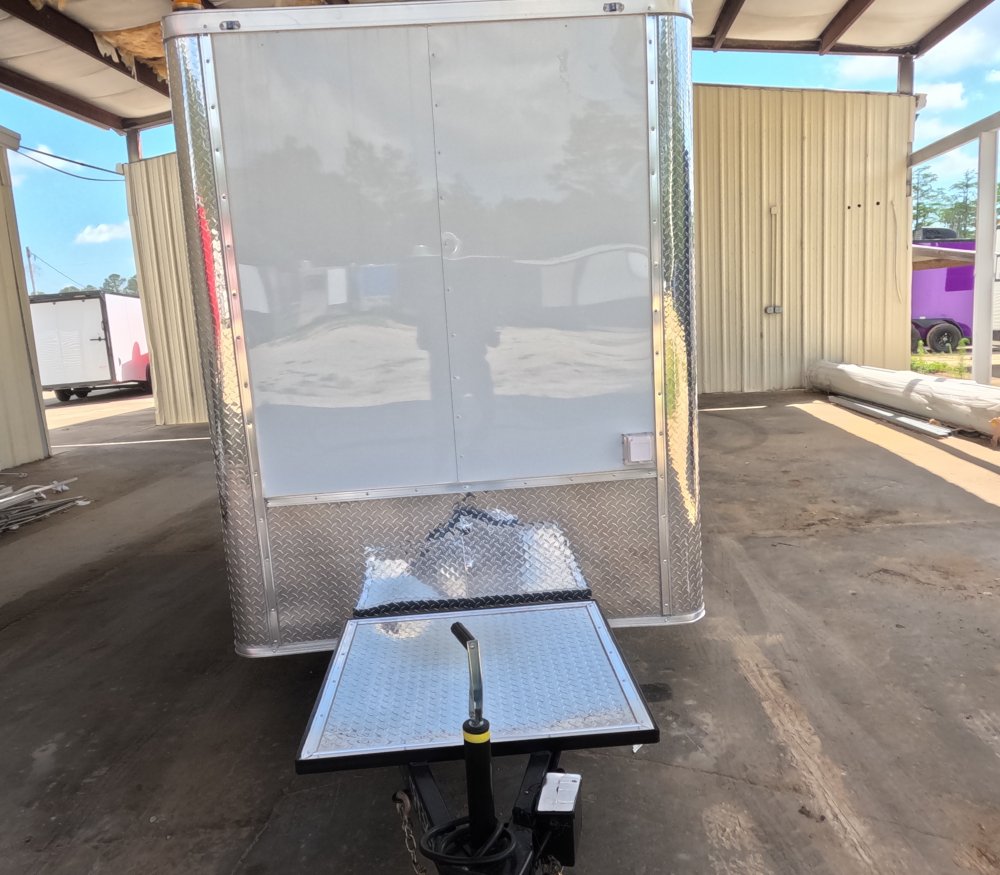

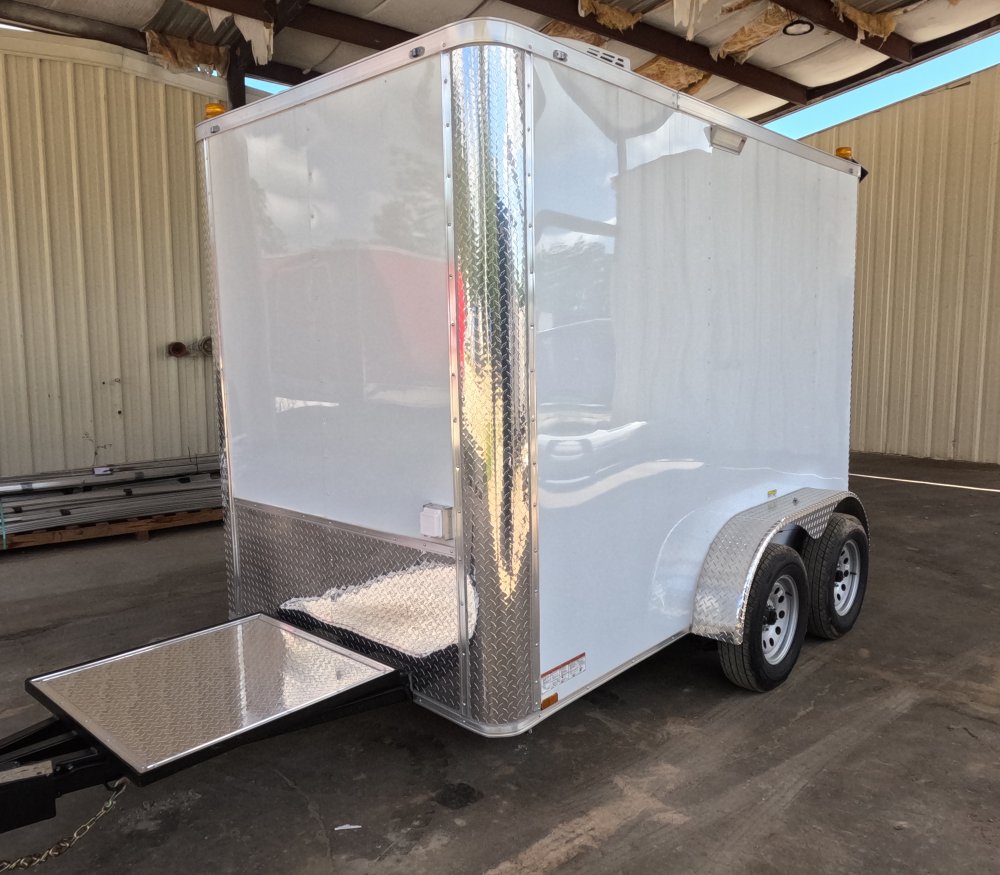

36" x 36" ATP generator platform on tongue

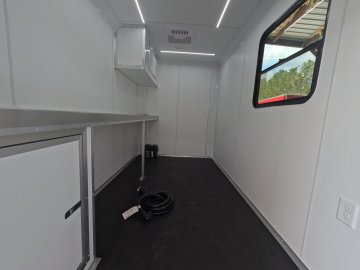

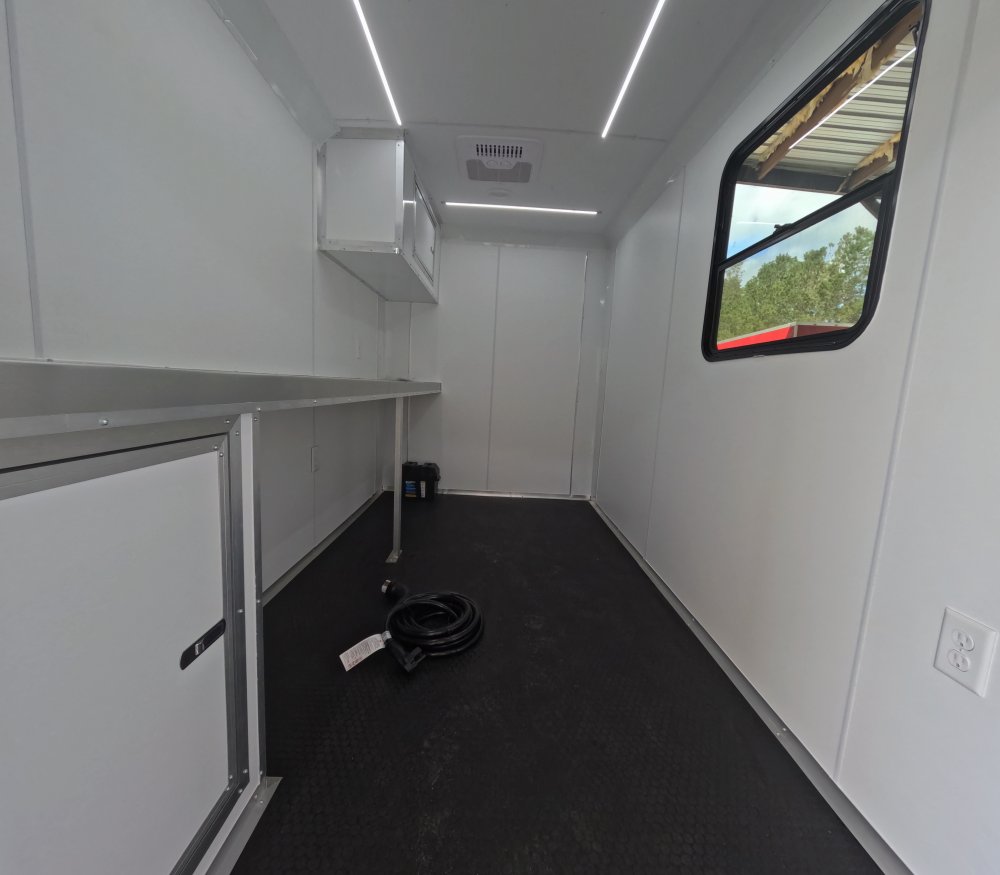

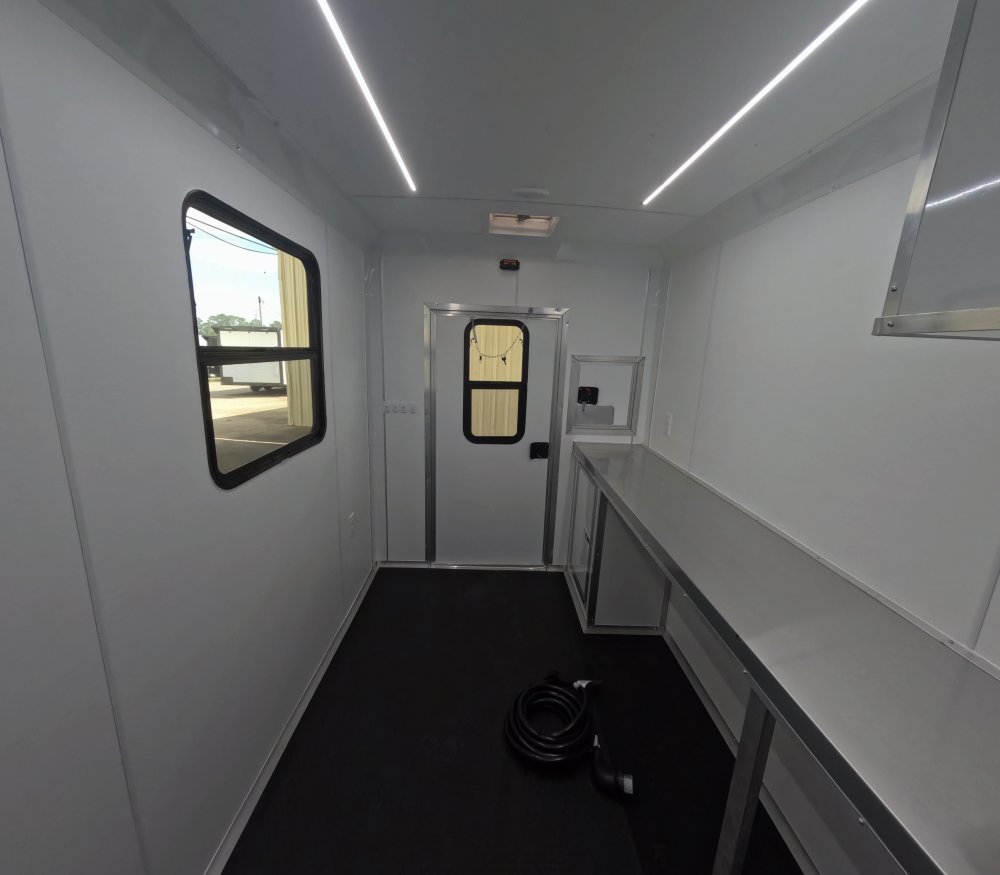

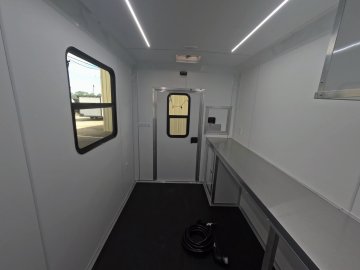

Interior Features

Insulated walls

Insulated ceiling

White vinyl walls

White vinyl ceiling

Rubber coin flooring

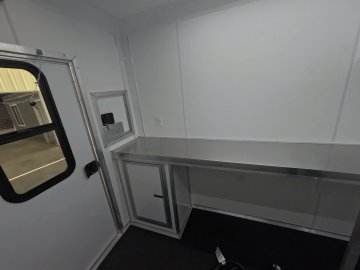

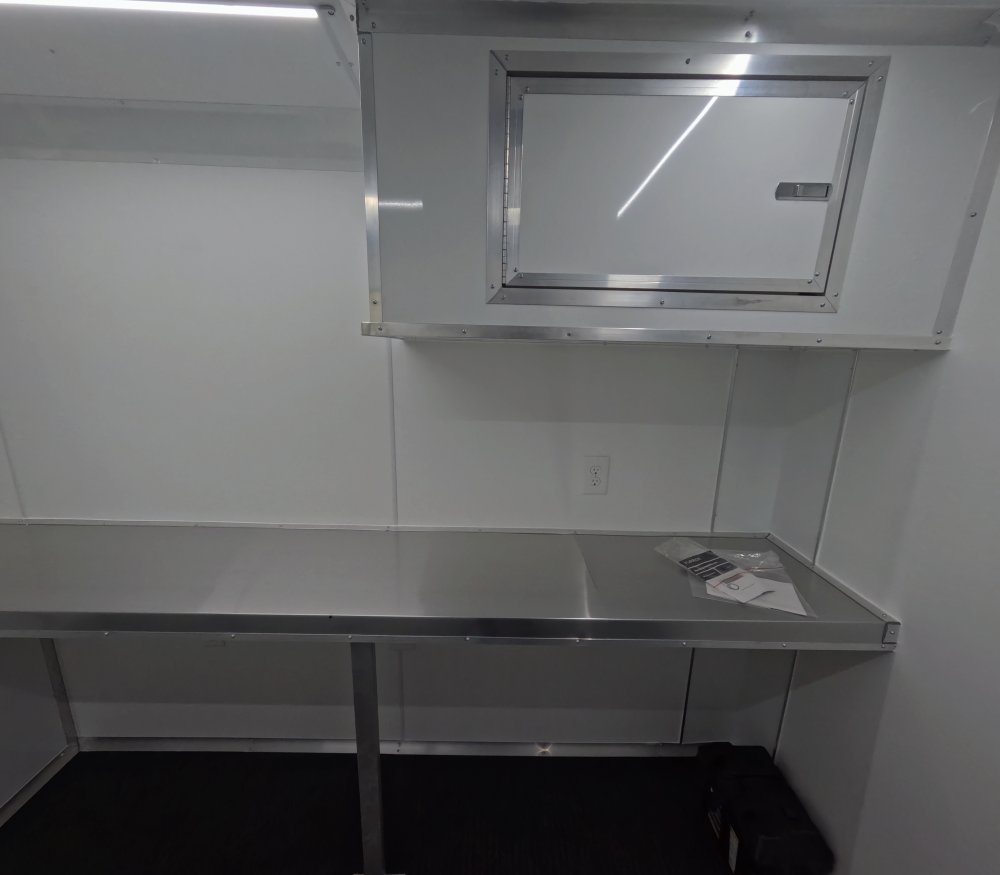

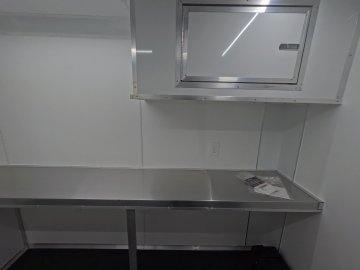

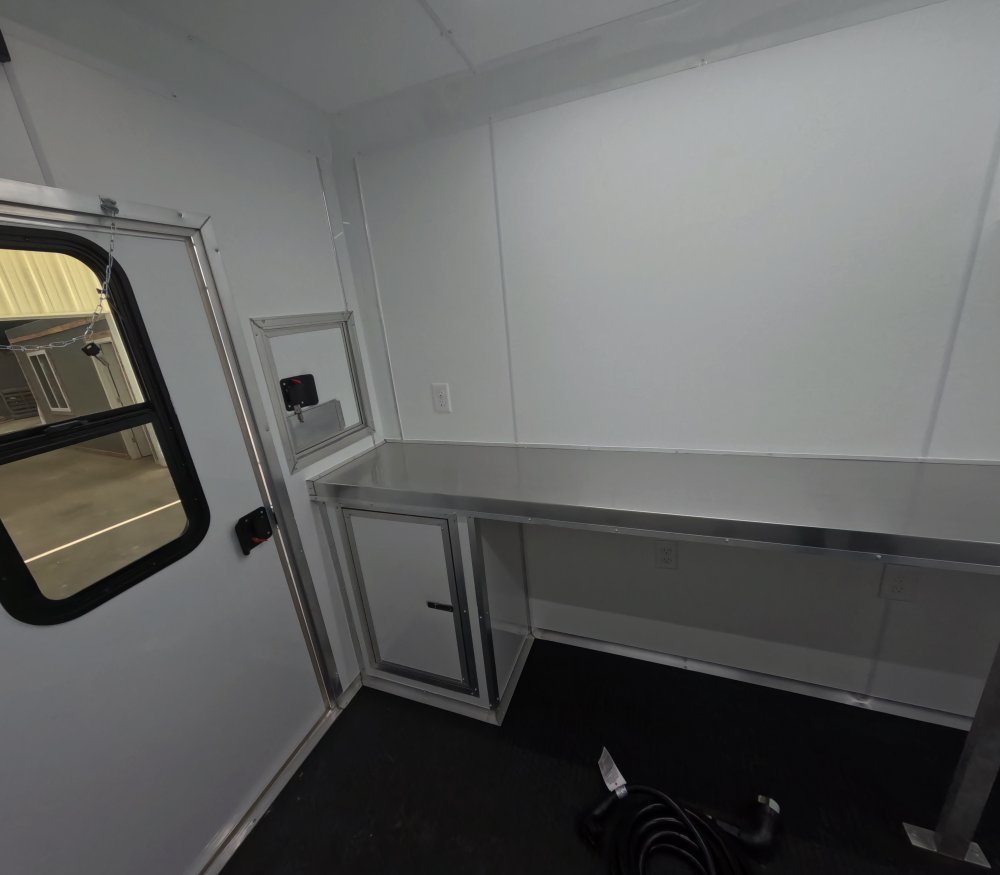

10' x 18" mill finish countertop (no lip, folded aluminum edge)

2' base cabinet on driver side wall

4' white overhead cabinet

Tires & Wheels

15" Silver Mod wheels

Chrome center lug covers

Sand foot

Radial tires

Doors, Ramps & Windows

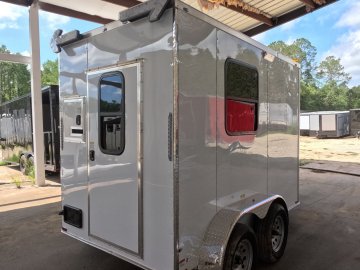

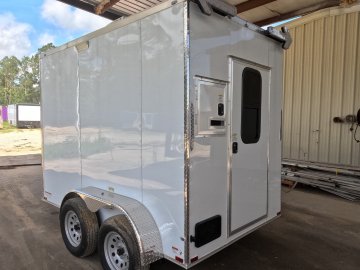

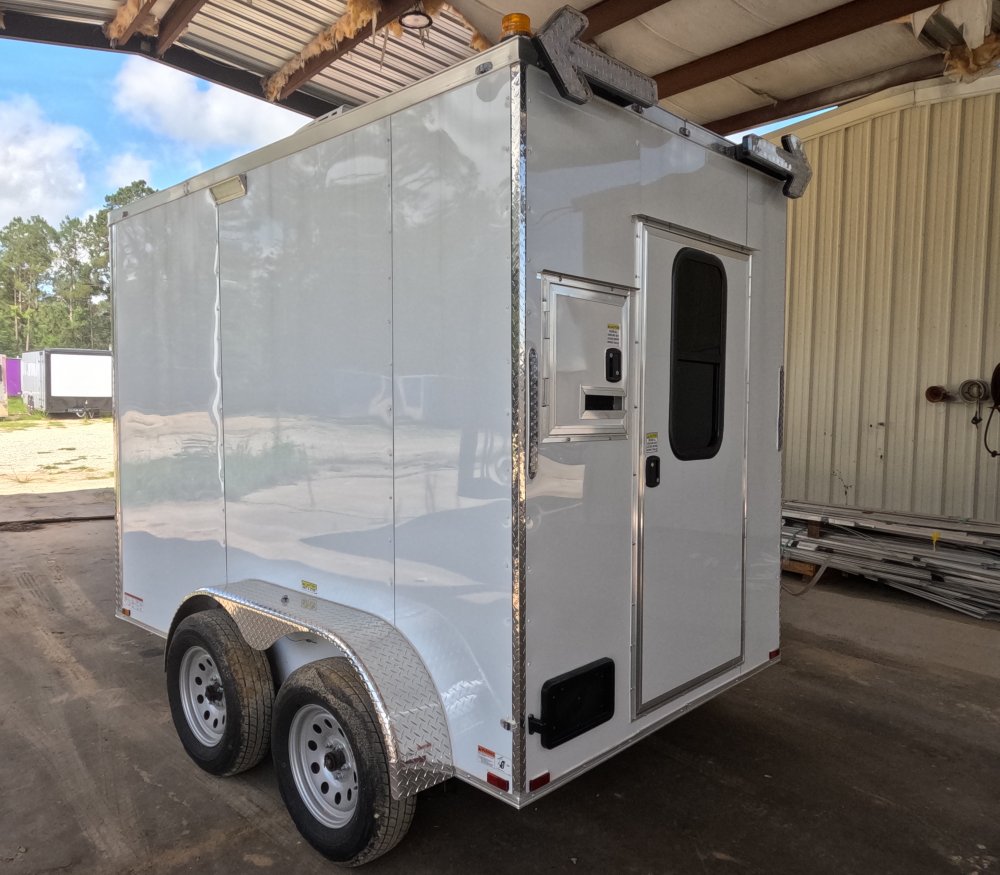

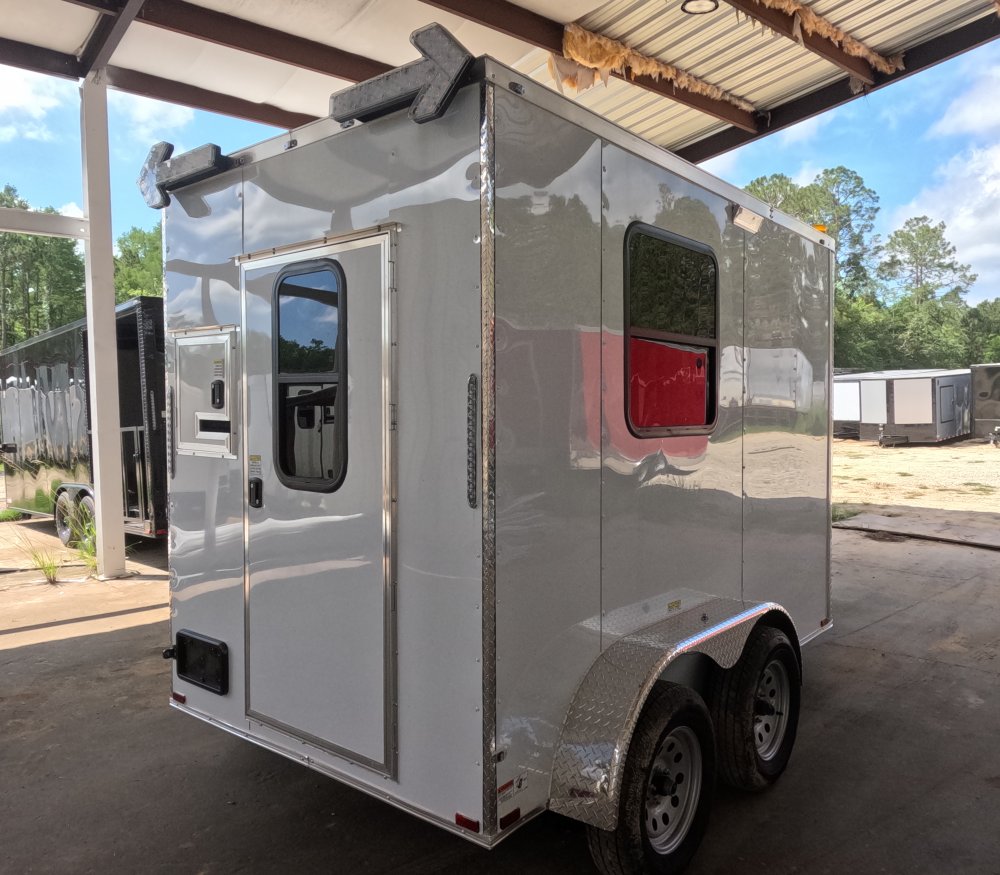

32" RV door with 15" x 30" vertical window and bar lock (passenger side)

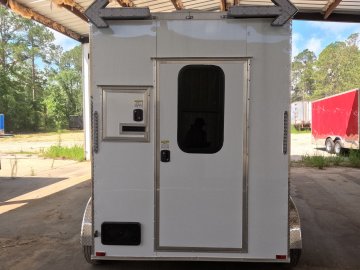

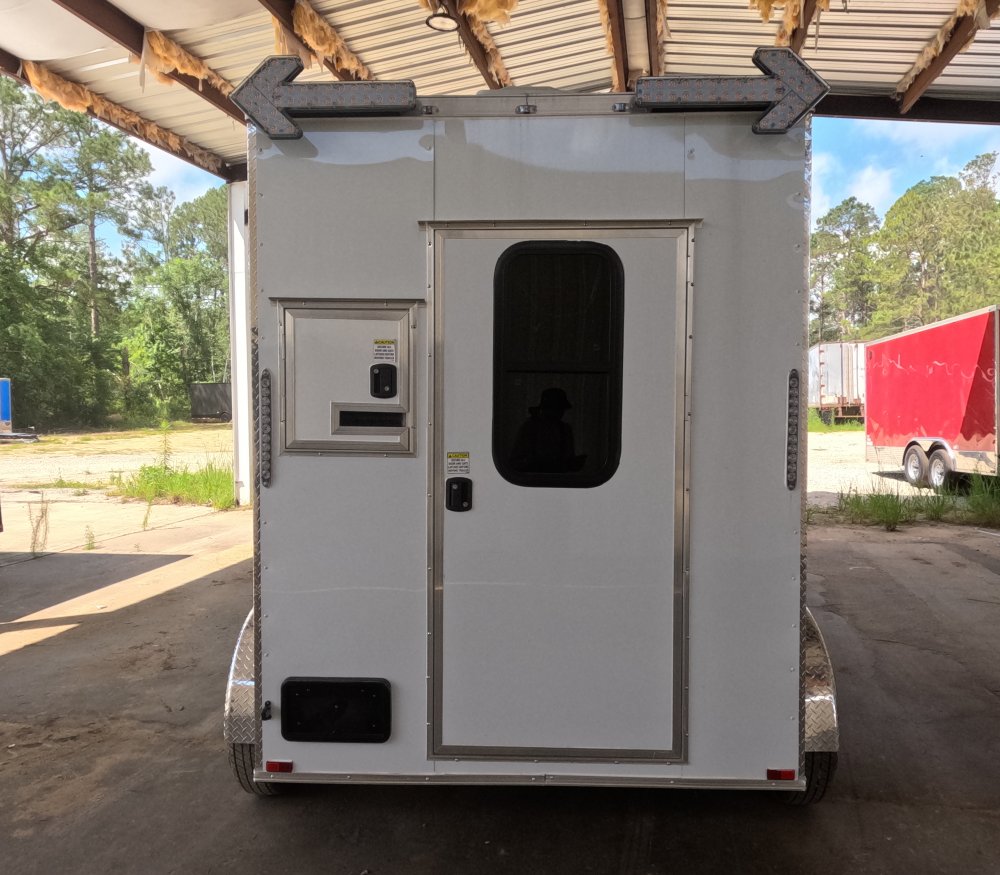

(1) 16" x 18" cable splicing door with brushes

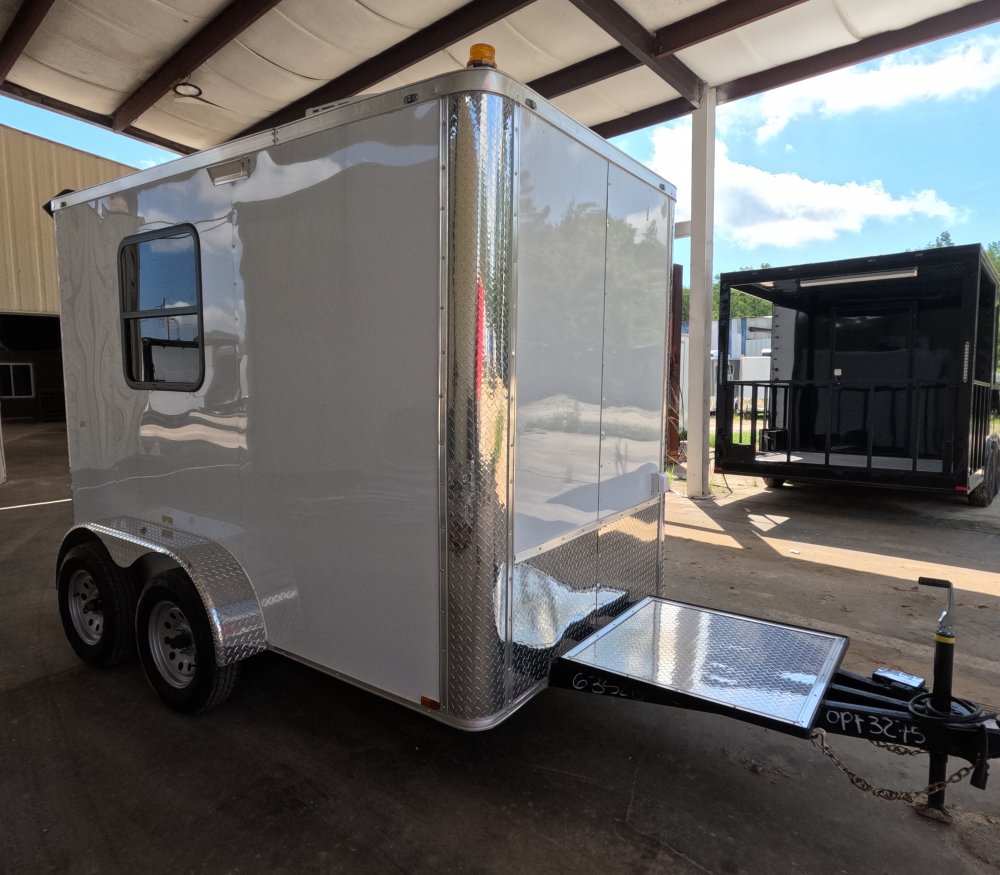

(1) 30" x 30" window (positioned 30" from rear)

Vents & A/C

Roof vent with Maxxair cover

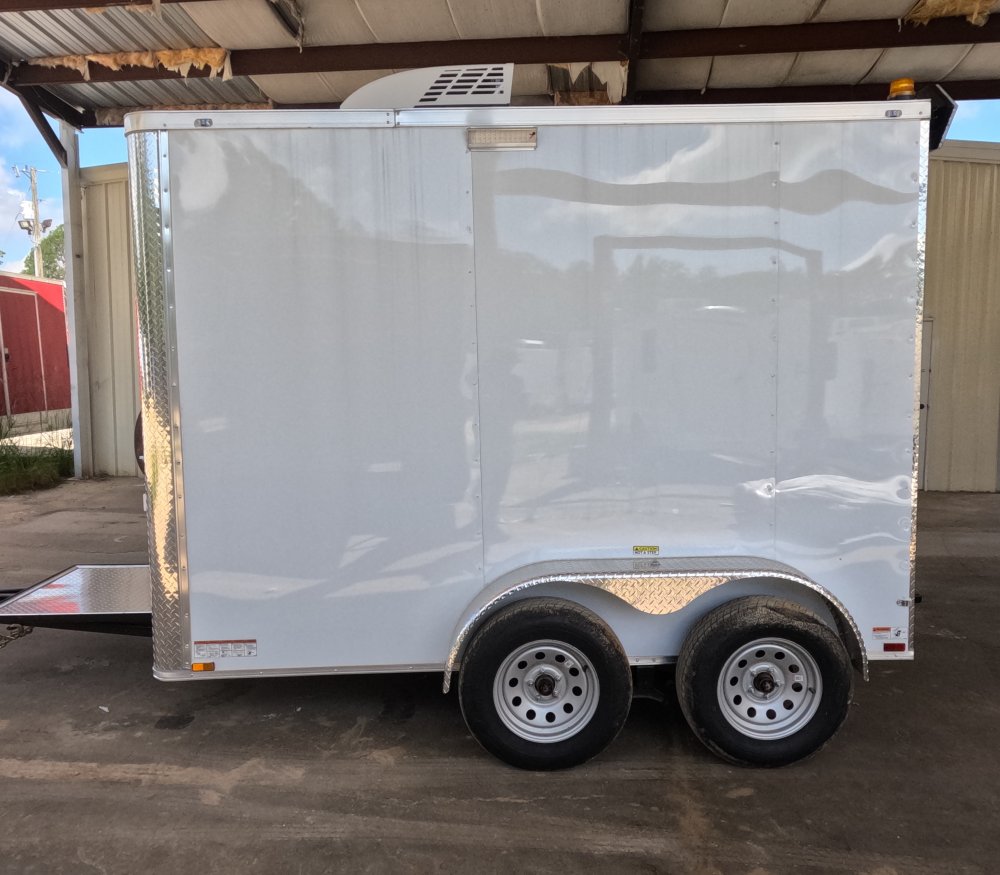

13,500 BTU A/C unit

Electrical System

(2) Dome lights

50 Amp electrical package with 50 Amp motorbase plug

12V battery with Powermax converter/charger

(3) Extra 110V receptacles:

(2) under countertop

(1) between base cabinet and overhead

(1) Extra 12V, 4' LED strip light

(2) Amber roof-mount strobe lights

(2) 10" race lights

(2) Arrow lights on rear of trailer
