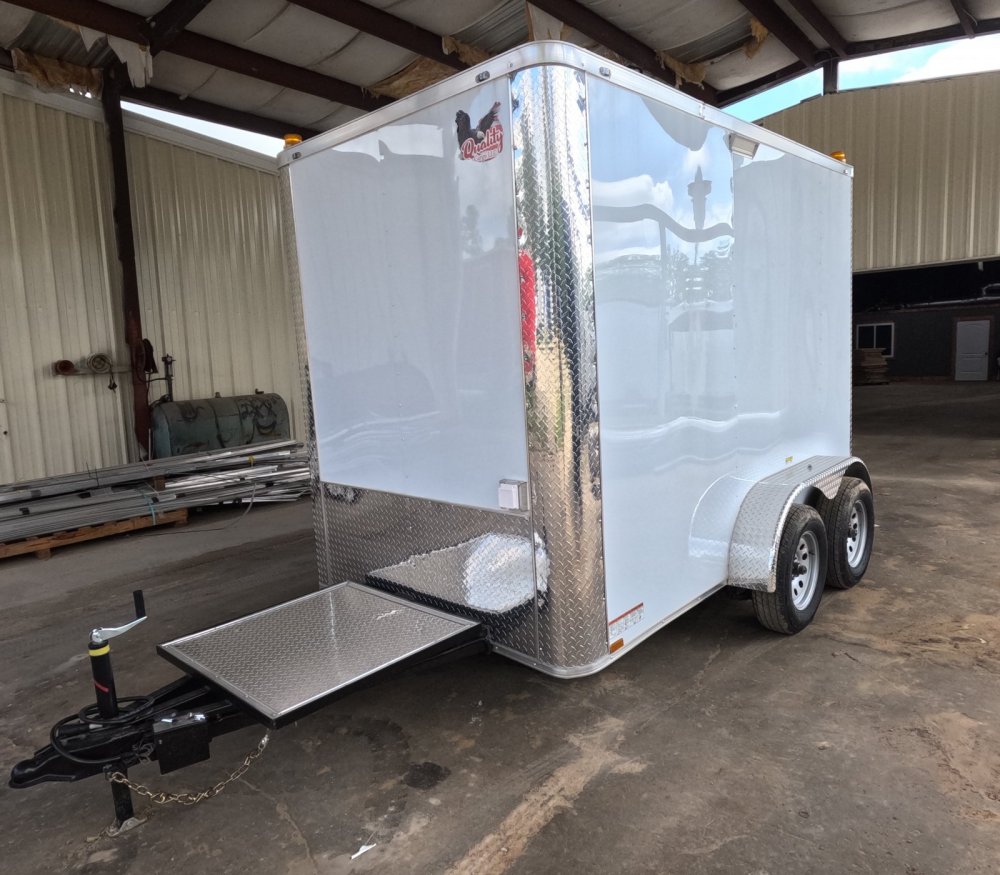

6'x10' Quality Cargo Fiber Optic Splicing Trailer Fiber Splicing Trailer



Standard Specifications

Exterior & Frame:

White metal exterior

V-Nose with vertical ATP trim

Double rear doors with bar lock or ramp

32" RV style side door with flush lock

2" coupler

Aluminum fenders with lights

24" Stoneguard on front

Screwed metal exterior

Galvalume roof

2x4" steel tube main rails

Structure & Build:

Tandem 3500-lb spring axles with 4" drop and EZ Lube hubs

75" (6'3") interior height

¾" plywood floor, painted underneath

Premium 3/8" plywood sidewalls

1" x 1½" steel tube in walls and ceiling

Wall members 16" O.C.

Floor crossmembers 16" O.C.

Roof members 24" O.C.

2000-lb tongue jack

Lighting & Electrical:

12V dome light with switch

LED strip tail lights

Non-powered roof vent or sidewall

4-way Bargman plug

Structure Upgrades

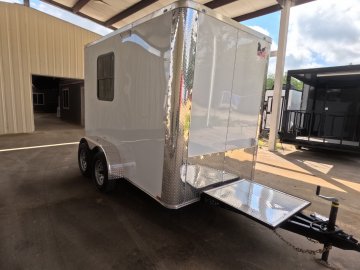

Flat front

.080 White metal upgrade

ATP fenders

9" extra height

66" extended tongue

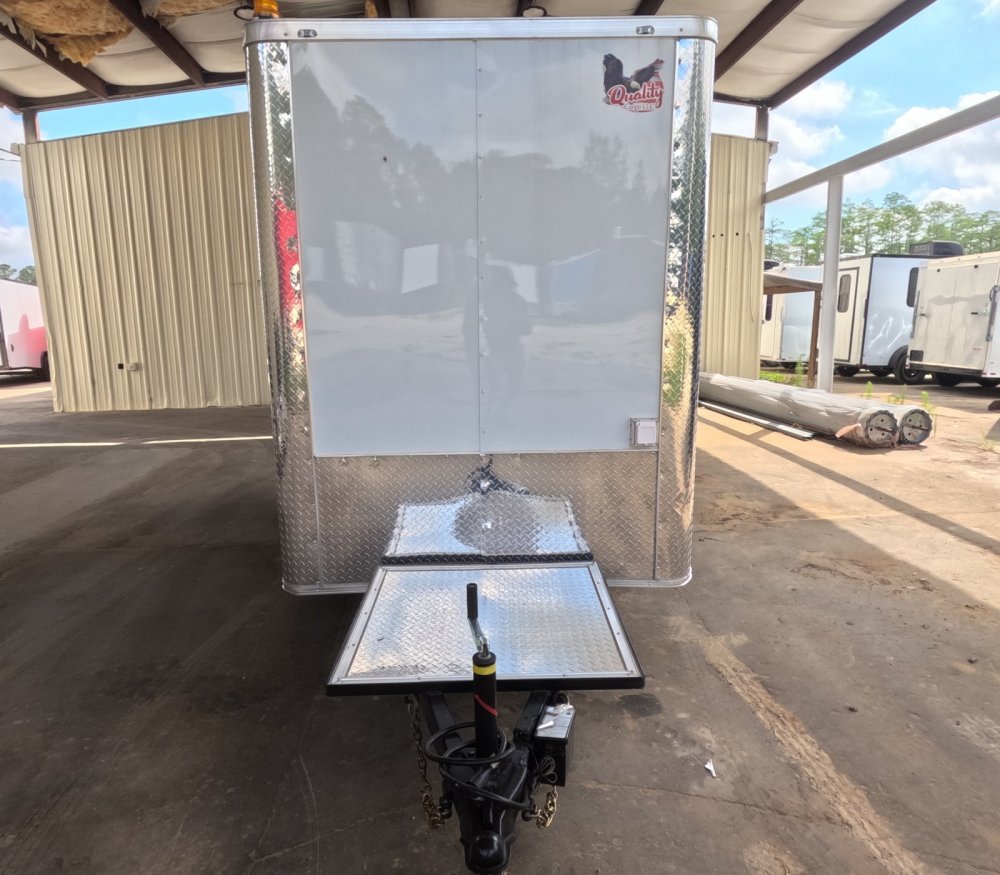

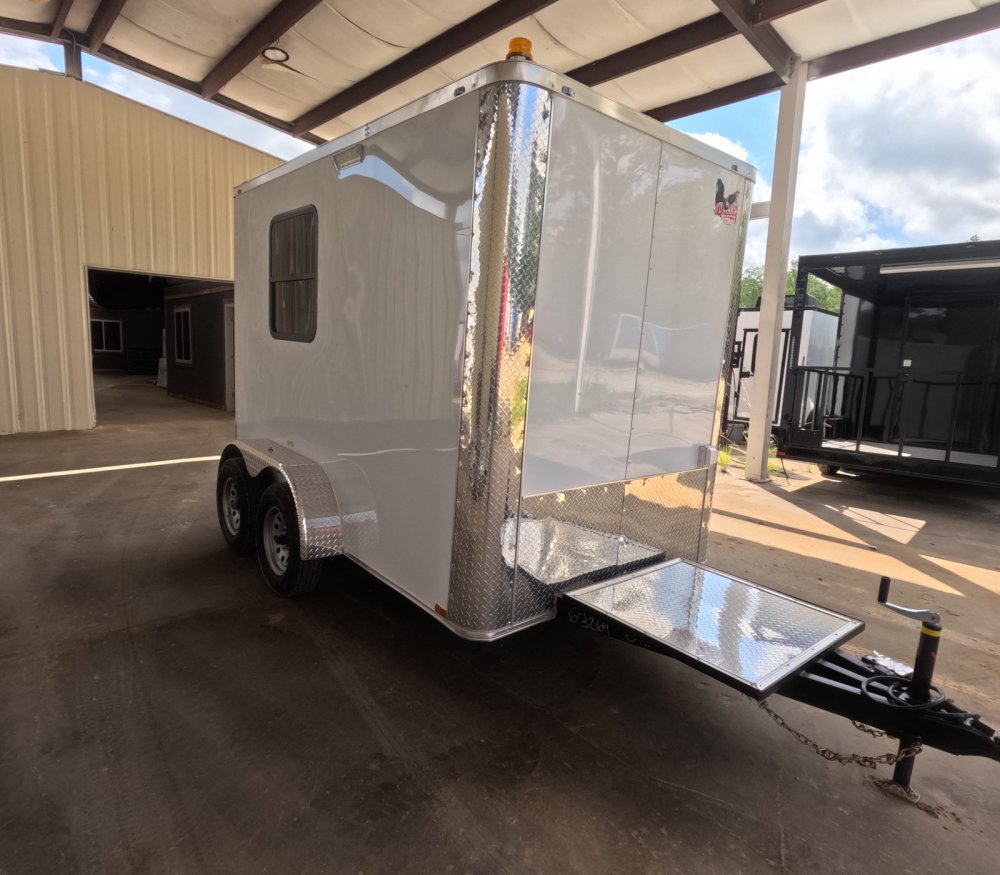

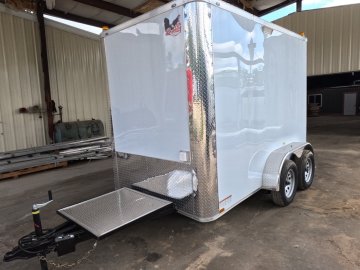

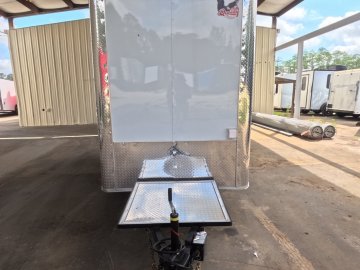

36" x 36" ATP generator platform on tongue

Interior Features

Insulated walls

Insulated ceiling

White vinyl walls

White vinyl ceiling

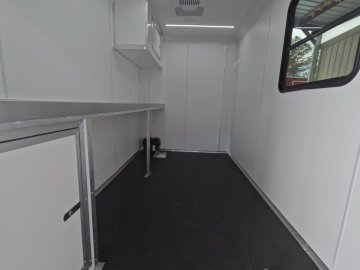

Rubber coin flooring

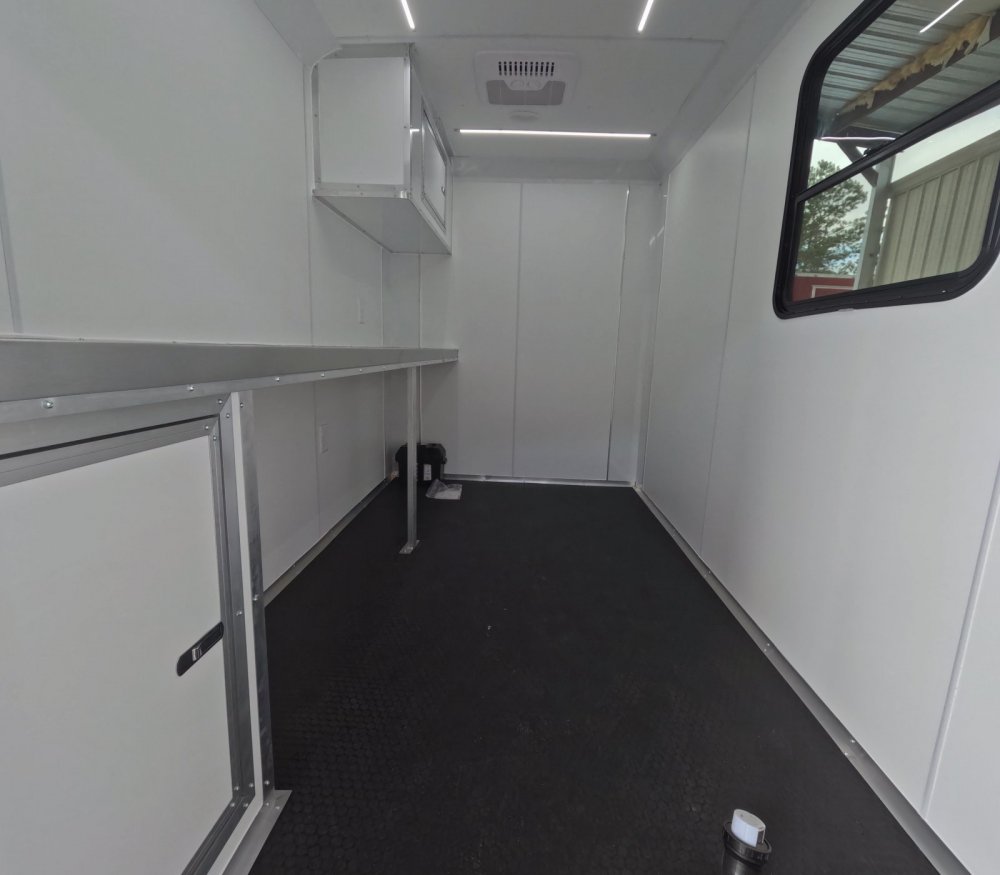

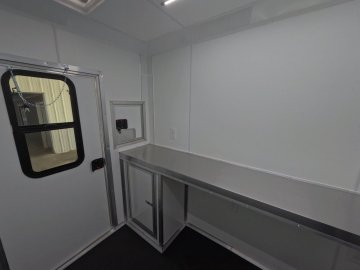

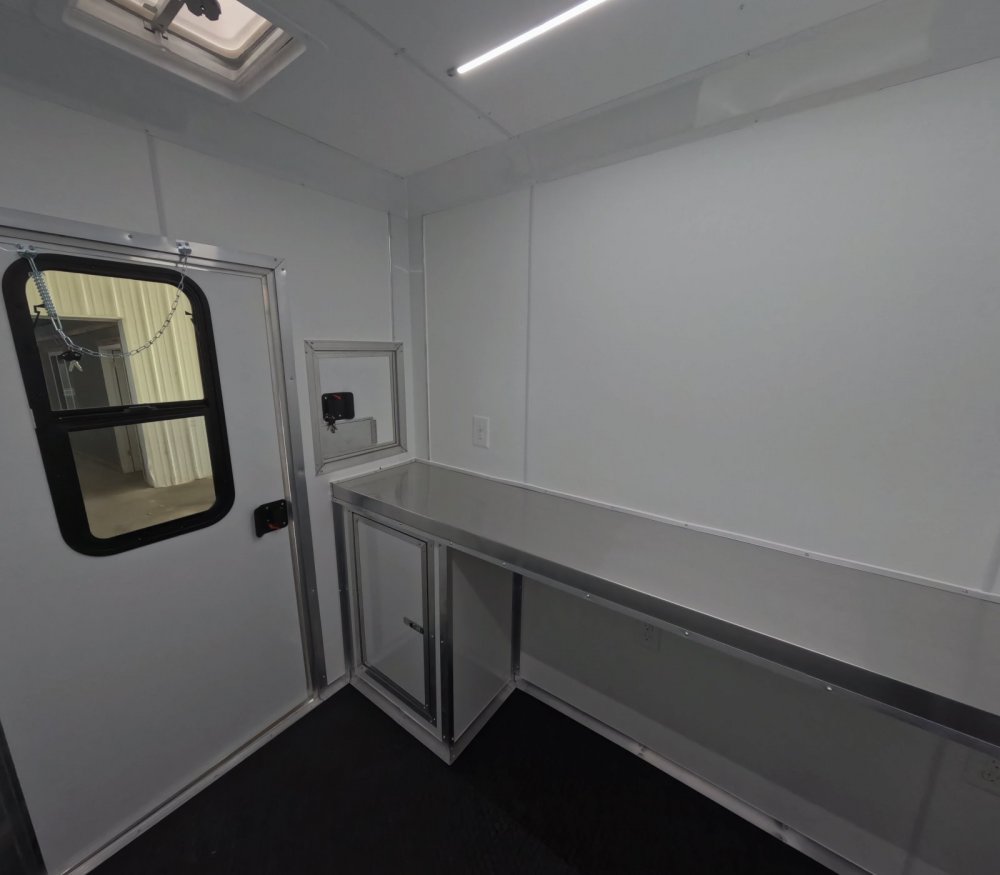

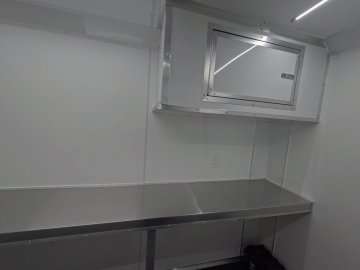

10' x 18" mill finish countertop (no lip, aluminum edge folded)

2' base cabinet on driver side wall

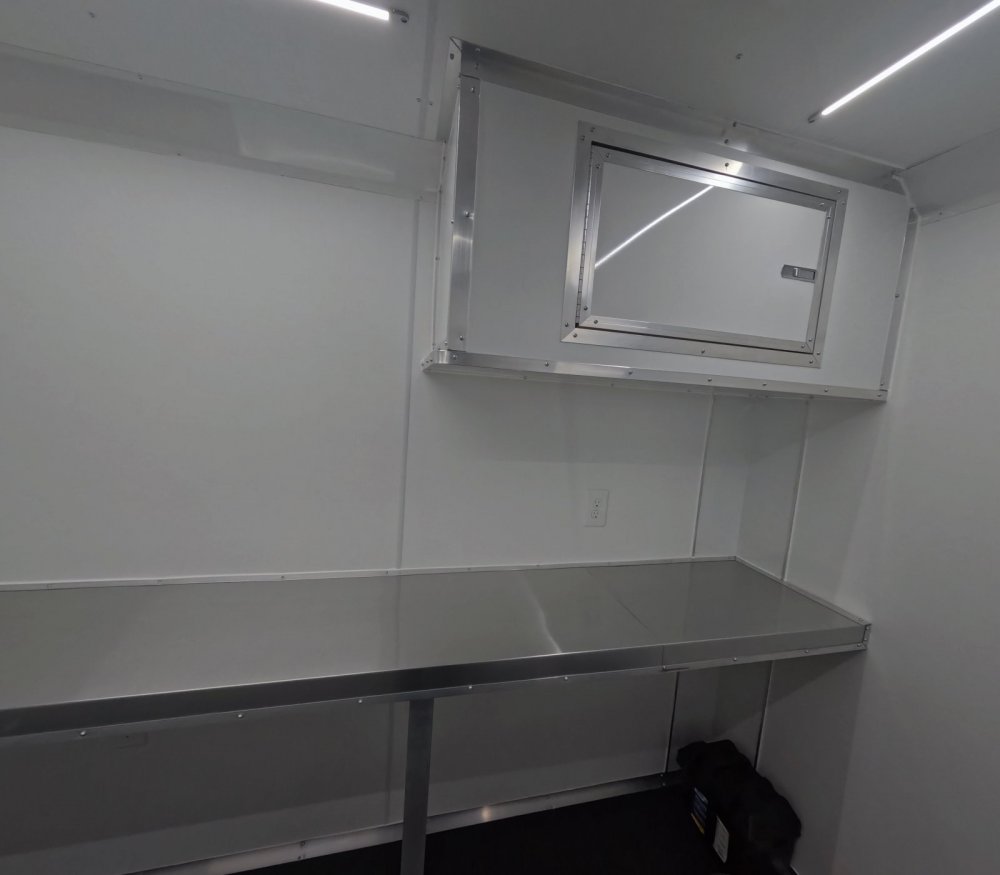

4' overhead cabinet

Tie-Downs & Stabilizers

Custom layout - see drawing

Tires & Wheels

15" Silver Mod wheels

Chrome center lug covers

Sand foot

Radial tires

Doors, Ramps & Windows

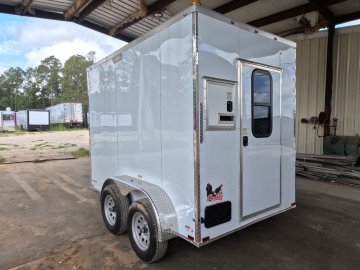

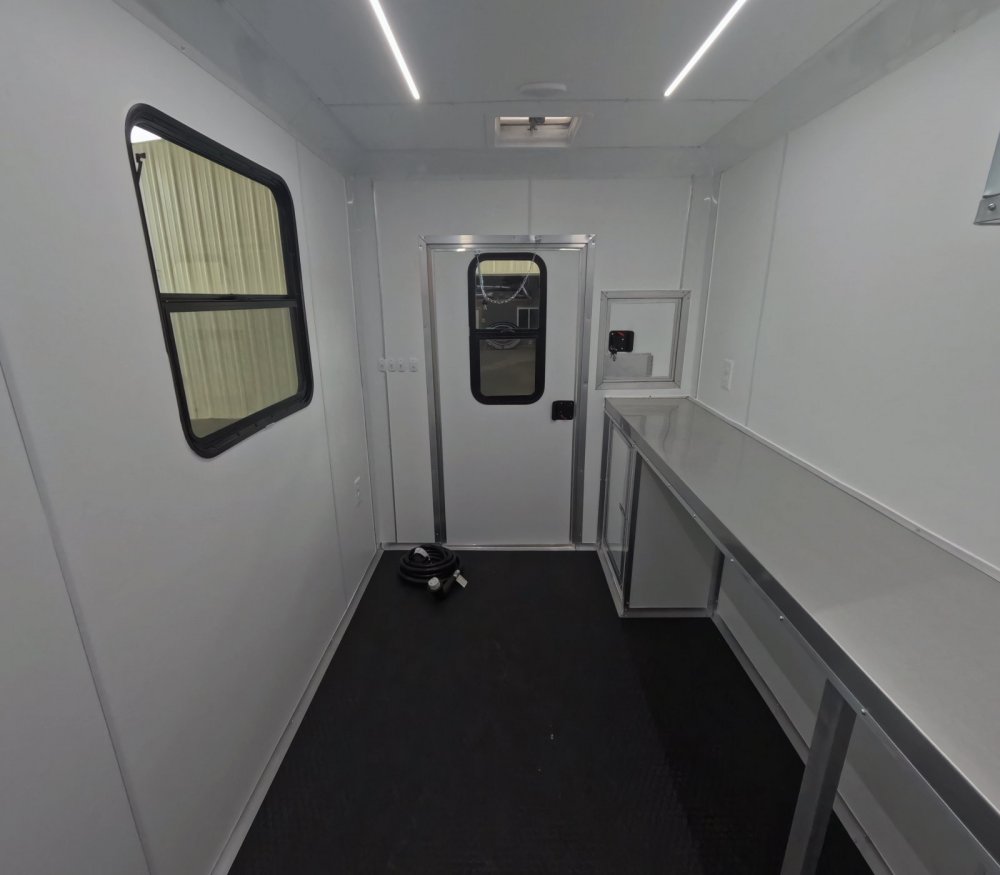

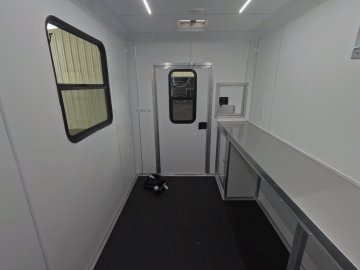

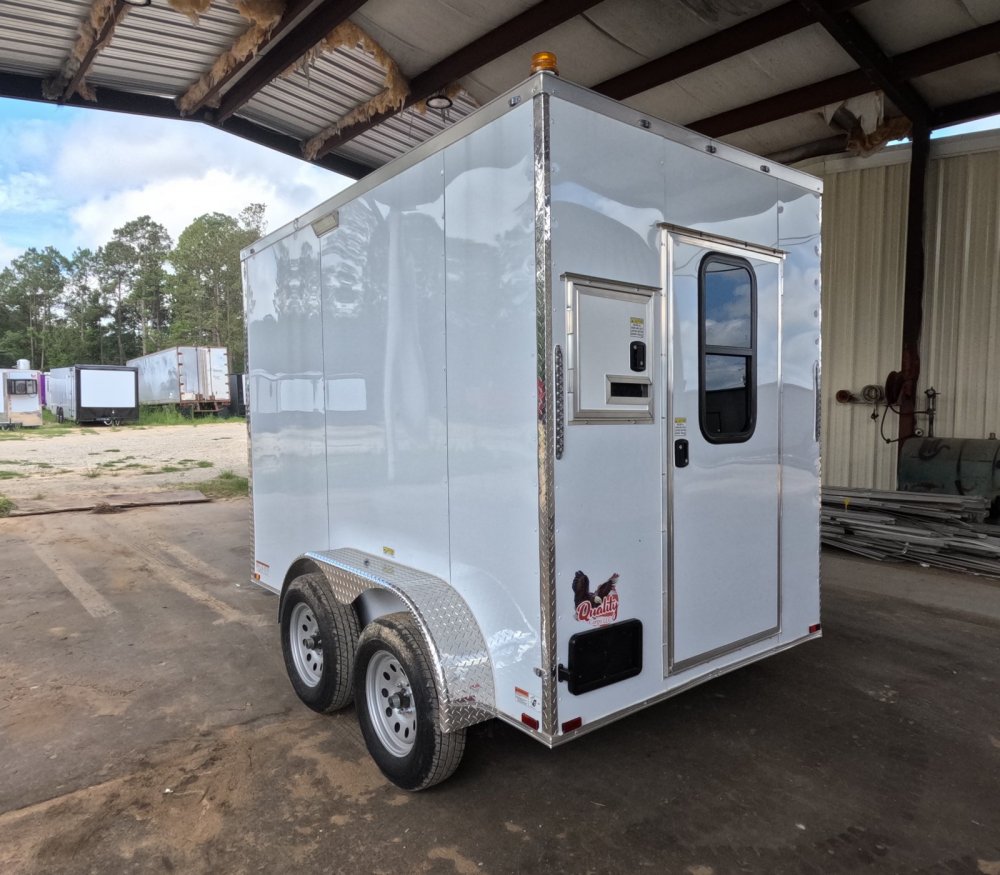

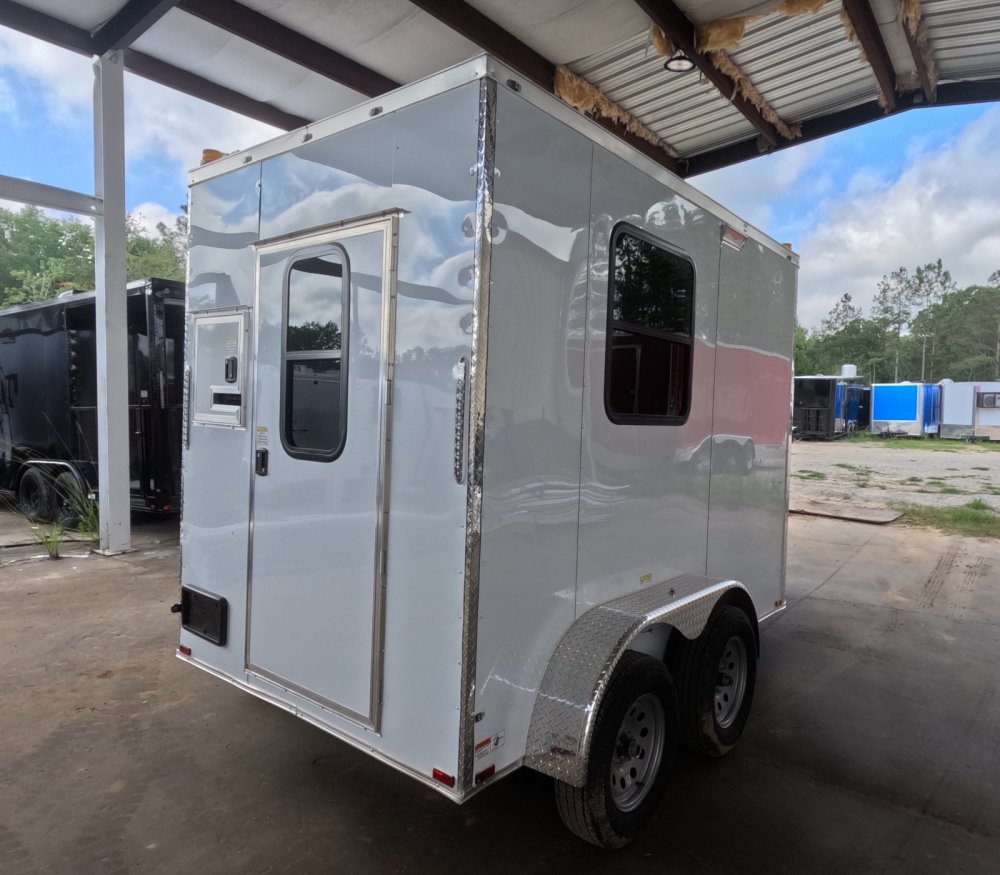

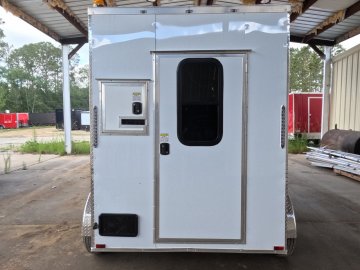

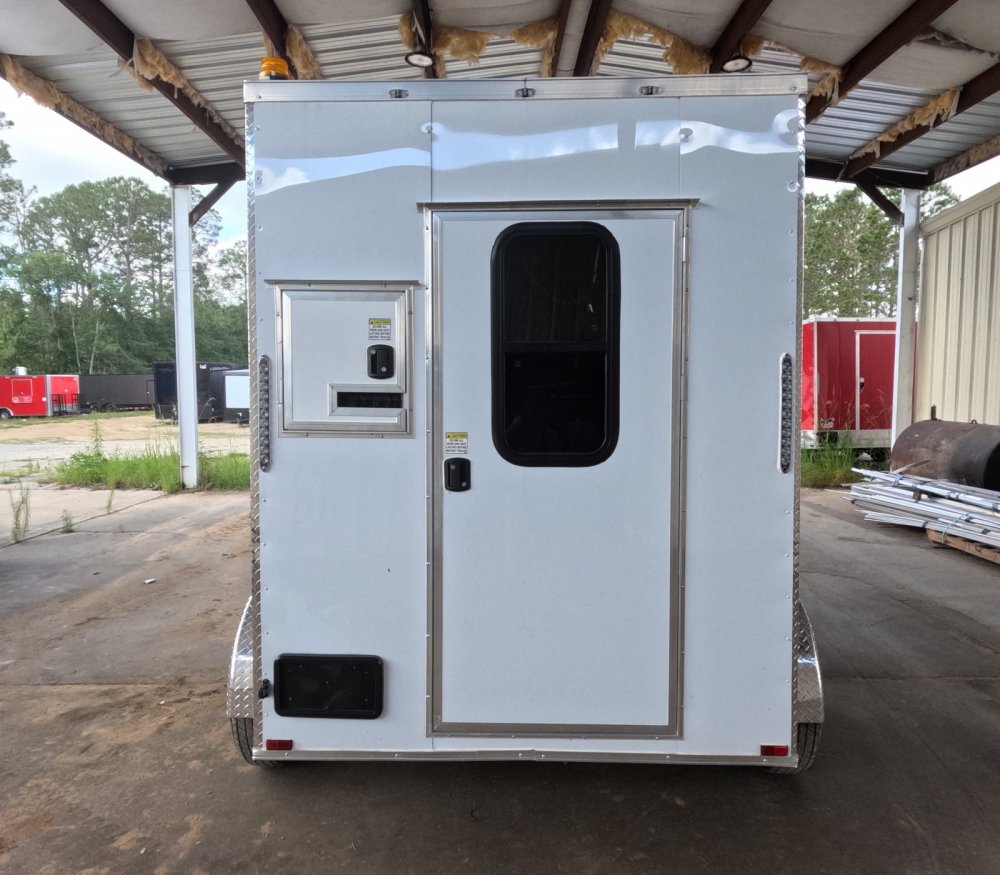

32" RV door with 15x30 vertical window and barlock (passenger side)

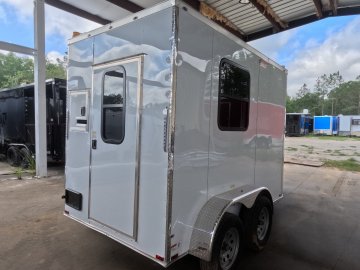

(1) 16" x 18" splicing door with brushes

(1) 30" x 30" window, placed 30" from rear

Vents & A/C

(1) Roof vent with Maxxair cover

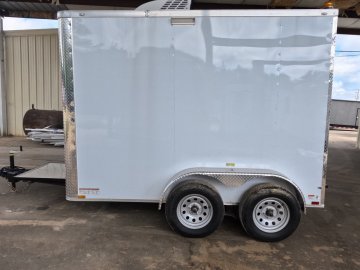

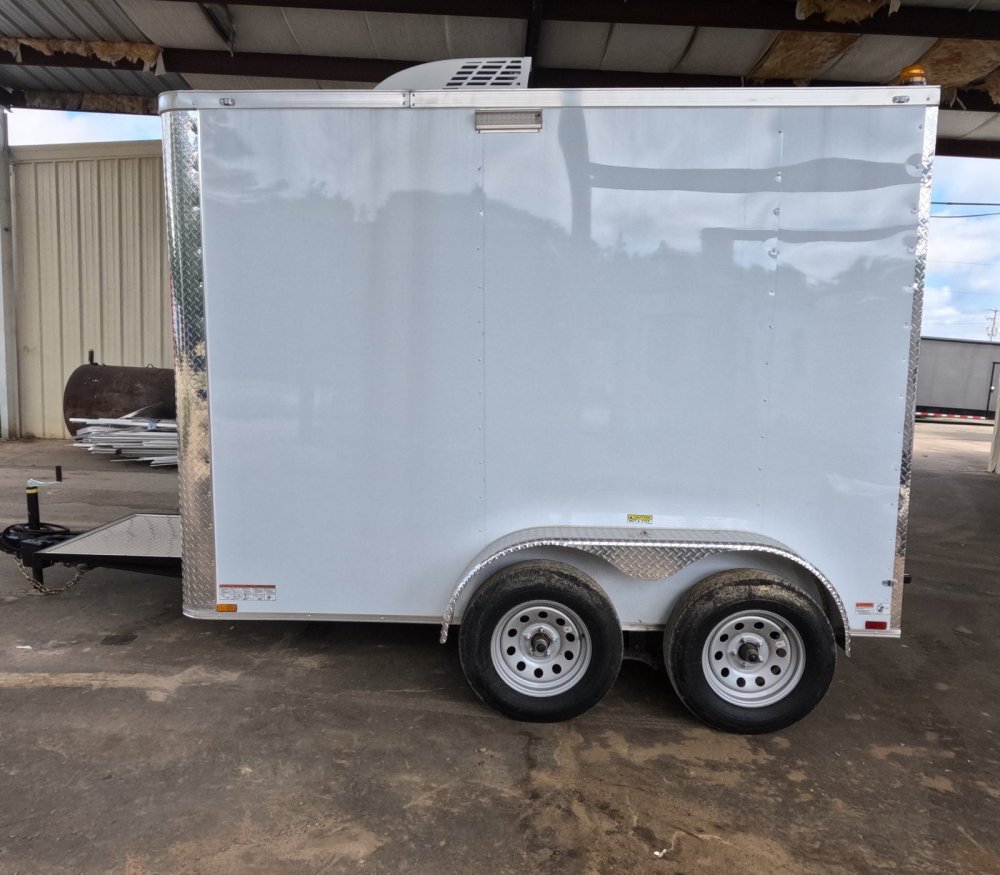

Air conditioning unit

Electrical System

(2) Dome lights

50 Amp electrical package with 50 Amp motorbase

12V battery with Powermax converter/charger

(3) Extra receptacles:

(2) under countertop (evenly spaced)

(1) between base and overhead cabinet

(1) Extra 12V, 4' LED strip light

(2) Amber roof-mounted strobe lights

(2) 10" race lights
