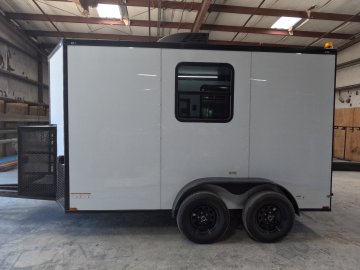

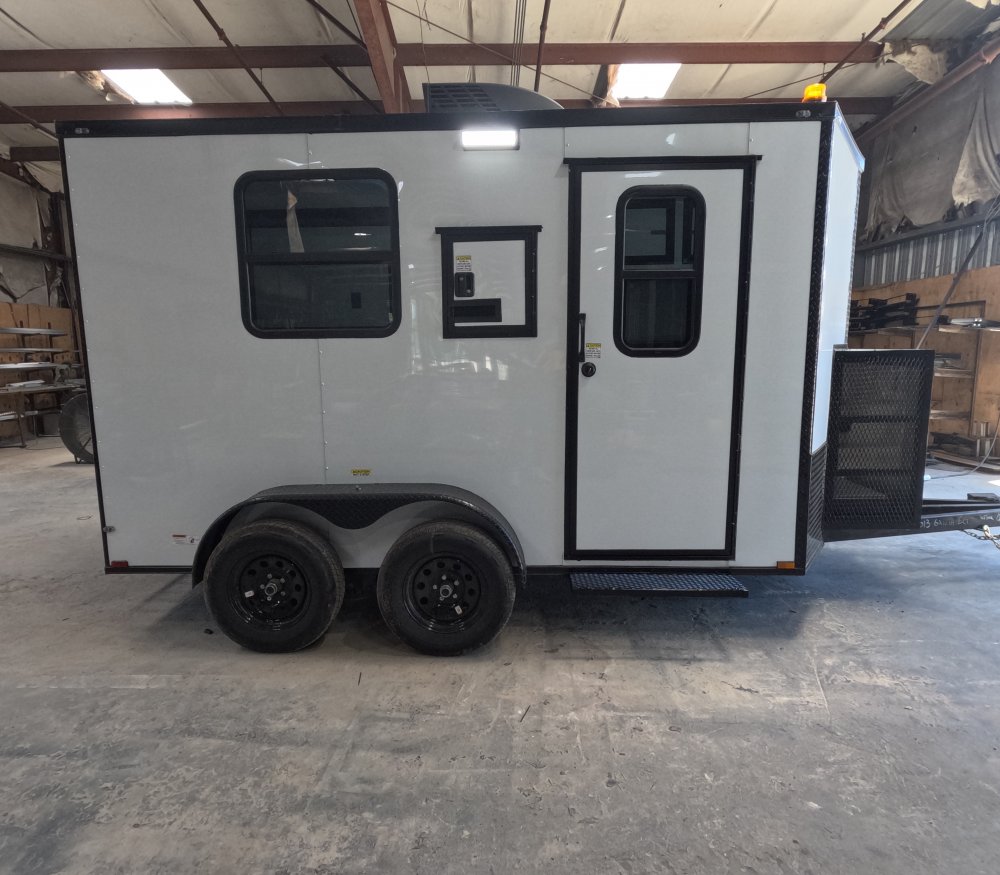

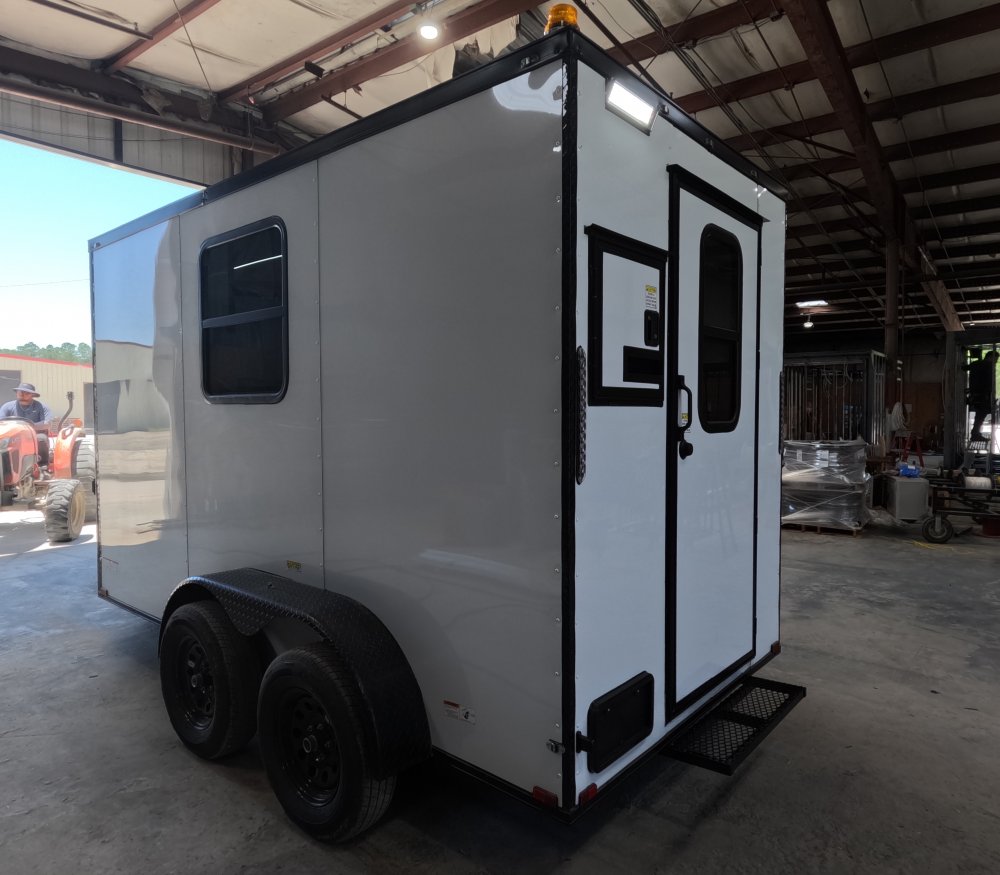

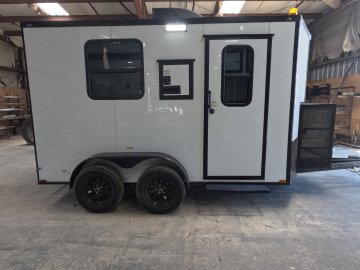

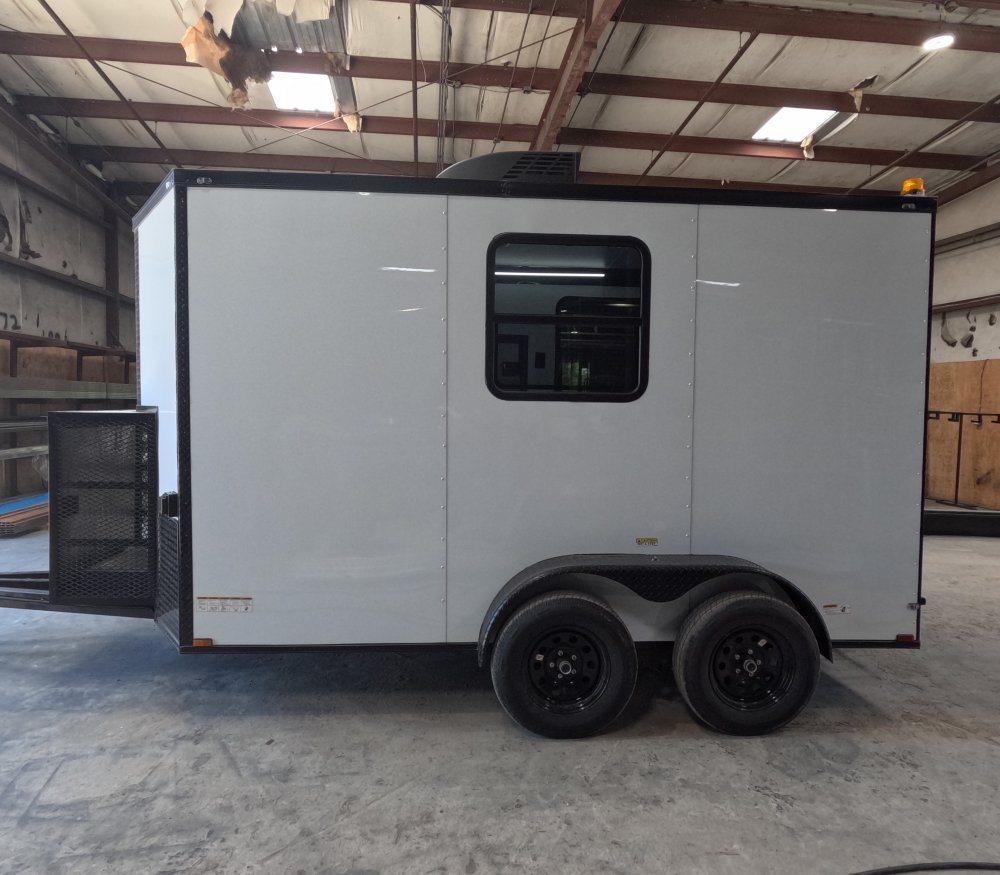

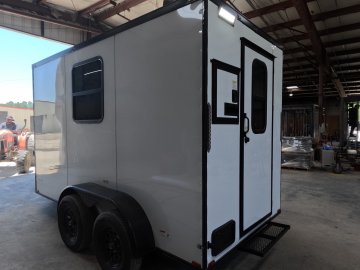

6'x12' Quality Cargo Fiber Optic Splicing Trailer Fiber Splicing Trailer



Standard Specifications:

• Tires: 15"
• Wheels: Silver Mod
• 32" RV style side door with flush lock
• V-Nose with vertical ATP trim
• Double rear door w/bar lock or ramp
• Tandem 3500 lb Spring axles with drop and EZ Lube Hubs
• 24" Stoneguard on front
• Exterior: 4 White metal
• 2" coupler
• Aluminum Fender w/Lights
• Floor: 3/4" plywood floor/painted underneath
• Sidewalls: Premium 3/8" plywood
• Frame: 1"x1" steel tube in walls and ceiling
• Interior Height: 75" (6'3")
• 2000 lb tongue jack
• Main Rails: 2x4" Steel Tube
• 12V Dome light with switch
• Non-powered roof vent or sidewall
• LED Strip tail lights
• Wall members: 16" O.C.
• Floor crossmembers: 16" O.C
• Roof members: 24" O.C.
• Screwed metal exterior
• Galvalume roof
• 4-way Bargman plug

Structure:

• Nose:
  • White Polycore
  • ATP Fenders
  • Extra Height
  • No Quality Cargo Stickers

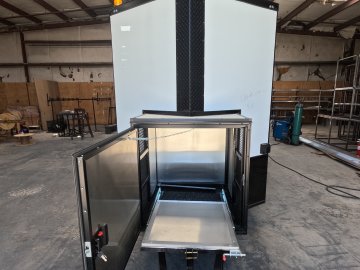

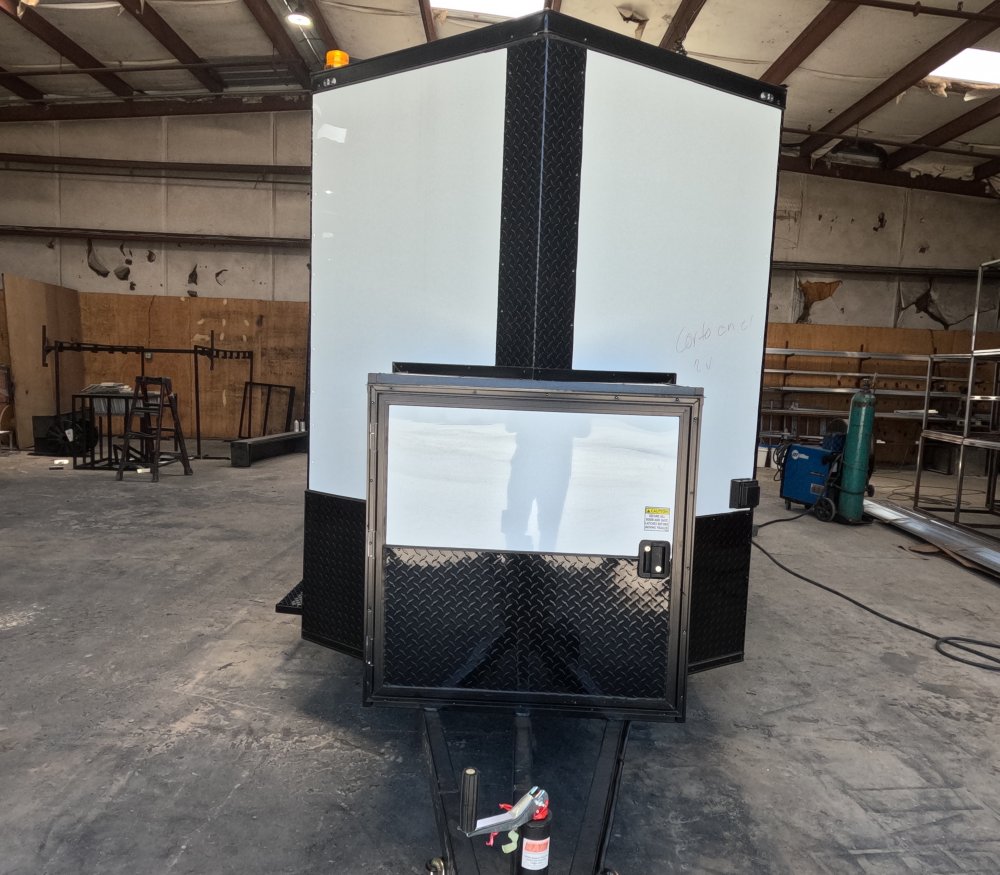

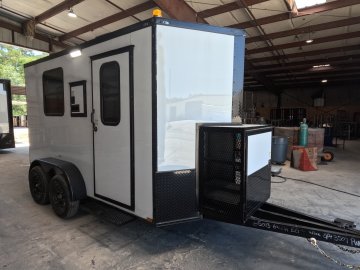

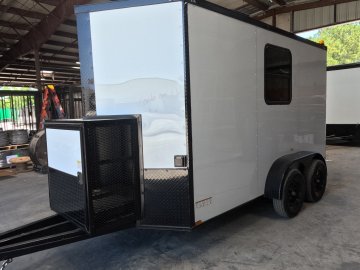

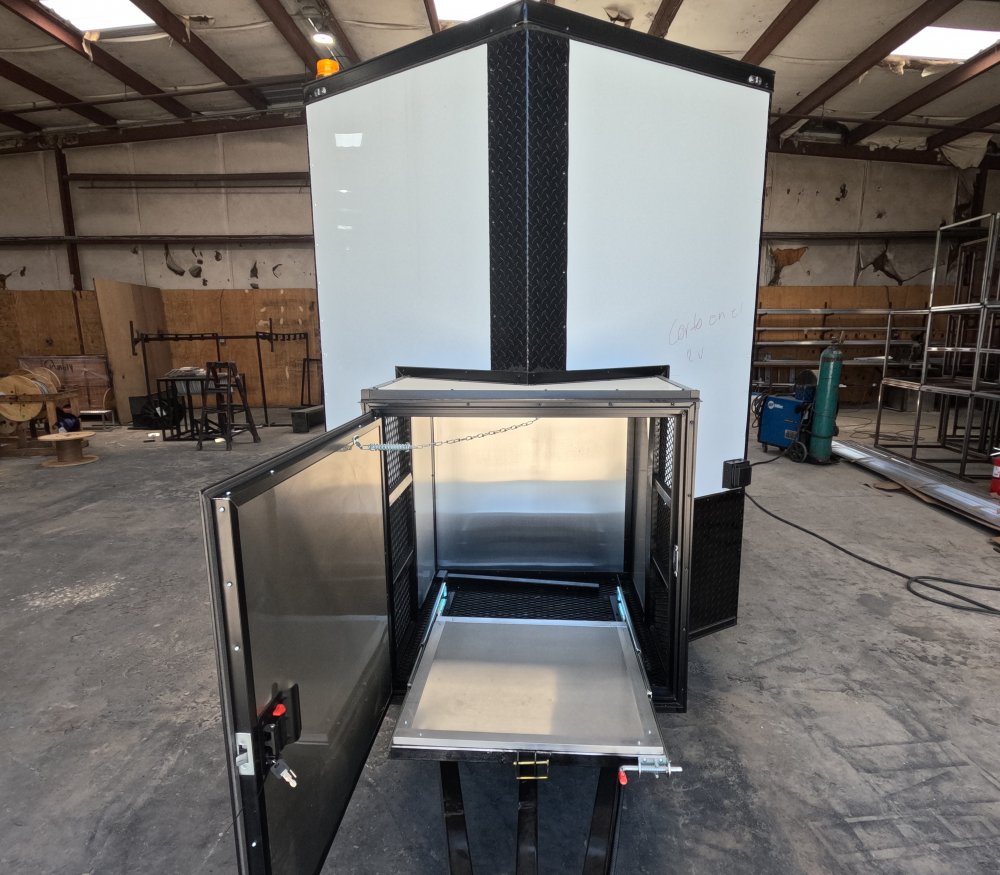

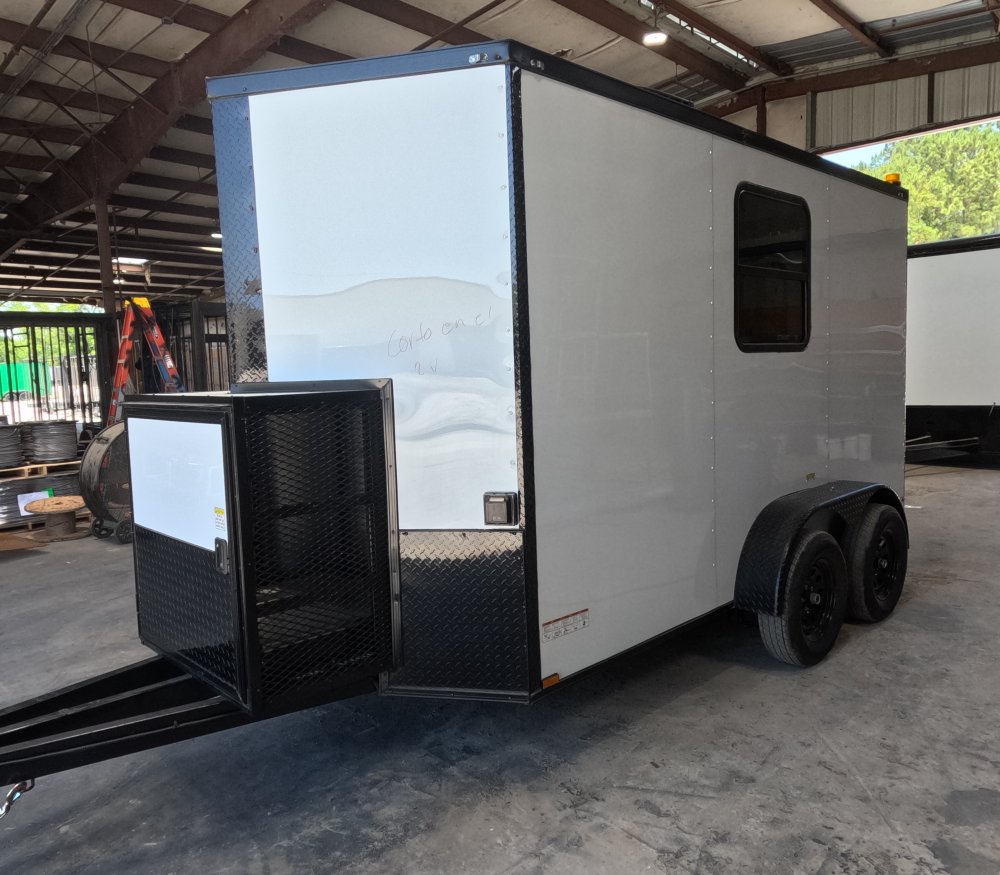

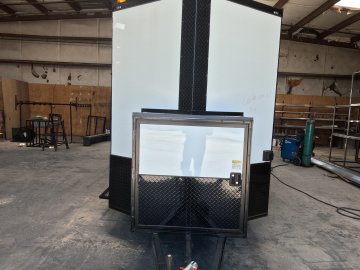

  • 36x36x36 Generator Box with Slide Out Half In and Half Out

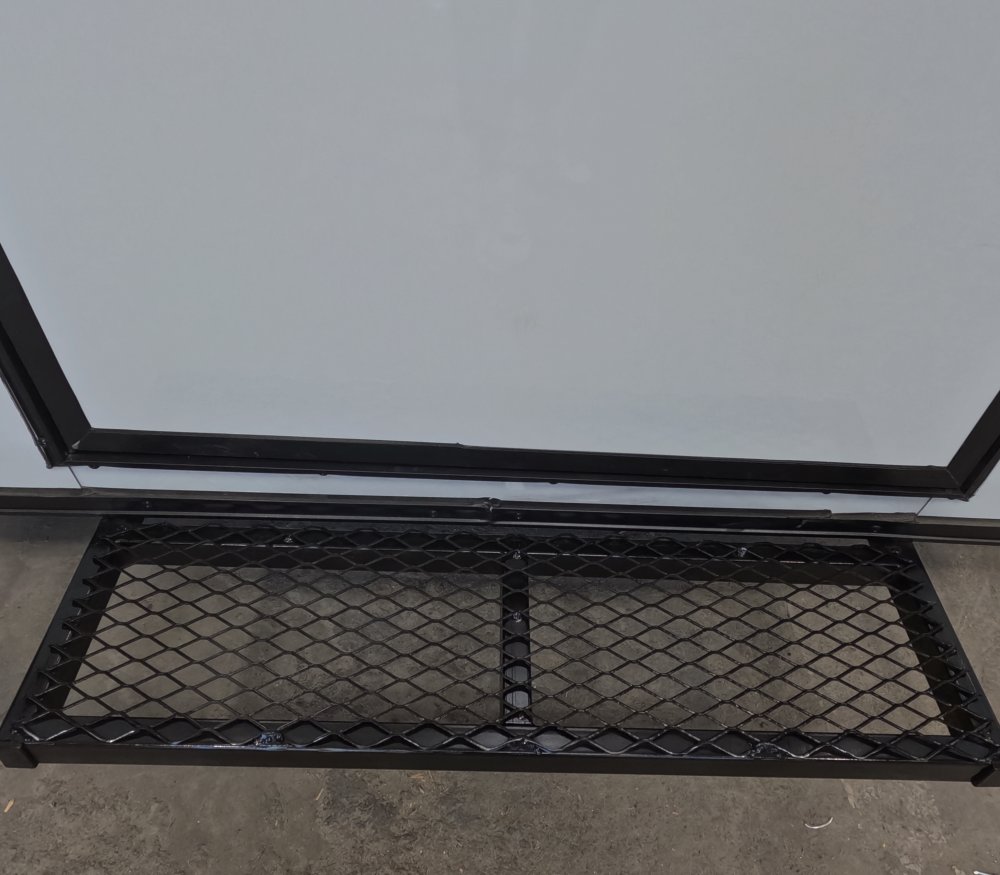

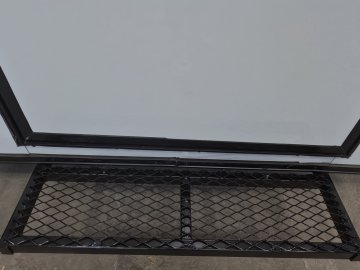

  • 32" long x 9" wide Deck/Step Right Under Each RV Door (x2)

Exterior:

• Blackout Package

Interior:

• Cool Shield Bubble Foil Insulated Walls
• Cool Shield Bubble Foil Insulated Ceiling
• White Vinyl Walls
• White Vinyl Ceiling
• Rubber Coin Flooring

Tie-downs & Stabilizers

Countertops:

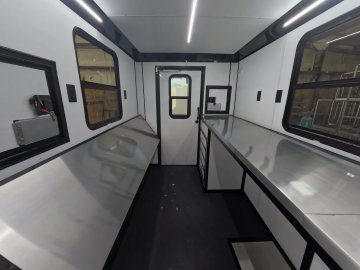

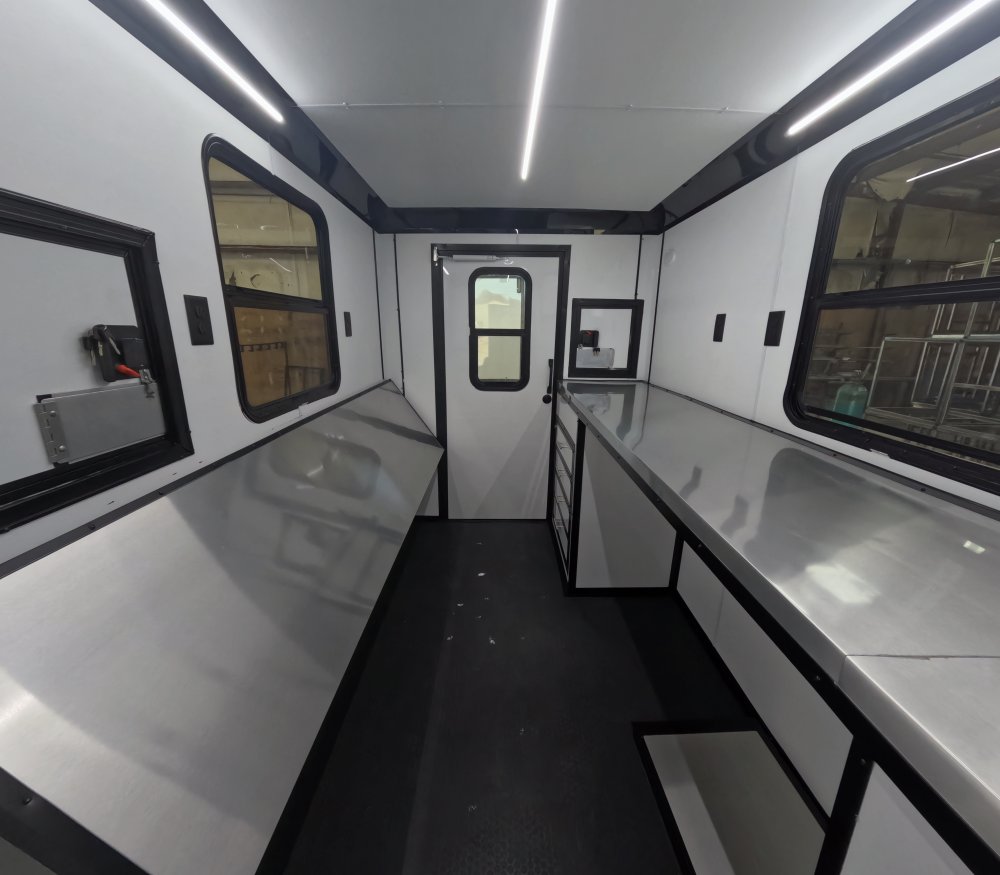

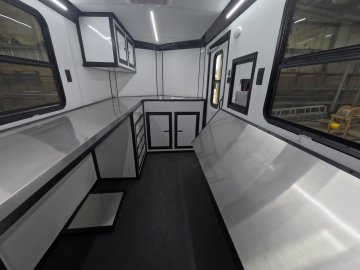

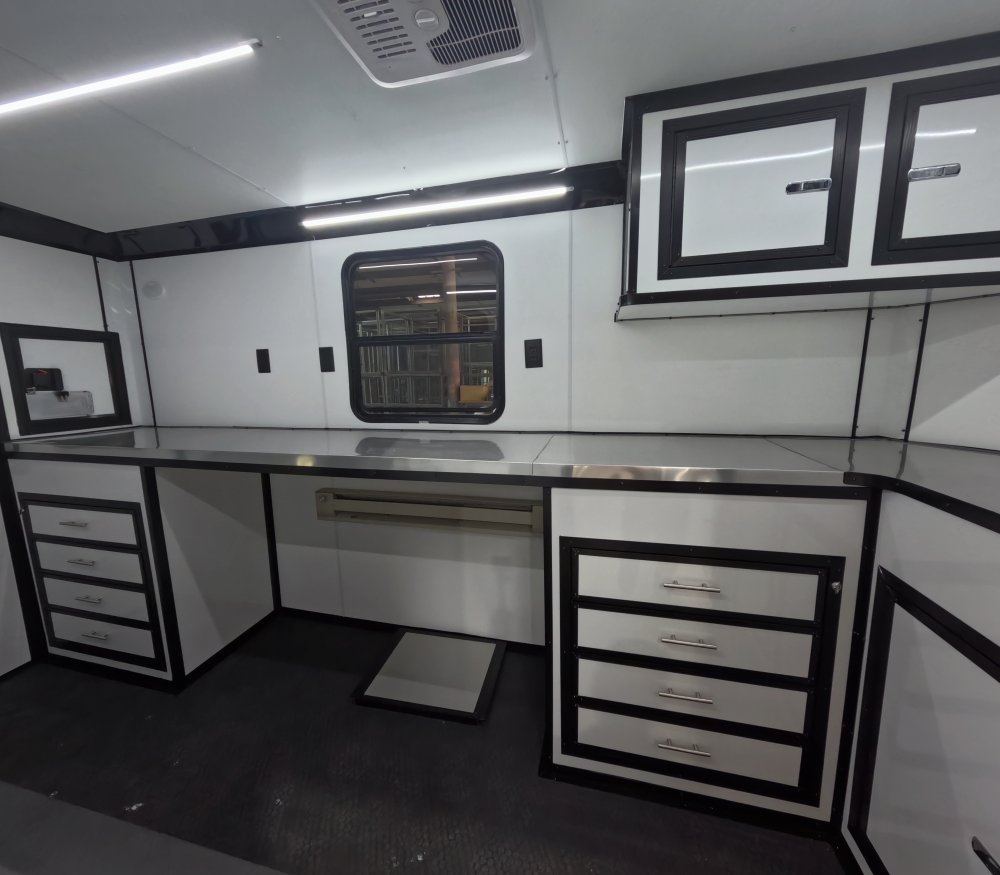

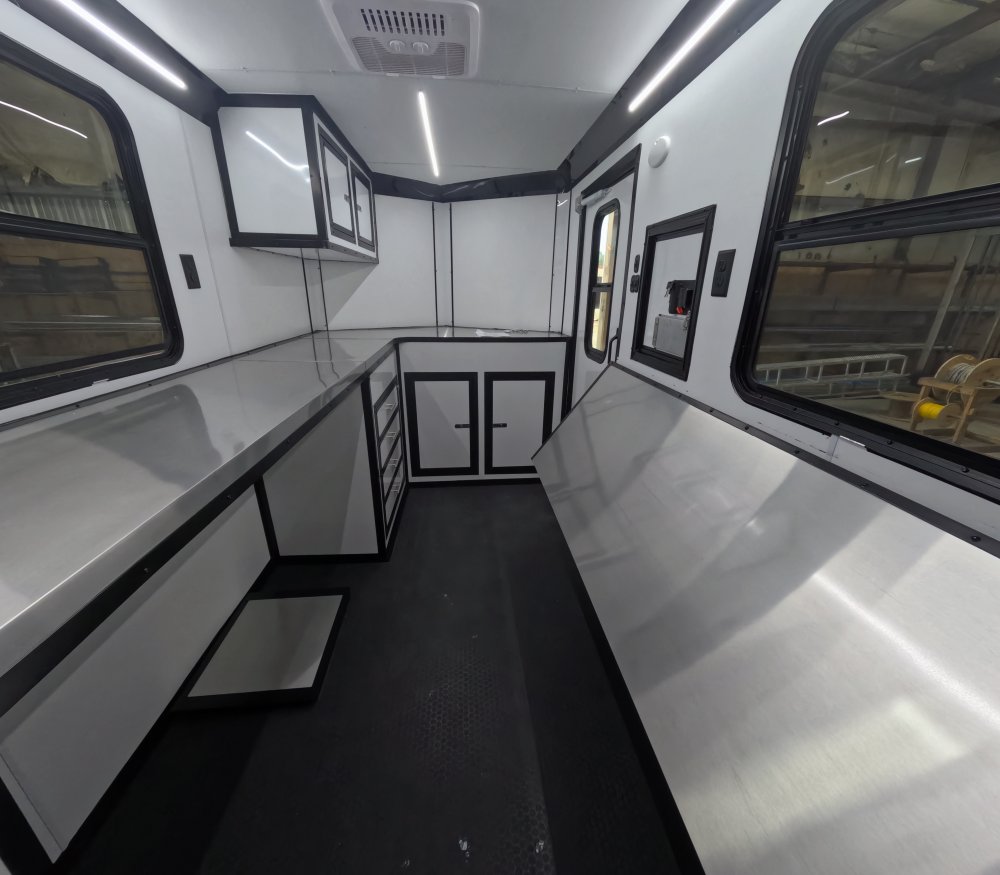

• Driver side 10' long x 24" wide x 42" AFF mill finish countertop (no lip on edges-fold aluminum over edge)
• Passenger side fold down from door to rear or about 6' long x 24" wide x 42" AFF mill finish countertop (no lip on edges-fold aluminum over edges)

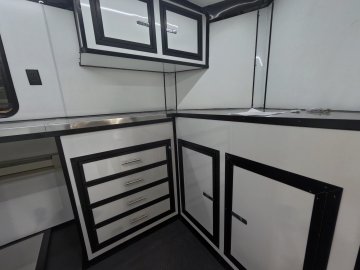

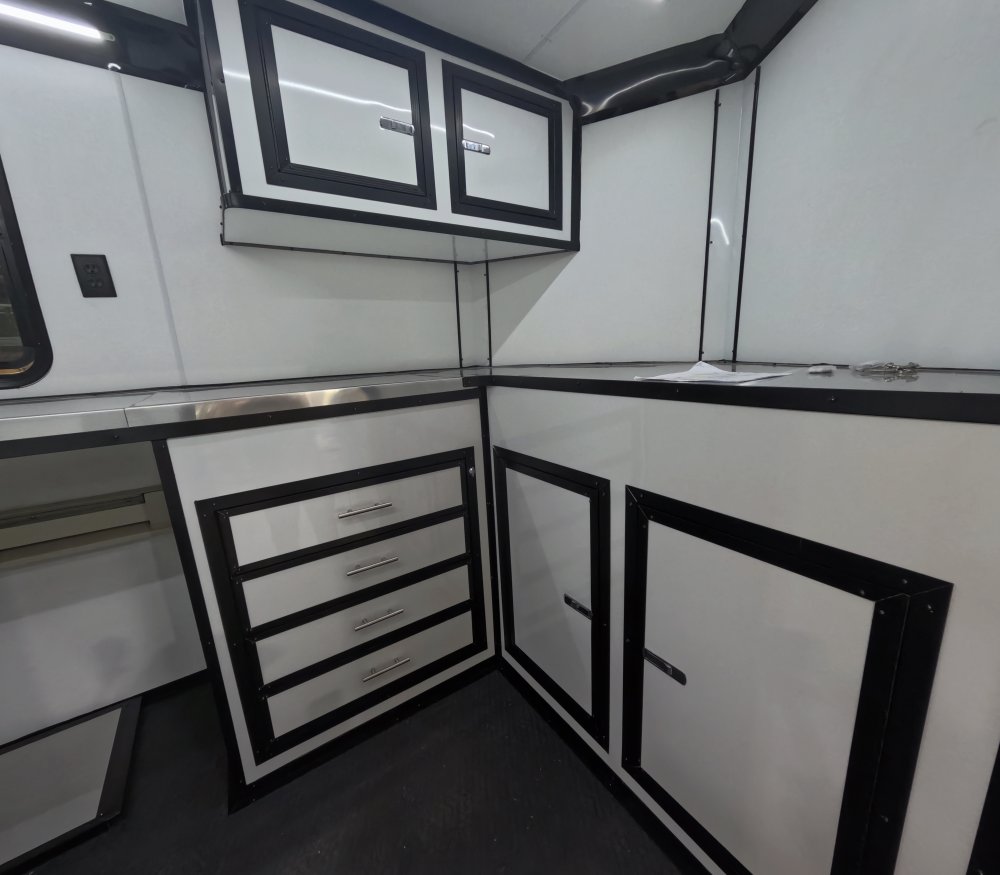

• Drawers underneath driver side countertop and place towards very front of trailer (x4)
• Over head 4 cabinet on driver side wall with 2 cabinet doors (x1)
• Drawers underneath driver side countertop and place towards very back of trailer (x4)
• Removable T top to fit in between the passenger side fold down and driver side counter top

Tires & Wheels

• Silver Mod
• Chrome Center Lug Covers
• Sand Foot
• Radials

Doors, Ramps, Windows

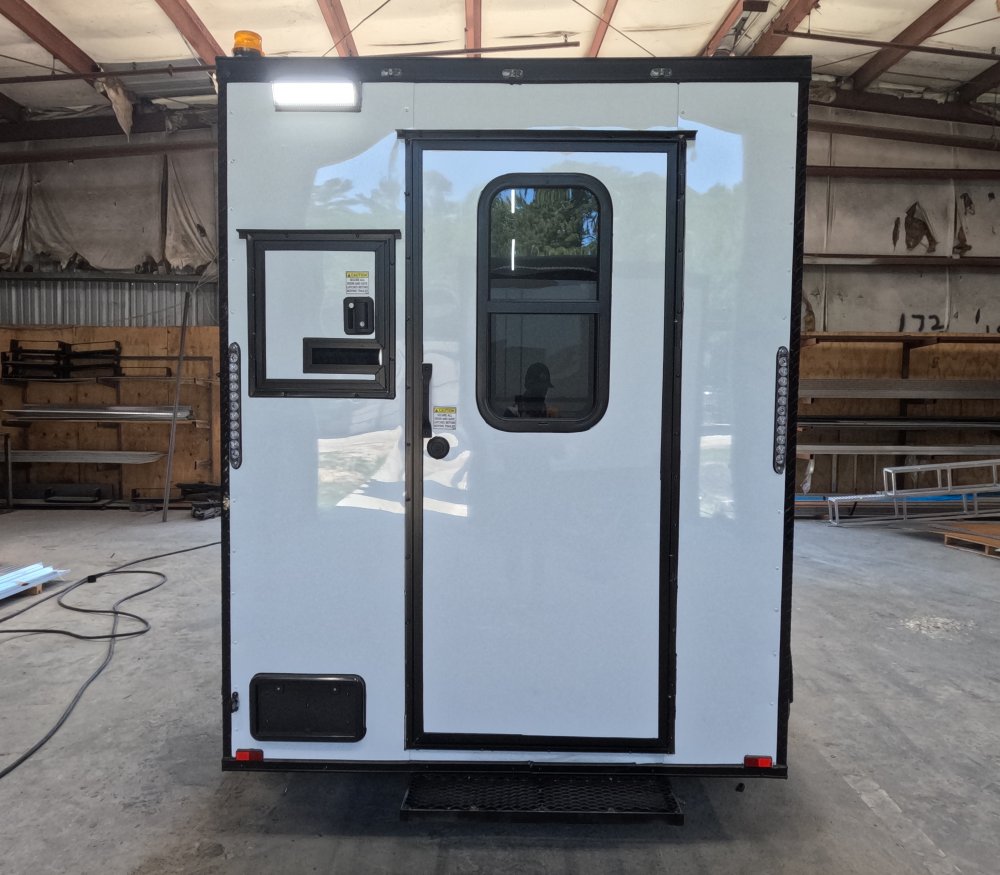

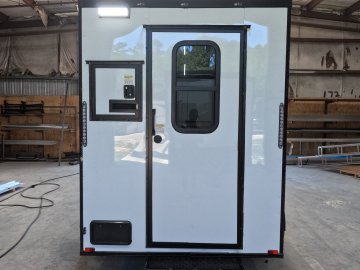

• (Custom Door System) 2-32"x75" high with 15x30 window; 1 center rear, 1 passenger side needs open right hand
• 16"x18" splicing doors w/brushes rear driver side (x2)
• 30x30 window (x2)
• RV Handles on both doors
• Automatic door closer

Electrical:

• Battery with convertor/charger
• 30A Electrical package
• 30A Motorbase plug

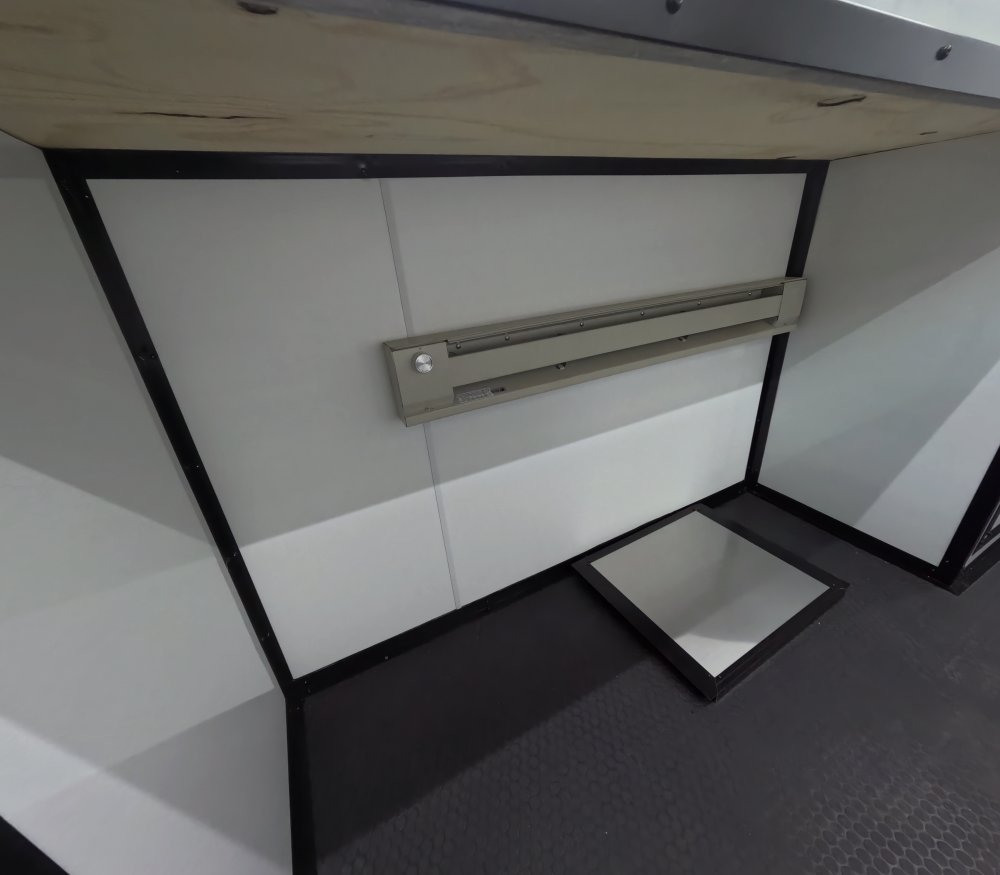

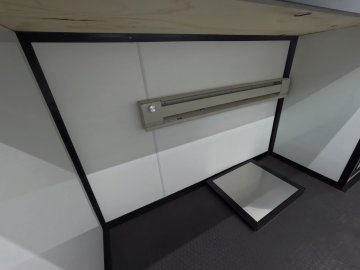

• Baseboard heater

Vents & A/C

• 13500 BTU w/ heat strip

Other Electrical:

• 5 Total Recepts
• 2 Strobe lights on top
• 2 Dome lights
• 2-10 Exterior LED
• 4-12V LED Strips (2 in center, 1 in corner above each table)
