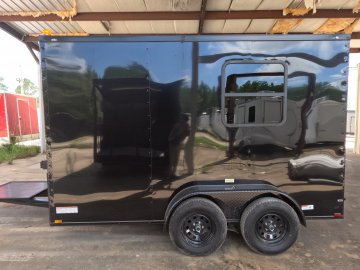

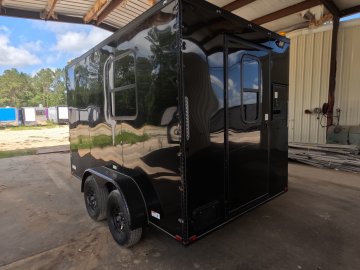

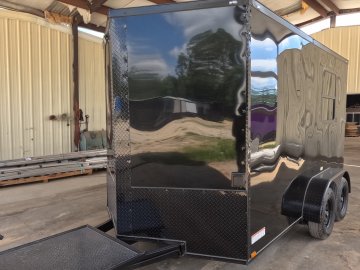

7'x10' Quality Cargo Fiber Optic Splicing Trailer Fiber Splicing Trailer




Standard Specifications

Exterior & Frame:

White metal exterior

V-Nose with vertical ATP trim

Double rear doors with bar lock or ramp

32" RV style side door with flush lock

24" Stoneguard on front

2" coupler

Aluminum fenders with lights

Screwed metal exterior

Galvalume roof

2x4" steel tube main rails

Structure & Build:

Tandem 3500-lb spring axles with 4" drop and EZ Lube hubs

75" (6'3") interior height

¾" plywood floor (painted underneath)

Premium 3/8" plywood sidewalls

1" x 1½" steel tubing in walls and ceiling

Wall members 16" O.C.

Floor crossmembers 16" O.C.

Roof members 24" O.C.

2000-lb tongue jack

Lighting & Electrical:

12V dome light with switch

LED strip tail lights

Non-powered roof vent or sidewall

7-way Bargman plug

Structure Upgrades

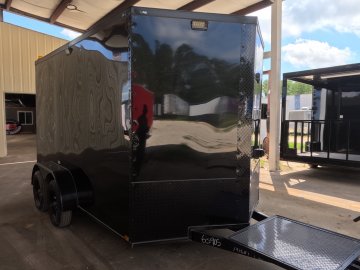

.080 Polycore black exterior

Blackout package

9" extra interior height

66" triple tube tongue

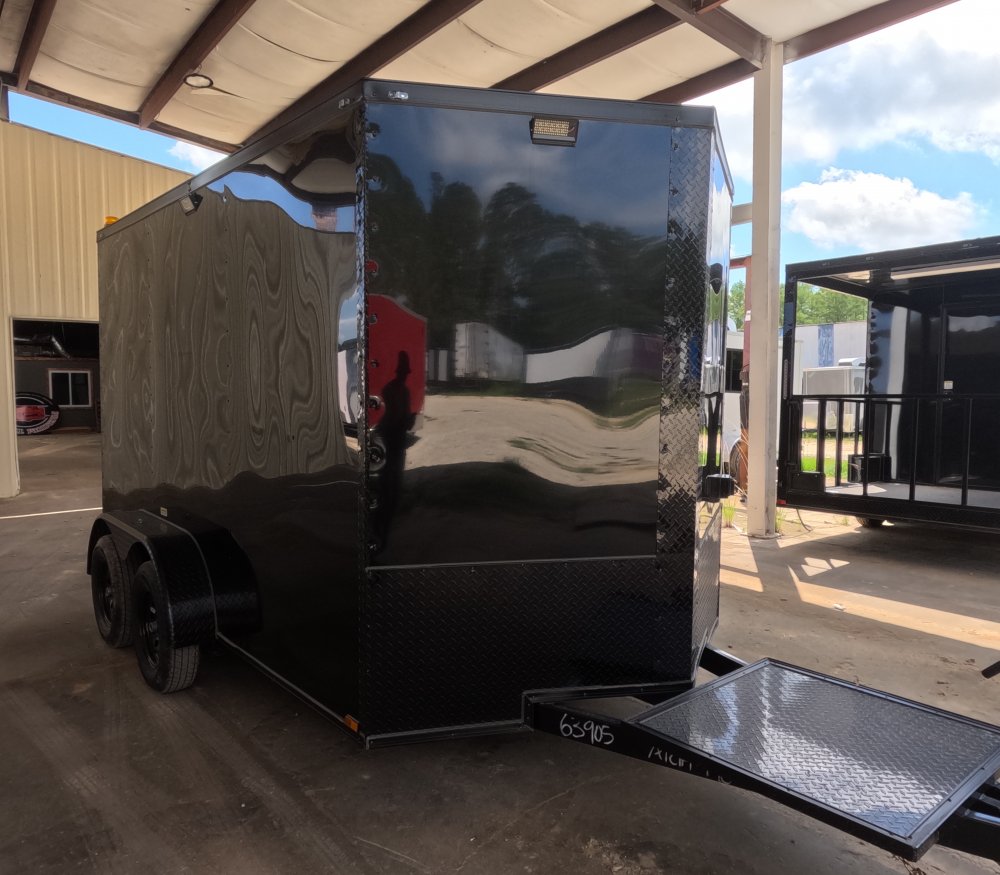

Generator platform on tongue

Interior Features

Insulated walls

Insulated ceiling

Silver frost walls

Silver frost ceiling

RTP flooring

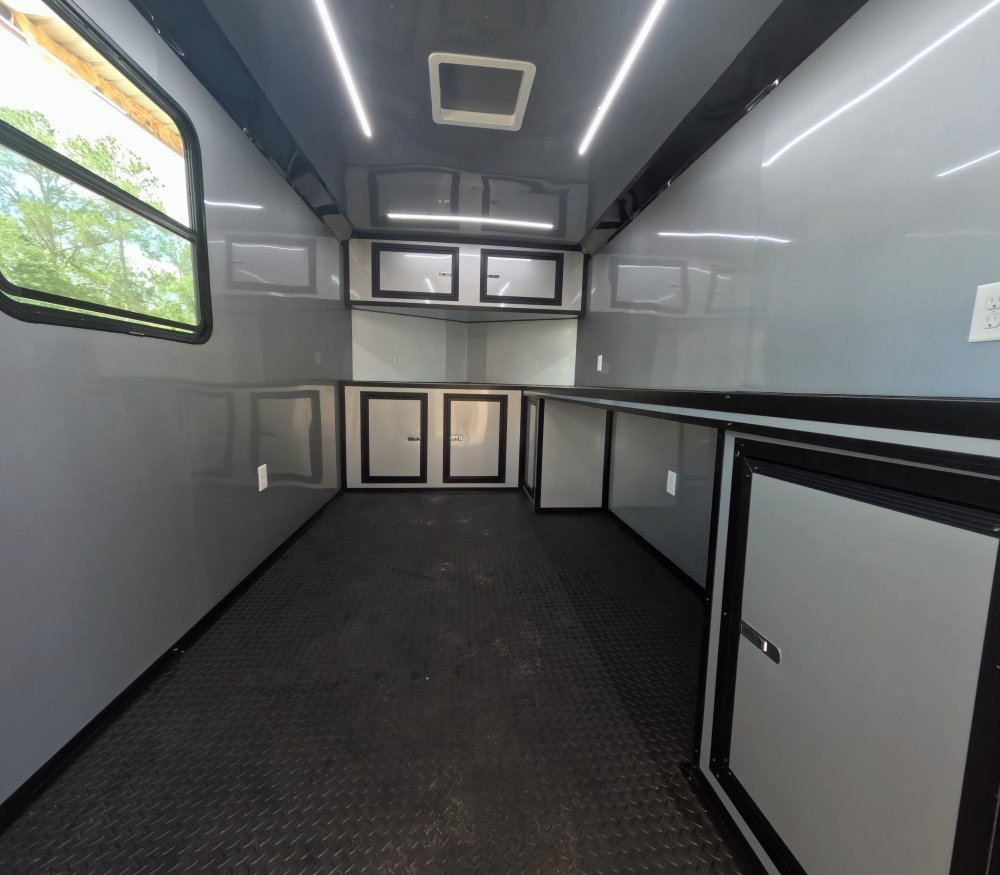

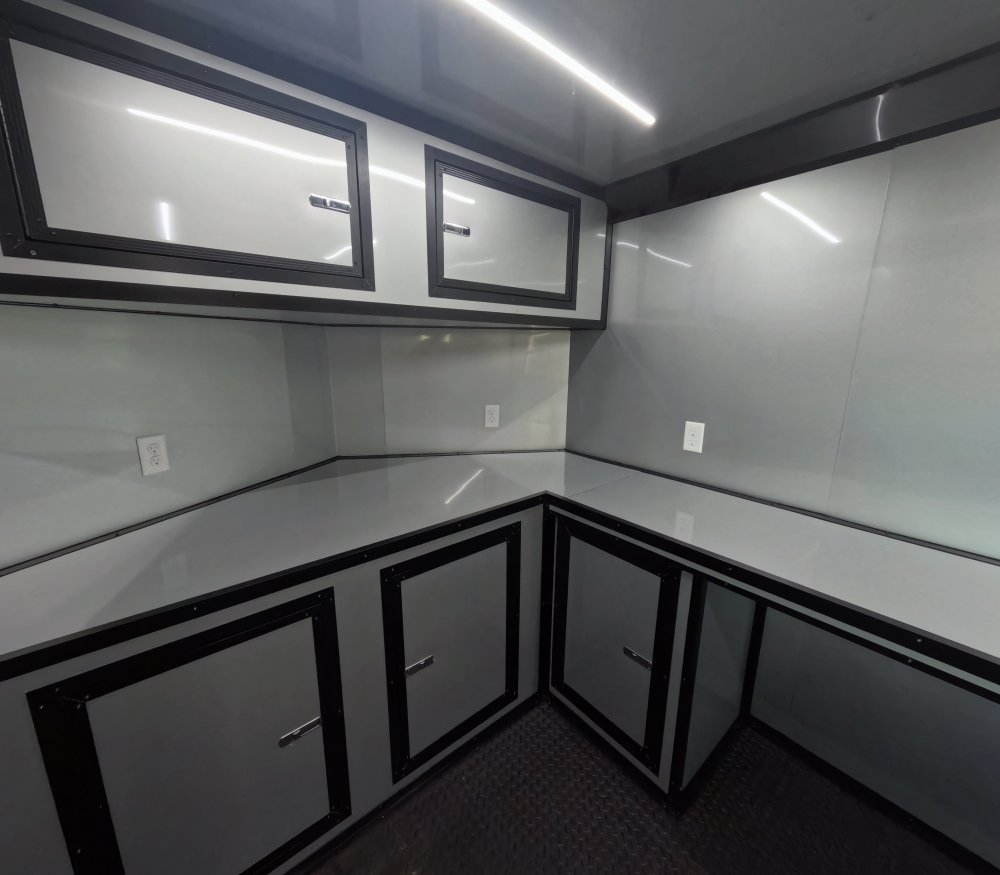

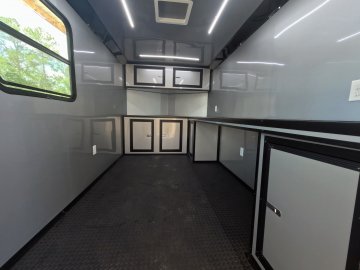

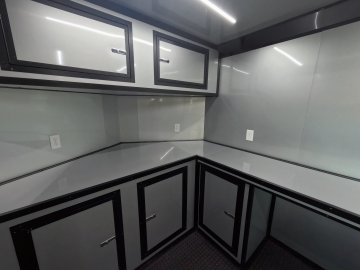

Overhead & base cabinets in V-nose

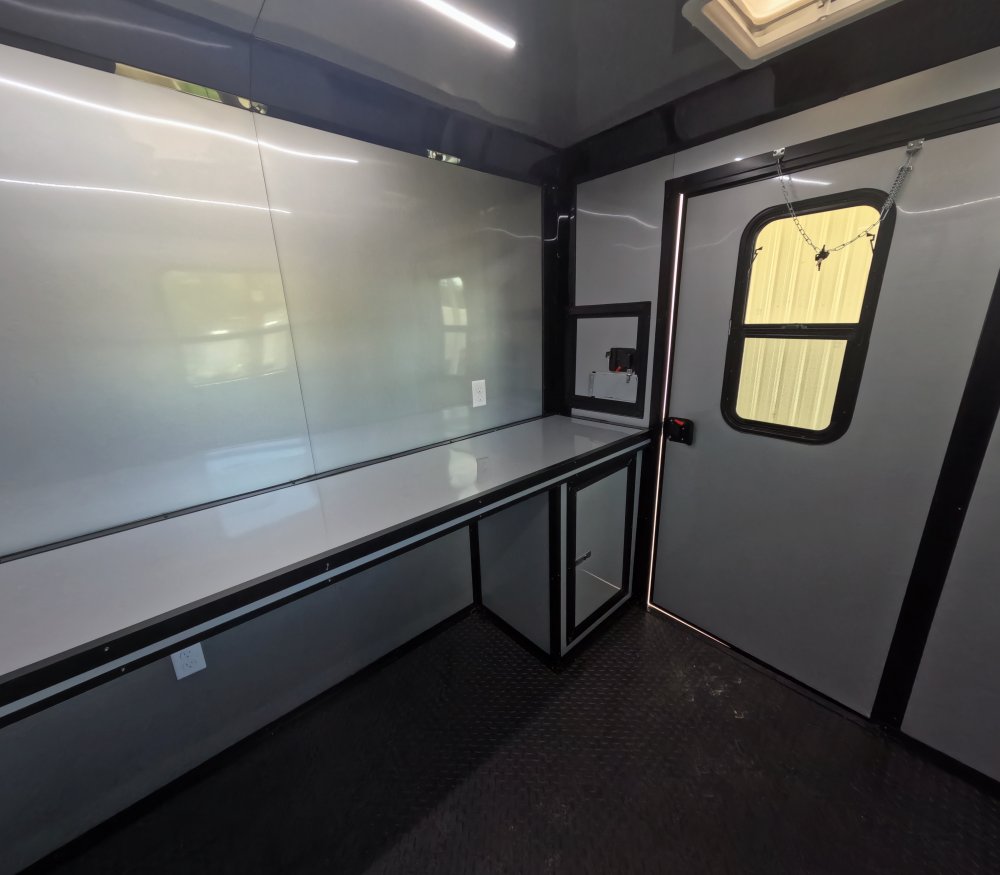

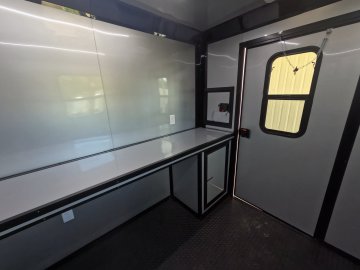

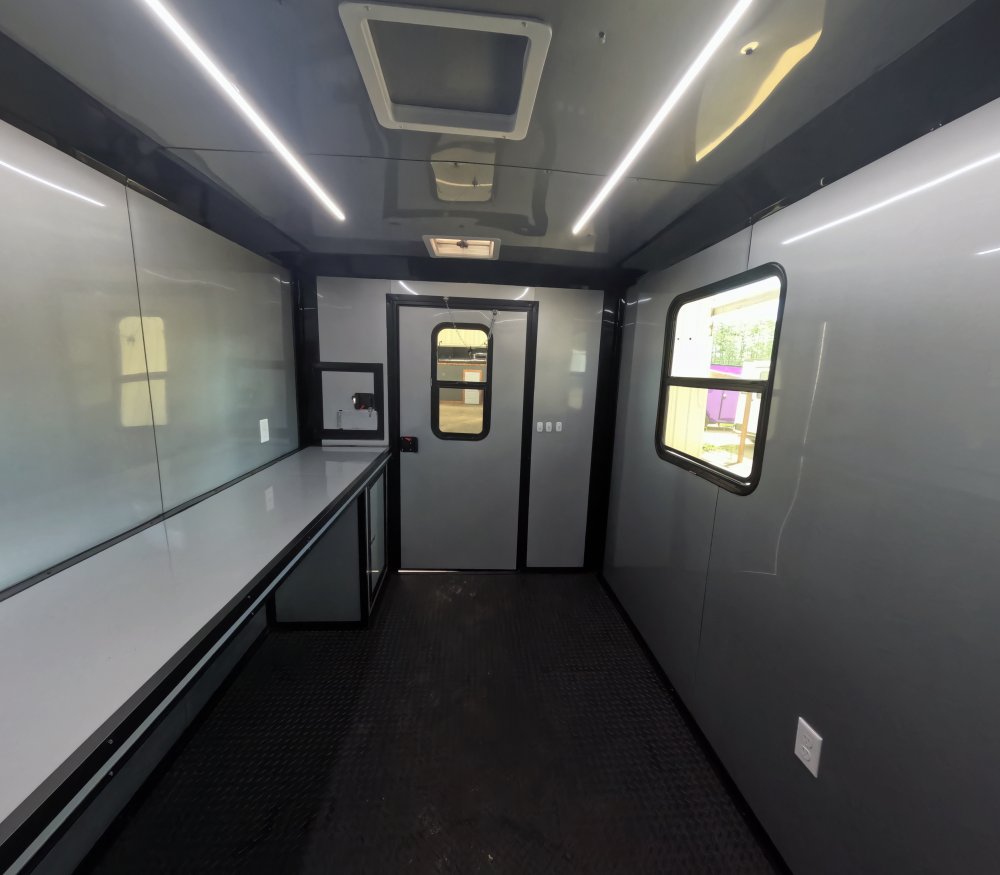

2' x 36" counter/workbench on passenger side (smooth edge, aluminum folded)

(2) 2' base cabinets (one on each side of workbench)

All black trim, including cabinets

Tires & Wheels

15" Silver Mod wheels

Chrome center lug covers

Sand foot

Doors, Ramps & Windows

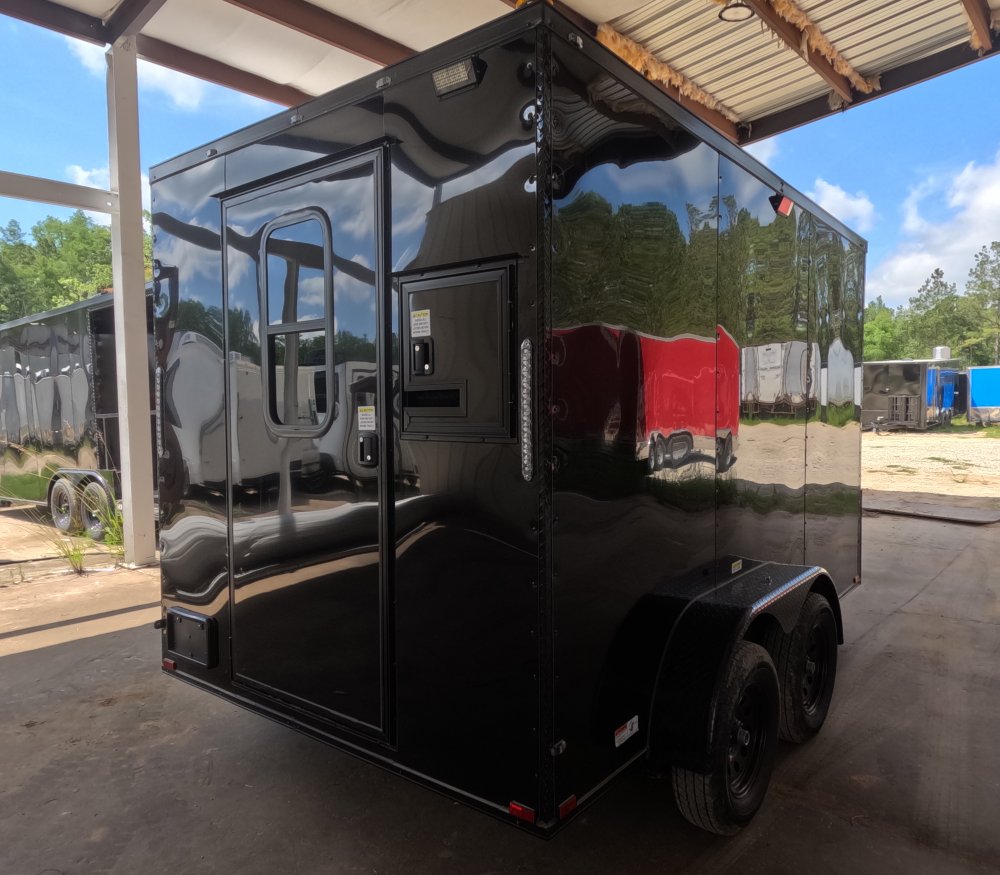

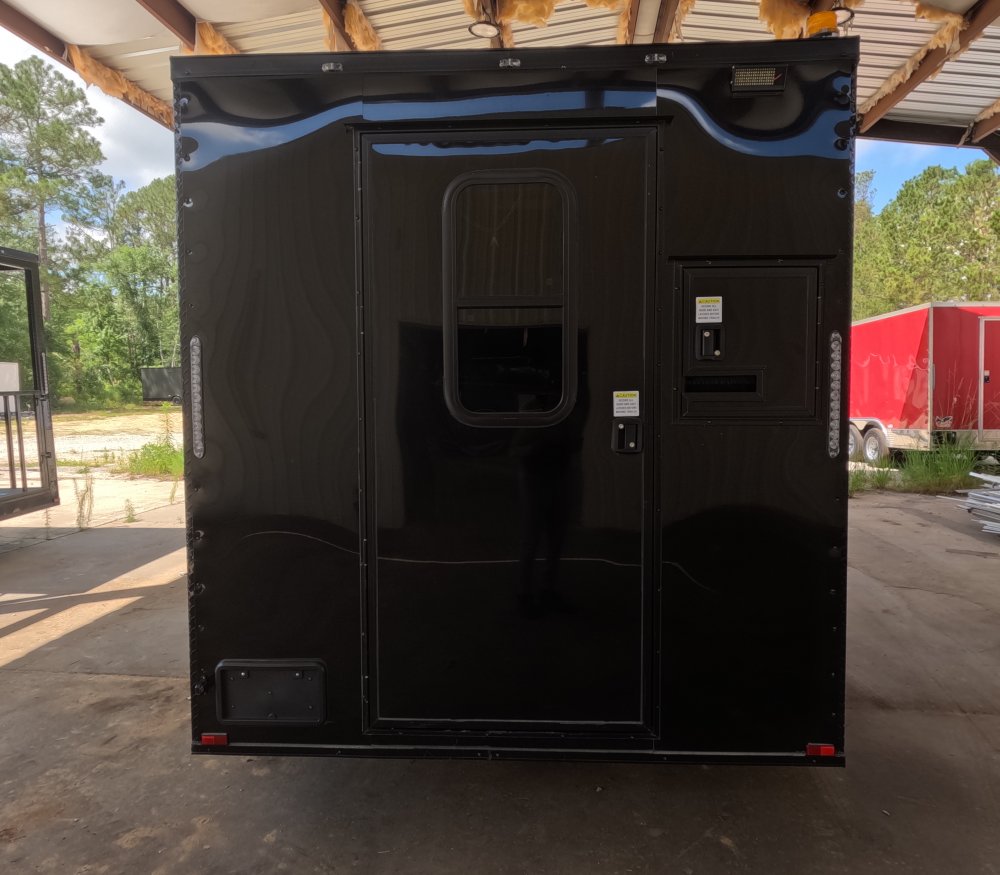

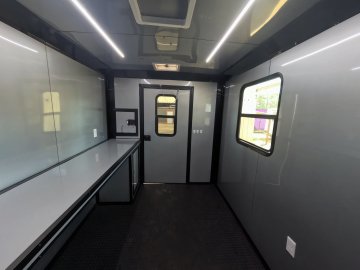

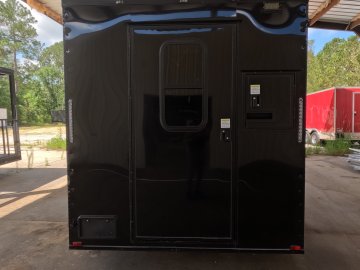

36" RV door in rear with 15" x 30" window

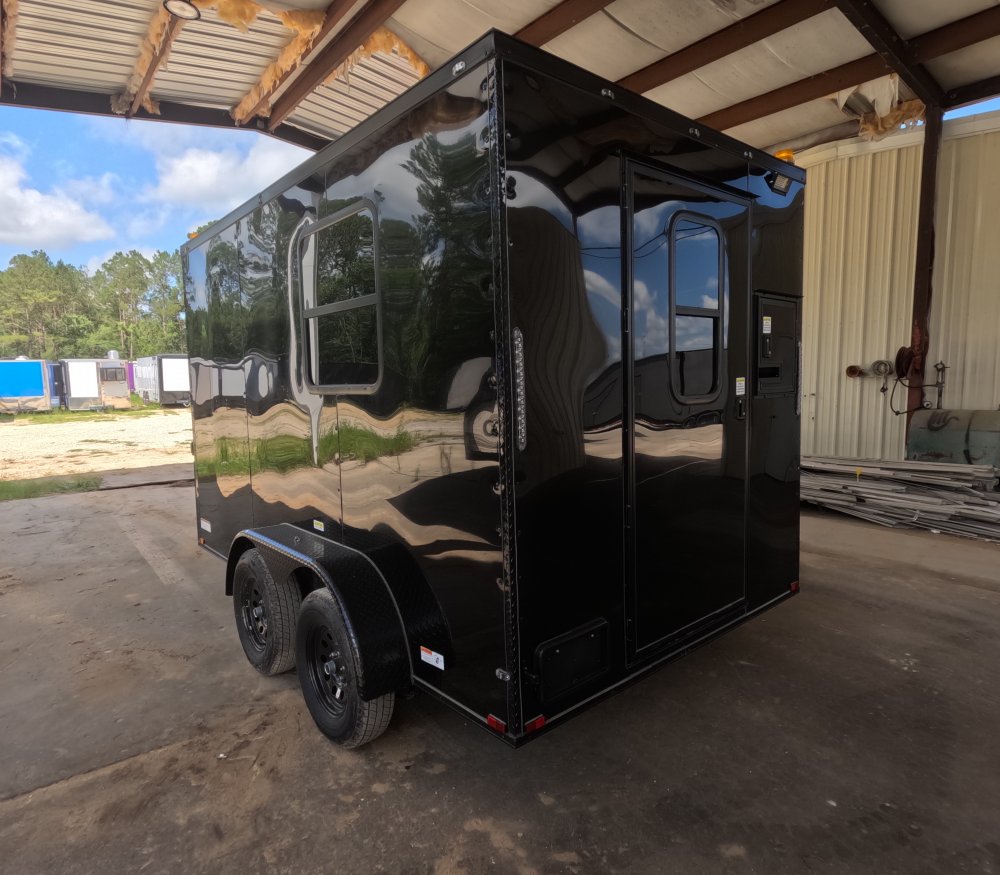

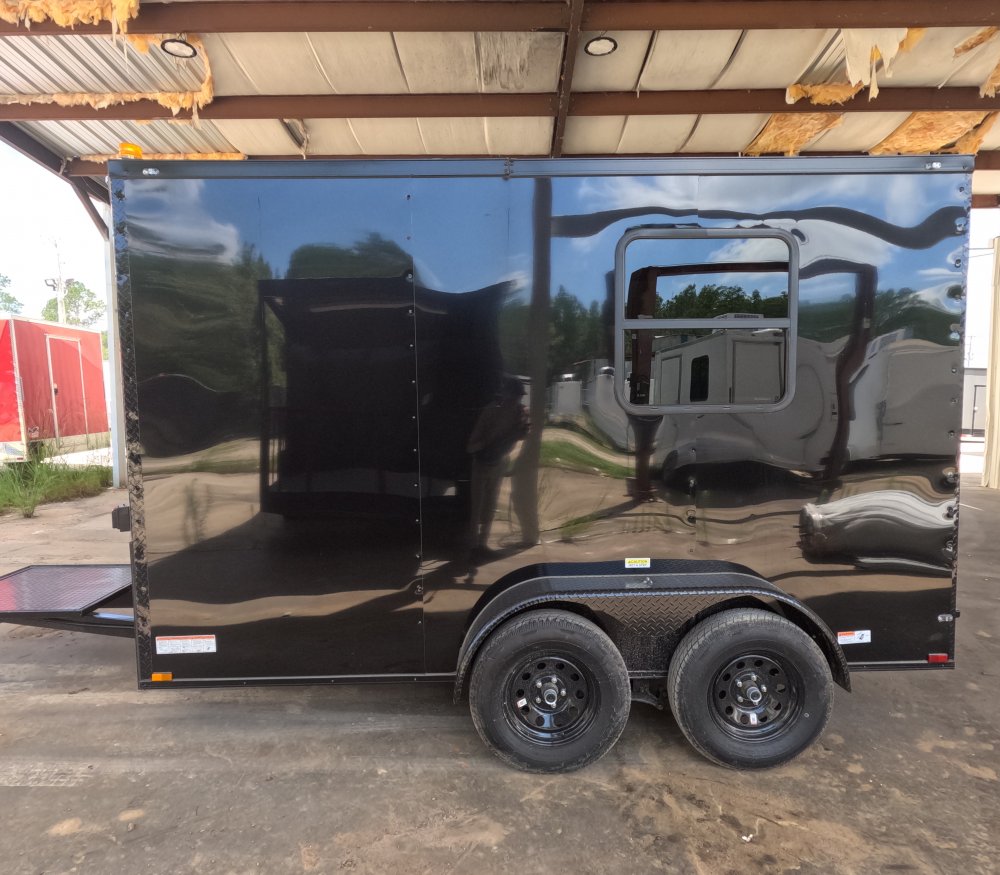

(1) 30" x 30" window on driver side

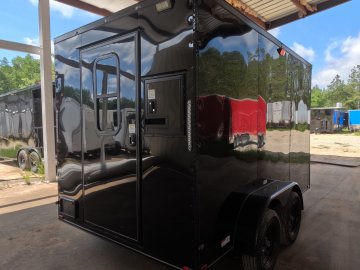

(1) 16" x 18" splicing door with brush (beside rear RV door)

Vents & A/C

Manual roof vent (per drawing)

Wire & brace for A/C installation

Electrical System

50 Amp electrical package with 50 Amp motorbase plug

12V battery with converter

(6) Total 110V receptacles (4 extra - see drawing)

(3) 48" 12V LED interior lights

(2) Amber caution lights (roof-mounted)

(3) Exterior loading lights:

(1) Front

(1) Passenger side

(1) Rear (between splicing and RV door)
