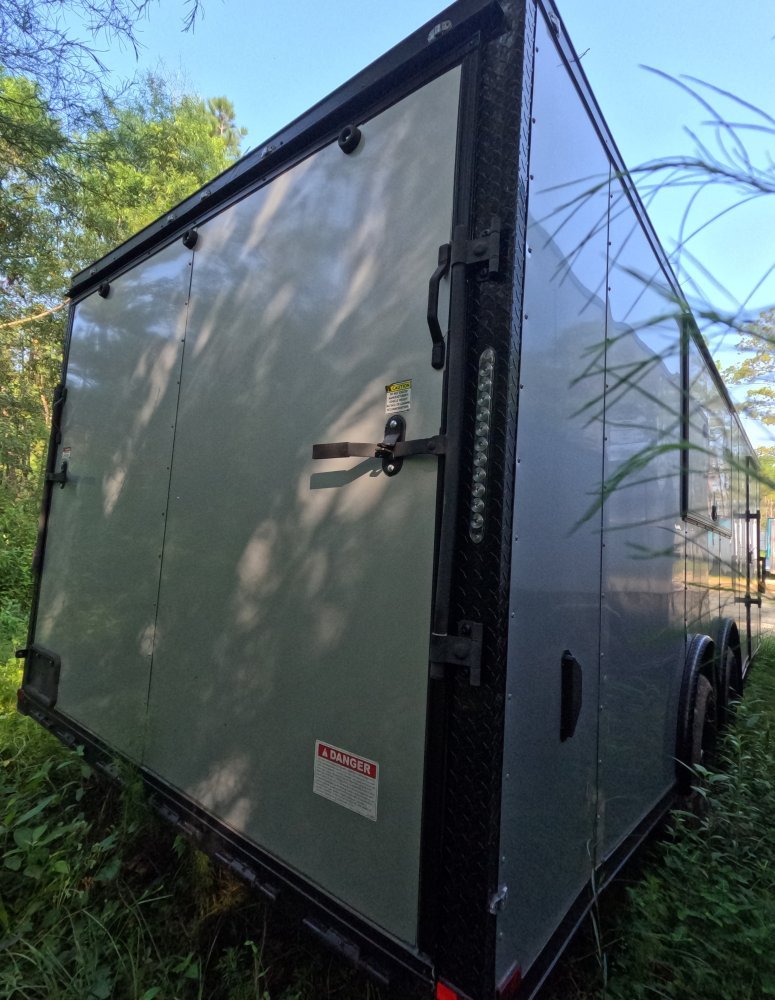

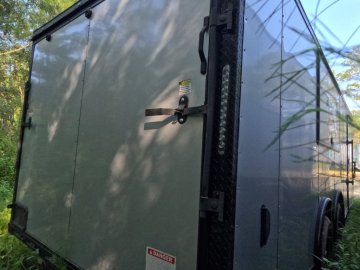

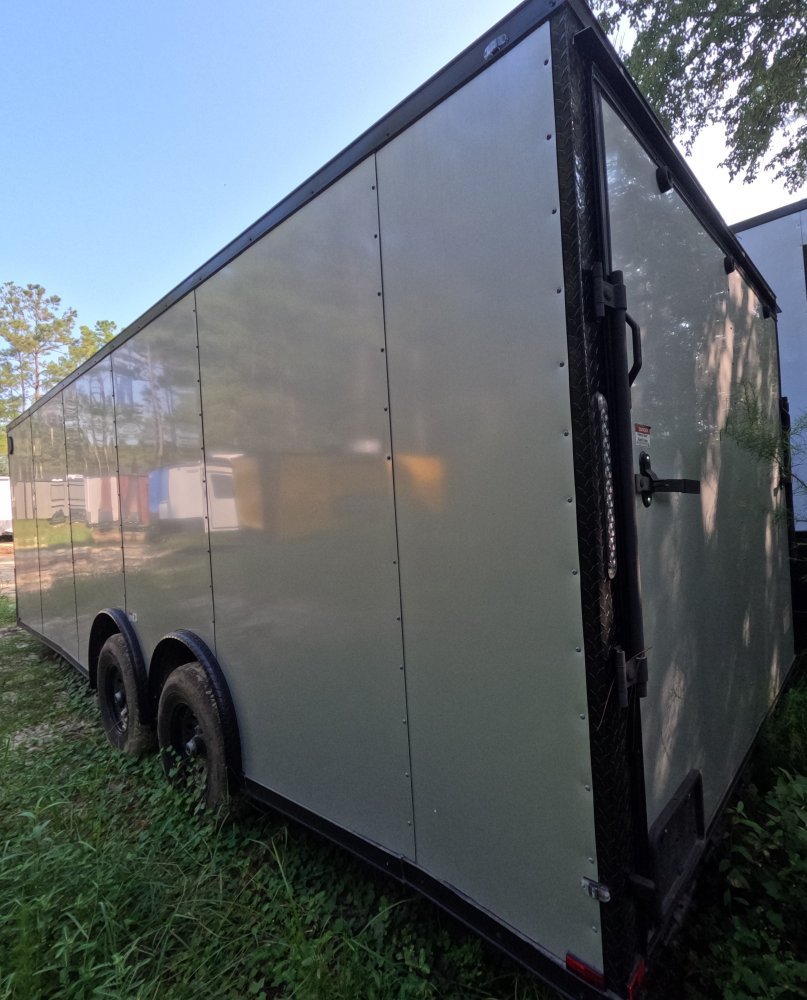

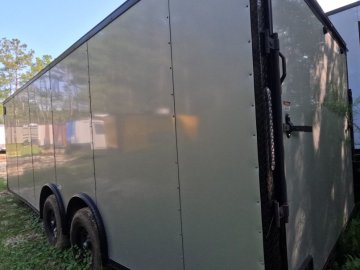

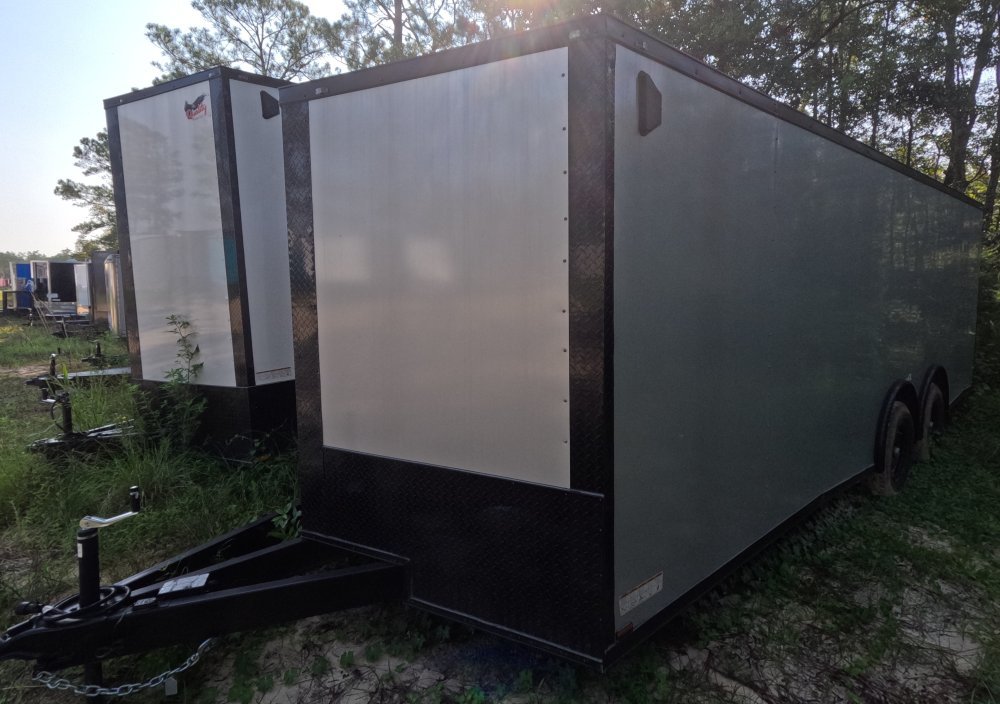

8' 5"x22' Quality Cargo Enclosed Cargo



Standard Specifications

• 15” Tires

• Silver Mod Wheels

• 32” RV Style Side Door with Flush Lock

• V-Nose with Vertical ATP Trim

• Rear Ramp with Spring Assists and Flap

• Tandem 3500 lb Spring Axles with 4” Drop and EZ Lube Hubs

• 24” Stoneguard on Front

• White Metal Exterior

• Beavertail Frame

• 4 D-Rings in Floor

• 3/4” Plywood Floor (Painted Underneath)

• Premium 3/8” Plywood Sidewalls

• 1” x 1 ½” Steel Tube in Walls and Ceiling

• 78” (6’6”) Interior Height

• 2000 lb Tongue Jack

• 6” I-Beam Main Frame

• 12V Dome Light with Switch

• Non-Powered Roof or Sidewall Vent

• LED Strip Tail Lights

• Wall Members 16” O.C.

• Floor Crossmembers 16” O.C.

• Roof Members 24” O.C.

• Screwed Metal Exterior

• Galvalume Roof

• 7-Way Round Electric Plug, 2 5/16” Coupler

Structure

• V-Nose with ATP Vertical Trim

• 7000 lb Spread Axles

• 60" TTT (Tongue-to-Tail)

• 12” O.C. Floor, Wall, and Roof Members

• Spare Tire Compartment Positioned as High as Possible

Tie-downs & Stabilizers

• 4 D-Rings

• 2 Extra D-Rings

• Drop Leg Jack

• Bogey Wheels

Tires & Wheels

• Silver Mod

• Chrome Center Lug Covers

• Sand Foot

• Radial Tires

Doors, Ramps, Windows

• RV Side Door with Bar Lock

• Super Heavy Duty Ramp with Flap

• 3x6 Concession Window at 36” AFF over Axles

Vents & A/C

• Side Wall Vent

Exterior

• Piedmont Silver

• Blackout Package

• One-Piece Aluminum Roof

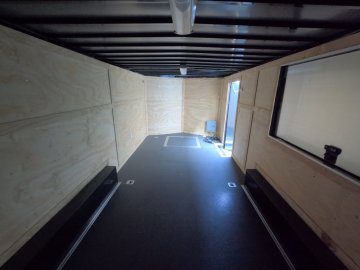

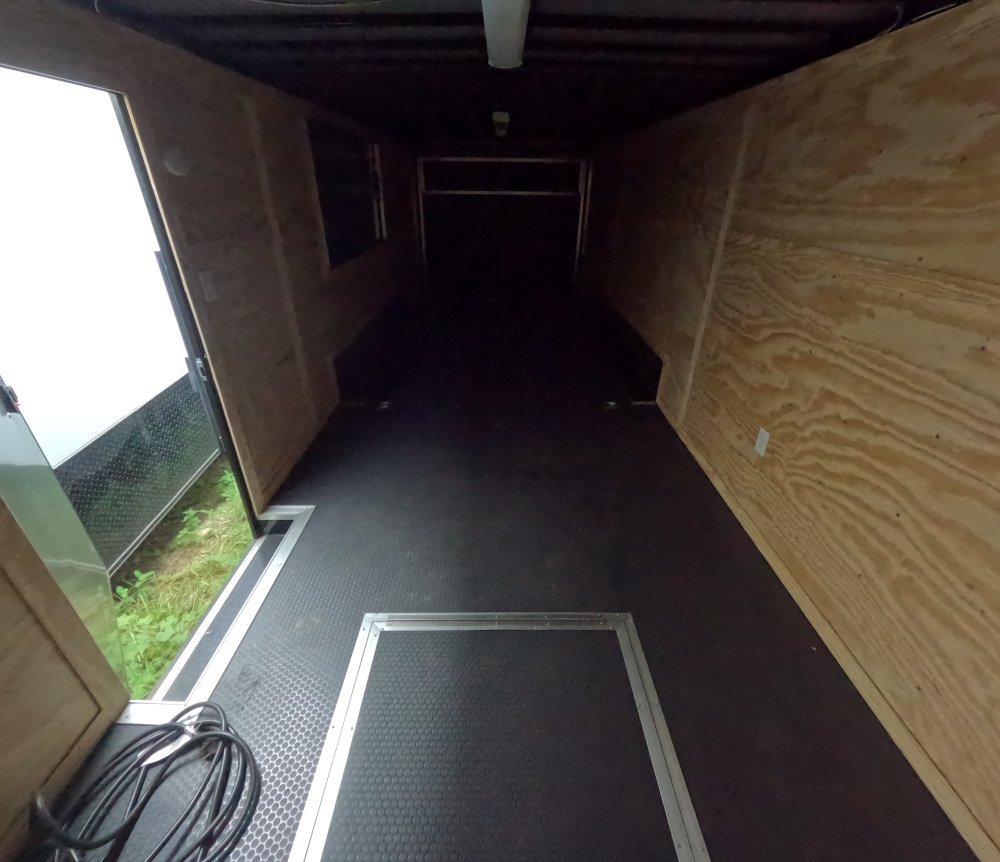

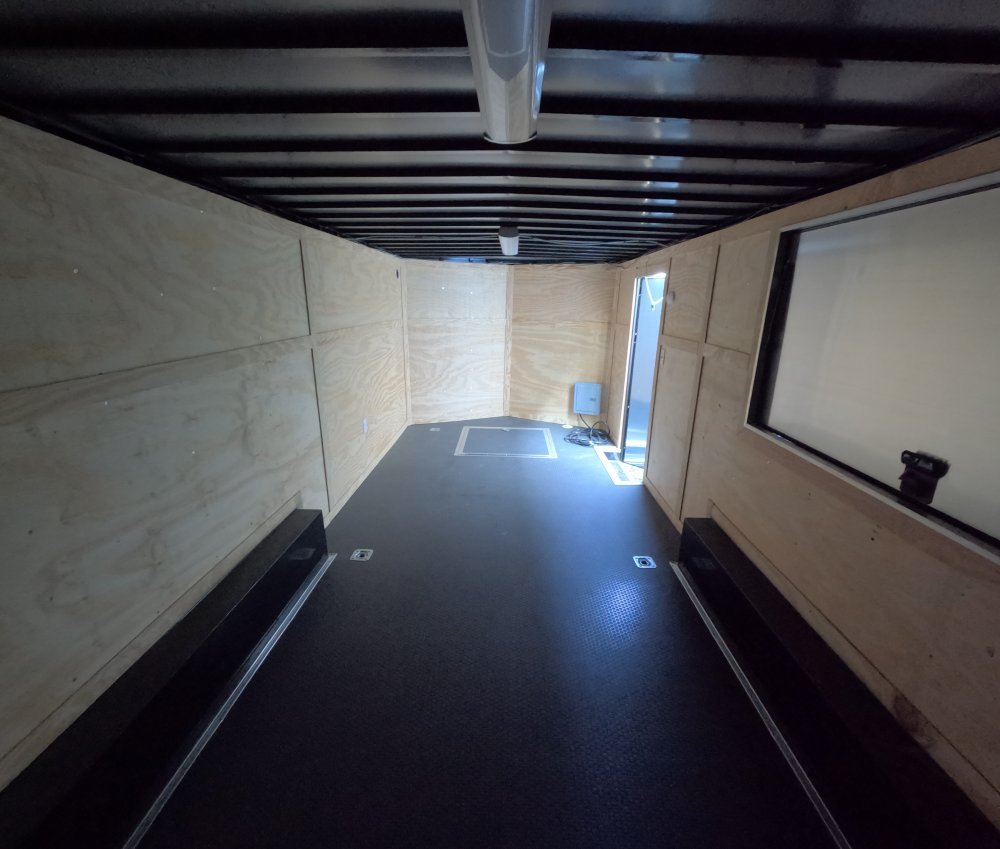

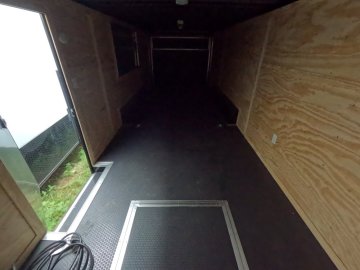

Interior

• Cool Seal Liner

• Plywood Trim

• Double 3/4” Plywood Floors

• 3/4” Plywood Walls

• Coin Floor (Including Ramp and Flap)

Electrical

• LED 12V Lighting

• 30 AMP Electric Package
