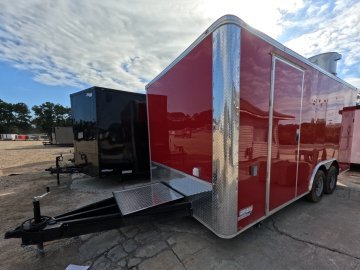

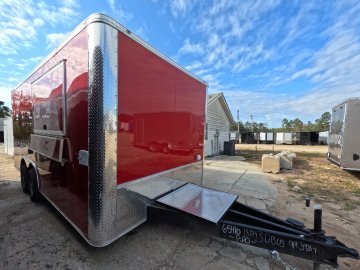

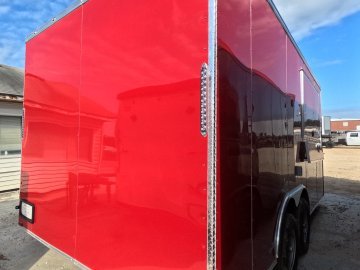

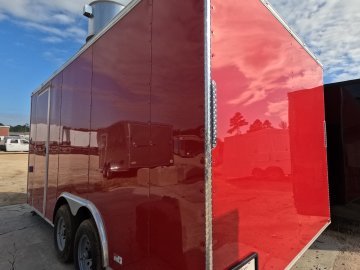

8' 6"x18' Quality Cargo Concession Trailer Concession Trailer

Standard Specifications

• 15" tires
• Silver mod wheels
• 32" RV-style side door with flush lock
• V-nose with vertical ATP trim
• Rear ramp with spring assist and flap
• Tandem 3500 lb spring axles with 4" drop and EZ-Lube hubs
• 24" stoneguard on front
• White metal exterior
• Beavertail frame
• Four D-rings in floor
• 3/4" plywood floor, painted underneath
• Premium 3/8" plywood sidewalls
• 1" x 1 1/2" steel tube in walls and ceiling
• 78" (6'6") interior height
• 2000 lb tongue jack
• 6" I-beam main frame
• 12V dome light with switch
• Non-powered roof vent or sidewall vent
• LED strip tail lights
• Wall members 16" O.C.
• Floor crossmembers 16" O.C.
• Roof members 24" O.C.
• Screwed metal exterior
• Galvalume roof
• 7-way round electrical plug
• 2 5/16" coupler

Structure Upgrades

• Flat front
• Additional 6" interior height
• 2" x 8" main frame upgrade
• 60" triple-tube tongue
• Upgrade to 5200 lb axles
• Generator platform on tongue
• Hood placement 30" from rear (per note)

Tie-Downs & Stabilizers

• Four D-rings (per drawing)

Tires & Wheels

• Silver mod wheels
• Chrome center lug covers
• Sand foot
• Radial tire option (unchecked on sheet but listed)

Doors, Ramps, and Windows

• 36" RV side door on driver side, 24" from front
• Rear ramp with flap
• 3' x 6' concession window with glass on passenger side

Vents & A/C

• 13,500 BTU air conditioning unit

Exterior

• .080 Polycore red exterior
• No Quality Cargo stickers
• Exterior 12" x 72" fold-down shelf

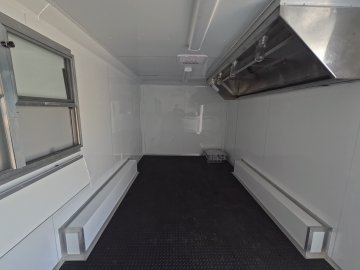

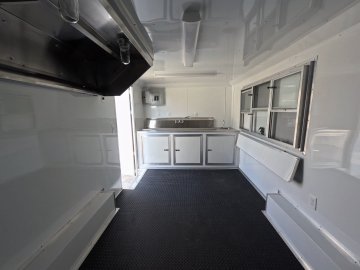

Interior

• Insulated walls
• Insulated ceiling
• White metal walls
• White metal ceiling
• RTP flooring
• 8 ft hood starting 30" from rear wall
• Interior 12" x 72" fold-down shelf under concession window

Plumbing

• Triple sink package with handwash sink
• Handwash sink on passenger side (per note)
• Standard tanks

Electrical

• 50-amp electrical package with 50-amp motorbase plug
• Four interior GFI outlets in front sink area (42" AFF, per drawing)
• Two exterior GFI outlets (one per side, 18" AFF)
• Six total interior receptacles (per drawing)
• Three LED interior lights (per drawing)
