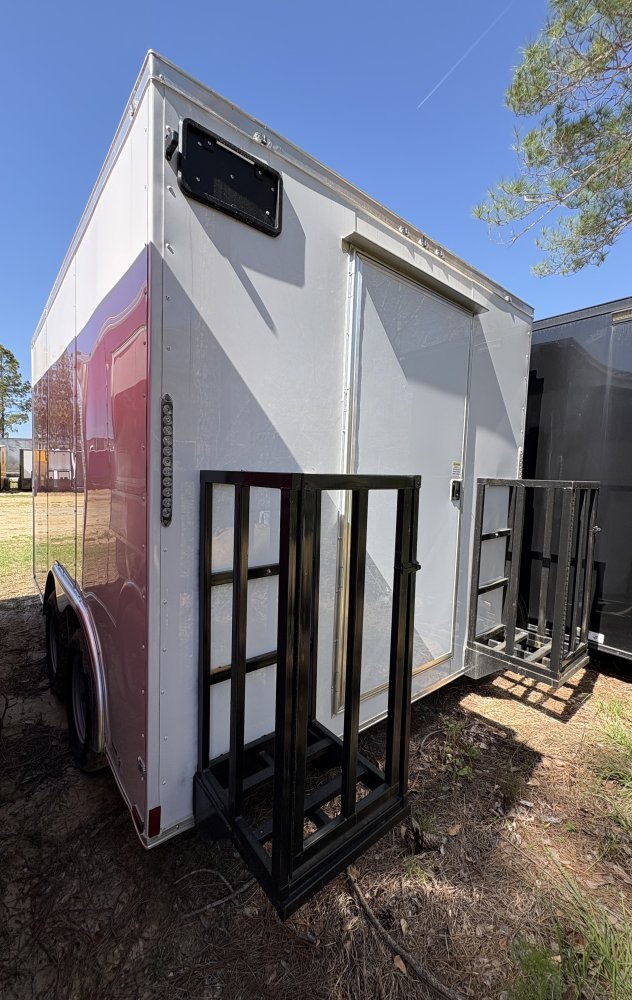

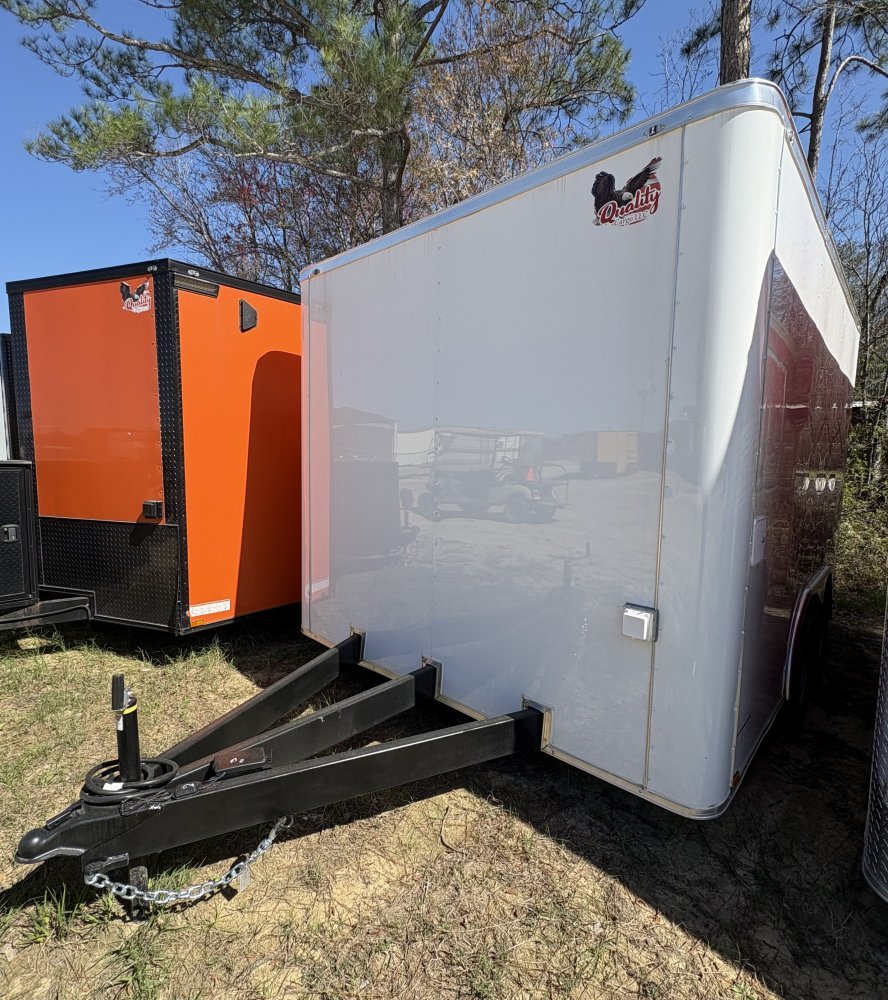

8.5'x12' Quality Cargo Concession Trailer

Standard Specifications

• 15” Tires
• Silver Mod Wheels
• 32” RV Style Side Door with Flush Lock
• V-Nose with Vertical ATP Trim
• Rear Ramp with Spring Assists and Flap
• Tandem 3500 lb Spring Axles with 4” Drop & EZ Lube Hubs
• 24” Stoneguard on Front
• White Metal Exterior
• Beavertail Frame
• (4) D-Rings in Floor
• 3/4” Plywood Floor (Painted Underneath)
• Premium 3/8” Plywood Sidewalls
• 1” x 1½” Steel Tube in Walls and Ceiling
• 78” (6’6”) Interior Height
• 2000 lb Tongue Jack
• 6” I-Beam Main Frame
• 12V Dome Light with Switch
• Non-Powered Roof Vent or Sidewall Vent
• LED Strip Tail Lights
• Wall Members 16” O.C.
• Floor Crossmembers 16” O.C.
• Roof Members 24” O.C.
• Screwed Metal Exterior
• Galvalume Roof
• 7-Way Round Electrical Plug
• 2 5/16” Coupler

Structure

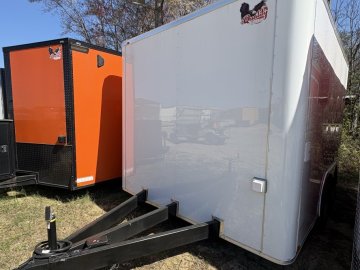

• Flat Front
• 6” Extra Height
• 60” Tongue (TTT)
• No Beavertail

Tires & Wheels

• Silver Mod Wheels
• Chrome Center Lug Covers
• Sand Foot

Doors, Ramps & Windows

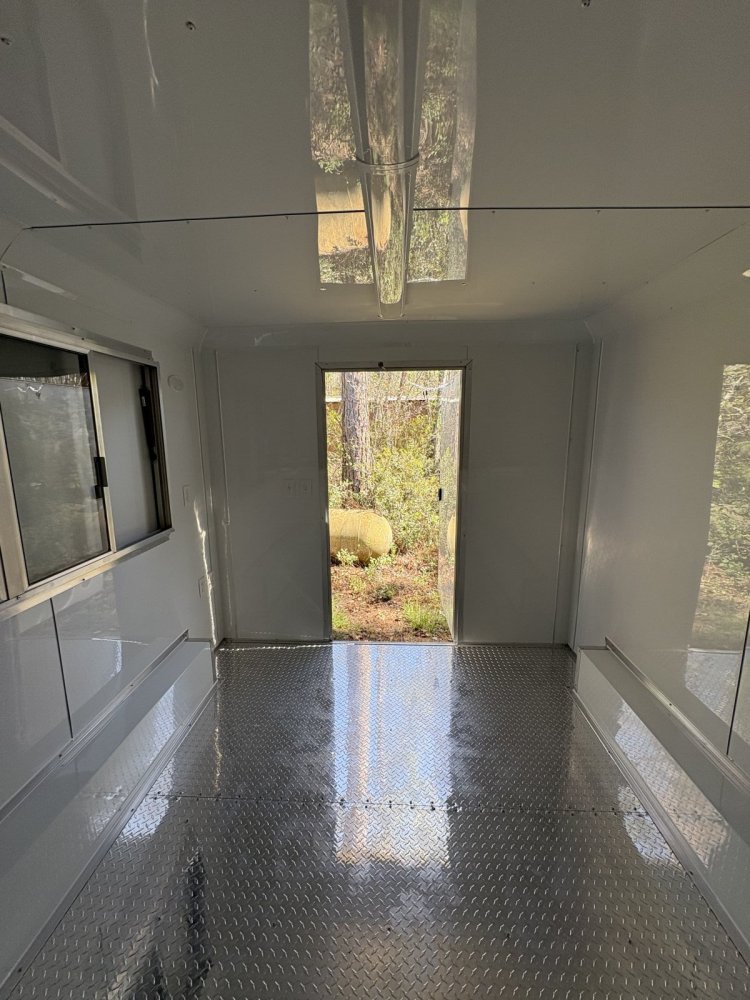

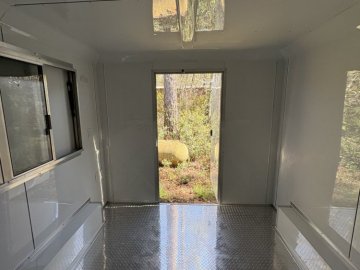

• 36” RV Side Door (Centered on Rear, Opens Left)
• 3’ x 6’ Concession Window with Glass (Horizontal, Passenger Side)

Exterior

• White Metal Exterior
• 12” x 6’ Exterior Fold-Down Shelf (Under Concession)

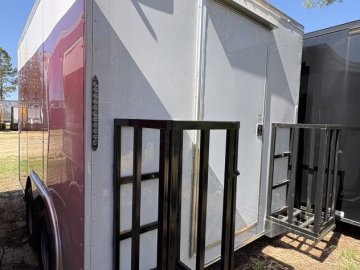

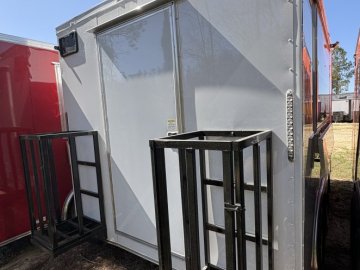

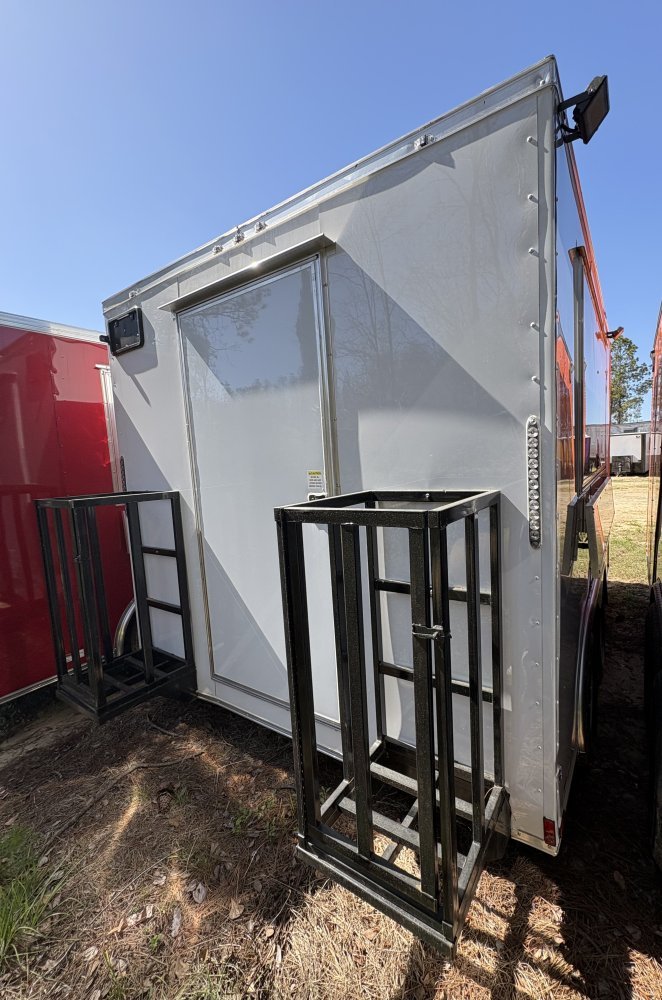

• (2) Propane Cages on Front

Interior

• Cool Seal Liner
• White Metal Walls
• White Metal Ceiling
• ATP Floor

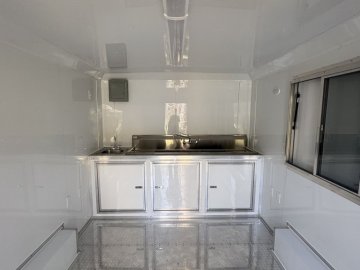

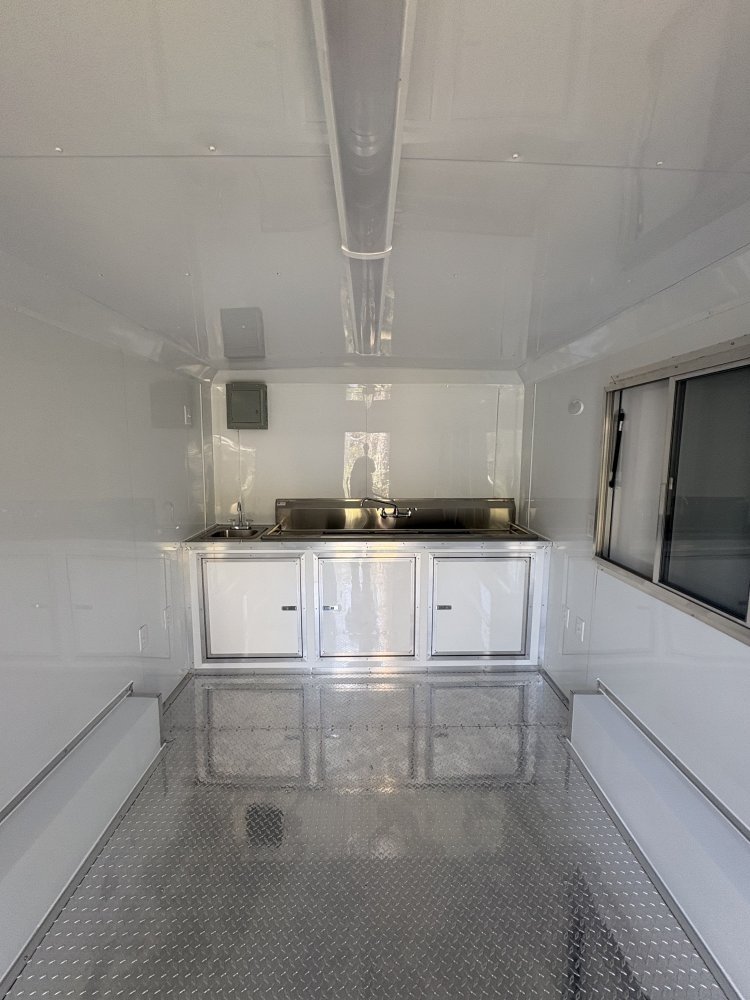

• 3-Compartment Sink Package

Electrical

• 50 Amp Electrical Package (Pre-Wired)
• 50 Amp Motor Base Plug
• (6) Extra Receptacles (All Independent)
• 110V Wire for Hood Vent
• 110V Wire for Hood Mini Split
• (2) Dome Lights
• (2) 110V Loading Lights (One on Each Side of Concession)
