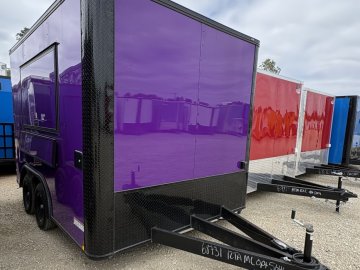

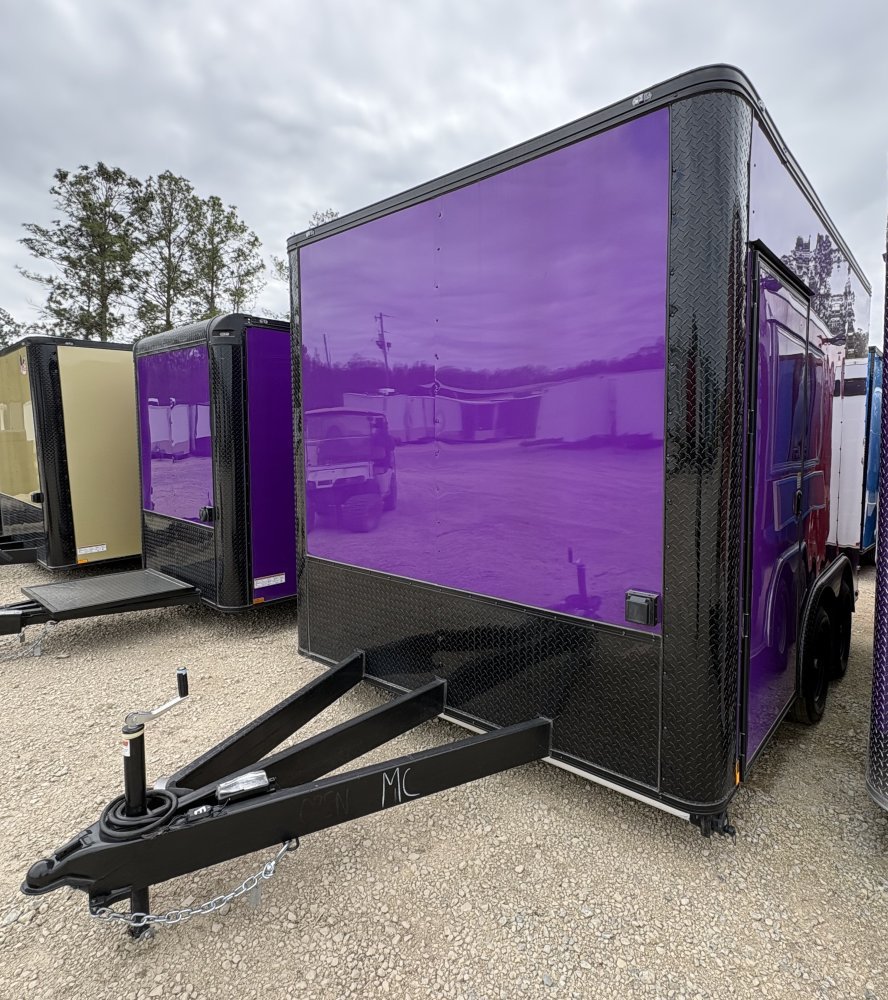

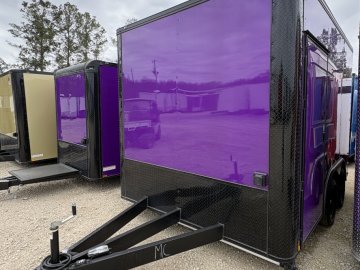

8.5'x12' Quality Cargo Concession Trailer

Standard Specifications

• 15” Tires
• Silver Mod Wheels
• 32” RV Style Side Door with Flush Lock
• V-Nose with Vertical ATP Trim
• Rear Ramp with Spring Assists & Flap
• Tandem 3500 lb Spring Axles with 4” Drop & EZ Lube Hubs
• 24” Stoneguard on Front
• White Metal Exterior
• Beavertail Frame
• (4) D-Rings in Floor
• 3/4” Plywood Floor (Painted Underneath)
• Premium 3/8” Plywood Sidewalls
• 1” x 1 ½” Steel Tube in Walls and Ceiling
• 78” (6’6”) Interior Height
• 2000 lb Tongue Jack
• 6” I-Beam Main Frame
• 12V Dome Light with Switch
• Non-Powered Roof Vent or Sidewall Vent
• LED Strip Tail Lights
• Wall Members 16” O.C.
• Floor Crossmembers 16” O.C.
• Roof Members 24” O.C.
• Screwed Metal Exterior
• Galvalume Roof
• 7-Way Round Electrical Plug
• 2 5/16” Coupler

Structure

• Flat Front
• 12” Extra Height
• 60” Triple Tube Tongue (TTT)

Tie-Downs & Stabilizers

• (4) D-Rings

Tires & Wheels

• Black Mod Wheels
• Chrome Center Lug Covers
• Sand Foot

Doors, Ramps & Windows

• 36” x 75” RV Side Door (Driver Side)

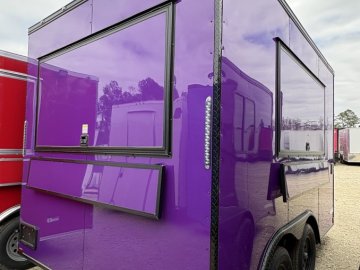

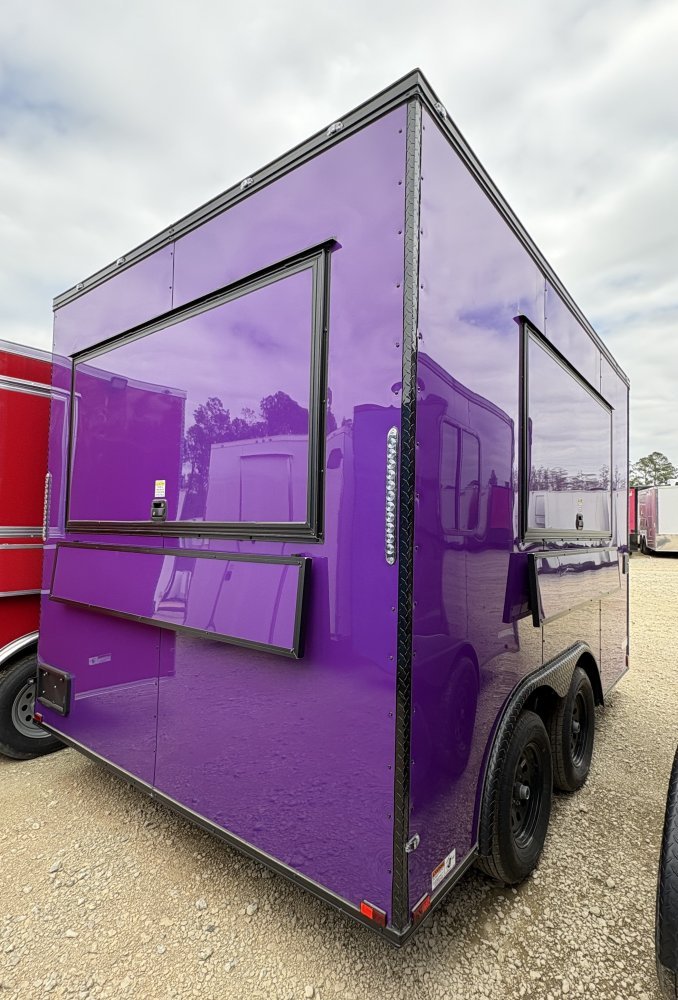

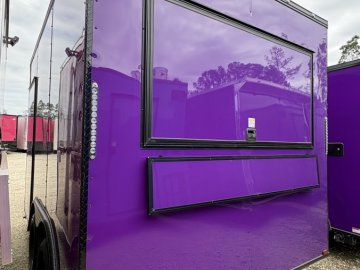

• 3’ x 6’ Concession Window with Glass (Passenger Side)

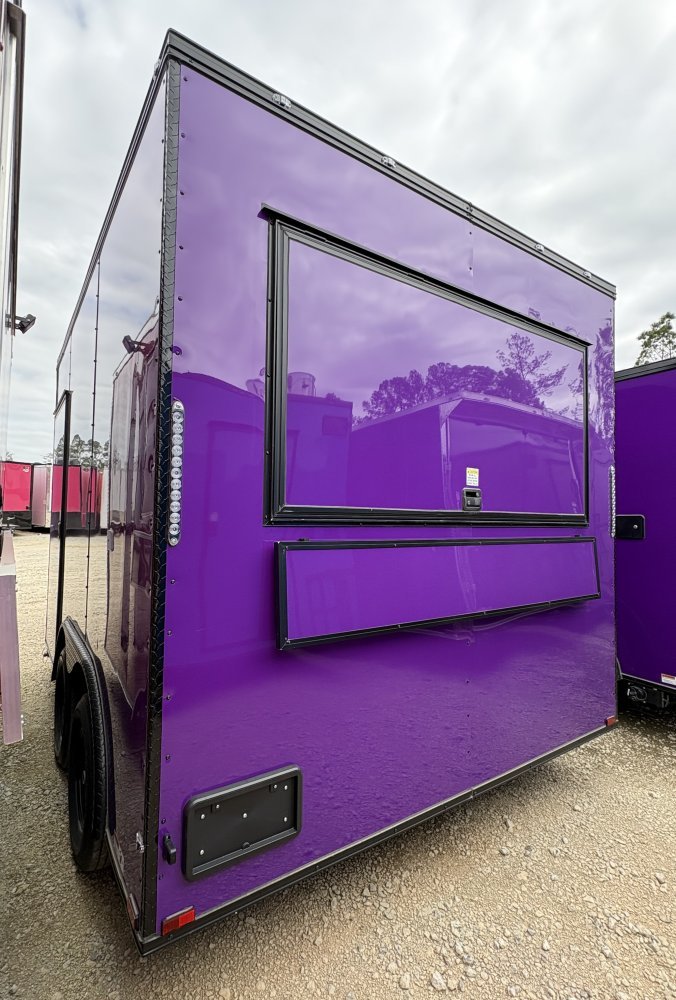

• 3’ x 6’ Concession Window with Glass (Rear, Centered)

Vents & A/C

• 13.5K BTU A/C

Exterior

• Purple Exterior
• Blackout Package
• (2) Exterior 12” x 72” Fold-Down Shelves

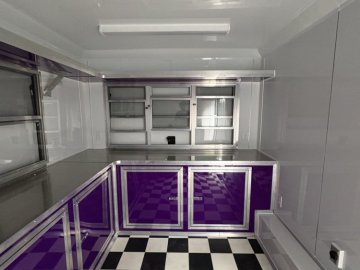

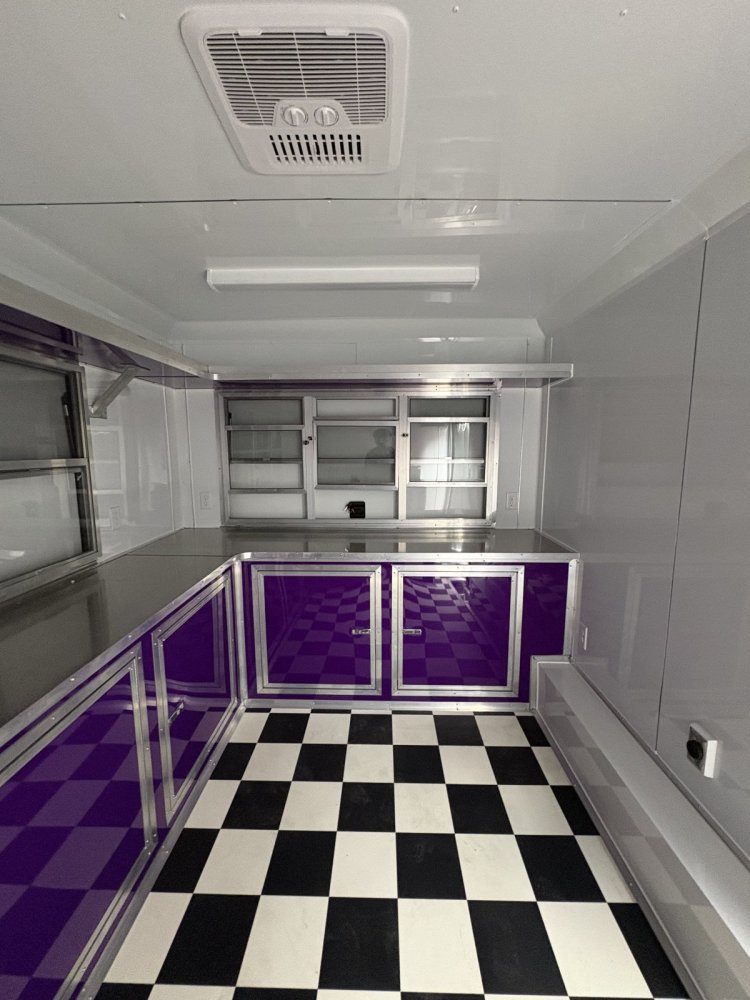

Interior

• Insulated Walls
• Insulated Ceiling
• White Metal Walls
• White Metal Ceiling
• White & Black Checkered Floor
• Colored Interior Corners
• Colored Cabinets
• L-Shaped Shelf (Front to Passenger Side to Rear)
• Purple Cabinets under Rear Concession Window
• Purple Cabinets along Passenger Side under Window

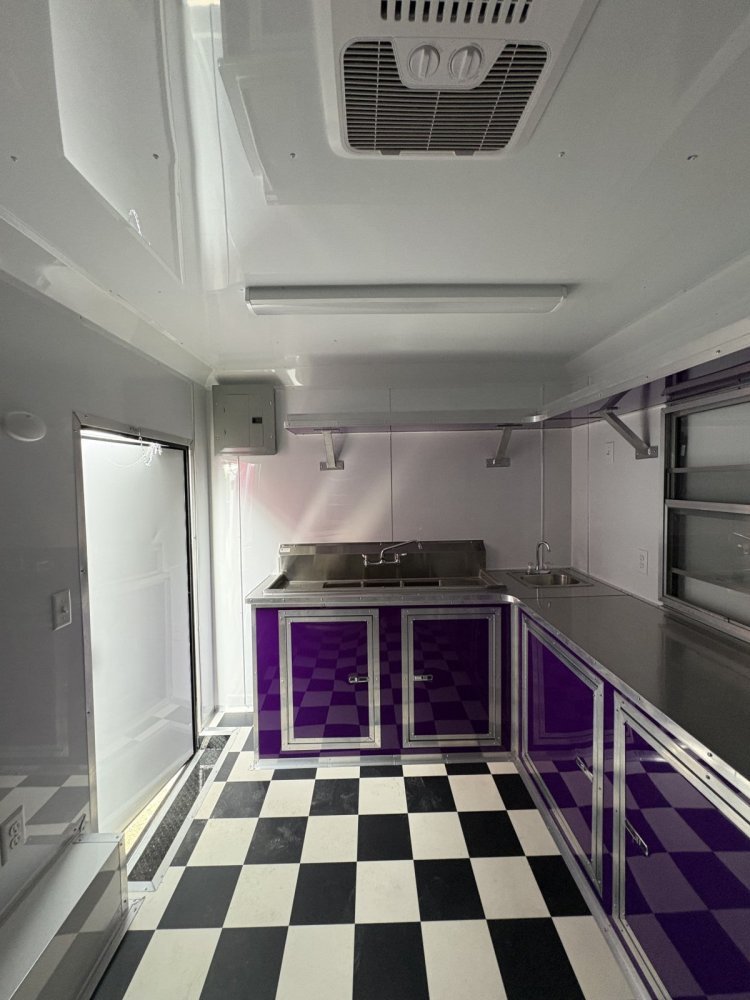

Plumbing

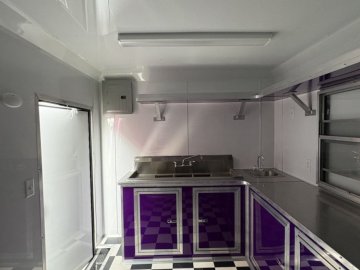

• Sink Package (7’ Wide Sink)

Electrical

• All LED 12V Lighting
• 100 Amp Electrical Package with 50 Amp Motorbase Plug
• (7) Total Receptacles
  • 1 Front
  • 2 Passenger Side
  • 2 Driver Side
  • 2 Rear
• 220V Outlet on Driver Side
