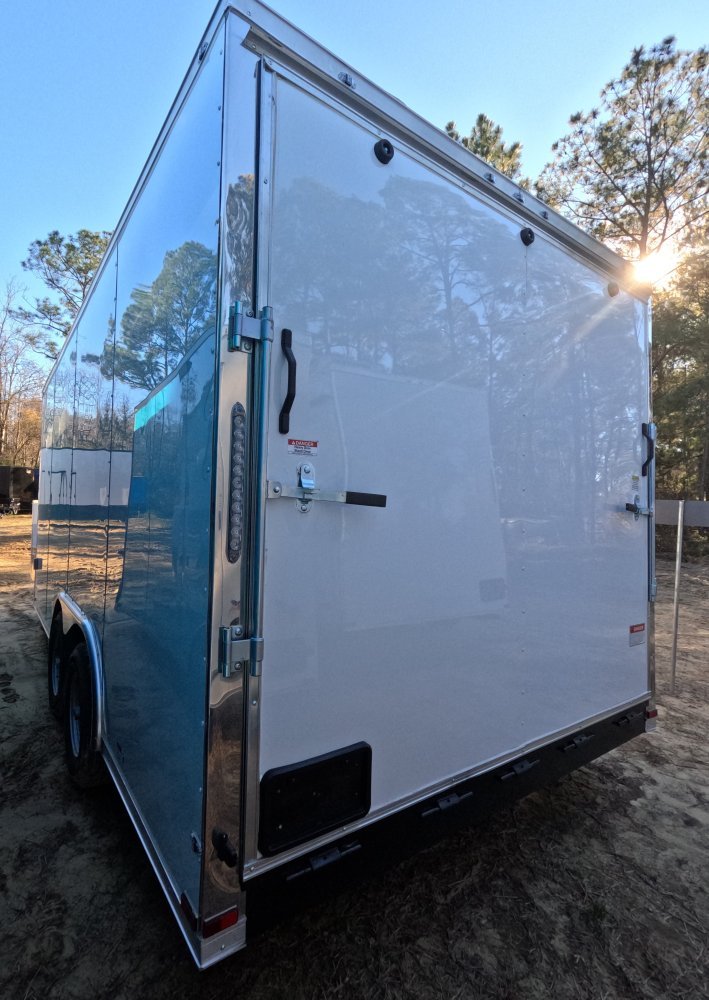

8.5'x16' Quality Cargo Concession Trailer
Standard Specifications
-
15” Tires
-
Silver Mod Wheels
-
36” RV-Style Side Door with Flush Lock
-
V-Nose with Vertical ATP Trim
-
Rear Ramp with Spring Assists and Flap
-
Tandem 3500 lb Spring Axles with 4” Drop and EZ-Lube Hubs
-
24” Stoneguard on Front
-
White Metal Exterior
-
Beavertail Frame
-
4 D-Rings in Floor (base)
-
3/4” Plywood Floor (Painted Underneath)
-
Premium 3/8” Plywood Sidewalls
-
1” x 1½” Steel Tube in Walls and Ceiling
-
78” (6’6”) Interior Height (before added height)
-
2000 lb Tongue Jack
-
6” I-Beam Main Frame
-
12V Dome Light with Switch
-
Non-Powered Roof Vent or Sidewall Vent
-
LED Strip Tail Lights
-
Wall Members 16” O.C.
-
Floor Crossmembers 16” O.C.
-
Roof Members 24” O.C.
-
Screwed Metal Exterior
-
Galvalume Roof
-
7-Way Round Electrical Plug with 2 5/16” Coupler
Structure
-

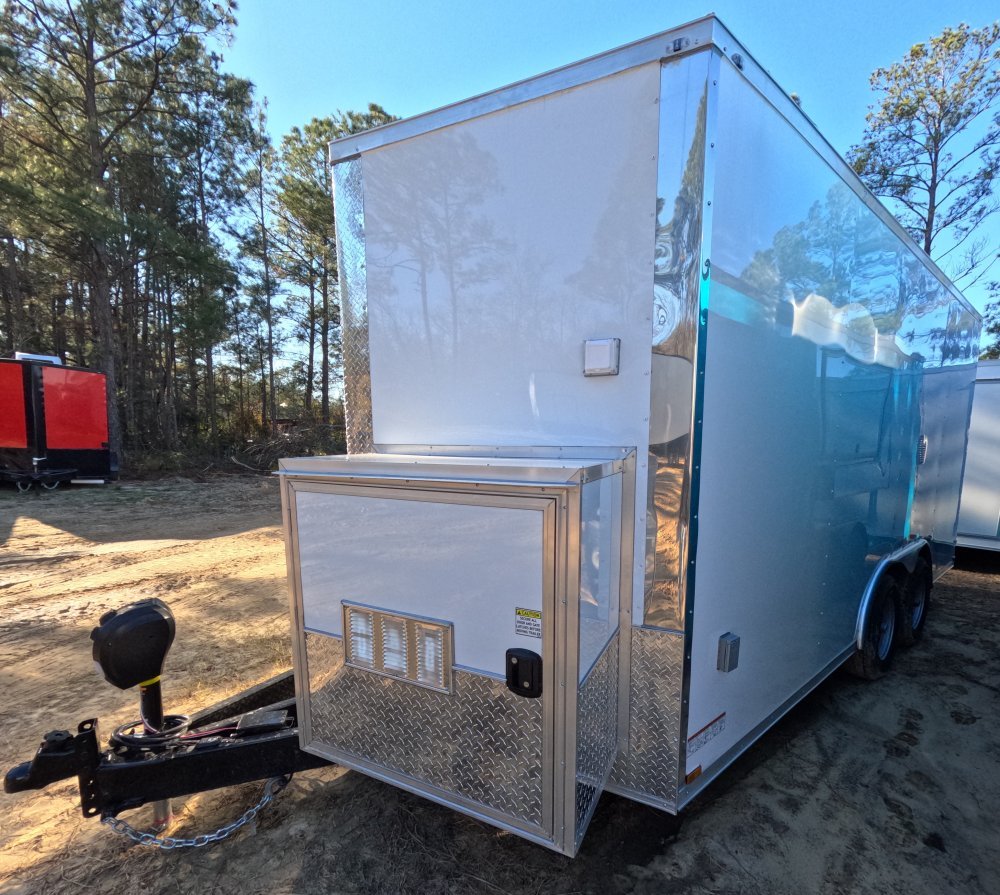

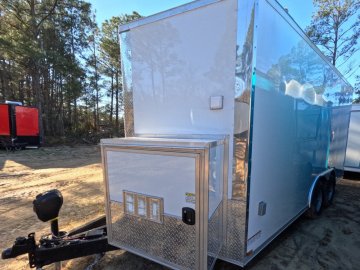

V-Nose with Vertical ATP Trim
-
9” Extra Height
-
12” O.C. Wall Studs
-
Modified Beavertail
-
60” Tongue-to-Tail (TTT)
-
Adjustable 2 5/16” Coupler
Tie-Downs & Stabilizers
-
12 Floor D-Rings
-
4 Wall D-Rings
-
5000 lb Electric Tongue Jack
Tires & Wheels
-
Silver Mod Wheels
-
Chrome Center Lug Covers
-
Sand Foot
Doors, Ramps & Windows
-
36” RV Side Door
-

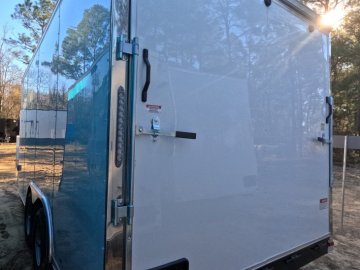

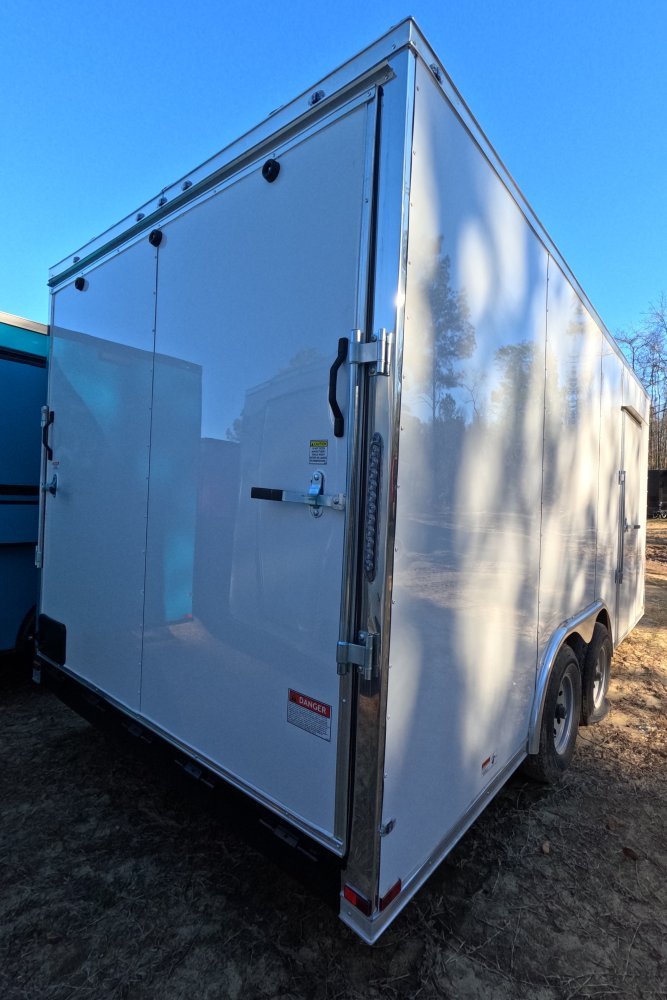

Rear Ramp with Flap
-
Bar Lock on Side Door
Vents & A/C
-
(2) 13,500 BTU A/C Units
Exterior
-
White Exterior

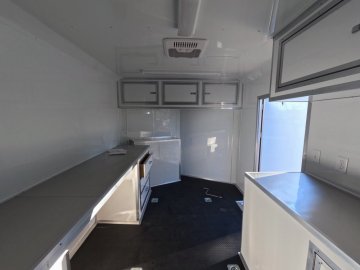

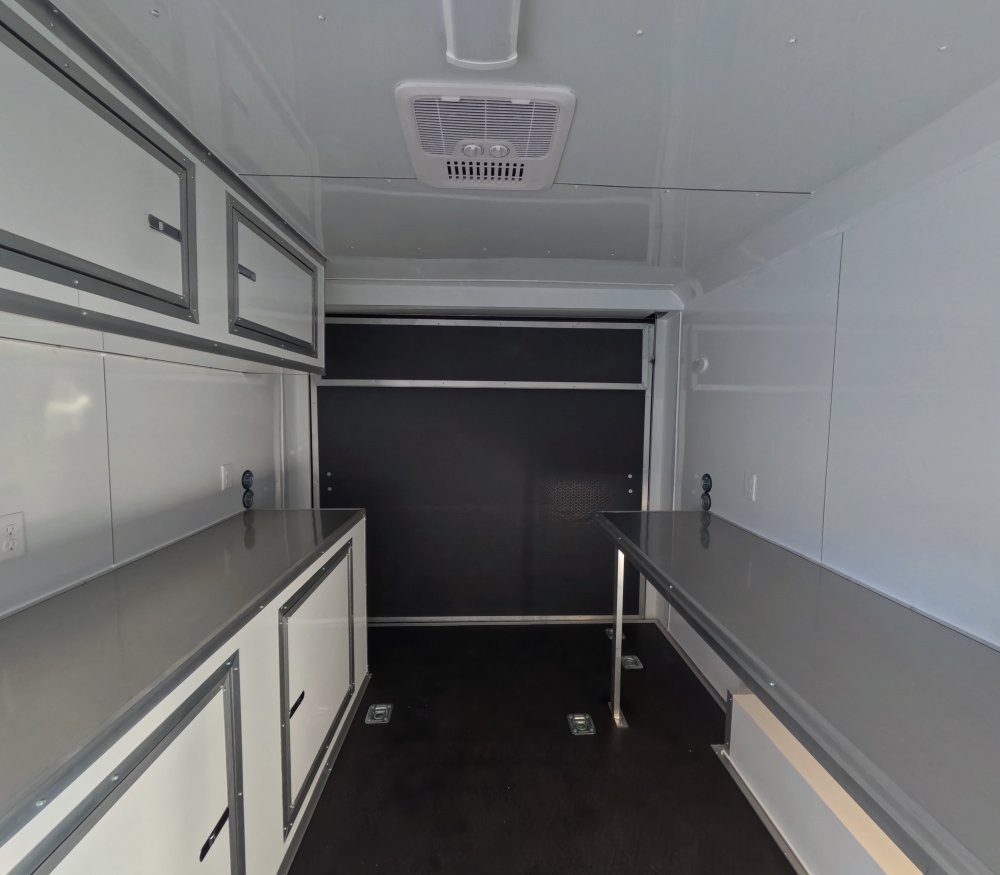

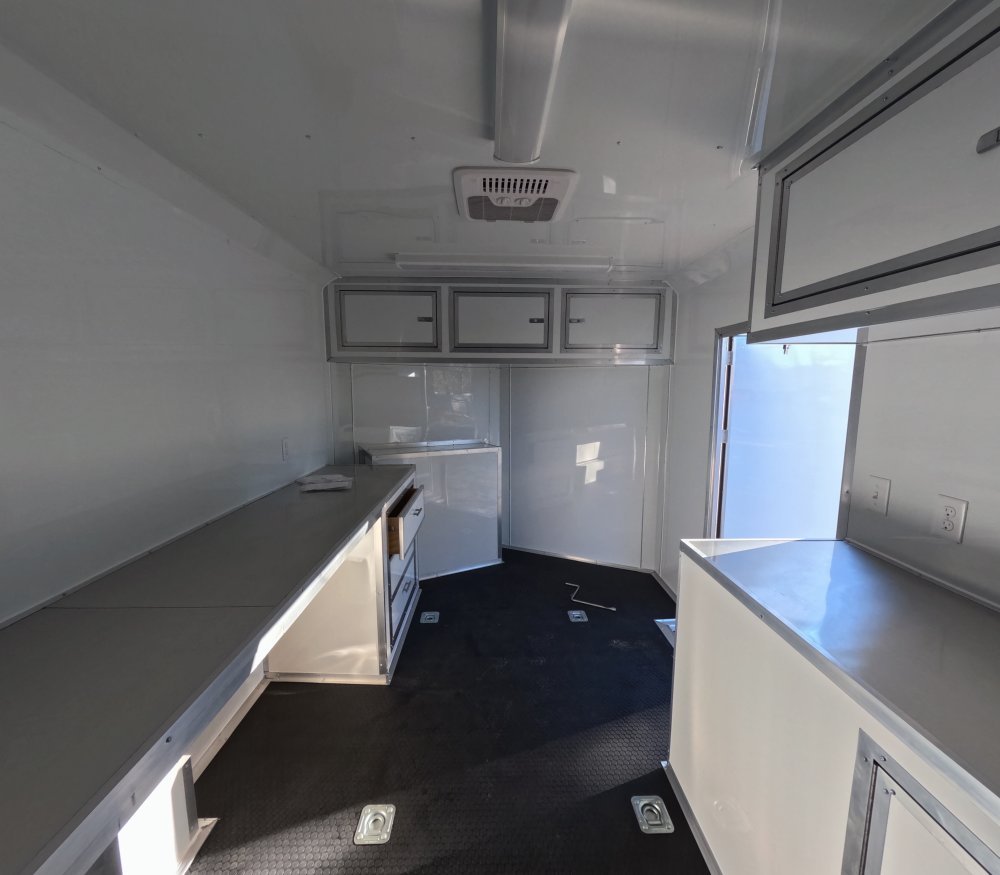

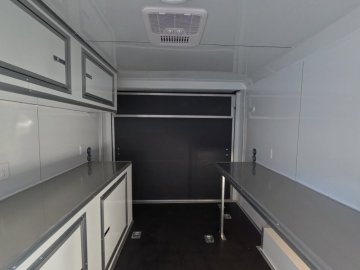

Interior
-
Cool Seal Liner
-
Plywood Trim
-
Insulated Walls
-
Insulated Ceiling
-
White Metal Walls
-
White Metal Ceiling
-
Rubber Coin Floor
-
11’ Mill-Finish Counter — Driver Side
-
6’ Base Cabinet with (3) Drawers — Passenger Side
-
36” Drawer Bank — Driver Side
-
9’ Overhead Cabinets — Passenger Side
-
Overhead Cabinets in V-Nose
-
Interior Generator Box with Slide-Out Tray
Electrical
-
All LED 12V Lighting
-
50 Amp Electrical Package
-
50 Amp Motorbase Plug
-
(2) Exterior GFCI Outlets in V-Nose
-
8 Total Receptacles
-
120V Interior Lights
