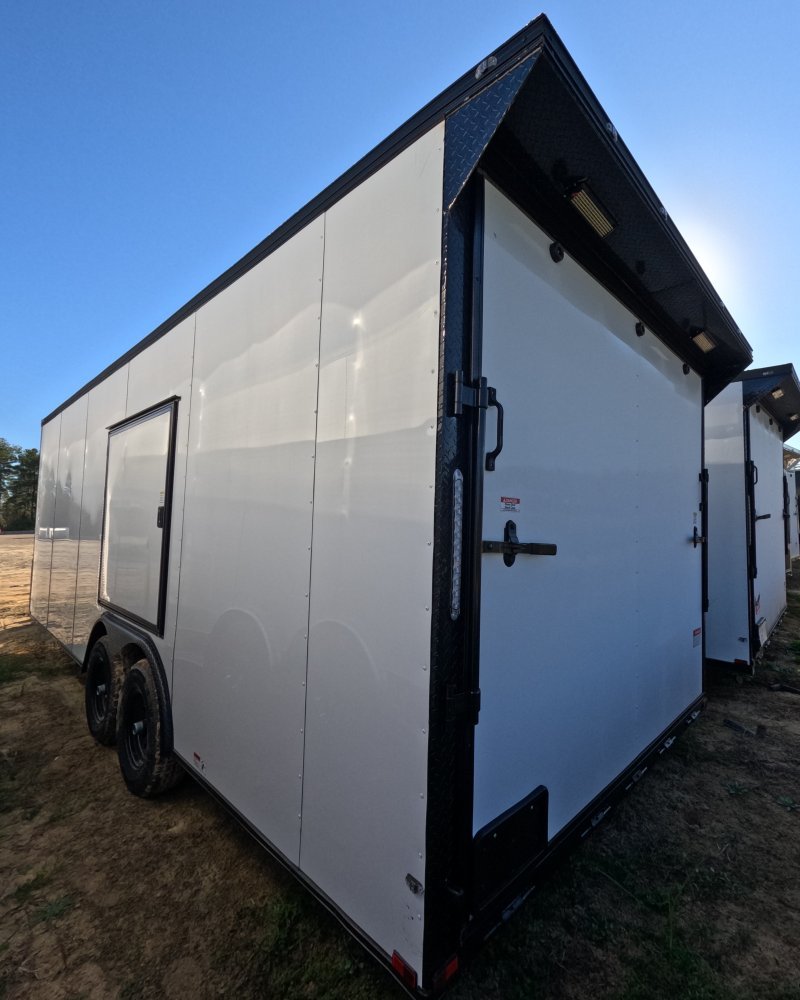

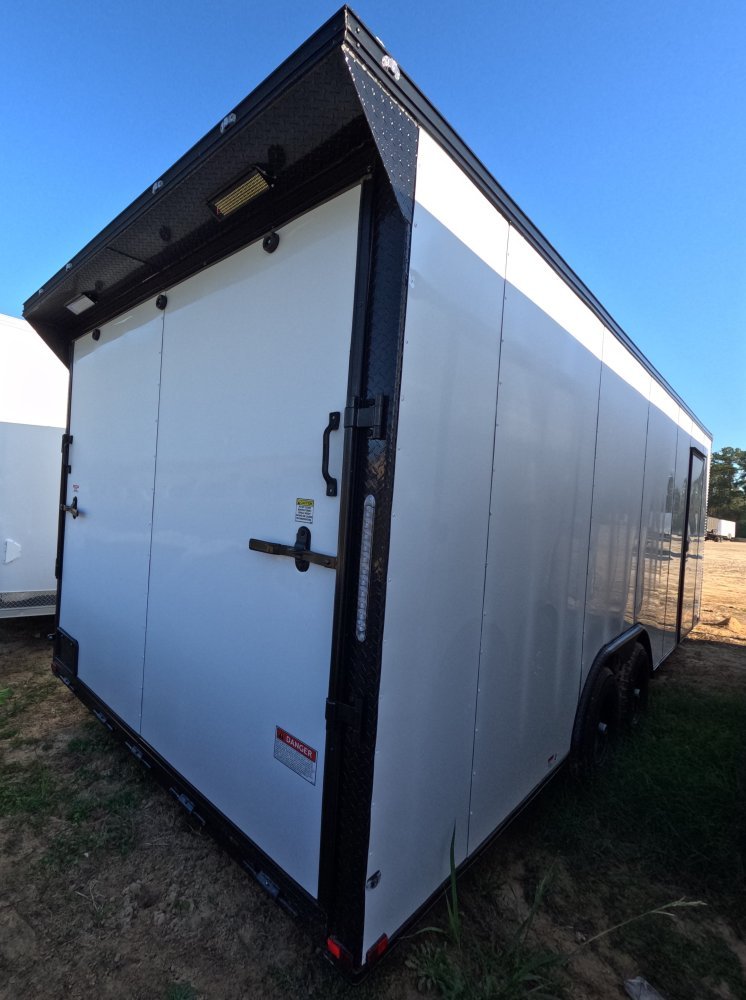

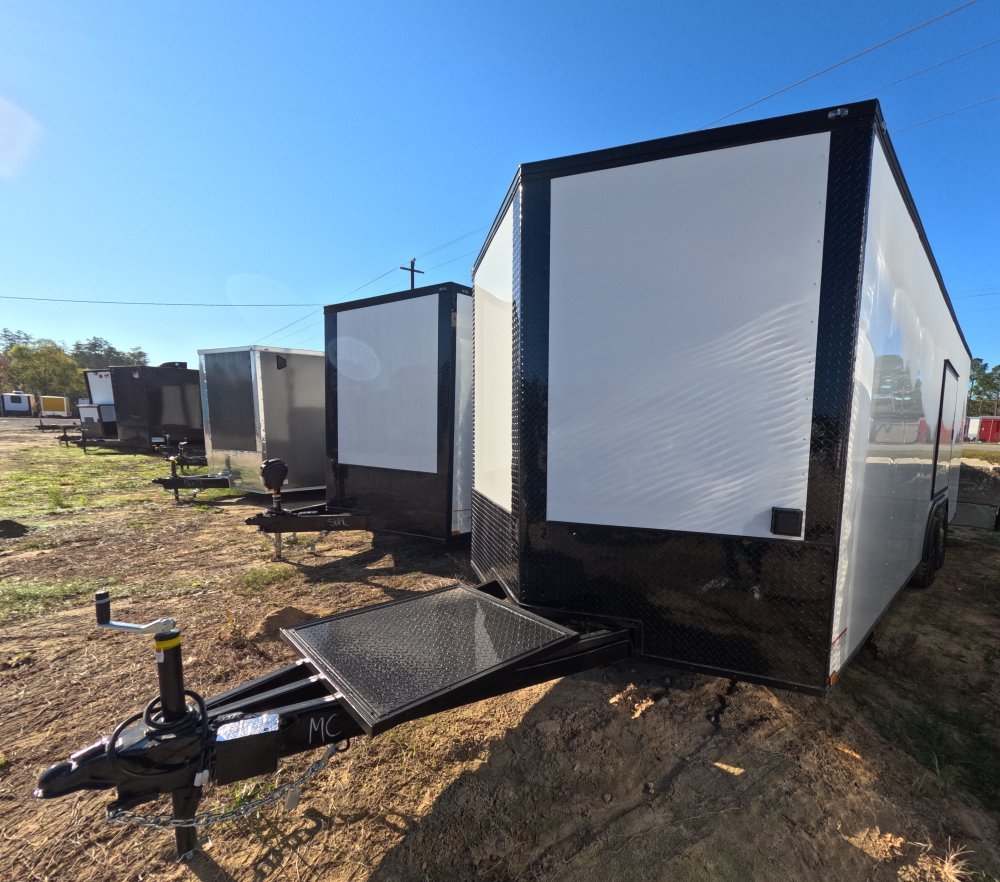

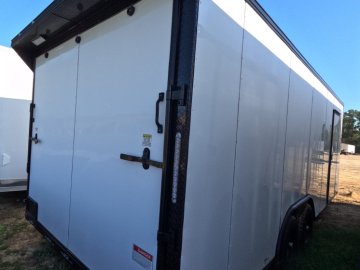

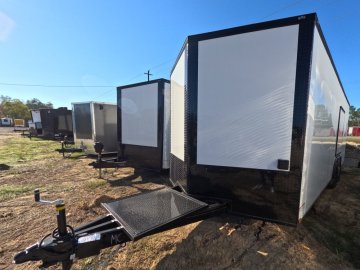

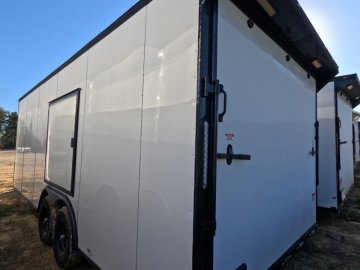

8.5'x22' Quality Cargo Enclosed Car Hauler



Standard Specifications

• 15” Tires
• Silver Mod Wheels
• 32” RV Style Side Door with Flush Lock
• V-Nose with Vertical ATP Trim
• Heavy-Duty Rear Ramp with Spring Assist & Flap
• Tandem 3500 lb Spring Axles with 4” Drop and EZ Lube Hubs
• 24” Stoneguard on Front
• White Metal Exterior
• Beavertail Frame
• 4 D-Rings in Floor + 2 Extra D-Rings
• 3/4” Plywood Floor (Painted Underneath)
• Premium 3/8” Plywood Sidewalls
• 1” x 1½” Steel Tube in Walls and Ceiling
• 78” (6’6”) Interior Height
• 2000 lb Tongue Jack
• 6” I-Beam Main Rails
• 12V Dome Light with Switch
• Non-Powered Roof Vent or Sidewall Vent
• LED Strip Tail Lights
• Wall Members 16” O.C.
• Floor Crossmembers 16” O.C.
• Roof Members 24” O.C.
• Screwed Metal Exterior
• Galvalume Roof
• 7-Way Round Plug (2 5/16” Coupler)

Structure

• V-Nose with ATP Vertical Trim
• 6” Extra Height
• Escape Door
• 60” TTT
• Rear Wing with Lights
• Generator Plate

Tie-Downs & Stabilizers

• 4 D-Rings
• 2 Additional D-Rings

Tires & Wheels

• Silver Mod Wheels
• Chrome Center Lug Covers
• Sand Foot
• Radial Tires

Doors, Ramps, & Windows

• 32” RV Side Door
• Heavy-Duty Ramp

Vents & A/C

• 13,500 BTU A/C with Heat Strip

Exterior

• White Exterior
• Blackout Package

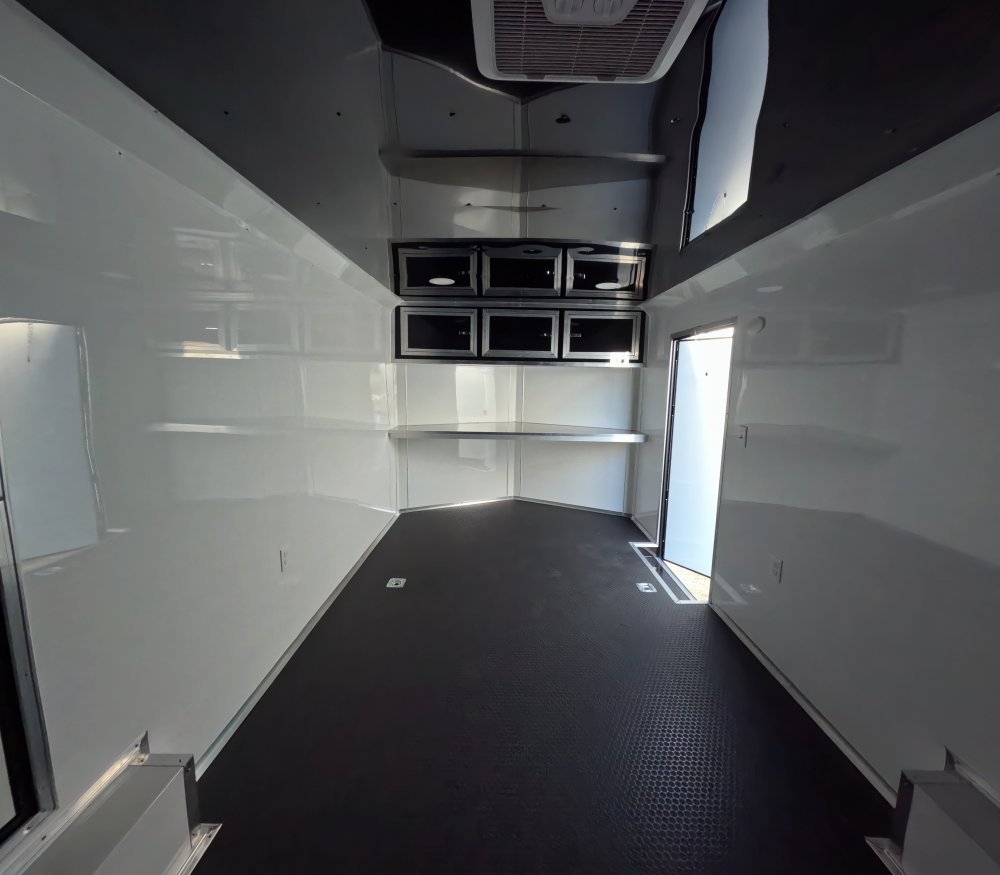

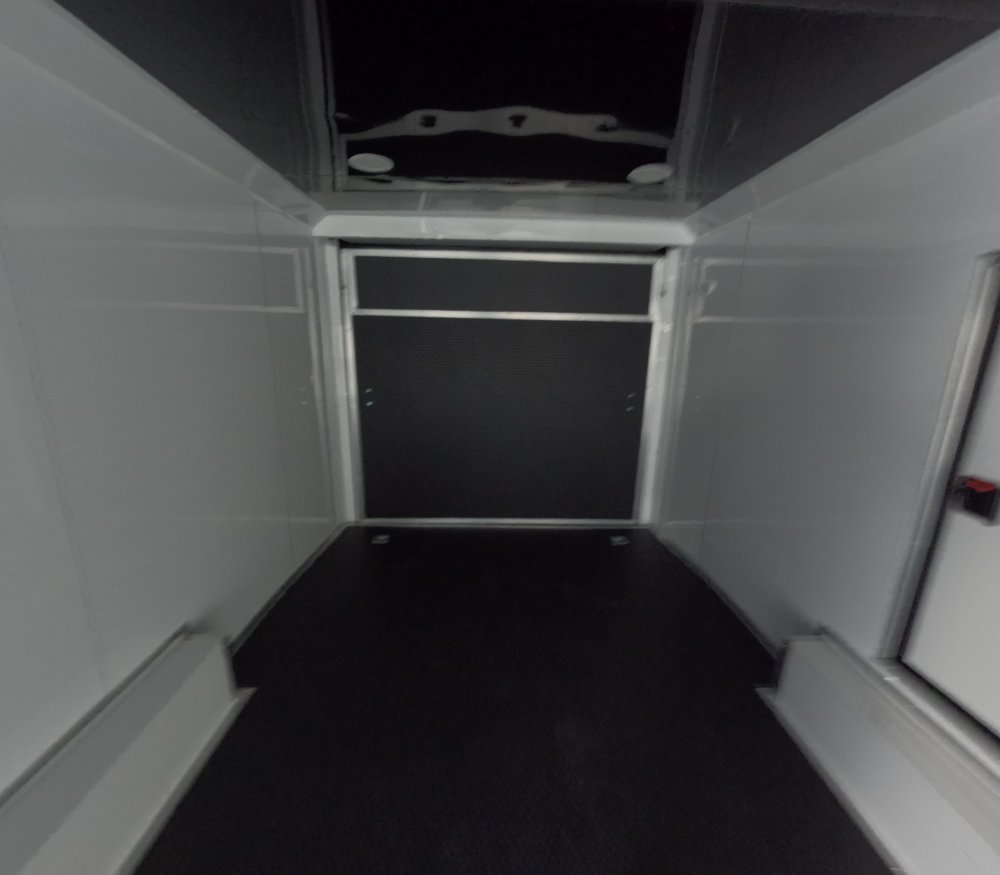

Interior

• Cool Seal Liner
• Plywood Trim
• White Metal Walls
• Black Metal Ceiling
• Upper Black Cabinets
• Countertop in V-Nose (Below Cabinets)

Electrical

• LED 12V Lighting
• 50 Amp Electrical Package with Motorbase Plug
• 4 Extra Round Interior Lights
