8.5'x24' Quality Cargo Enclosed Enclosed Car Hauler
Standard Specifications
Exterior & Frame:
White metal exterior
V-Nose with vertical ATP trim

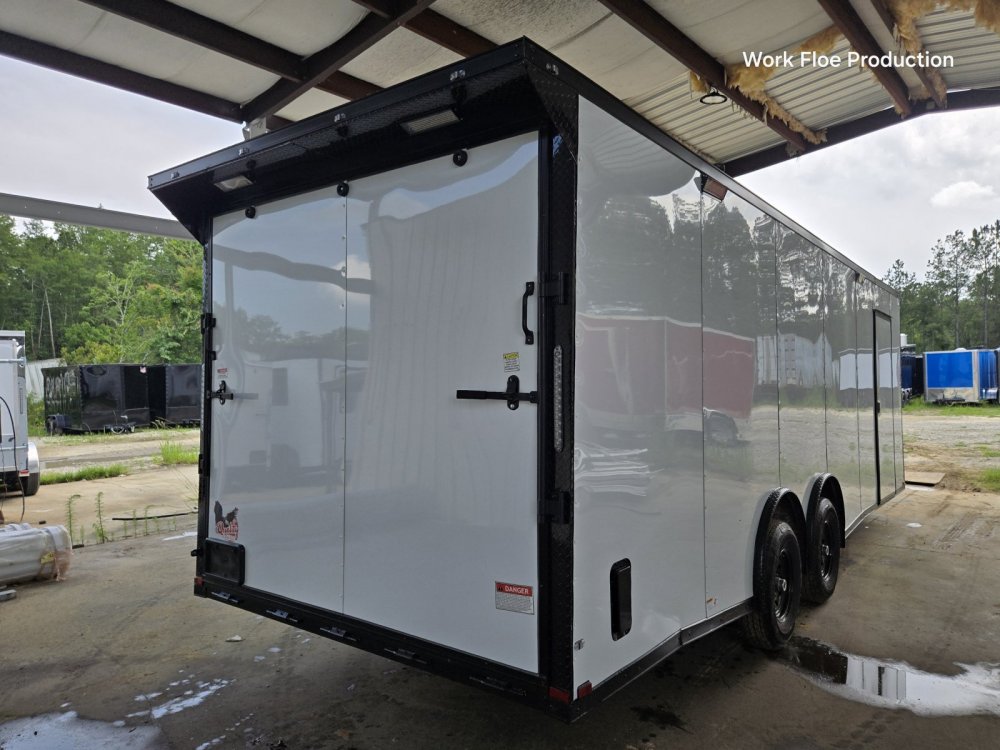

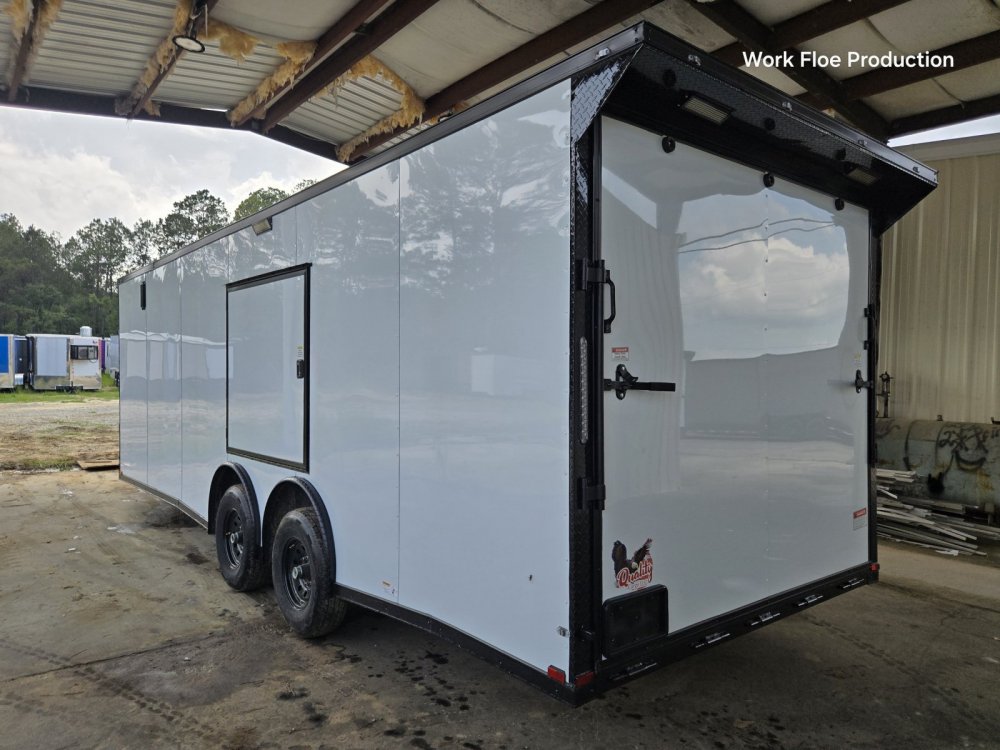

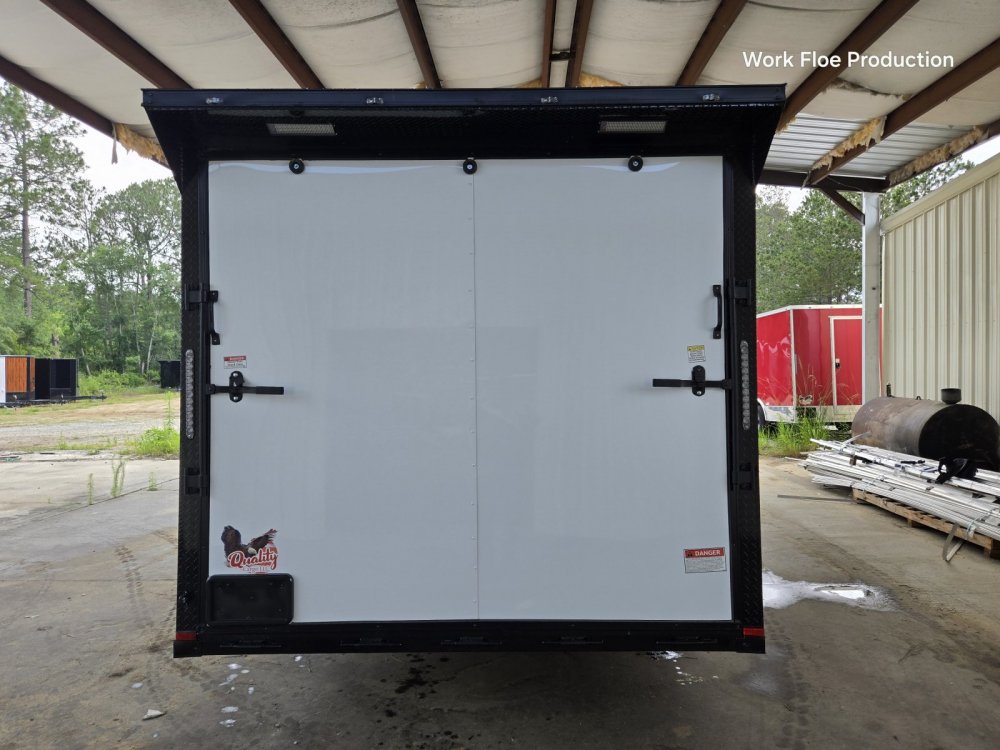

Rear ramp with spring assists and flap

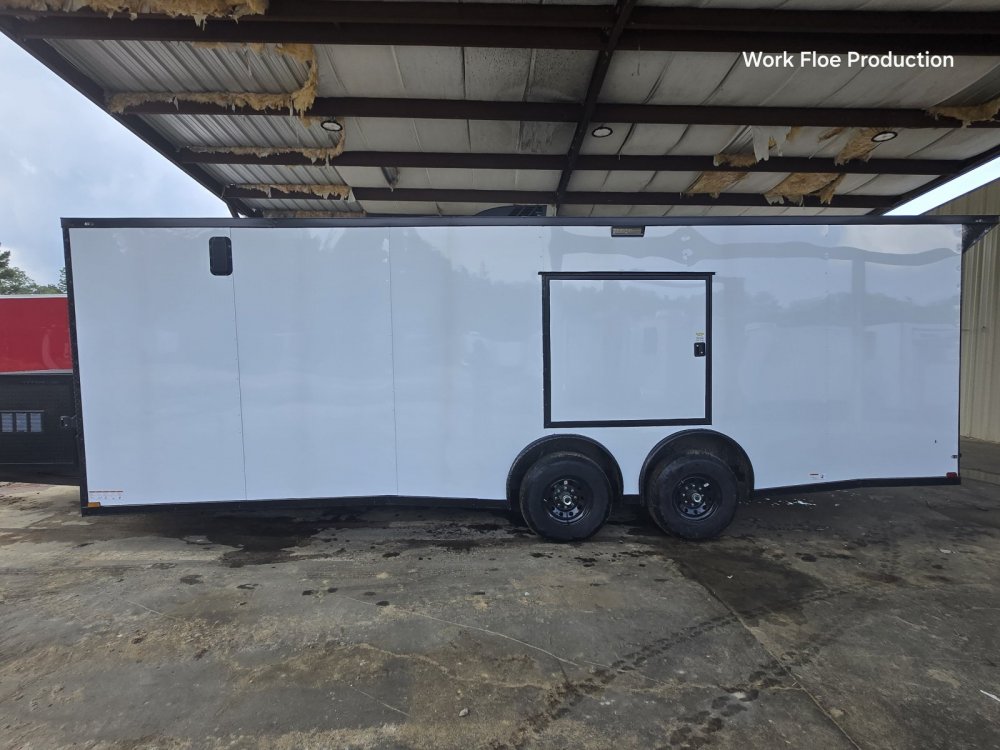

36" RV style side door with flush lock
24" Stoneguard on front
Beavertail frame
Screwed metal exterior
Galvalume roof
7-way round electrical plug with 2 5/16" coupler
6" I-beam main frame
Structure & Build:
Tandem 5200-lb spring axles with 4" drop and EZ Lube hubs
78" (6'6") interior height
¾" plywood floor (painted underneath)
Premium 3/8" plywood sidewalls
1" x 1½" steel tube in walls and ceiling
Wall members 16" O.C.
Floor crossmembers 16" O.C.
Roof members 24" O.C.
2000-lb tongue jack
Lighting & Electrical:
12V dome light with switch
LED strip tail lights
Non-powered roof vent or sidewall
Structure Upgrades
.080 Red exterior PolyCore
7000-lb axle upgrade
Spread axle configuration
60" triple tube tongue
6" extra interior height
Heavy-duty ramp

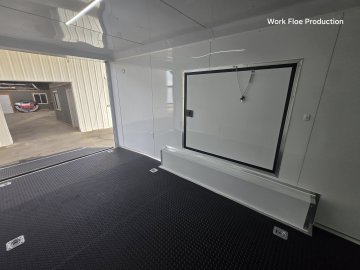

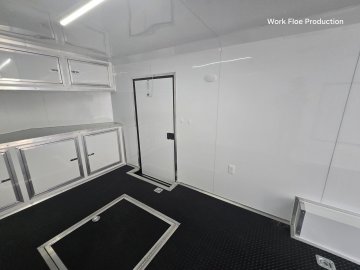

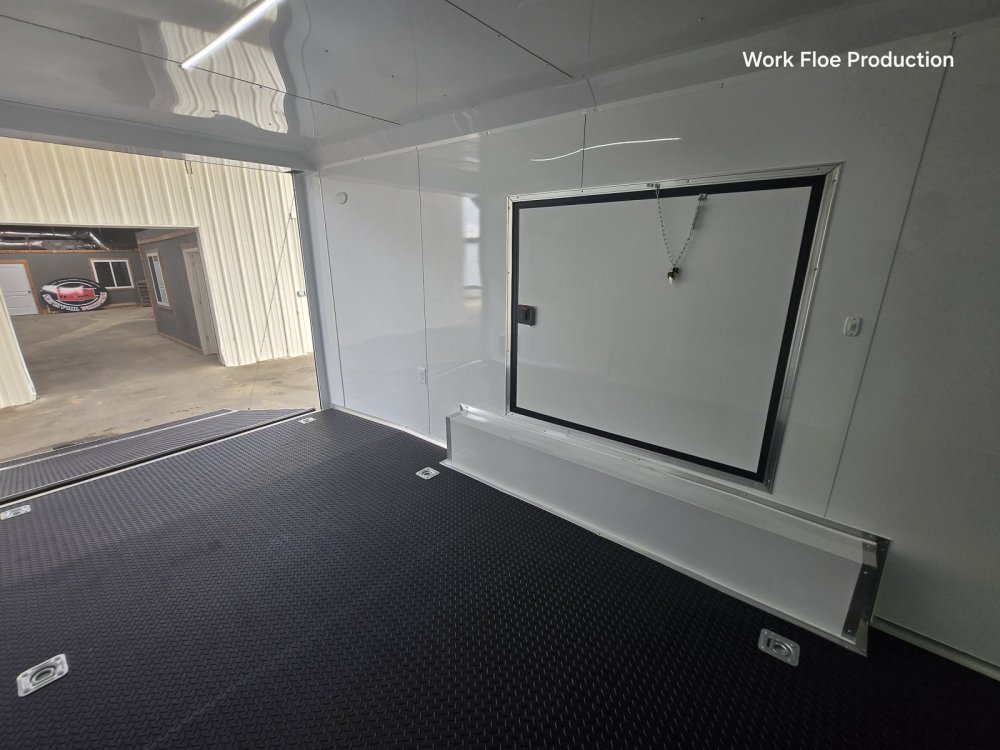

Escape door
Rear wing with additional lighting

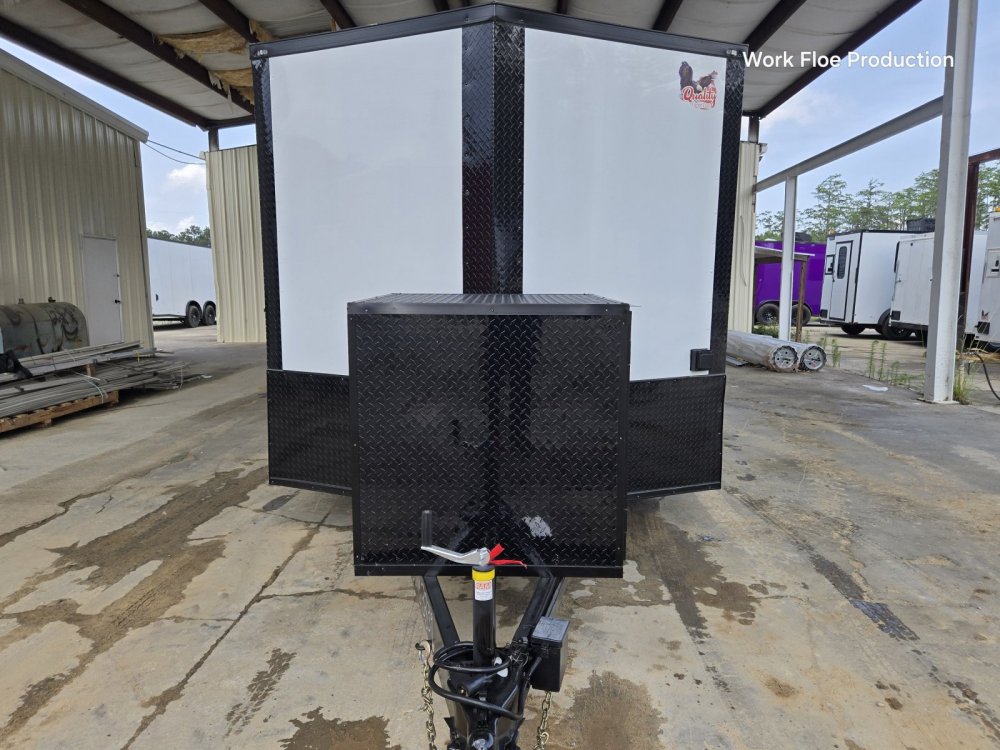

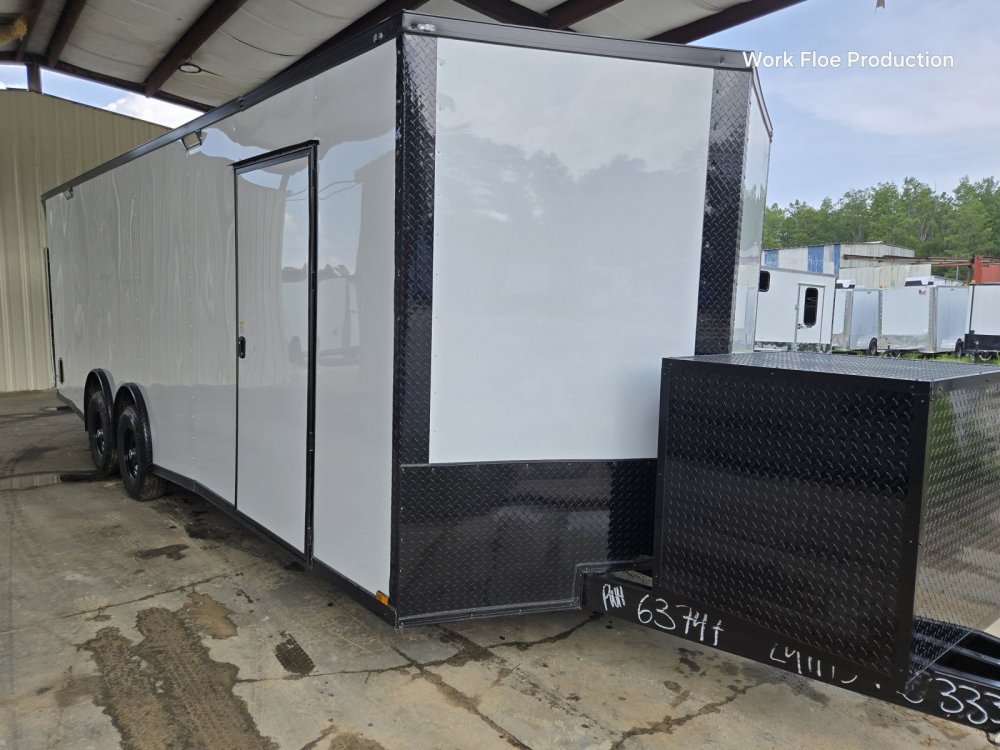

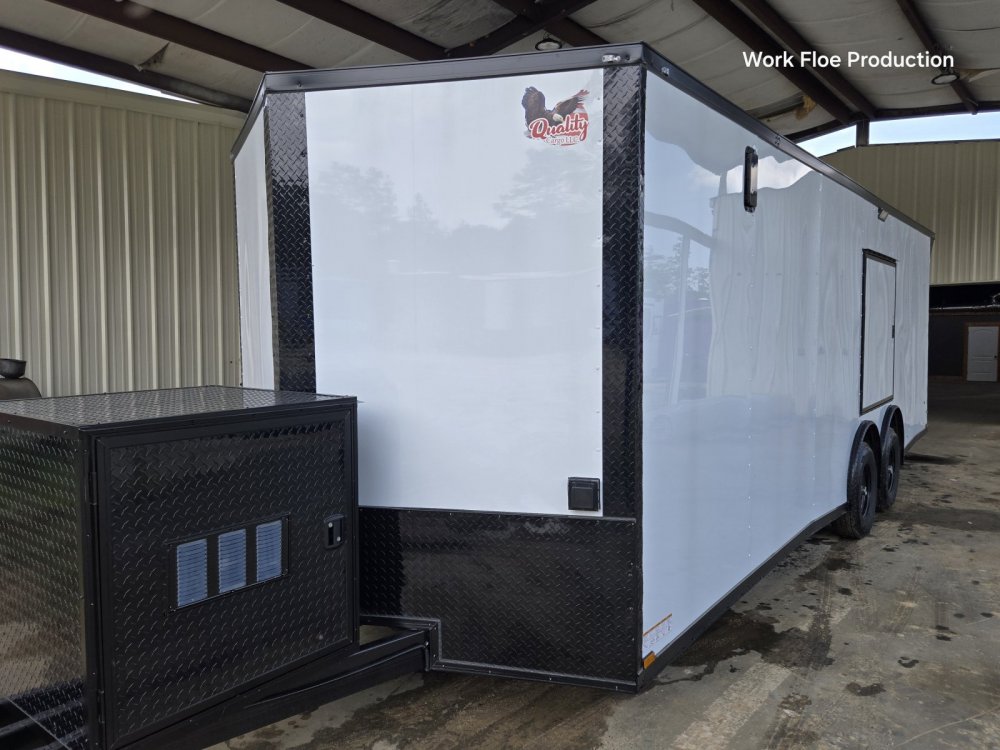

Generator box on tongue with slide-out
Spare tire compartment (floor-mounted, 4 ft from front)
Interior Features
Cool seal liner (standard)
Plywood trim package
White metal walls
White metal ceiling

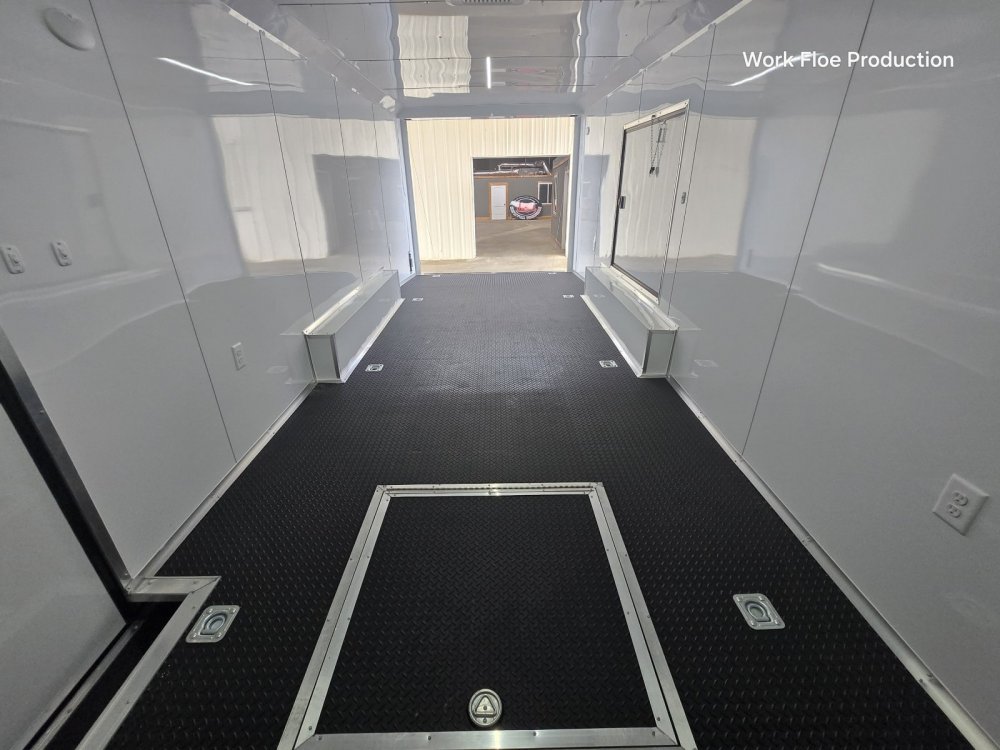

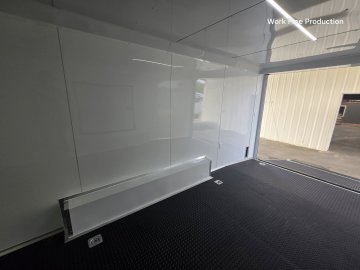

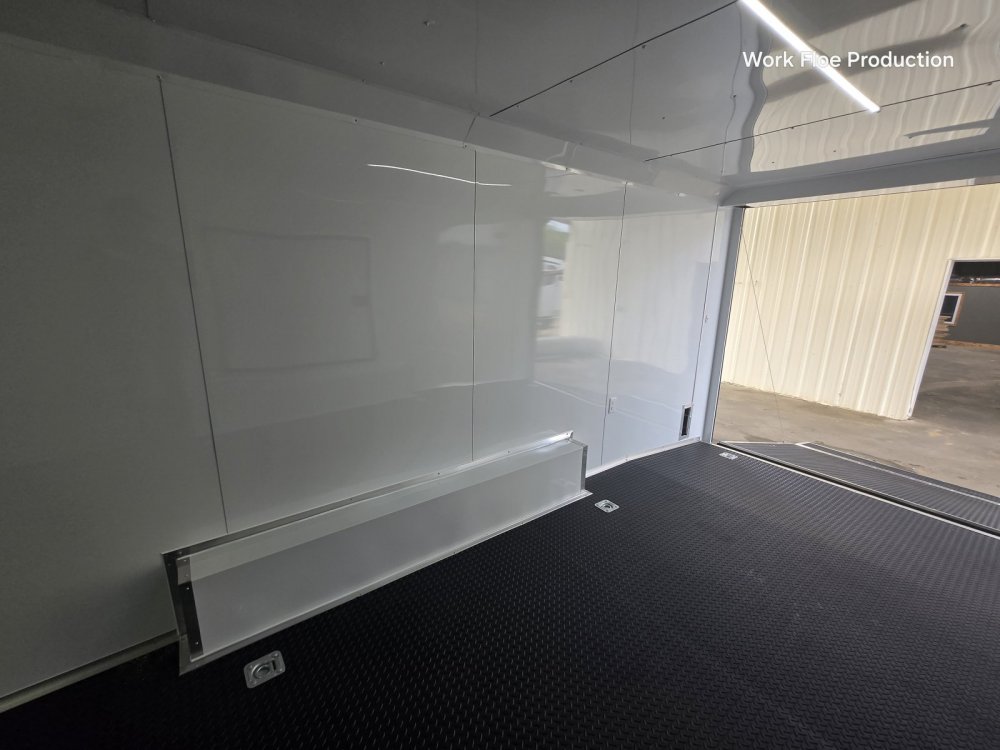

RTP (rubber tread plate) flooring

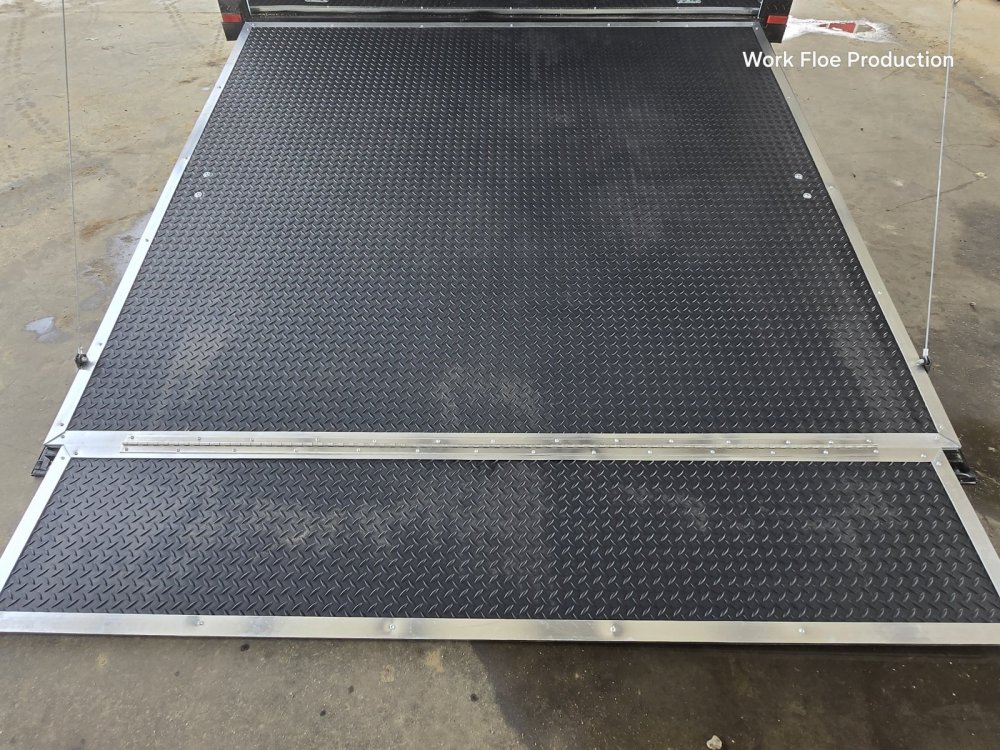

RTP on ramp

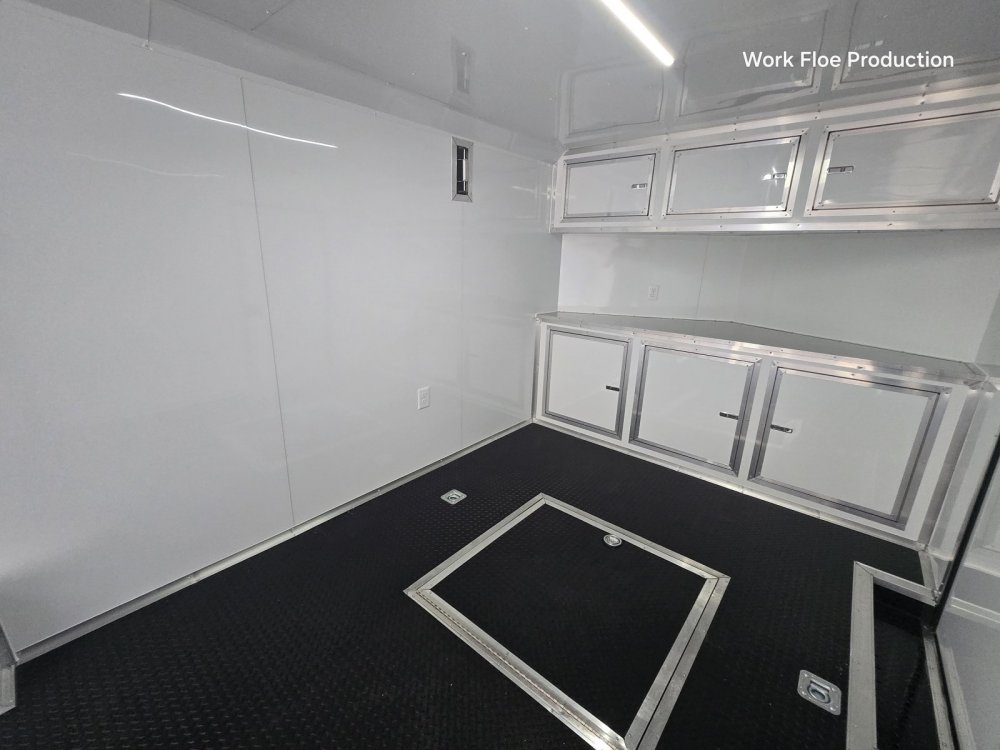

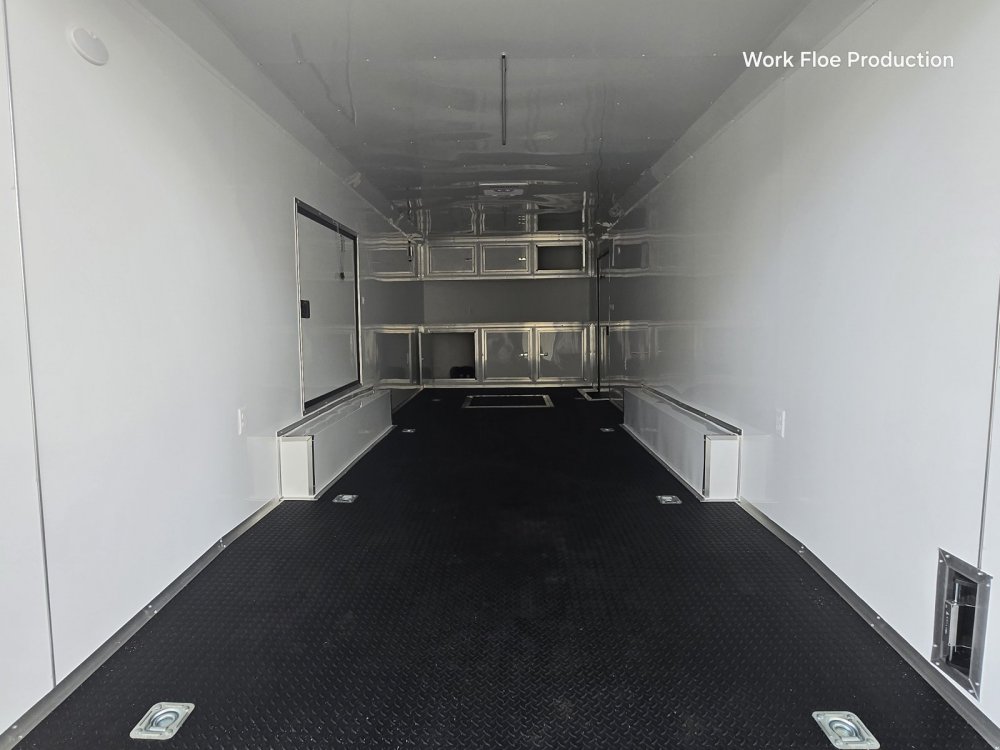

Base and overhead cabinets
Tie-Downs & Stabilizers
(4) Standard D-rings
(4) Additional D-rings
Tires & Wheels
15" Silver Mod wheels
Chrome center lug covers
Sand foot
Radial tires
8-lug spare tire
Doors, Ramps & Windows
36" RV door (standard)
Heavy-duty rear ramp
Escape door
Rear wing with (2) 6" lights
Additional lighting:
(2) 10" loading lights on passenger side with switch
(1) 6" loading light over escape door with switch
Vents & A/C
15,000 BTU A/C with heat
Aluminum side vents
Front vent located 3 ft from front
Electrical System
50 Amp electrical package with MC cable and motorbase plug
Battery and converter combo
Extra strip light under overhead cabinet
(5) Total 110V receptacles:
(3) extra:
(1) between cabinets
(2) on each wall, evenly spaced
