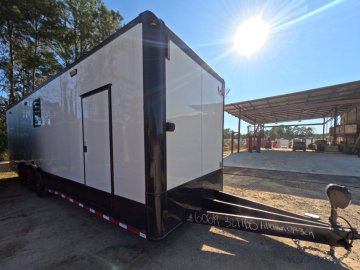

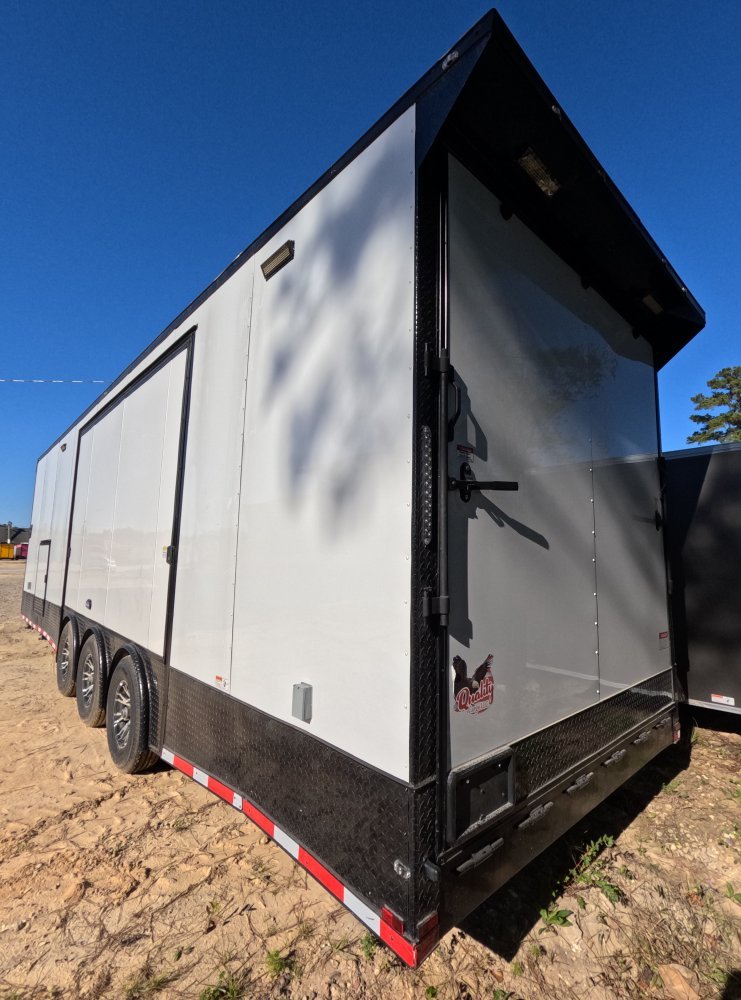

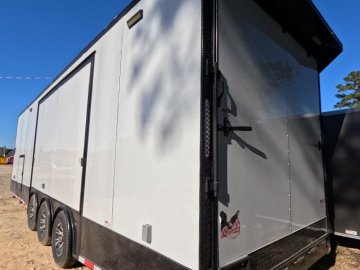

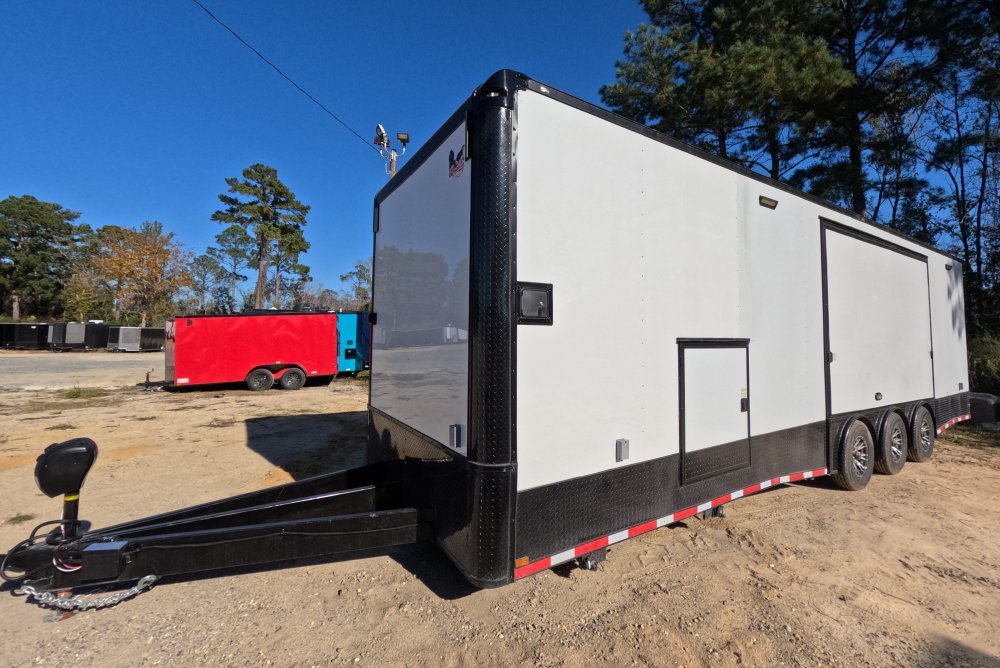

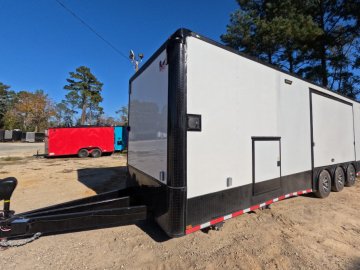

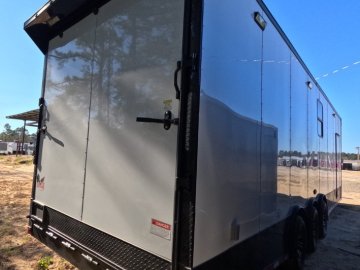

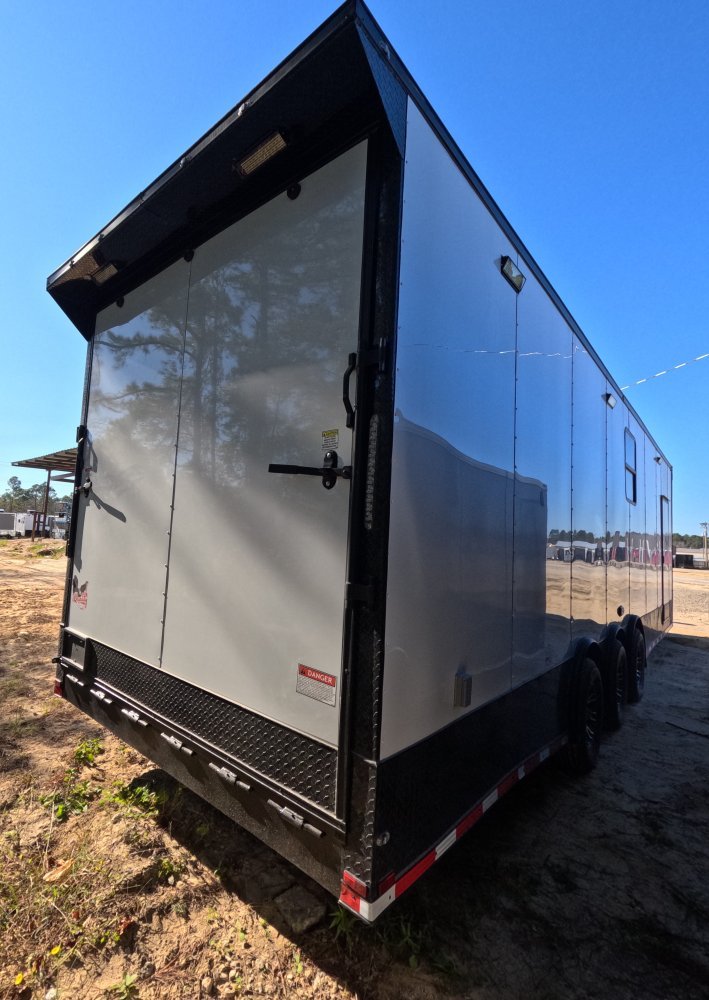

8.5'x32' Quality Cargo Enclosed Car Hauler



Standard Specifications

• 15” Tires
• Silver Mod Wheels
• 36” RV Style Side Door with Flush Lock
• V-Nose with Vertical ATP Trim
• Rear Ramp with Spring Assists and Flap
• Tandem 5200 lb Spring Axles with 4” Drop and EZ Lube Hubs
• 24” Stoneguard on Front
• White Metal Exterior
• Beavertail Frame
• 4 D-Rings in Floor
• 3/4” Plywood Floor (Painted Underneath)
• Premium 3/8” Plywood Sidewalls
• 1” x 1½” Steel Tube in Walls and Ceiling
• 78” (6’6”) Interior Height
• 2000 lb Tongue Jack
• 6” I-Beam Main Rails
• 12V Dome Light with Switch
• Non-Powered Roof Vent or Sidewall Vent
• LED Strip Tail Lights
• Wall Members 16” O.C.
• Floor Crossmembers 16” O.C.
• Roof Members 24” O.C.
• Screwed Metal Exterior
• Galvalume Roof
• 7-Way Round Electric Plug
• 2 5/16” Coupler

Structure

• Flat Front with Cast Corners
• Triple Spread Axles
• 24” Extra Height
• 60" TTT

Tie-Downs & Stabilizers

• 4 D-Rings (two on each side of winch box; two in rear, 4' from double doors, spaced 4'10")
• 2 Rows of Floor E-Track
• 1 Row of E-Track on Walls Above Carpet Around Trailer
• 1 Row of E-Track on Passenger Side Wall (between side door and upper cabinets, 1.5’ AFF)
• Pair of Stabilizer Jacks (Front & Rear)

Tires & Wheels

• Chrome Center Lug Covers
• Sand Foot
• Radial Tires

Doors, Ramps, & Windows

• 36" RV Side Door with Custom Lippert Window
• 95" Wide Ramp Door with 36" Aluminum Flap, Wedges & Big Bumpers
• Double Doors in Front of Ramp (as close to ramp as possible) with Full Lexan Window
• 30" x 30" Window on Passenger Side (14’ from rear, 32" from top)
• Bogey Wheels

Vents & A/C

• Wire & Brace for Mini-Splits (2x)
• Wire & Brace for Roof A/C
• Wire & Brace for Awning

Exterior

• White Polycore Exterior
• Blackout Package

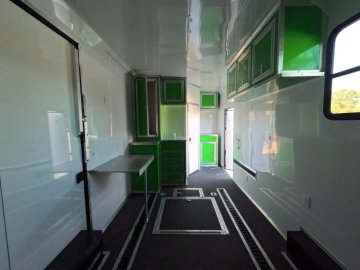

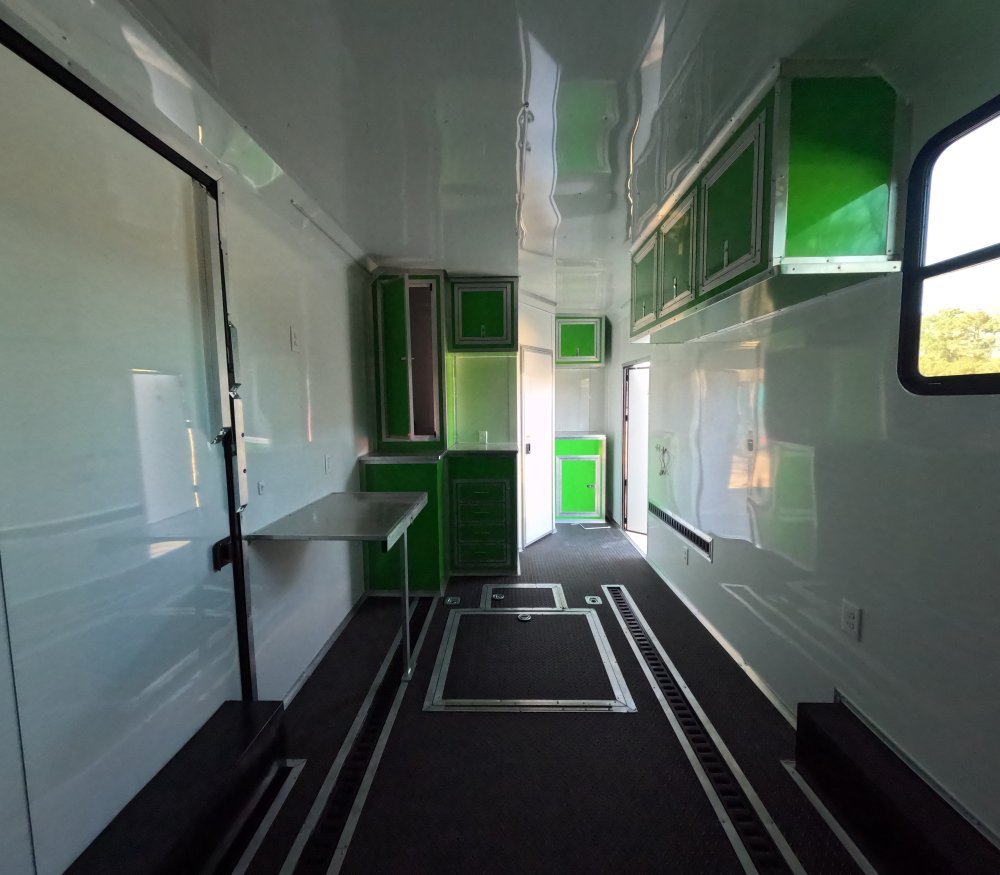

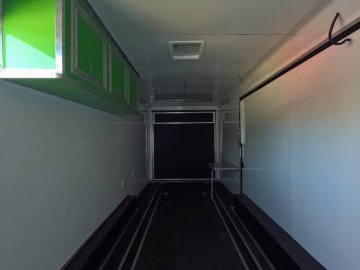

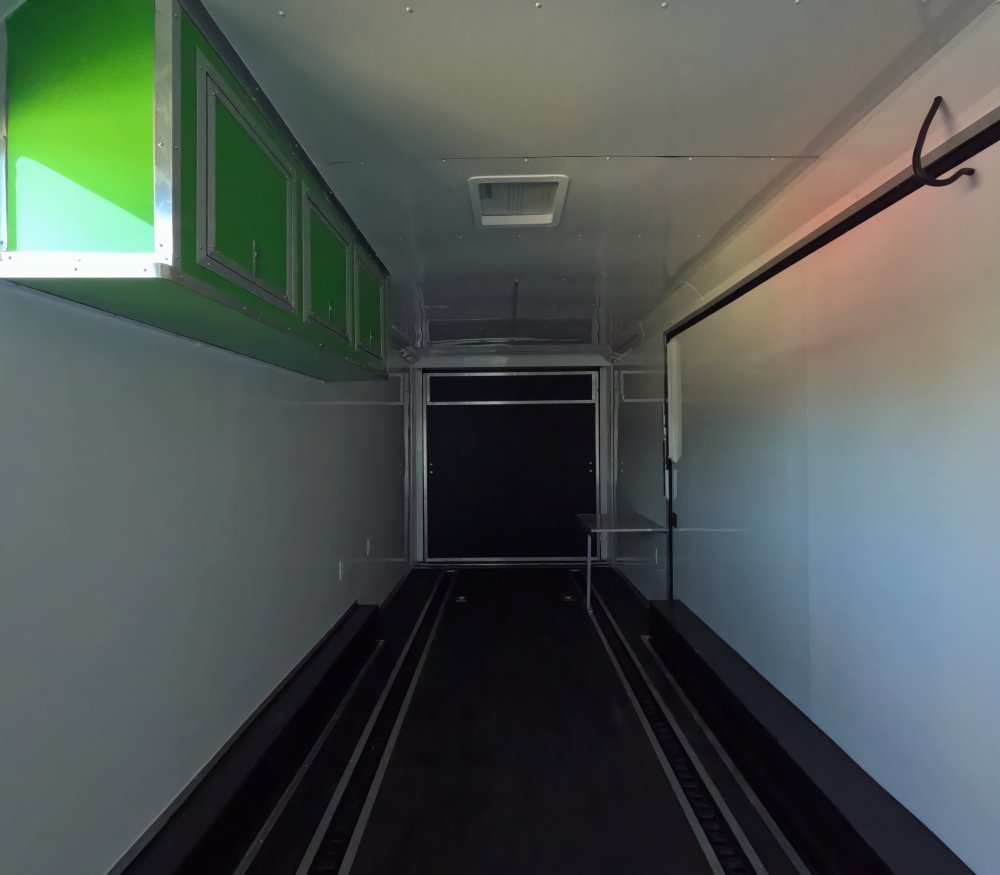

Interior

• 36" Carpet on Walls in Cargo Area
• Two Sets of 7’ x 5.75’ Wide x 24” Tall Upper Cabinets (Over Couches on Passenger Side, to Ceiling, w/ Lights Underneath)
• 36" x 40" Generator Compartment for Cooler w/ Slides, Tray, & 36"x40" Exterior Access Door on Driver Side
• 2’ x 40” Base Cabinet with 4 Drawers Beside Generator Compartment
• 5’6” Tall x 2’ Wide Closet Above Generator Compartment (To Ceiling)
• 3’ Upper Cabinet with Lights Underneath (Above Base Cabinet / Connected to Closet)
• Double-Insulated Walls
• Double-Insulated Ceiling
• White Metal Walls
• White Metal Ceiling
• RTP Floor
• RTP Ramp & Flap
• Approx. 2.5’ Upper Cabinet & Base Cabinet at Front (Opposite Bathroom, Leaving 4” Gap for Sliding Glass Door)
• Two Drop-Down Tables:
– 3’ x 24” Deep @ 36” AFF
– 2.5’ x 24” Deep @ 31” AFF
• 2' Upper Cabinet Above Bathroom Sink

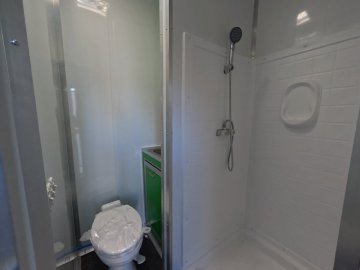

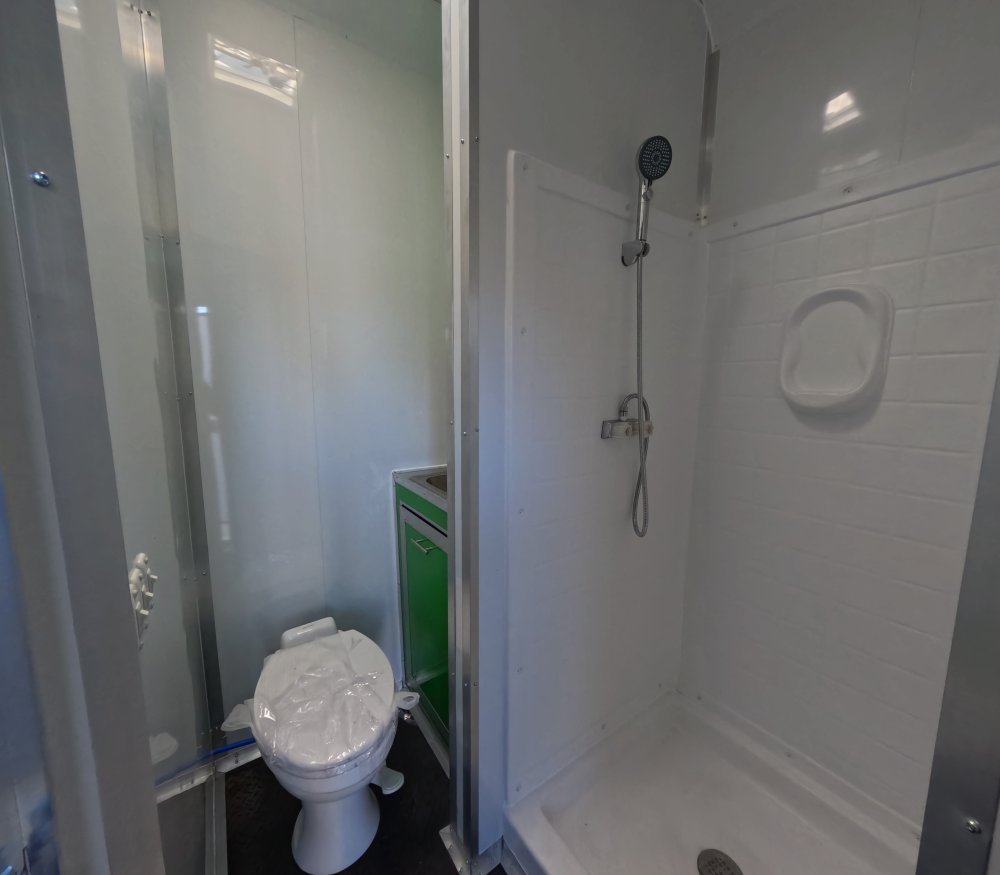

• Full Bathroom with Larger Tanks:
– 90 Gal Waste Tank
– 80 Gal Fresh Water Tank
– 6 Gal Water Heater

Electrical

• 100 Amp Electrical Package with 50 Amp Motorbase Plug
• 6 Extra Receptacles
• 9 Exterior GFCIs
• 1 Interior GFCI (42” AFF, Right of Sink)
• Dual Tail Lights Angled on Each Side of Ramp
• 5 Race Lights (3 Passenger Side, 2 Driver Side)
• 2 Vertical Race Lights on Front Shining on Generator Box
• Radio with 4 Interior Speakers & 2 Exterior Speakers
• Four 48" 12V LED Strip Lights on Cove Trim
• Two 48" 12V LED Strip Lights in Center of Trailer
• 12V Small Round Lights Under Upper Cabinets (Passenger Walls & 3’ Upper Cabinet by Closet)
• Two 12V Batteries with One Converter
