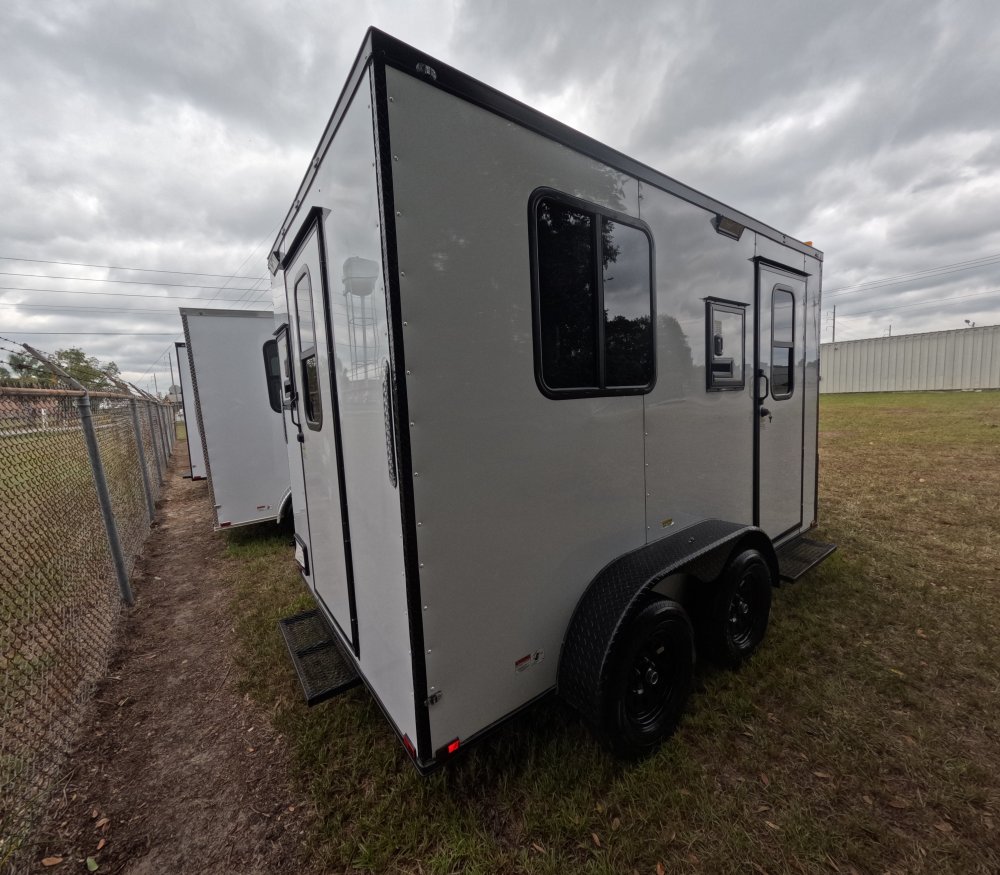

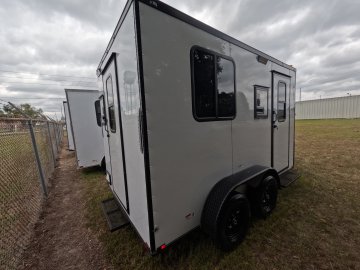

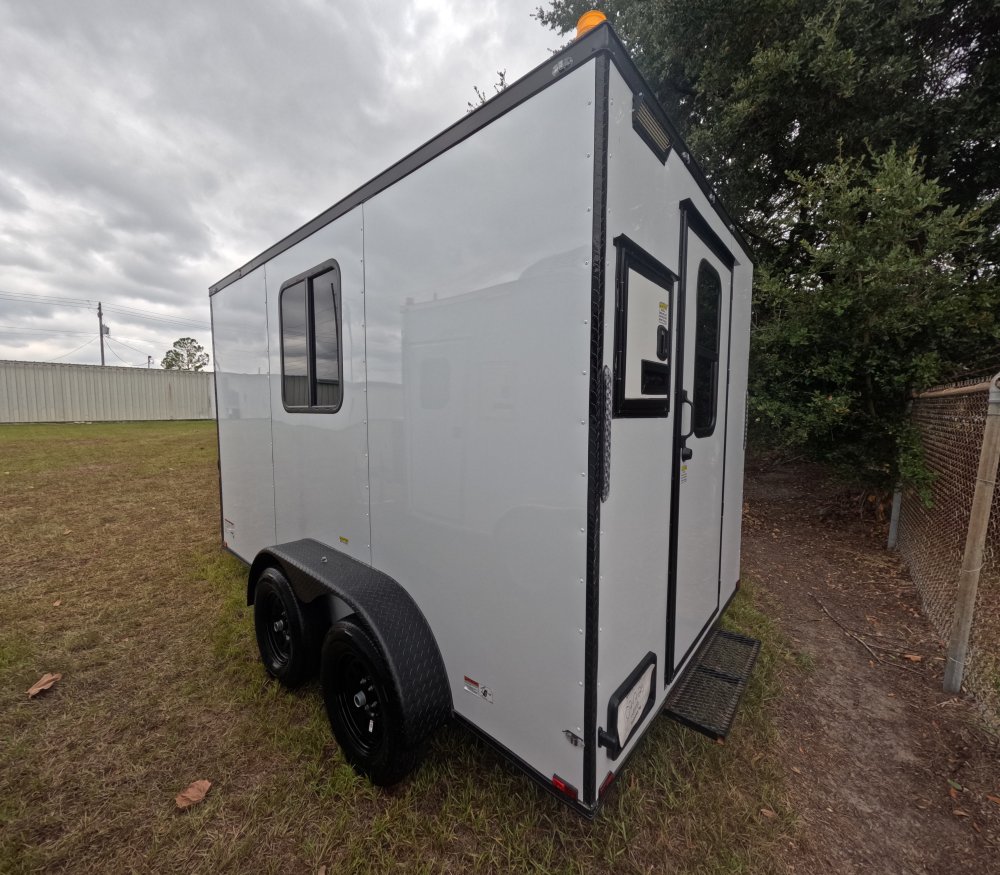

7'x12' Quality Cargo Fiber Optic Splicing Trailer Fiber Splicing Trailer

Model Configuration Overview

Base Model: Tandem Axle Enclosed Cargo Trailer
Axles: Tandem 3500 lb Spring Axles with 4” Drop and EZ Lube Hubs
Main Frame: 2x4” Steel Tube Main Rails
Interior Height: 75” (6’3”) + 9” Extra Height
V-Nose with ATP Trim

Standard Specifications

• 15” Tires

• Silver Mod Wheels

• 32” RV Style Side Door with Flush Lock

• Double Rear Door with Bar Lock or Ramp Option

• V-Nose with Vertical ATP Trim

• 24” Stoneguard on Front

Structure

• V-Nose

• 9" Extra Height

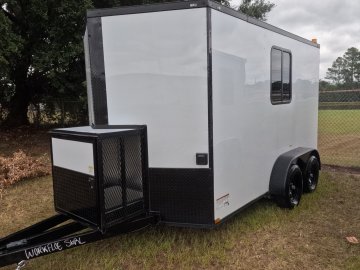

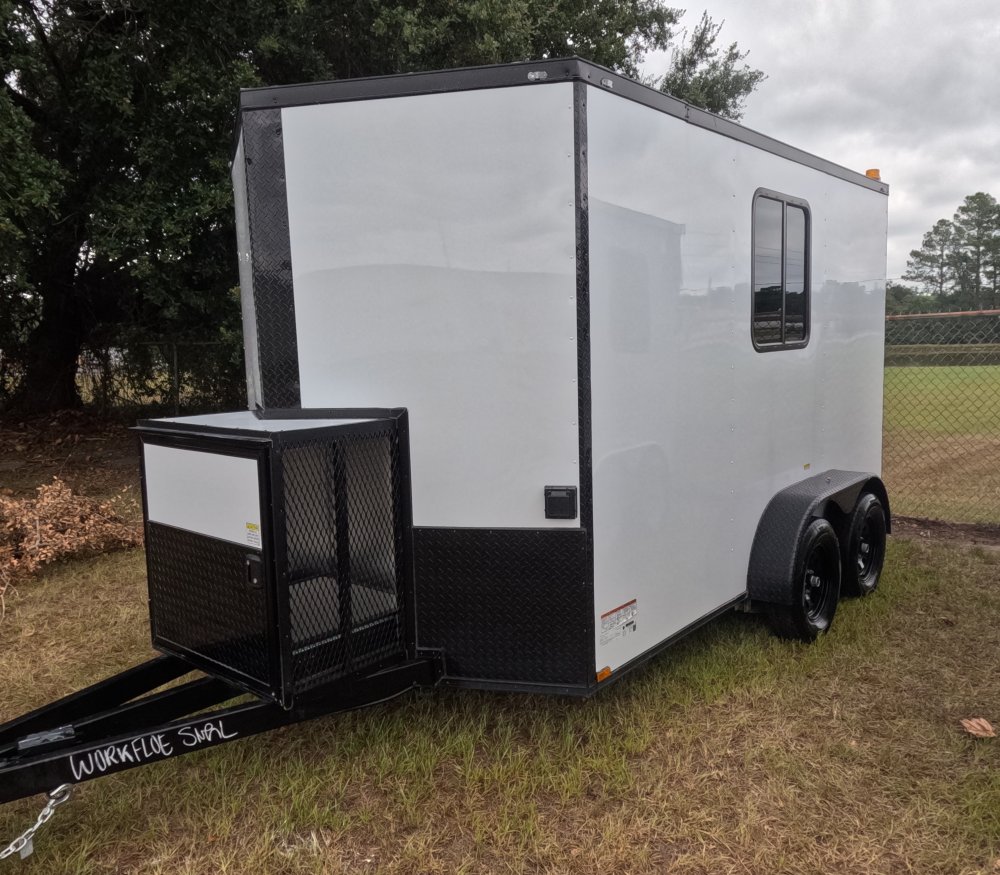

• 36"x36"x36" Generator Box with Slide-Out (Half In/Half Out)

• (2) 32" Long x 9" Wide Steps Under Each RV Door

• 1” x 1 ½” Steel Tube in Walls and Ceiling

• Wall Members: 16” On-Center

• Floor Crossmembers: 16” On-Center

• Roof Members: 24” On-Center

• 3/4” Plywood Floor (Painted Underneath)

• Premium 3/8” Plywood Sidewalls

• Beavertail Frame

Exterior

• White Polycure Exterior

• ATP Fenders

• 2” Coupler

• Aluminum Fender with Lights

• Screwed Metal Exterior

• Galvalume Roof

• Sand Foot

• Chrome Center Lug Covers

• 4-Way Bargman Plug

• No Quality Cargo Stickers

• Blackout Package

• Cool Seal

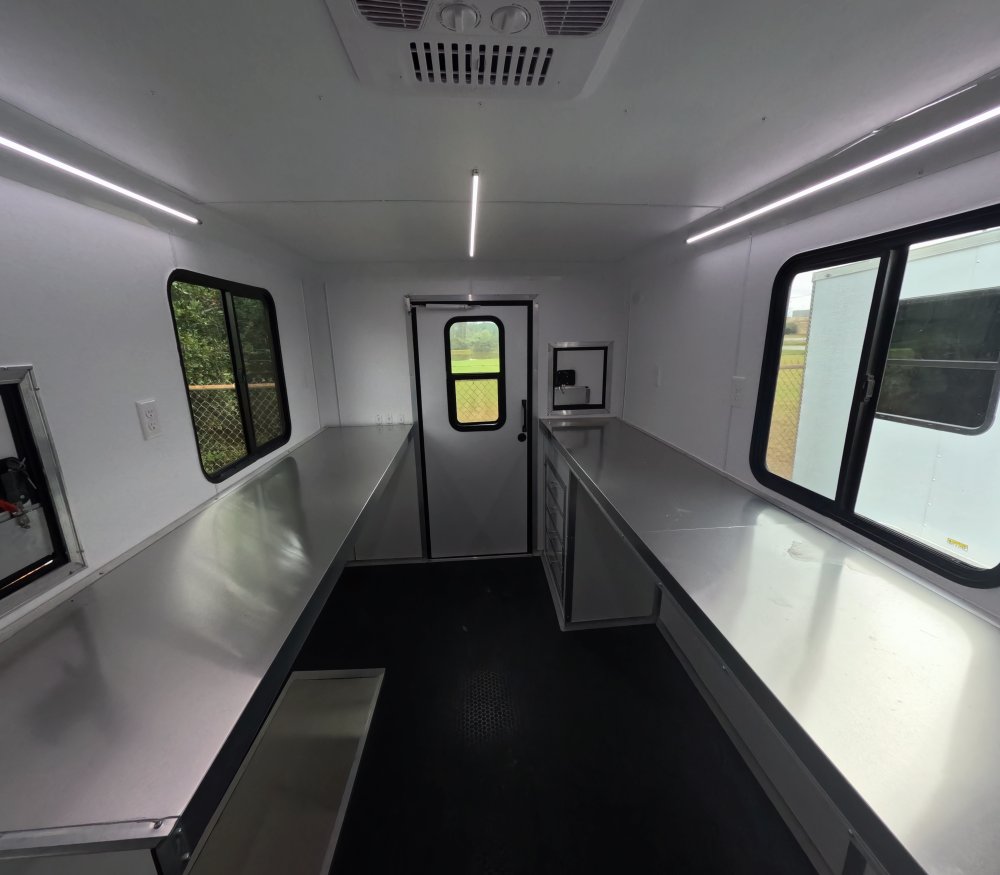

Interior

• White Vinyl Walls

• White Vinyl Ceiling

• Rubber Coin Flooring

• Cool Shield Bubble R Foil Insulated Walls

• Cool Shield Bubble R Foil Insulated Ceiling

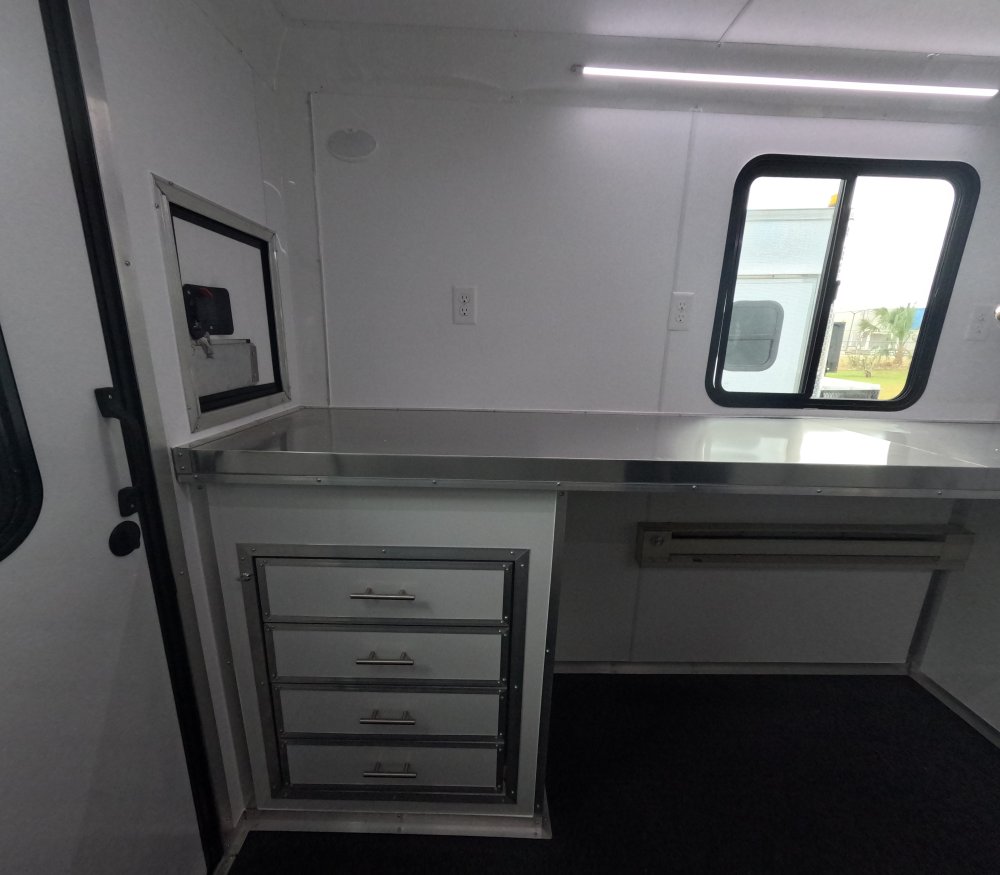

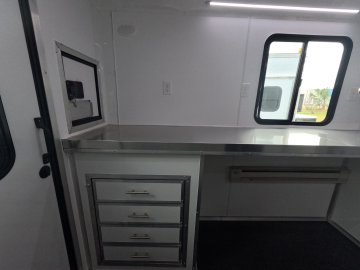

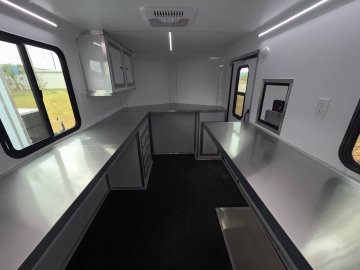

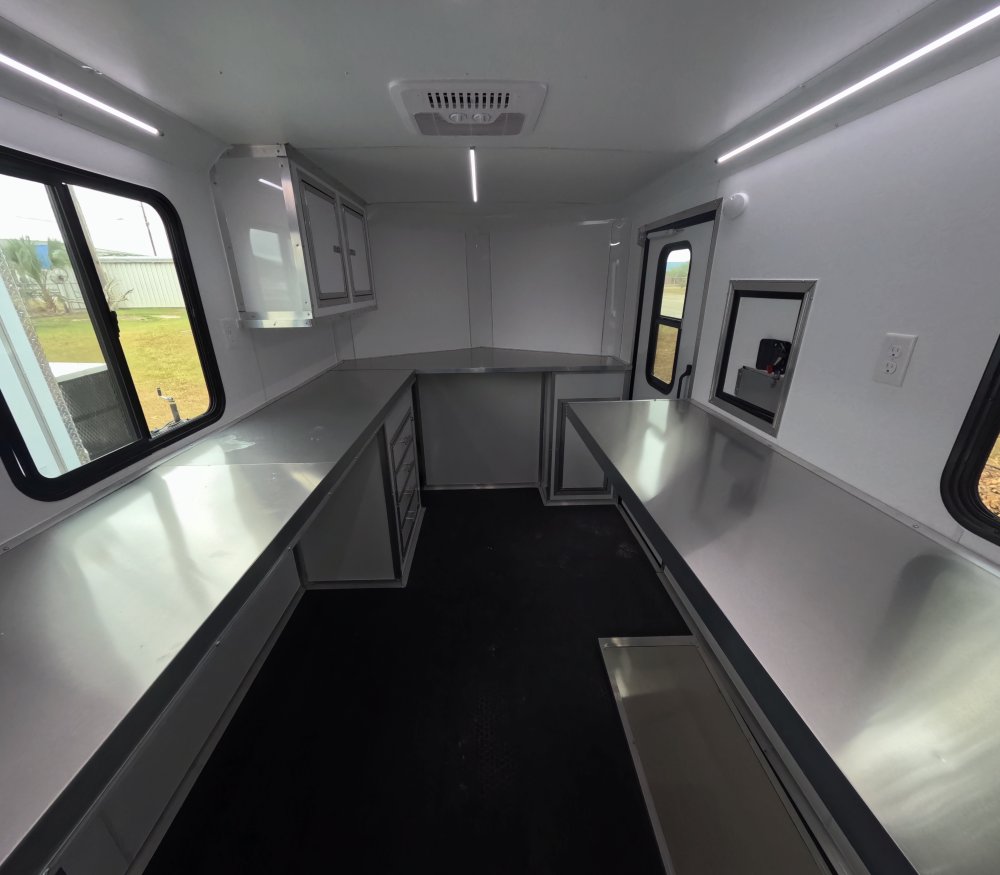

• 10’L x 22”W x 42”H Mill Finish Countertop (Driver Side)

• 6’L x 18”W x 42”H Fold Down Countertop (Passenger Side)

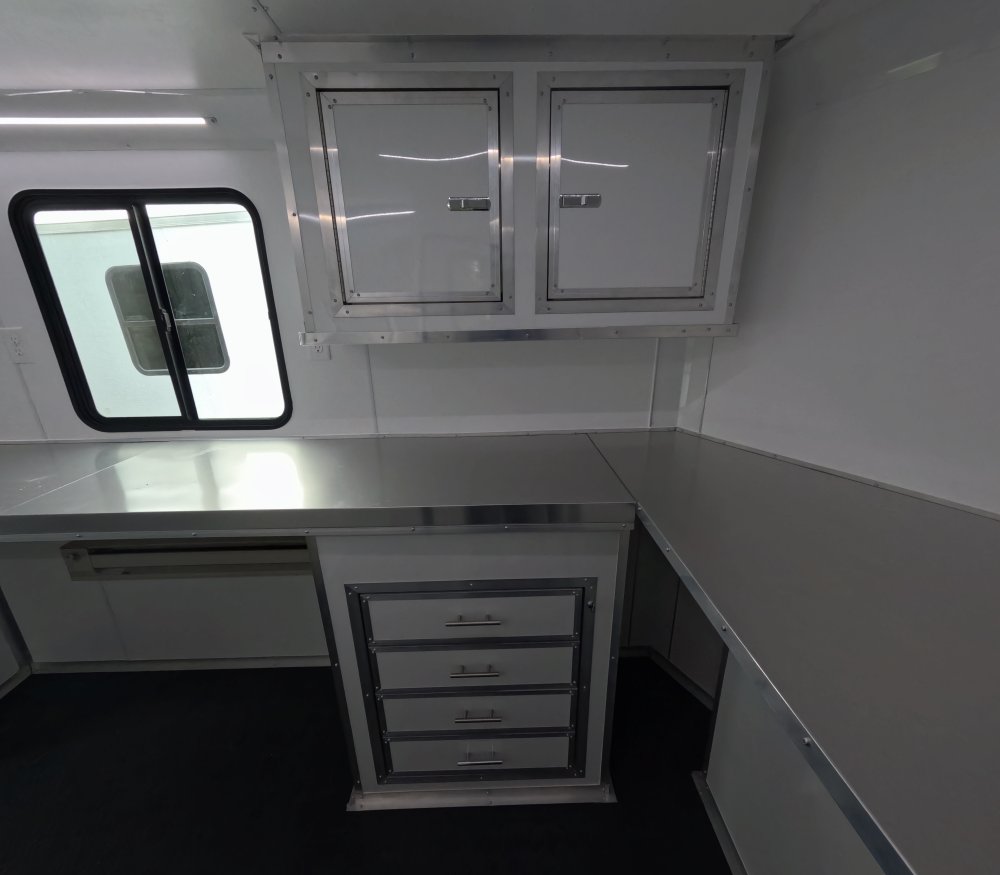

• 4 Locking Drawers (Front, Driver Side)

• 4 Locking Drawers (Back, Driver Side)

• Removable T-Top Between Driver/Passenger Side Counters

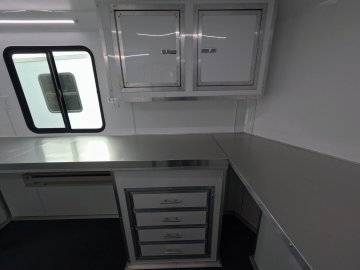

• Overhead 4’ Cabinet on Driver Side (2 Doors)

Tires & Wheels

• 15” Radial Tires

• Silver Mod Wheels

• Chrome Center Lug Covers

• Sand Foot

Doors, Ramps, Windows

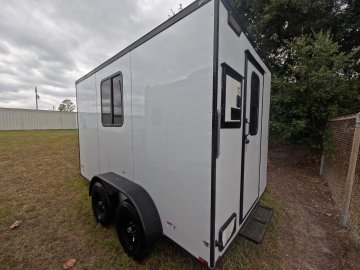

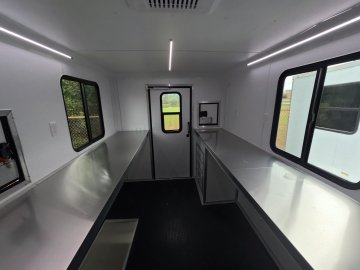

• (2) 32” x 75” Doors with 15” x 30” Windows (1 Rear Center, 1 Passenger Side)

• Dead Bolt Locks (Dealer Provided)

• RV Handles on Both Doors (Dealer Provided)

• Automatic Door Closers (Dealer Provided)

• (2) 16” x 18” Splicing Doors with Brushes (Rear Driver Side)

• (2) 30” x 30” Windows

Electrical System

• 30A Electrical Package

• 30A Motorbase Plug

• Battery with Converter/Charger

• Baseboard Heater

• (5) Total 110V Recepts

• (2) Dome Lights

• (4) 12V LED Strip Lights (2 in center, 1 above each table)

• (2) 10” Exterior LEDs

• (2) Roof-Mounted Strobe Lights

HVAC & Vents

• 13,500 BTU A/C Unit with Heat Strip

• Non-Powered Roof Vent or Sidewall Vent
