7'x12' Quality Cargo Fiber Optic Splicing Trailer Fiber Splicing Trailer

Enclosed Trailer Standard Specifications

• 15” Tires

• Silver Mod Wheels

• Tandem 3500 lb Spring Axles with 4” Drop and EZ Lube Hubs

• 32” RV Style Side Door with Flush Lock

• Double Rear Door with Bar Lock or Optional Ramp

• V-Nose with Vertical ATP Trim

• 24” Stoneguard on Front

• White Metal Exterior

• 2” Coupler

• Aluminum Fender with Lights

• 3/4” Plywood Floor (Painted Underside)

• Premium 3/8” Plywood Sidewalls

• 75” (6’3”) Interior Height

• 1” x 1 ½” Steel Tube in Walls and Ceiling

• 2x4” Steel Tube Main Rails

• 2000 lb Tongue Jack

• 12V Dome Light with Switch

• Non-Powered Roof or Sidewall Vent

• LED Strip Tail Lights

• Wall Members: 16” On-Center

• Floor Crossmembers: 16” On-Center

• Roof Members: 24” On-Center

• Screwed Metal Exterior

• Galvalume Roof

• 4-Way Bargman Plug

Structure

• V-Nose Design

• 9” Extra Height

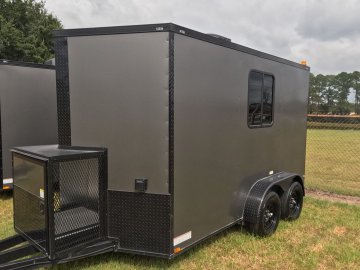

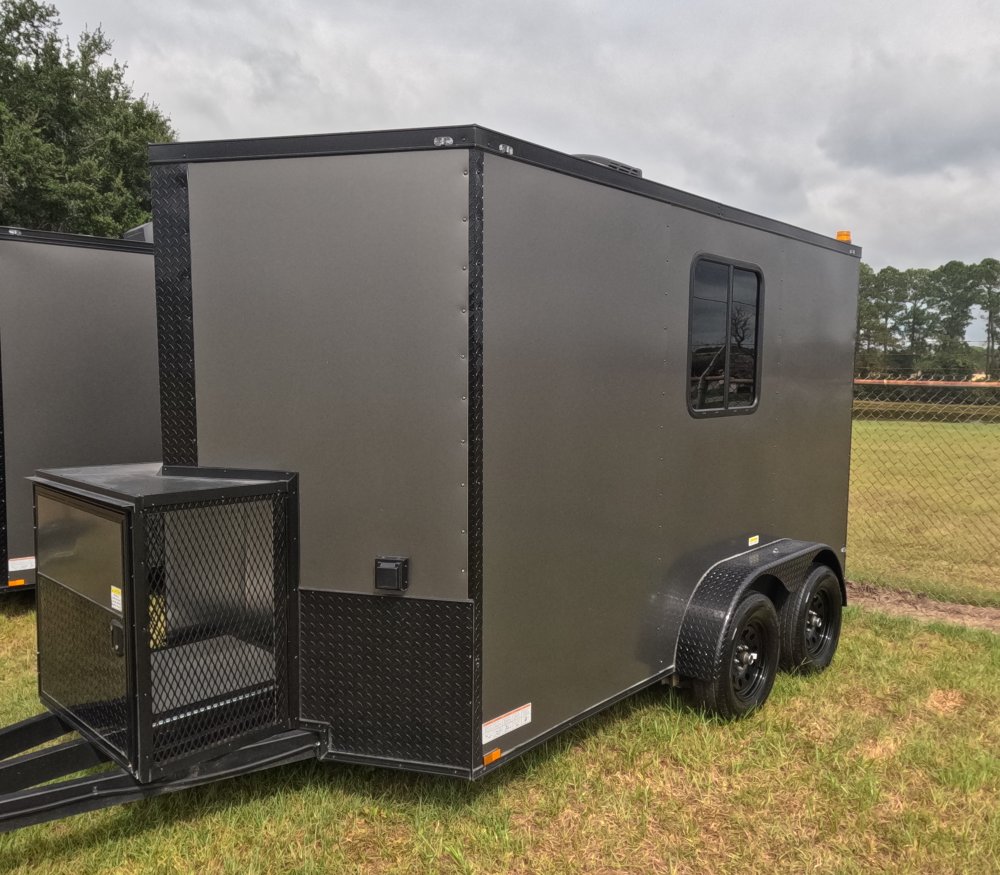

• 36” x 36” x 36” Generator Box with Slide-Out (Half In / Half Out)

• (2) 32” Long x 9” Wide Deck Steps Welded Under Each RV Door

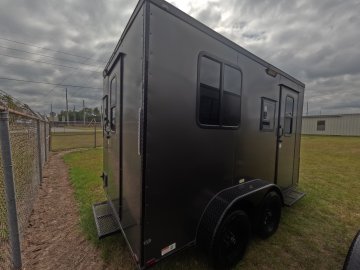

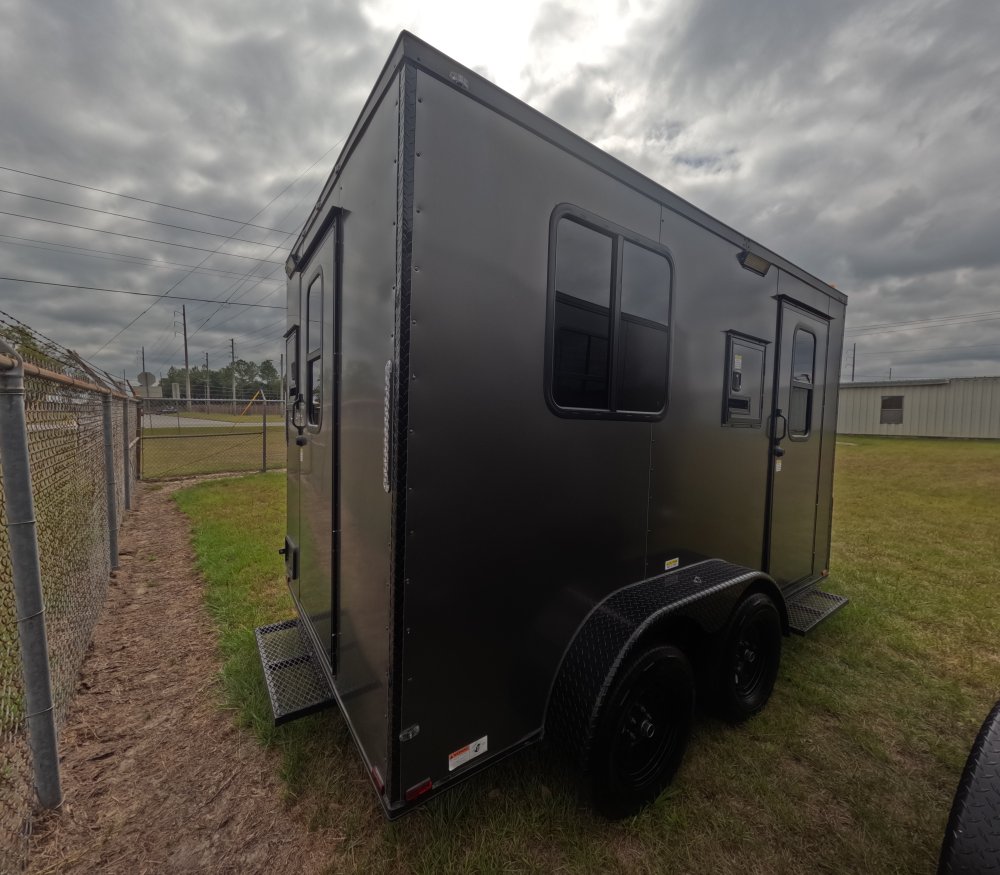

Exterior

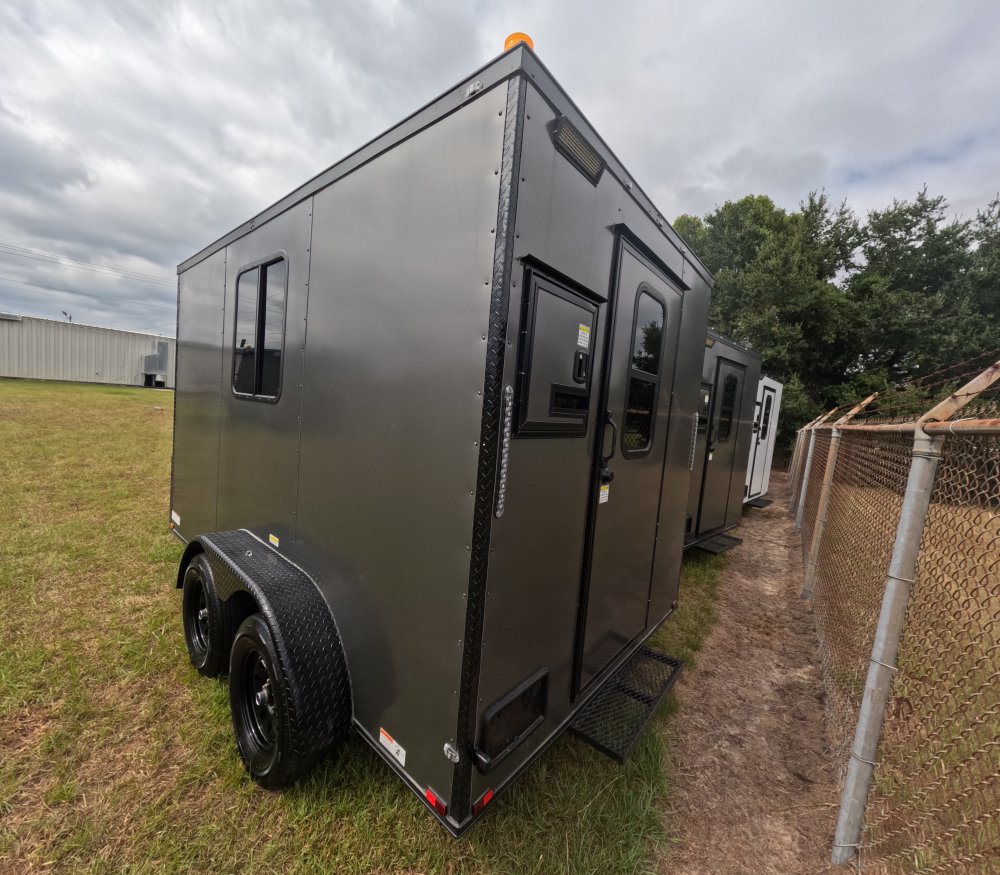

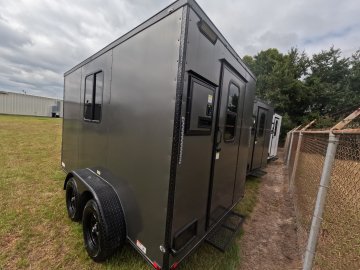

• Charcoal Polycure Exterior Panels

• ATP Fenders

• Blackout Exterior Package

• No Manufacturer Decals or Branding

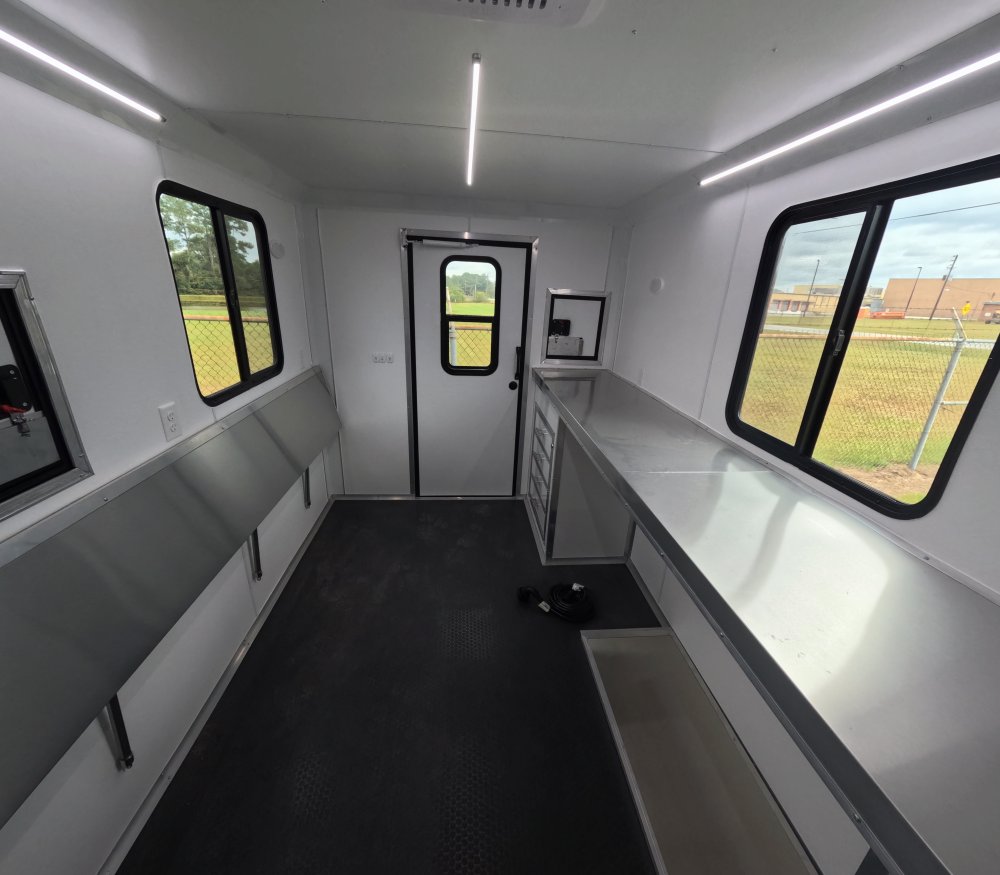

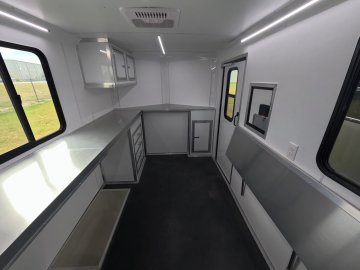

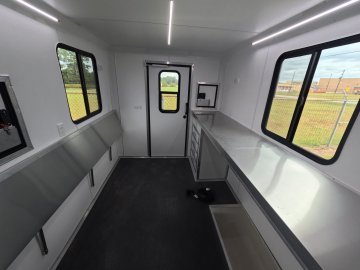

Interior

• Cool Shield Bubble R Foil Insulated Walls

• Cool Shield Bubble R Foil Insulated Ceiling

• White Vinyl Walls

• White Vinyl Ceiling Panels

• Rubber Coin Flooring

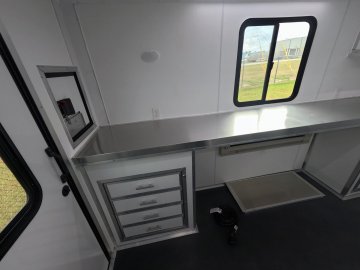

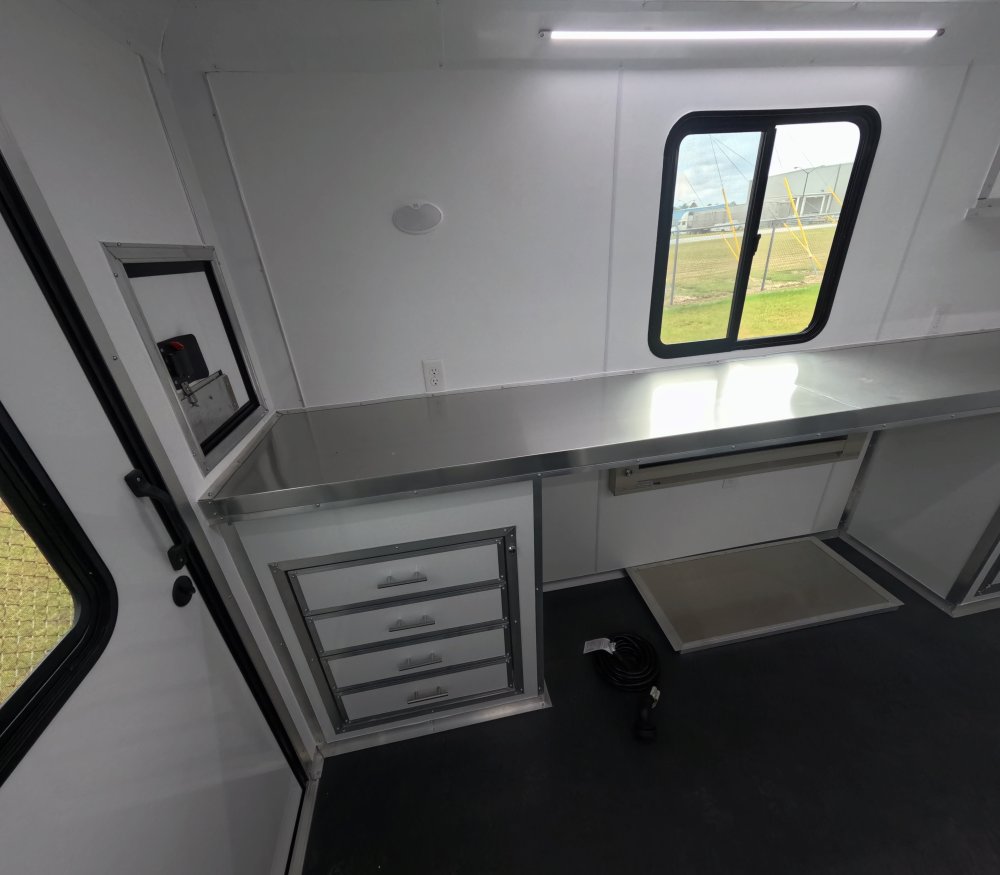

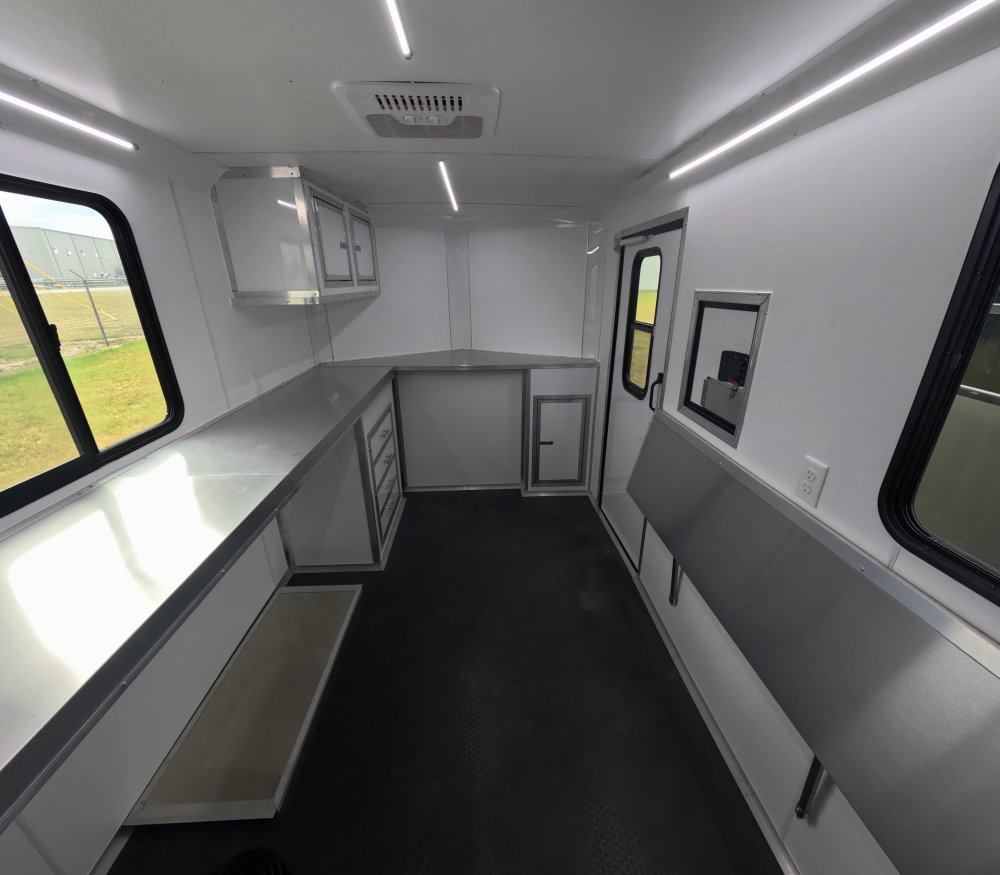

• Driver Side Workstation Countertop:

  • 10’ Long x 22” Wide x 42” AFF

  • Mill Finish Aluminum (Folded Edges, No Lip)

• Passenger Side Fold-Down Countertop:

  • Approx. 6’ Long x 18” Wide x 42” AFF

  • Mill Finish Aluminum (Folded Edges, No Lip)

• (4) Drawers Underneath Driver Side Countertop (Front of Trailer)

• (4) Drawers Underneath Driver Side Countertop (Rear of Trailer)

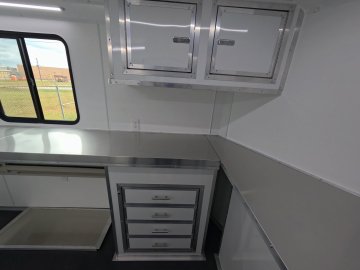

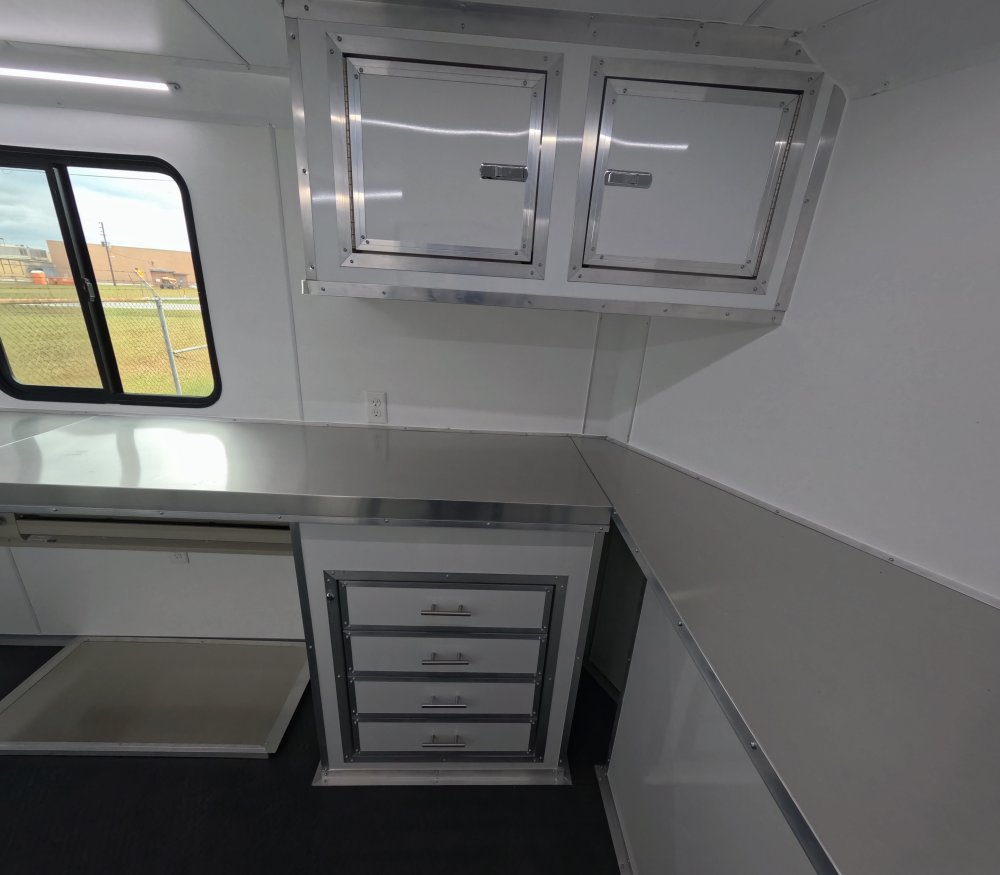

• (1) Overhead 4’ Cabinet with 2 Cabinet Doors (Driver Side)

• Removable T-Top Between Driver and Passenger Side Counters

Tires & Wheels

• Silver Mod Wheels

• Chrome Center Lug Covers

• Radial Tires

• Sand Foot

Doors & Windows

• (2) 32” x 75” Deadbolt Doors with 15” x 30” Windows

  • 1 Center Rear

  • 1 Passenger Side (Right-Hand Open)

  • RV Handles and Automatic Closers (Dealer Provided)

• (2) 30” x 30” Windows

• (2) 16” x 18” Splicing Doors with Brushes (Rear Driver Side)

Electrical System

• 30A Electrical Package

• 30A Motorbase Plug

• Battery with Converter/Charger

• Baseboard Heater

• (5) Total 110V Receptacles

• (2) Dome Lights

• (2) 10” Exterior LED Lights

• (2) Roof-Mounted Strobe Lights

• (4) 12V LED Strip Lights

  • (2) Center Mounted

  • (1) Above Each Table Corner

Vents & HVAC

• Non-Powered Roof or Sidewall Vent

• 13,500 BTU A/C Unit with Heat Strip
