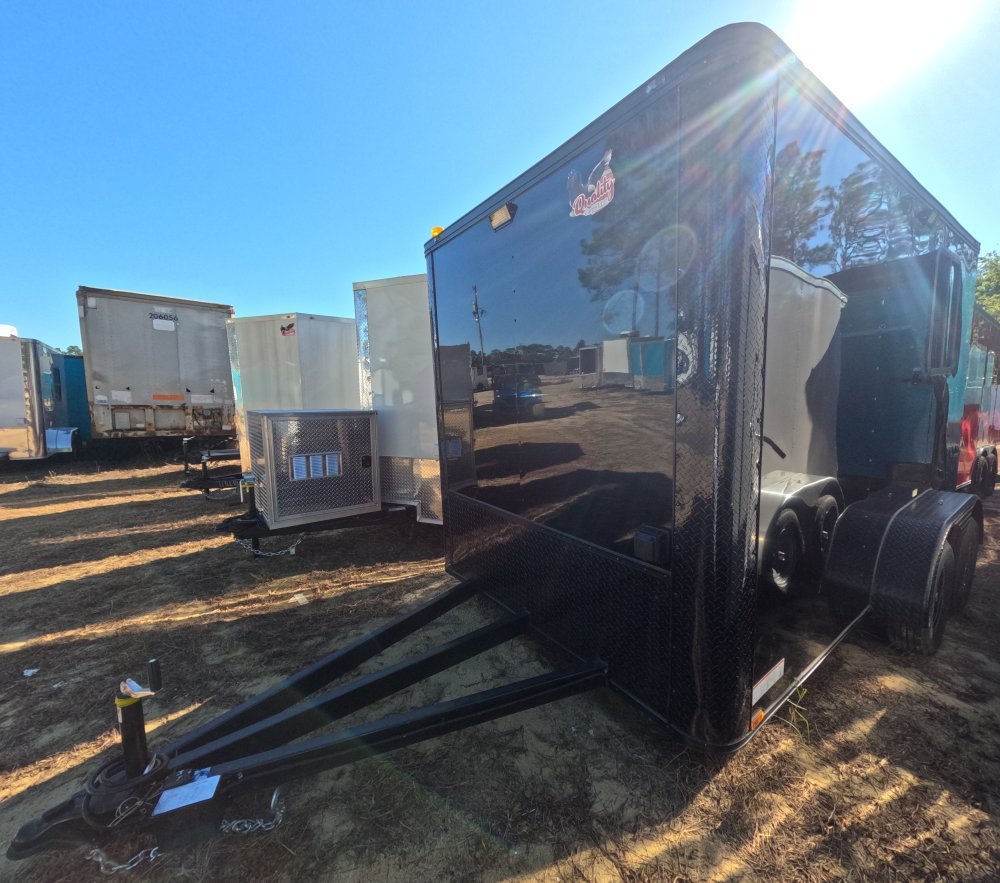

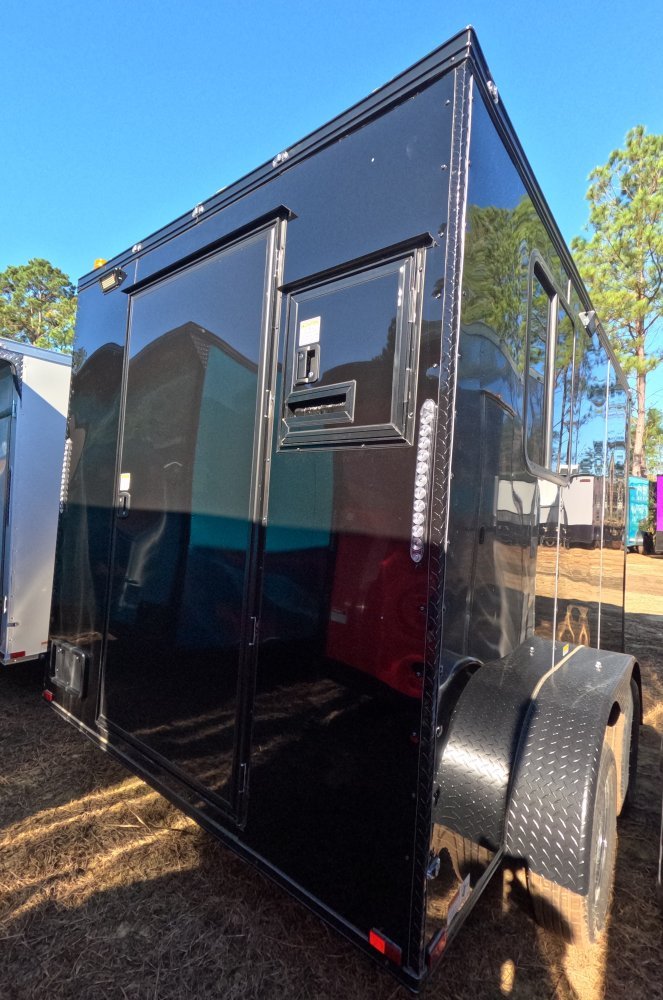

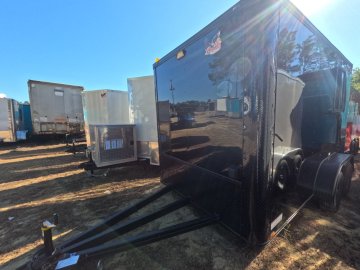

7'x12' Quality Cargo Fiber Splicing Trailer



Standard Specifications:

• 15” Tires

• Silver Mod Wheels

• 32” RV-style side door with flush lock

• V-Nose with vertical ATP trim

• Double rear door with bar lock or ramp

• Tandem 3500 lb spring axles with 4" drop and EZ Lube hubs

• 24” Stoneguard on front

• White metal exterior

• 2” coupler

• Aluminum fenders with lights

• 3/4” plywood floor (painted underneath)

• Premium 3/8” plywood sidewalls

• 1” x 1½” steel tube in walls and ceiling

• 75” (6’3”) interior height

• 2000 lb tongue jack

• 2x4” steel tube main rails

• 12V dome light with switch

• Non-powered roof vent or sidewall vent

• LED strip tail lights

• Wall members 16” O.C.

• Floor crossmembers 16” O.C.

• Roof members 24” O.C.

• Screwed metal exterior

• Galvalume roof

• 7-way Bargman plug

Structure:

• Flat front

• .080 black exterior metal

• 9" extra height

• 72" tongue-to-tail (TTT)

• Install windows at a 45° angle

• Allow ½" clearance for workbenches below

Tires & Wheels:

• Silver Mod

• Chrome center lug covers

• Sand foot

• Radial tires

Doors, Ramps, Windows:

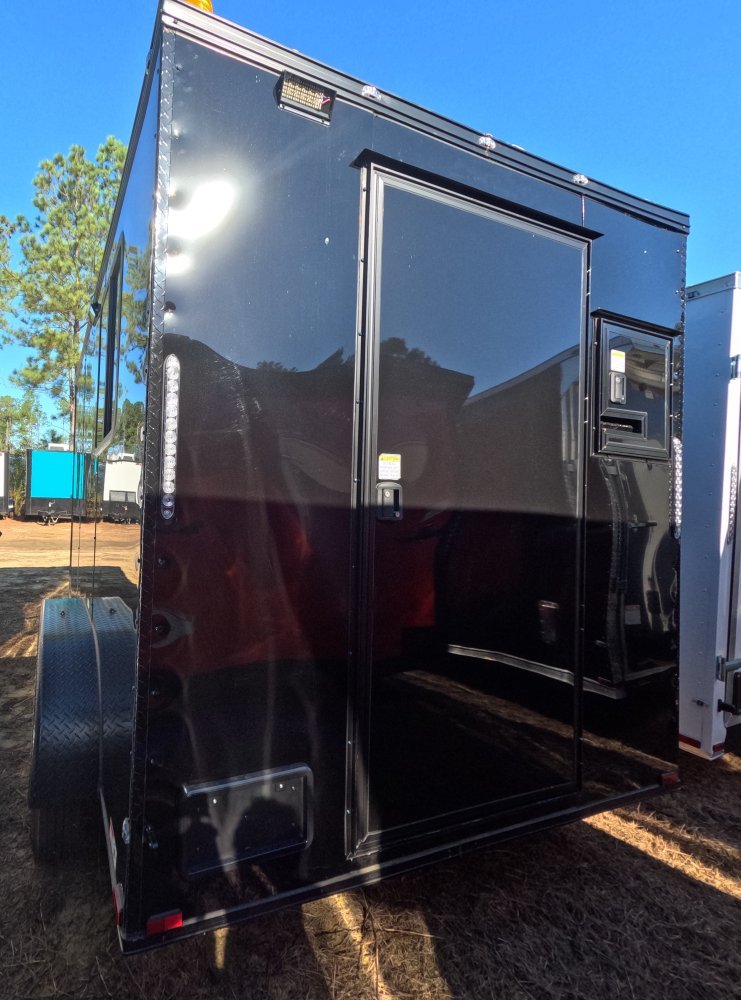

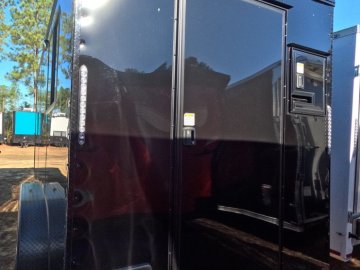

• Upgrade to 36" RV door (rear, centered)

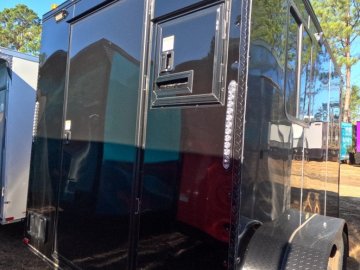

• (1) 16"x18" splicing door with brush insert

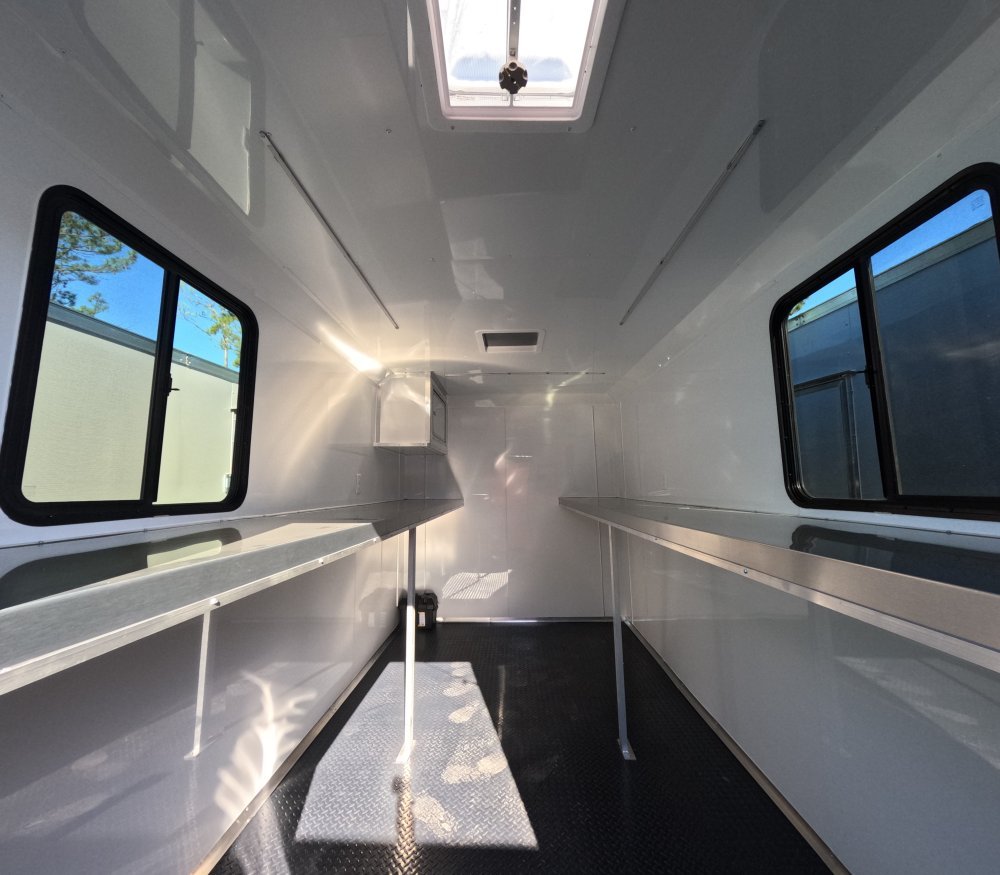

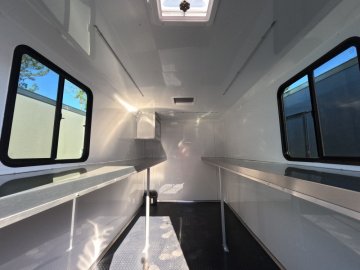

• (2) 30"x30" windows — one on each side of the trailer

Vents & A/C:

• Wired and braced for A/C

• Roof vent

Exterior:

• .080 Black

Interior:

• Insulated walls

• Insulated ceiling

• White metal walls

• White metal ceiling

• RTP floor

Cabinets & Workbenches:

• 3' upper cabinet on driver side with (1) light underneath

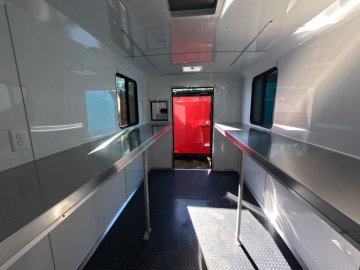

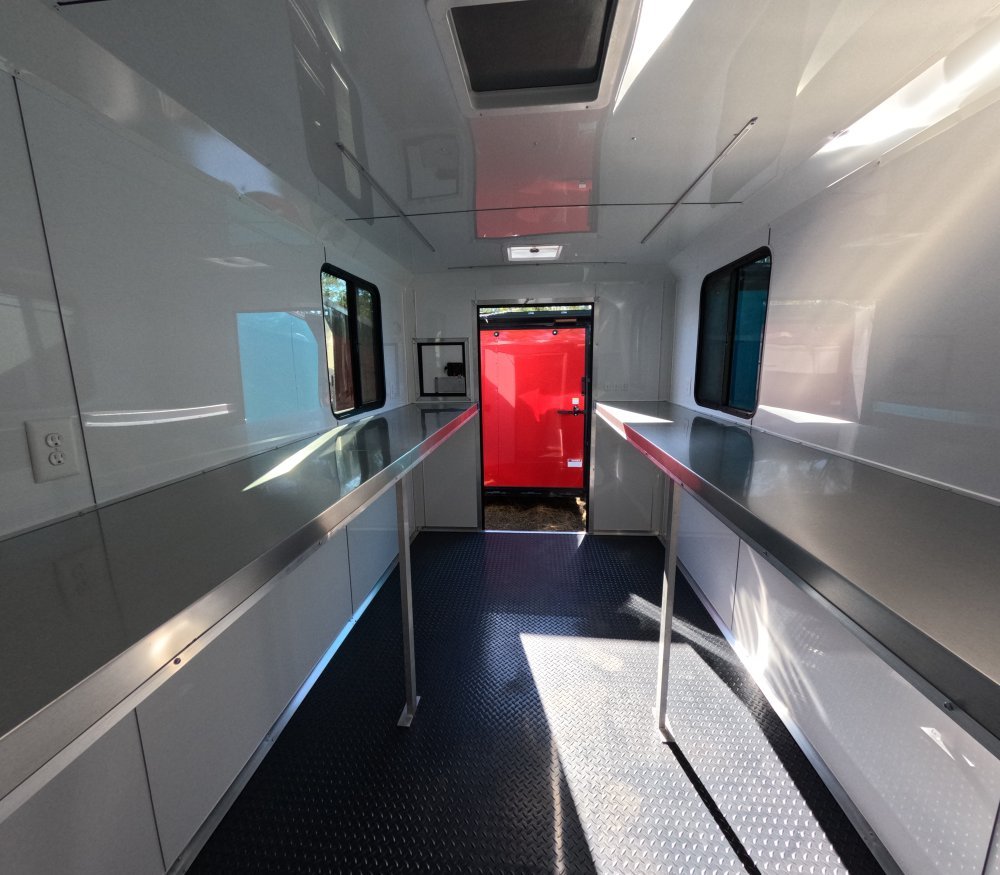

• From front to rear: 2' deep workbench with wrapped metal countertop, no screws, smooth finish — passenger side, 44" AFF

• From front to rear: 2' deep workbench with wrapped metal countertop, no screws, smooth finish — driver side, 44" AFF

• Do not install toolbox

Electrical:

• 150A all-LED exterior lights

• 50A electrical system with 50A motorbase plug

• (4) total receptacles — 2 on driver side, 2 on passenger side

• (4) 12V 48" LED lights (see drawing for placement)

• (1) light under upper cabinet

• (2) rear caution lights

• (4) 6" race lights — one in front, one on passenger side, one on driver side, and one at rear beside door

• 12V battery with converter
