7'x12' Quality Cargo Fiber Optic Splicing Trailer Fiber Splicing Trailer

Standard Specifications

• Exterior & Frame:

  • White metal exterior

  • V-Nose with vertical ATP trim

  • Double rear doors with bar lock or ramp

  • 32” RV-style side door with flush lock

  • 24” Stoneguard on front

  • 2” coupler

  • Aluminum fenders with lights

  • Screwed metal exterior

  • Galvalume roof

  • 4-way Bargman plug

  • 2x4” Steel tube main rails

• Structure & Build:

  • Tandem 3500-lb spring axles with 4” drop and EZ Lube hubs

  • 75” (6’3”) interior height

  • ¾” plywood floor (painted underneath)

  • Premium 3/8” plywood sidewalls

  • 1” x 1½” steel tubing in walls and ceiling

  • Wall members 16” O.C.

  • Floor crossmembers 16” O.C.

  • Roof members 24” O.C.

  • 2000-lb tongue jack

Structure Upgrades

• 9” extra height

• 66” extended triple tube tongue

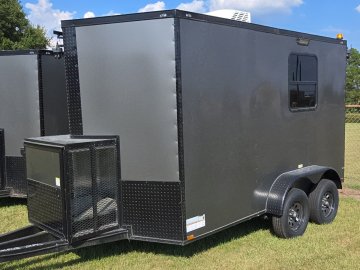

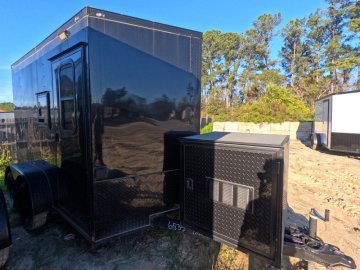

• 36" x 36" x 36" generator box with slide-out (half in, half out)

• (2) 32” x 9” step decks (welded under each RV door)

• Blackout package (interior and exterior)

Exterior Finish

• Charcoal Polycore exterior

  * Reflective tape rear panels



• ATP fender

• Sand foot

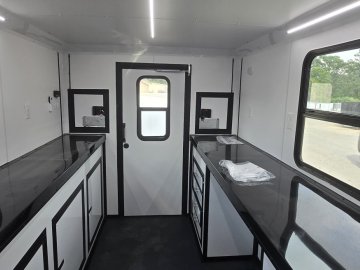

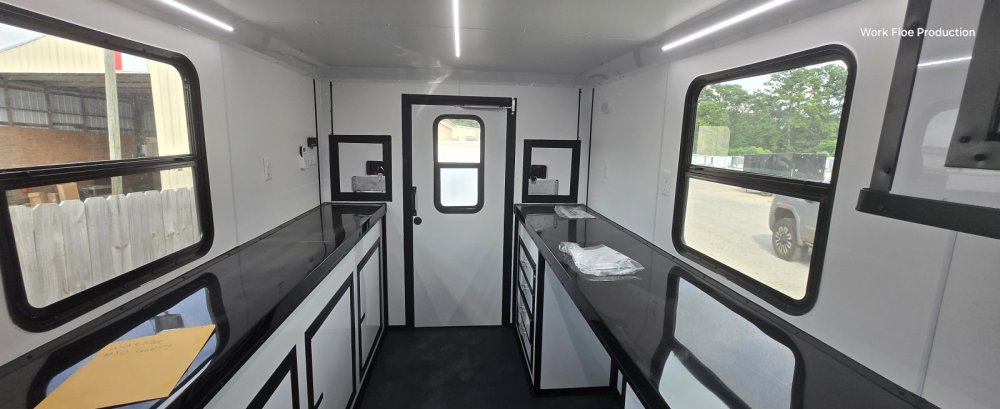

Interior Features

• Cool Shield Bubble R Foil insulation – walls and ceiling

• White vinyl walls and ceiling

• Rubber coin flooring

• Driver side:

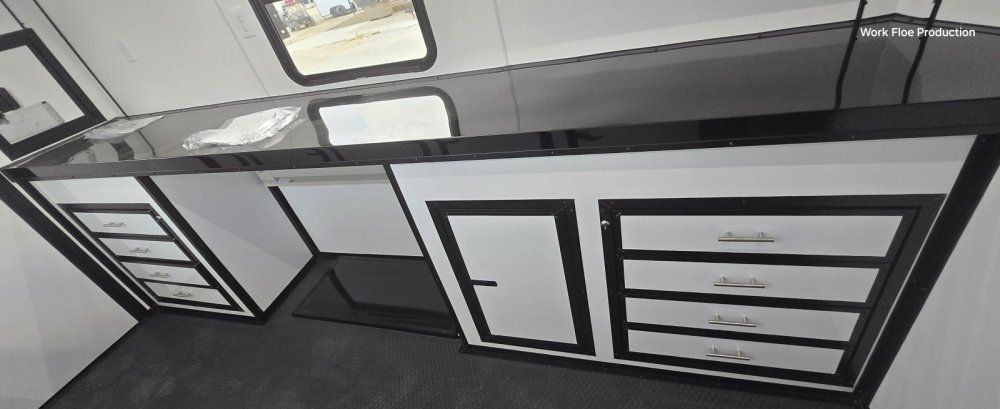

  • 10’ x 22” x 42” AFF mill finish countertop (no lip, aluminum edge folded)

  • (1) 24” wide base cabinet under countertop (next to drawers)

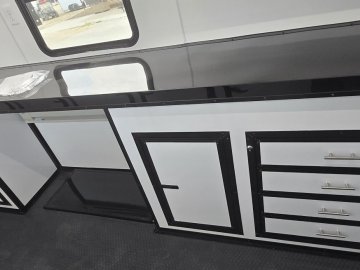

  • (4) Locking drawers under front of countertop

  • (4) Locking drawers under rear of countertop

  • (1) Overhead 4' cabinet with two cabinet doors

• Passenger side:

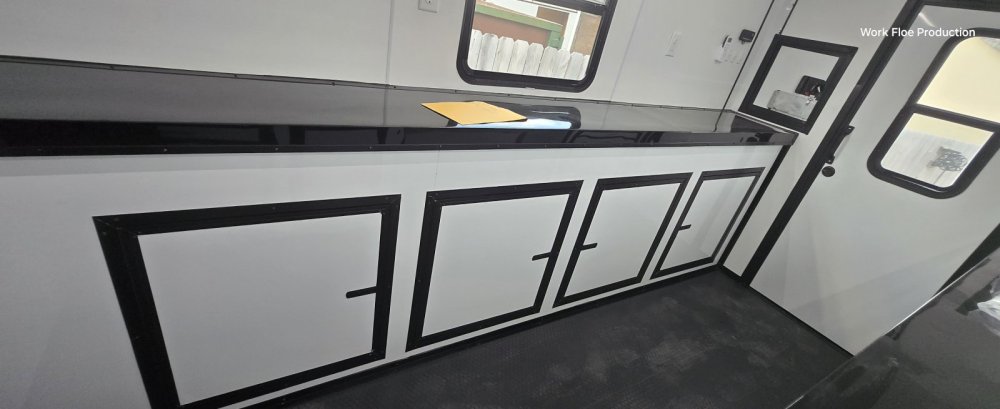

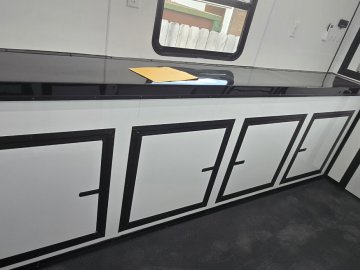

  • 6’ x 18” x 42” stationary mill finish countertop (no lip, aluminum edge folded)

  • Matching cabinets underneath stationary countertop

• Removable T-top between countertops (may require bracket)

Doors, Ramps & Windows

• (2) 32” x 75” deadbolt-secured side doors with 15” x 30” windows

  • 1 center rear door

  • 1 passenger-side door (RH swing, includes insert flap)

  • Includes RV handles and automatic door closers (dealer provided)

• (3) 16” x 18” splicing doors (rear driver side)

• (2) 30” x 30” windows

Electrical System

• 50A electrical package

• 50A motorbase plug

• Battery with converter/charger

• Traffic advisor light bar (above rear RV door)

• 5 total receptacles

• (2) Dome lights

• (4) 10” exterior LED flood lights

• (2) Roof-mounted strobe lights

• (4) 12V interior LED strip lights

Vents & A/C

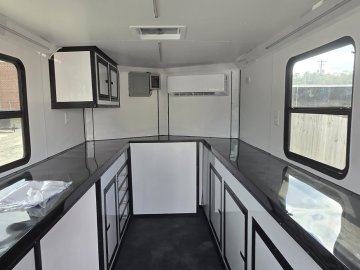

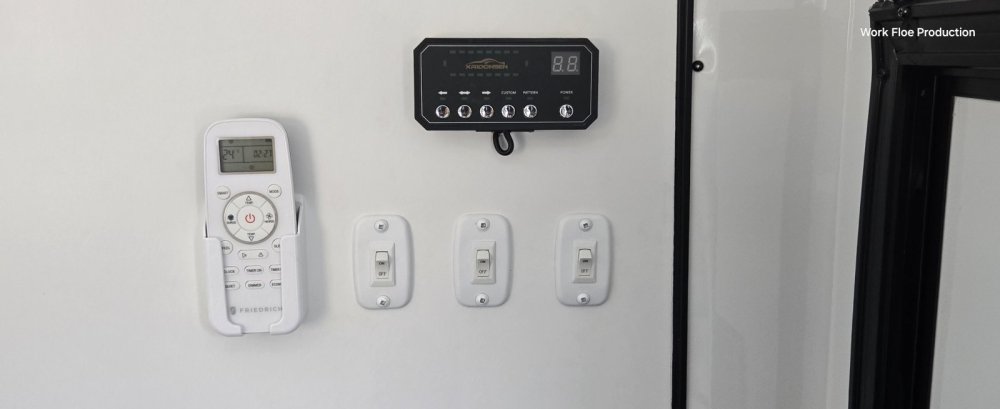

• 12000 BTU Mini Split A/C unit with heat strip
