8'x10' Quality Cargo Concession Trailer

Standard Specifications

• 15” Tires
• Silver Mod Wheels
• 32” RV Style Side Door with Flush Lock
• V-Nose with Vertical ATP Trim
• Rear Ramp with Spring Assists & Flap
• Single 3500 lb Spring Axle with 4” Drop and EZ Lube Hubs
• 24” Stoneguard on Front
• White Metal Exterior
• Beavertail Frame
• (4) D-Rings in Floor
• 3/4” Plywood Floor (Painted Underneath)
• Premium 3/8” Plywood Sidewalls
• 1” x 1½” Steel Tube in Walls and Ceiling
• 78” (6’6”) Interior Height
• 2000 lb Tongue Jack
• 6” I-Beam Main Frame
• 12V Dome Light with Switch
• Non-Powered Roof Vent or Sidewall Vent
• LED Strip Tail Lights
• Wall Members 16” O.C.
• Floor Crossmembers 16” O.C.
• Roof Members 24” O.C.
• Screwed Metal Exterior
• Galvalume Roof
• 7-Way Round Electrical Plug
• 2 5/16” Coupler

Structure

• Flat Front
• 6” Extra Height
• 60” Tongue-to-Trailer (TTT)

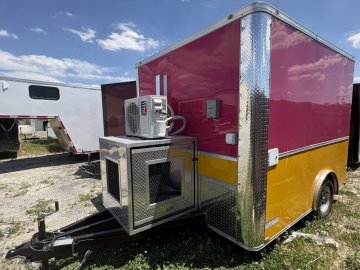

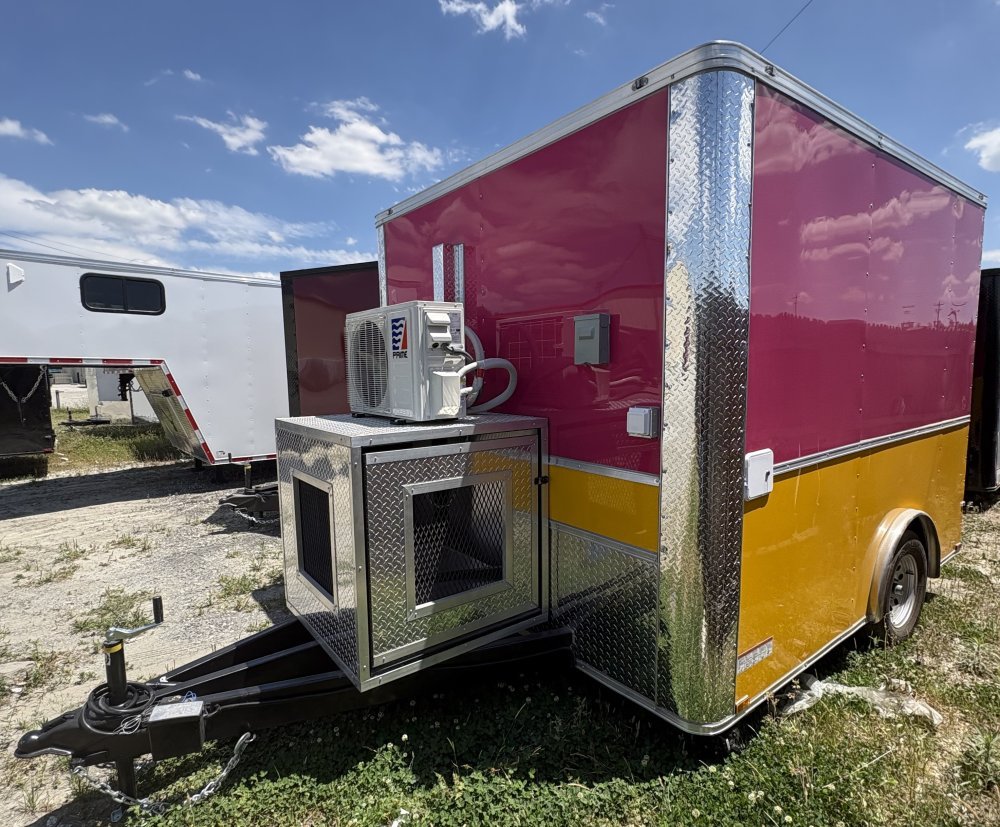

• 36” x 36” x 36” Generator Box with Mesh Vents (All Sides)

Tires & Wheels

• Silver Mod Wheels
• Chrome Center Lug Covers
• Sand Foot

Doors, Ramps & Windows

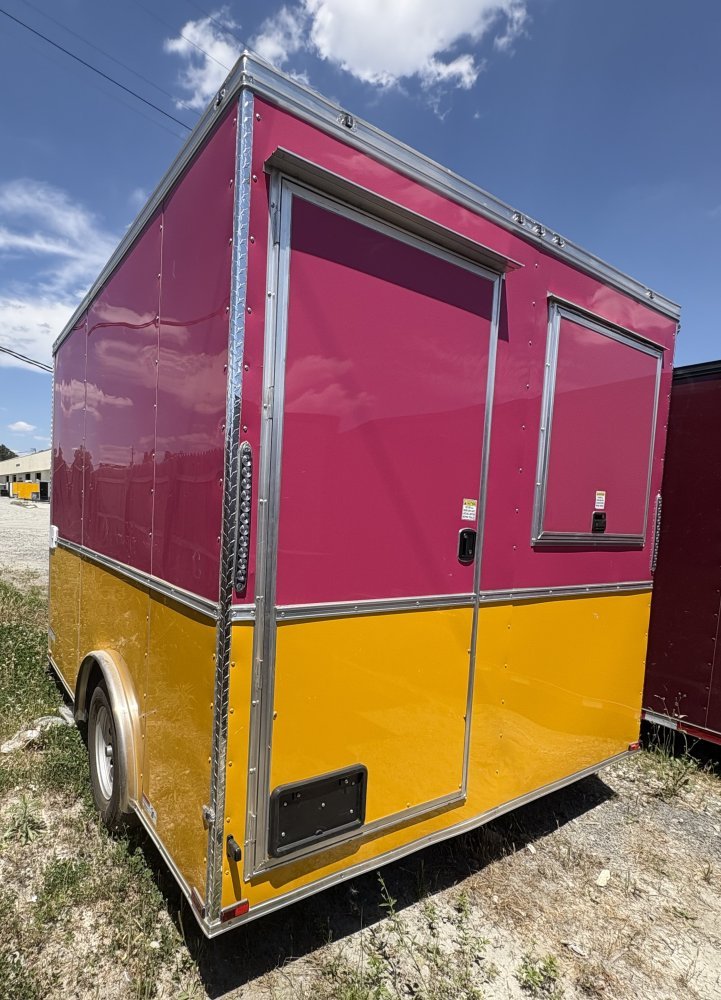

• 36” RV Door Relocated to Rear Left Side
• Rear Ramp with Flap

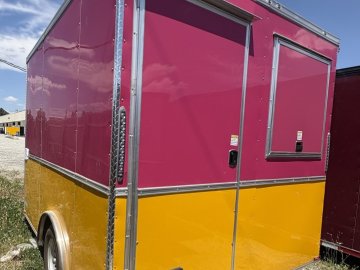

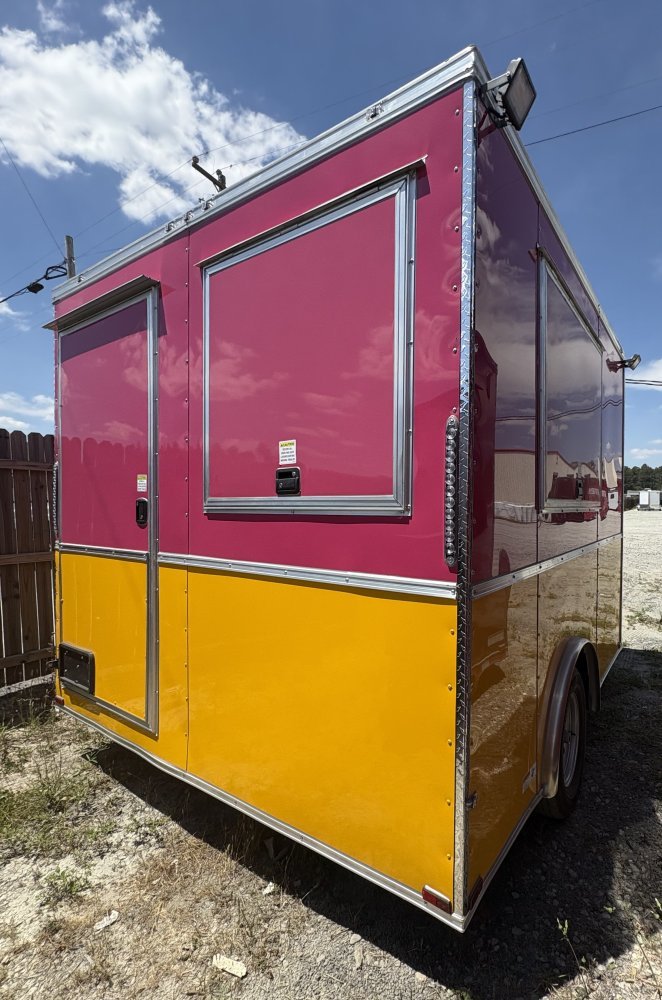

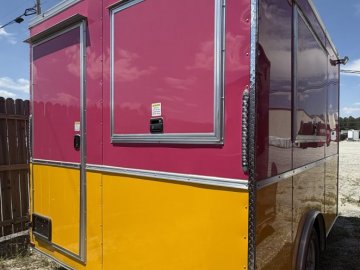

• 3’ x 4’ Concession Window with Horizontal Glass (Passenger Side, 2’ from Rear)
• 3’ x 3’ Concession Window with Horizontal Glass (Rear Right Side)

Vents & A/C

• Mini Split A/C Cover Box (12K BTU, Mesh Style)

Exterior

• Two-Tone Paint: Pink (Top) & Yellow (Bottom)

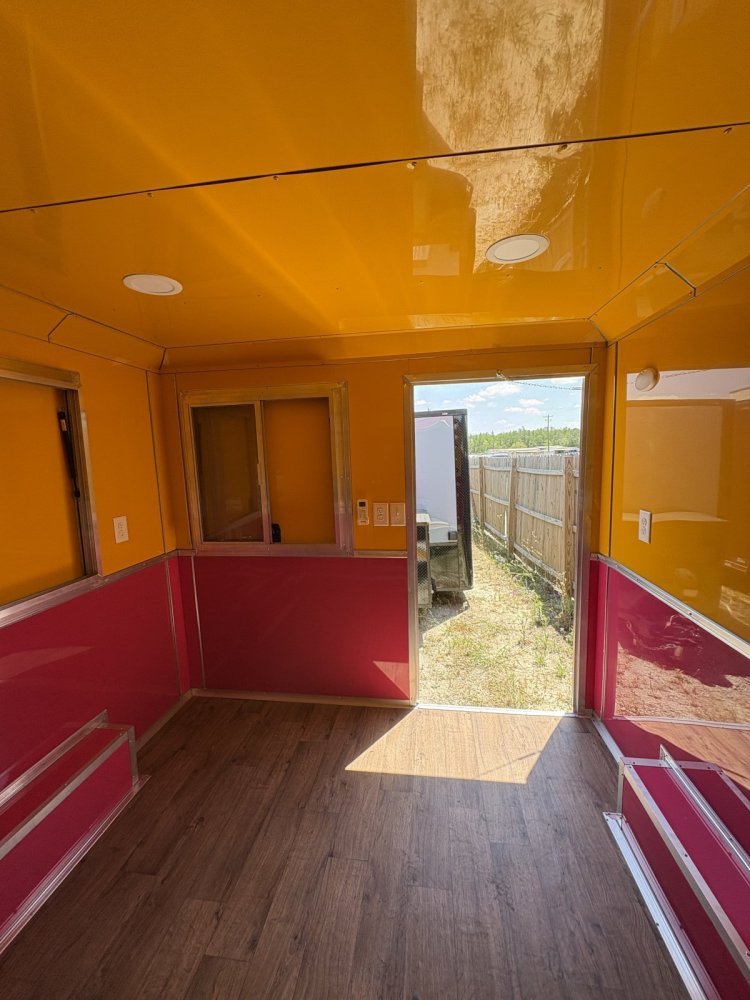

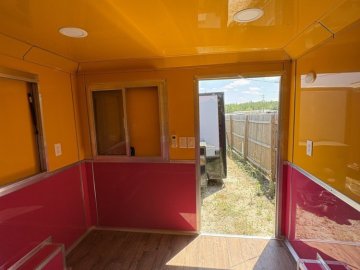

Interior

• Cool Seal Liner
• Plywood Trim
• Pink Metal Walls (Bottom 3’)
• Yellow Metal Walls (Top 5’)
• Yellow Ceiling
• Dark Wood-Color Flooring
• All Cabinets in Pink Finish

Plumbing

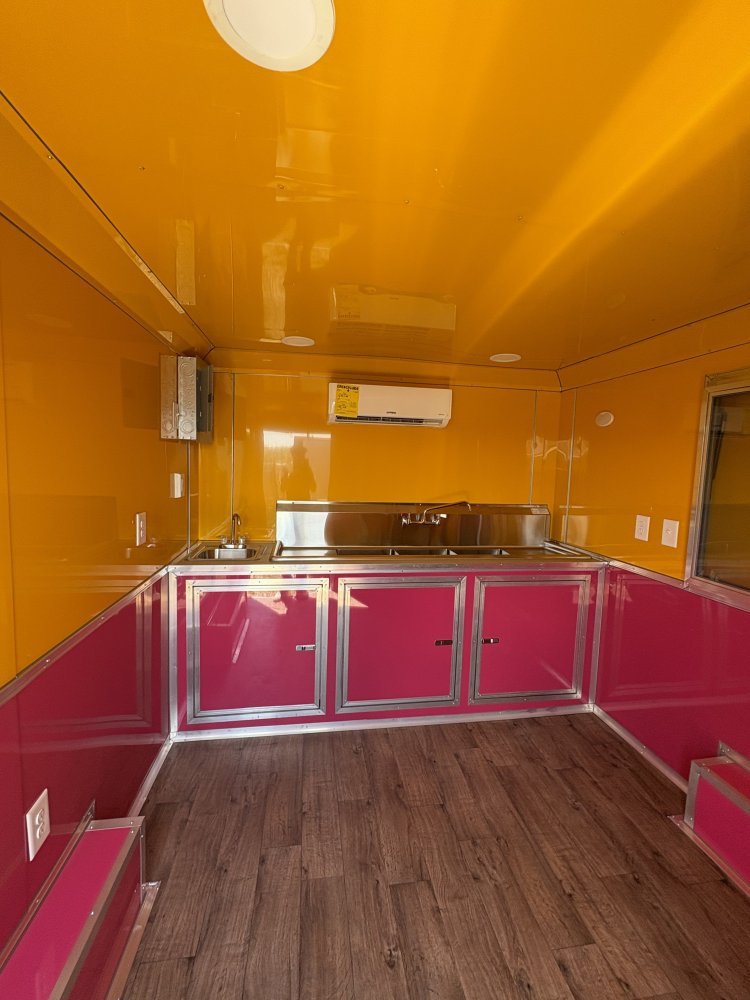

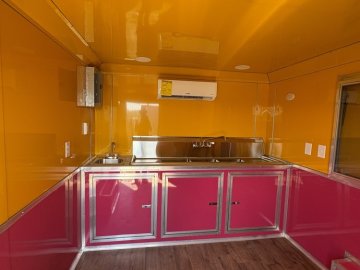

• Triple Sink Package with Handwash Sink

Electrical

• All LED 12V Lighting
• (6) Total Receptacles
  • 1 Rear
  • 3 Driver Side
  • 2 Passenger Side
• (4) 110V Round Recessed Lights
• (2) 110V Lights on Passenger Side
• GFCI Outlet Near Handwash Area
