8' 6"x12' Quality Cargo Concession Trailer

Got it ?? — I’ll turn your build sheet into a clean, itemized invoice format without any pricing details. Here’s a structured version you could use:

Structure

• Flat front
• 12" extra height
• 60" TTT

Tie-downs & Stabilizers

• 4 D-rings
• See drawing

Tires & Wheels

• Black Mod
• Chrome Center Lug Covers
• Sand Foot

Doors, Ramps, Windows

• 36"x75" RV side door on driver side
• 3x6 concession with glass on passenger side
• 3x6 concession with glass in rear (centered)

Vents & A/C

• 13,500 BTU A/C

Exterior

• .080 purple finish
• Blackout package
• NO Quality Cargo stickers
• Exterior 12"x72" fold-down shelves (2 units)

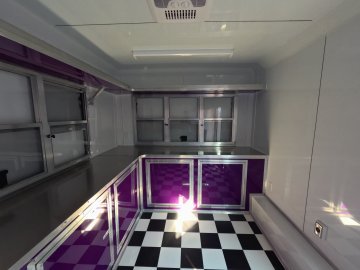

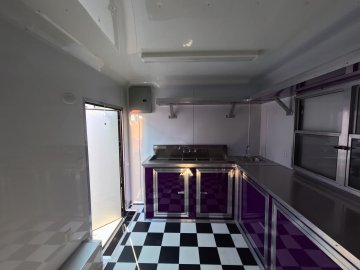

Interior

• Insulated walls
• Insulated ceiling
• White metal walls
• White metal ceiling
• White and black checkered floor
• Colored corners inside
• Colored cabinets
• Shelf in front, L-shaped all around passenger side to rear
• .080 purple under rear concession window
• .080 purple cabinets across passenger side under window

Plumbing

• Sink package – 7 wide sink

Electrical

• All LED 12v lighting
• 100 amp electrical package with 50 amp motorbase plug
• 7 total receptacles (1 front, 2 passenger side, 2 driver side, 2 rear)
• 220 outlet on driver side

Standard Specifications

• White metal exterior
• Beavertail frame
• 4 D-rings in floor
• 3/4" plywood floor (painted underneath)
• Premium 3/8" plywood sidewalls
• Tandem 3500 lb spring axles w/ 4" drop and EZ Lube hubs
• 24" stoneguard on front
• 15" tires
• Silver Mod wheels
• 32" RV style side door with flush lock
• V-nose with vertical ATP trim
• Rear ramp with spring assists and flap
• 1"x1 ½" steel tube in walls and ceiling
• 78" (6’6”) interior height
• 2000 lb tongue jack
• 6" I-beam main frame
• LED strip tail lights
• Wall members 16” O.C.
• Floor crossmembers 16” O.C.
• Roof members 24” O.C.
• Screwed metal exterior
• Galvalume roof
• 7-way round electrical plug, 2 5/16” coupler
