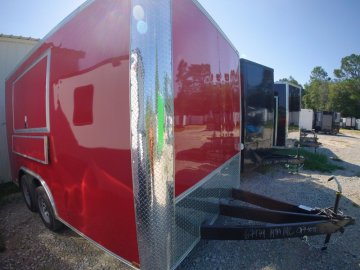

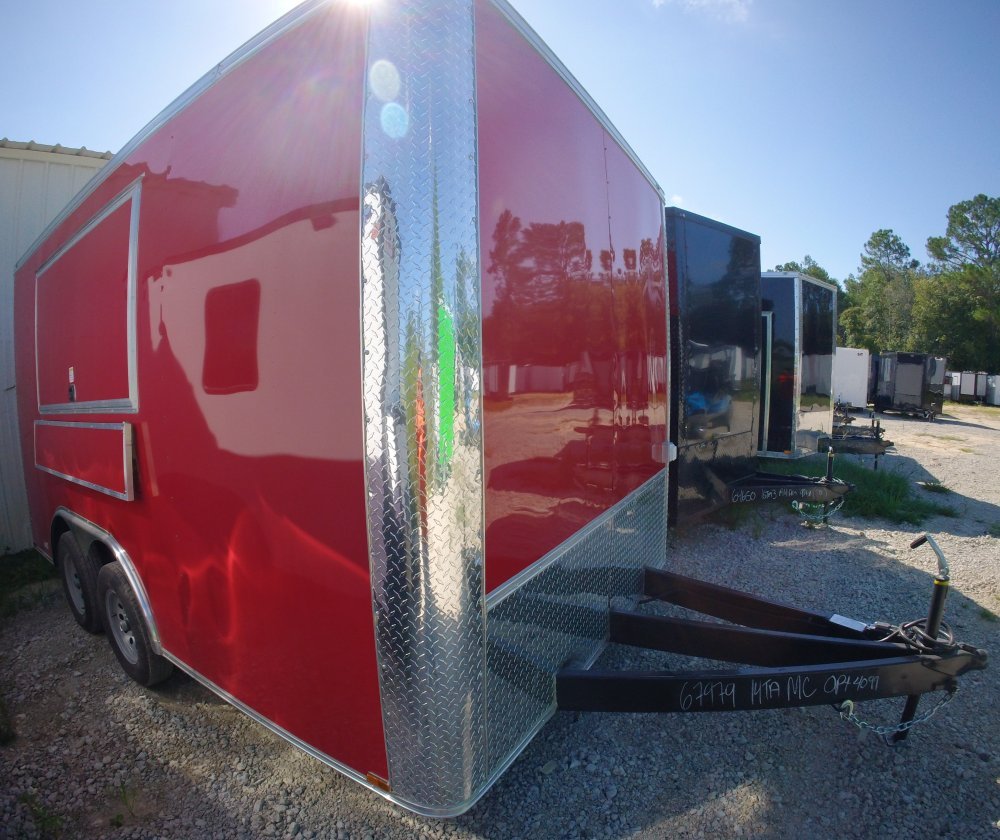

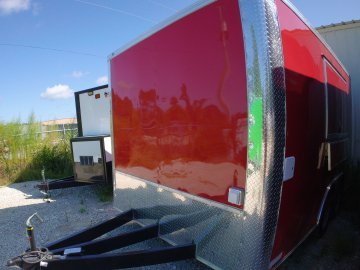

8' 6"x14' Quality Cargo Concession Trailer

Structure

• Flat front
• 6" extra height
• 60" TTT
• Ventanas 3 pies de atrás

Tires & Wheels

• Silver Mod
• Chrome Center Lug Covers
• Sand Foot

Doors, Ramps, Windows

• Move 36" RV door to rear (centered)
• 3x6 concession with horizontal glass & screen on each side

Vents & A/C

• 13.5k BTU A/C

Exterior

• Red finish
• NO Quality Cargo stickers
• Exterior 12"x72" fold-down shelves (2 units)

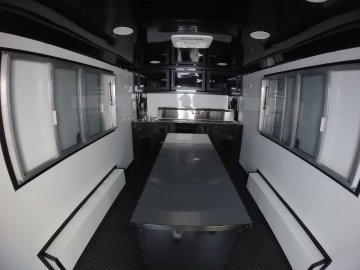

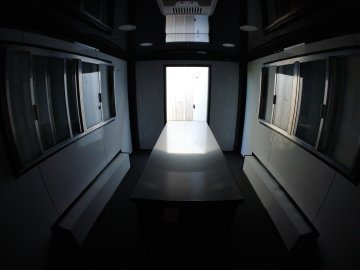

Interior

• Cool seal
• Plywood trim (NOT Luan)
• White metal walls
• Black metal ceiling
• RTP floor
• All black trim including cabinets
• Upper cabinets over sink
• 24"d x 6ft base cabinet in center of trailer (accessible both sides, 2 shelves on driver side)
• All cabinets black with black trim

Plumbing

• Triple sink package with handwash in front
• Todo standard niño
• Gabinetes negros

Electrical

• All LED 12v lighting
• 50 amp electrical package with 50 amp motorbase plug
• Total receptacles – see drawing
• GFIs – 1 near sink, 1 in base cabinet
• 110v round recessed lights

Standard Specifications

• 15" Tires
• Silver Mod Wheels
• 32" RV style side door with flush lock
• V-Nose with vertical ATP trim
• Rear ramp with spring assists and flap
• Tandem 3500 lb spring axles with 4" drop and EZ Lube hubs
• 24" Stoneguard on front
• White metal exterior
• Beavertail frame
• 4 D-rings in floor
• 3/4" plywood floor (painted underneath)
• Premium 3/8" plywood sidewalls
• 1"x1 ½" steel tube in walls and ceiling
• 78" (6’6”) interior height
• 2000 lb tongue jack
• 6" I-beam main frame
• Non-powered roof vent or sidewall
• LED strip tail lights
• Wall members 16” O.C.
• Floor crossmembers 16” O.C.
• Roof members 24” O.C.
• Screwed metal exterior
• Galvalume roof
• 7-way round electrical plug, 2 5/16” coupler
