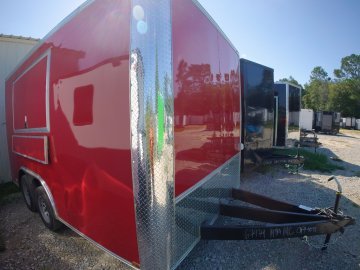

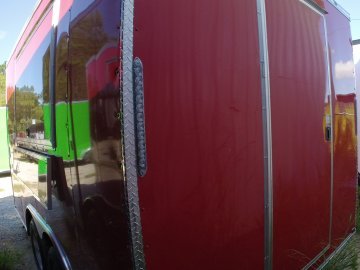

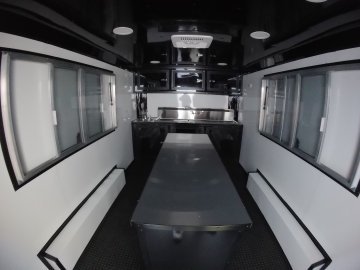

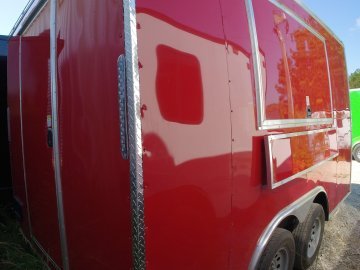

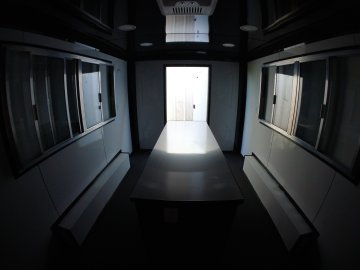

8' 6"x14' Quality Cargo Concession Trailer

• Flat front
• 6" extra height (78” Interior height)
• Beavertail Frame
• 6” I Beam Main frame
• Wall members 16” O.C., Floor crossmembers 16” O.C., Roof members 24” O.C.
• Screwed metal exterior, White metal exterior
• Galvalume roof
• V-Nose with vertical ATP trim
• 24” Stoneguard on front

• Tandem 3500 lb Spring axles w/ 4” drop and EZ Lube Hubs
• 15” Tires, Silver Mod Wheels, Chrome Center Lug Covers, Sand Foot
• Rear Ramp w/Spring Assists w/Flap
• Move 36" RV door to rear centered
• 3x6 concession with horizontal glass & screen on each side

• 3/4” plywood floor/painted underneath
• RTP floor
• Premium 3/8” plywood sidewalls
• White metal walls, black metal ceiling
• Cool seal (roof treatment)
• Plywood trim (NOT Luan)
• All cabinets black with black trim
• 24"d x 6ft base cabinet in center of trailer (access on both sides, 2 shelves in cabinet)
• Upper cabinets over sink
• Exterior 12"x72" fold down shelfs

• Triple sink pkg with handwash in front
• 50 amp electrical pkg with 50 amp motorbase plug
• Total recepts - see drawing
• GFIs (1 near sink, 1 in base cabinet)
• ALL LED 12v Lighting, 110v round recessed lights
• LED Strip tail lights
• 12V Dome light with switch
• Non-powered roof vent or sidewall vent

• 13.5k BTU A/C
• 4 D-Rings in Floor
• 2000 lb tongue jack
• 7-way Round elec. Plug
• 2 5/16” coupler
