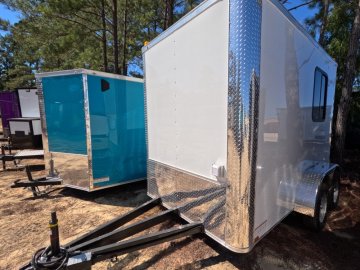

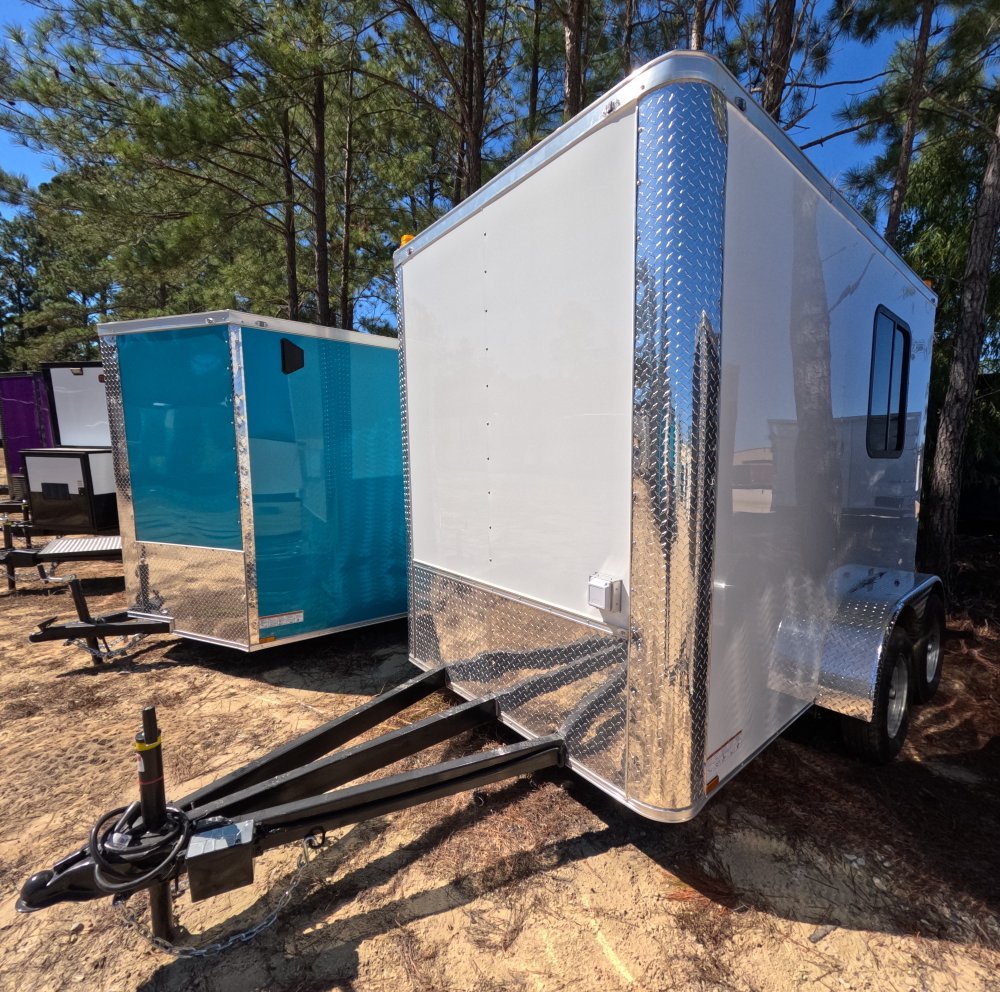

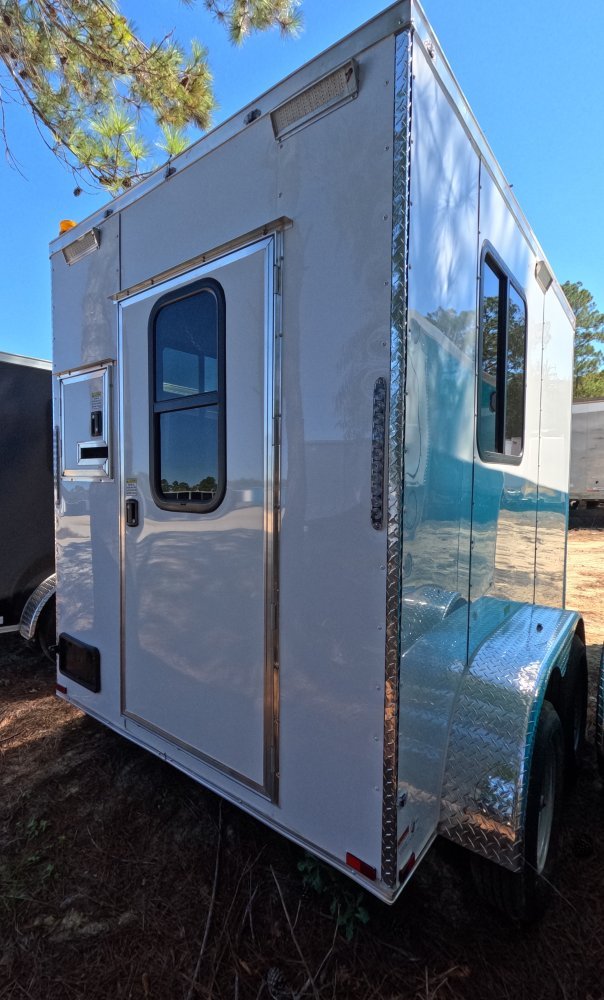

6'x10' Quality Cargo Fiber Splicing Trailer



Standard Specifications

• 15” Tires

• Silver Mod Wheels

• 32” RV Style Side Door with Flush Lock

• V-Nose with Vertical ATP Trim

• Double Rear Door with Bar Lock or Ramp

• Tandem 3,500 lb Spring Axles with 4” Drop and EZ Lube Hubs

• 24” Stoneguard on Front

• White Metal Exterior

• 2” Coupler

• Aluminum Fender with Lights

• 3/4” Plywood Floor (Painted Underneath)

• Premium 3/8” Plywood Sidewalls

• 1” x 1½” Steel Tube in Walls and Ceiling

• 75” (6’3”) Interior Height

• 2000 lb Tongue Jack

• 2” x 4” Steel Tube Main Rails

• 12V Dome Light with Switch

• Non-Powered Roof Vent or Sidewall Vent

• LED Strip Tail Lights

• Wall Members: 16” O.C.

• Floor Crossmembers: 16” O.C.

• Roof Members: 24” O.C.

• Screwed Metal Exterior

• Galvalume Roof

• 4-Way Bargman Plug

Structure

• Flat Front

• 66" Tongue

• 9” Extra Height

Tires & Wheels

• Silver Mod Wheels

• Chrome Center Lug Covers

• Sand Foot

Doors, Ramps, & Windows

• 32" RV Door (Rear-Centered) with 15” x 30” Window

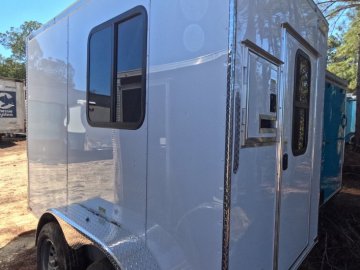

• Two 30” x 30” Windows (One on Each Side)

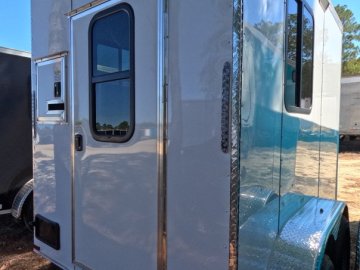

• 16” x 18” Splicing Door (Rear)

Vents & A/C

• 13,500 BTU A/C Unit

Exterior

• 0.080 White Exterior Panels

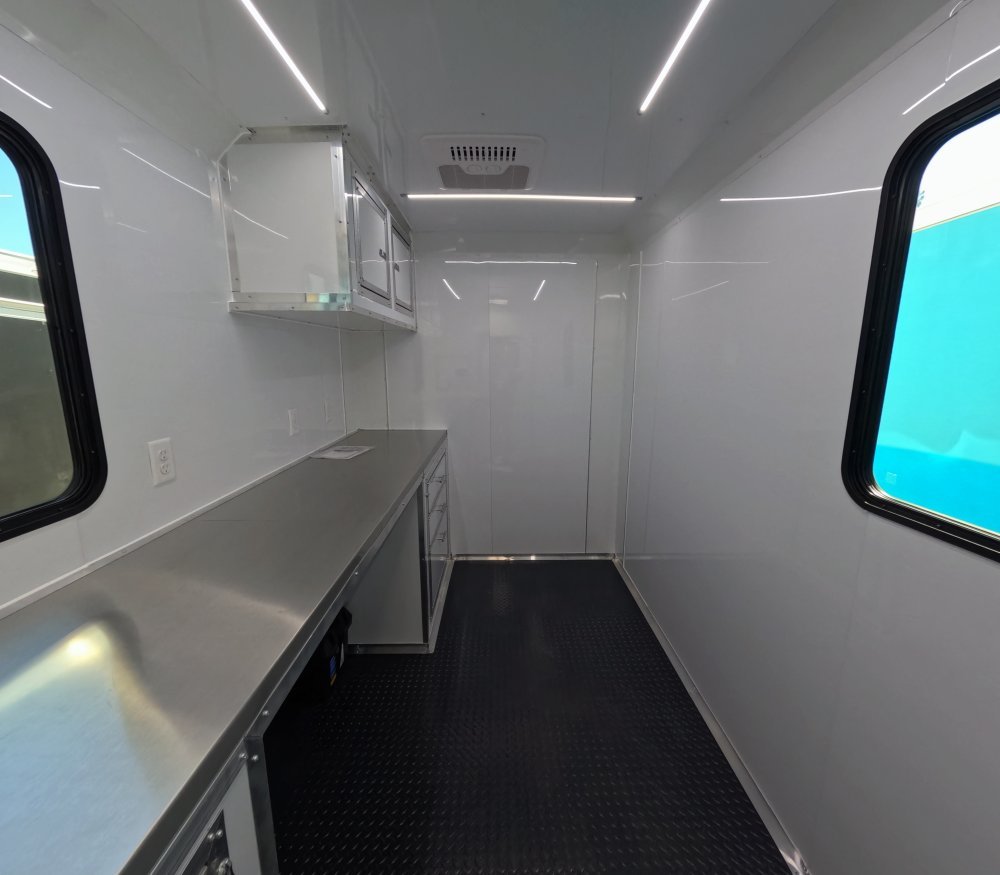

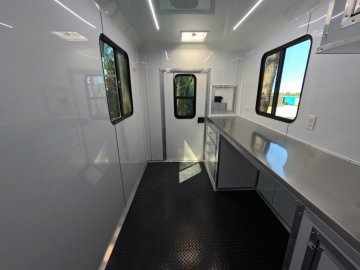

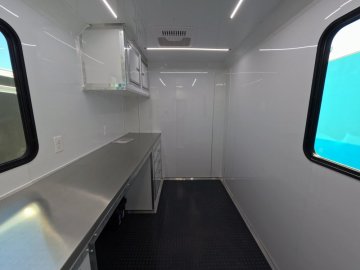

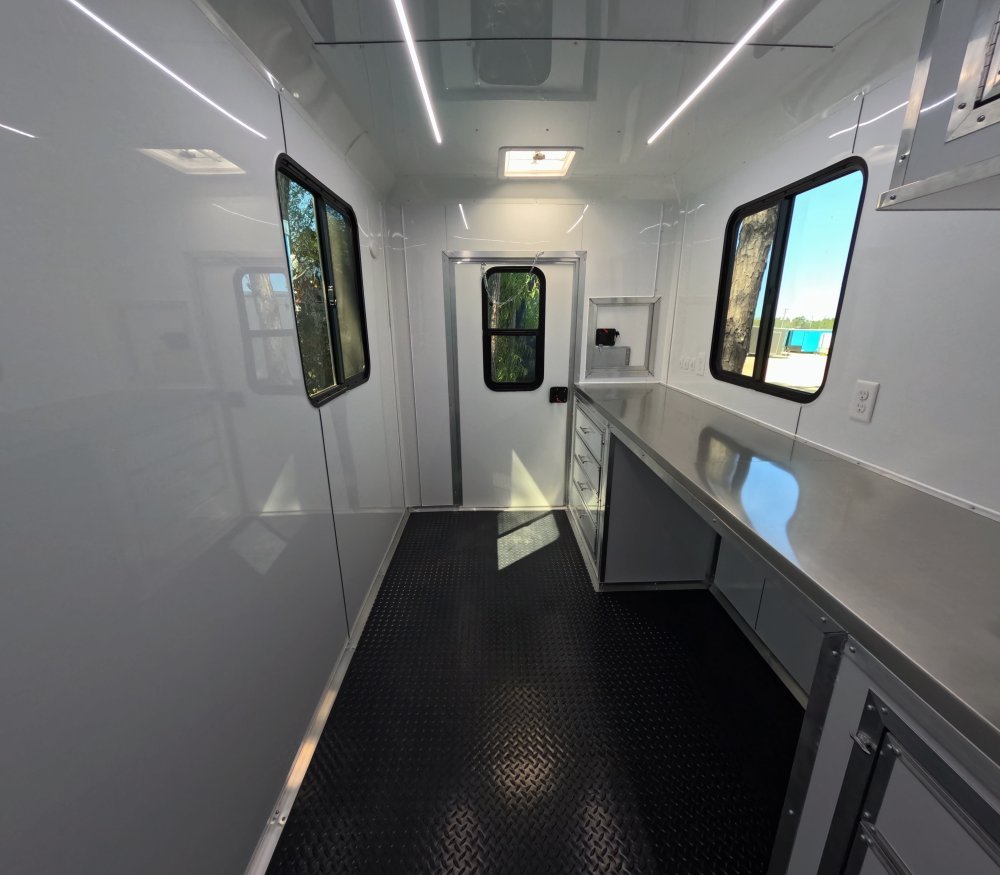

Interior

• Insulated Walls and Ceiling

• White Metal Wall Panels

• White Metal Ceiling Panels

• RTP (Rubber Tread Plate) Flooring

• 18” Deep x 4’ Upper Cabinets (Driver Side)

• 24” Deep Workbench with Metal Wrapped Edge (Driver Side, No Exposed Screws)

• Two Sets of Four Drawers (One on Each End of Workbench)

  • Front Set: 14” Deep

  • Rear Set: Standard Depth

Electrical

• 50 AMP Electrical Package with 50 AMP Motorbase Plug

• (3) 48” LED Lights (Total)

• (4) Receptacles on Driver Side (42” AFF)

• (2) Amber Strobe Lights — One on Passenger Side (Near Window), One in Rear (Near RV Door)

• 12V Battery with Converter
