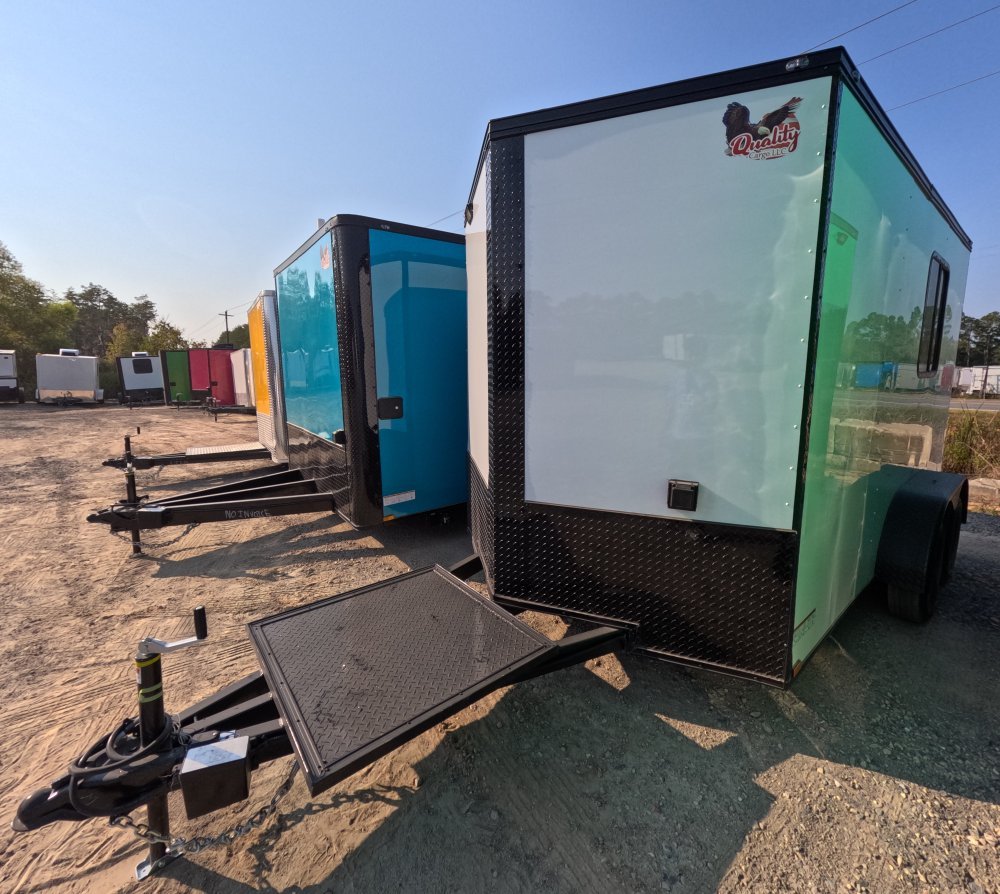

7'x12' Quality Cargo Fiber Splicing Trailer

Standard Specifications:

• 15” Tires

• Silver Mod Wheels

• 32” RV-style side door with flush lock

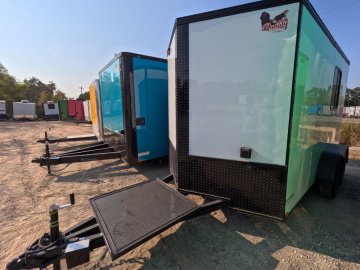

• V-Nose with vertical ATP trim

• Double rear door with bar lock or ramp

• Tandem 3500 lb spring axles with 4" drop and EZ Lube hubs

• 24” Stoneguard on front

• White metal exterior

• 2” coupler

• Aluminum fenders with lights

• 3/4” plywood floor (painted underneath)

• Premium 3/8” plywood sidewalls

• 1”x1 ½” steel tube in walls and ceiling

• 75” (6’3”) interior height

• 2000 lb tongue jack

• 2x4” steel tube main rails

• 12V dome light with switch

• Non-powered roof vent or sidewall vent

• LED strip tail lights

• Wall members 16” O.C.

• Floor crossmembers 16” O.C.

• Roof members 24” O.C.

• Screwed metal exterior

• Galvalume roof

• 7-way Bargman plug

Structure:

• V-Nose with ATP vertical trim

• 9" extra height

• 66" tongue-to-tail

• Generator platform on tongue

Tires & Wheels:

• Silver Mod

• Chrome center lug covers

• Sand foot

Doors, Ramps, Windows:

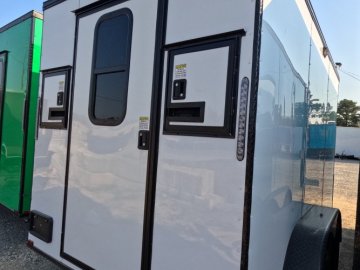

• 36" RV door in rear with 15"x30" window

• (1) 30"x30" window on driver side

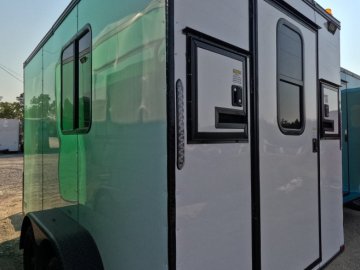

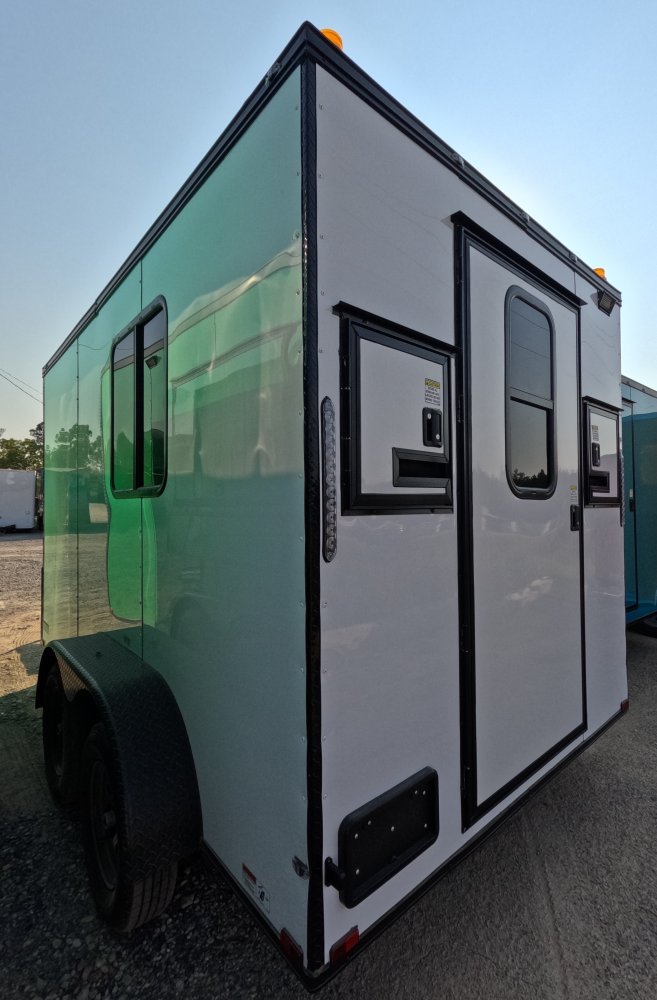

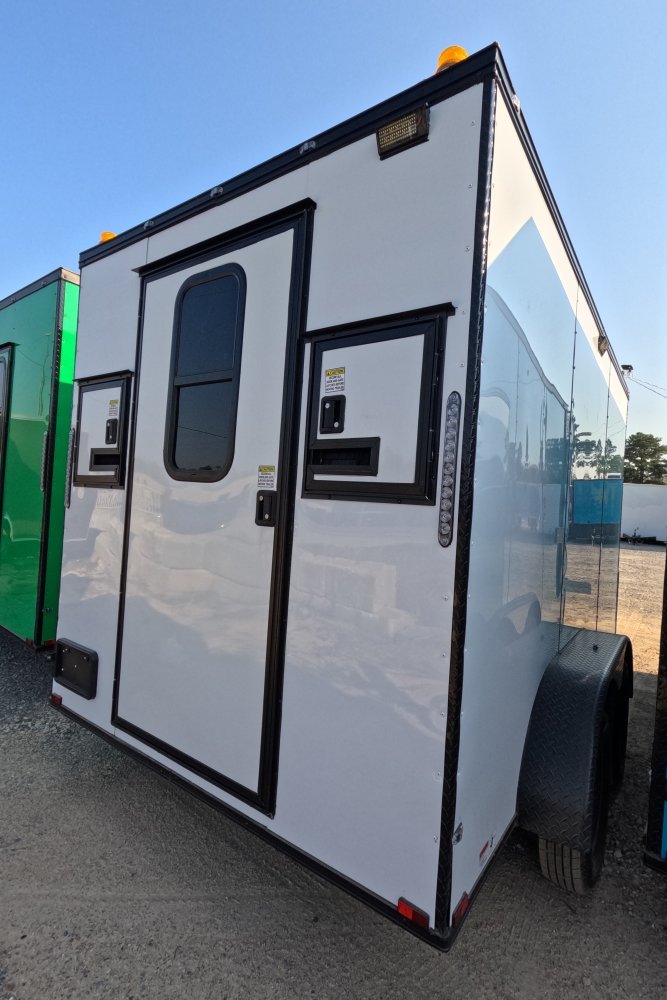

• (2) 16"x18" splicing doors with brush — one on each side of the rear door

Vents & A/C:

• (1) Roof vent

• 13,500 BTU air conditioner

Exterior:

• .080 White Polycore

• Blackout package

Interior:

• Insulated walls and ceiling

• Silver Frost wall panels

• Silver Frost ceiling panels

• RTP (rubber tread plate) flooring

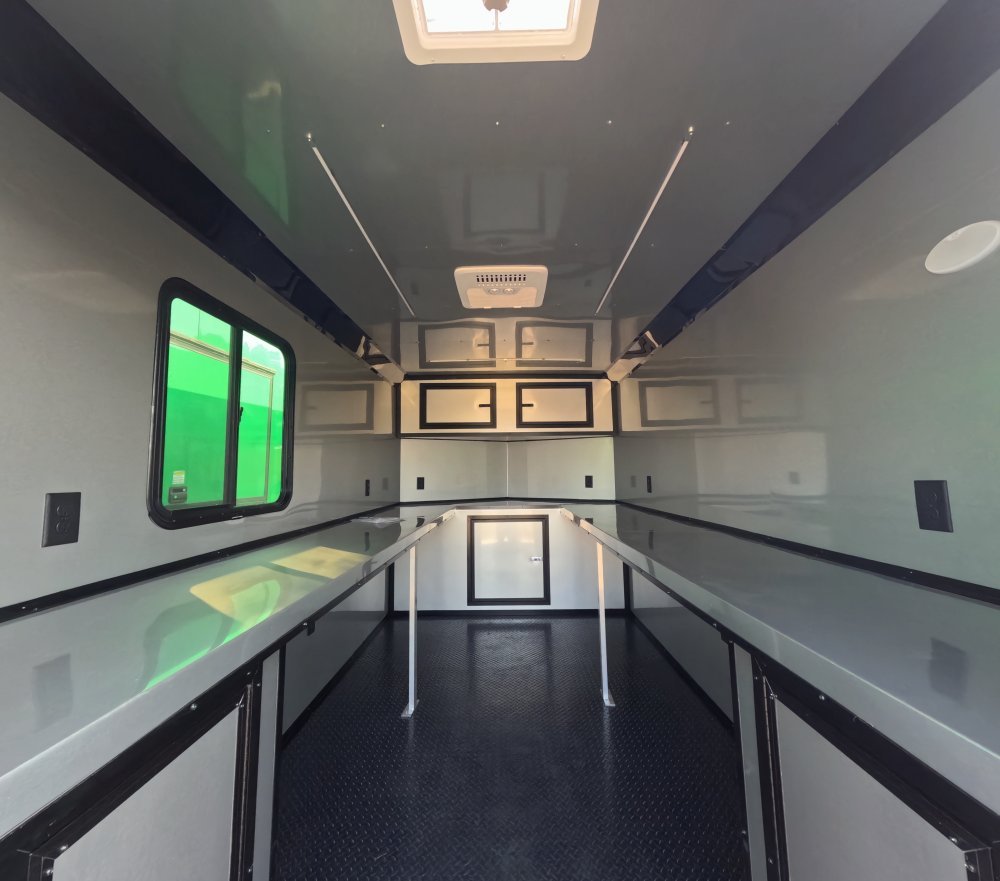

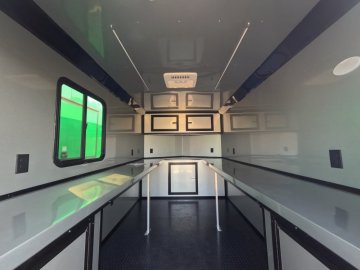

• Overhead and base cabinets in V-nose

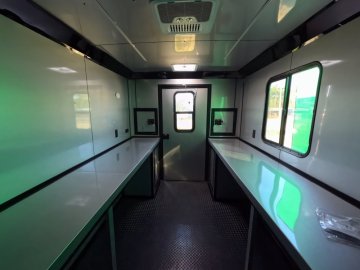

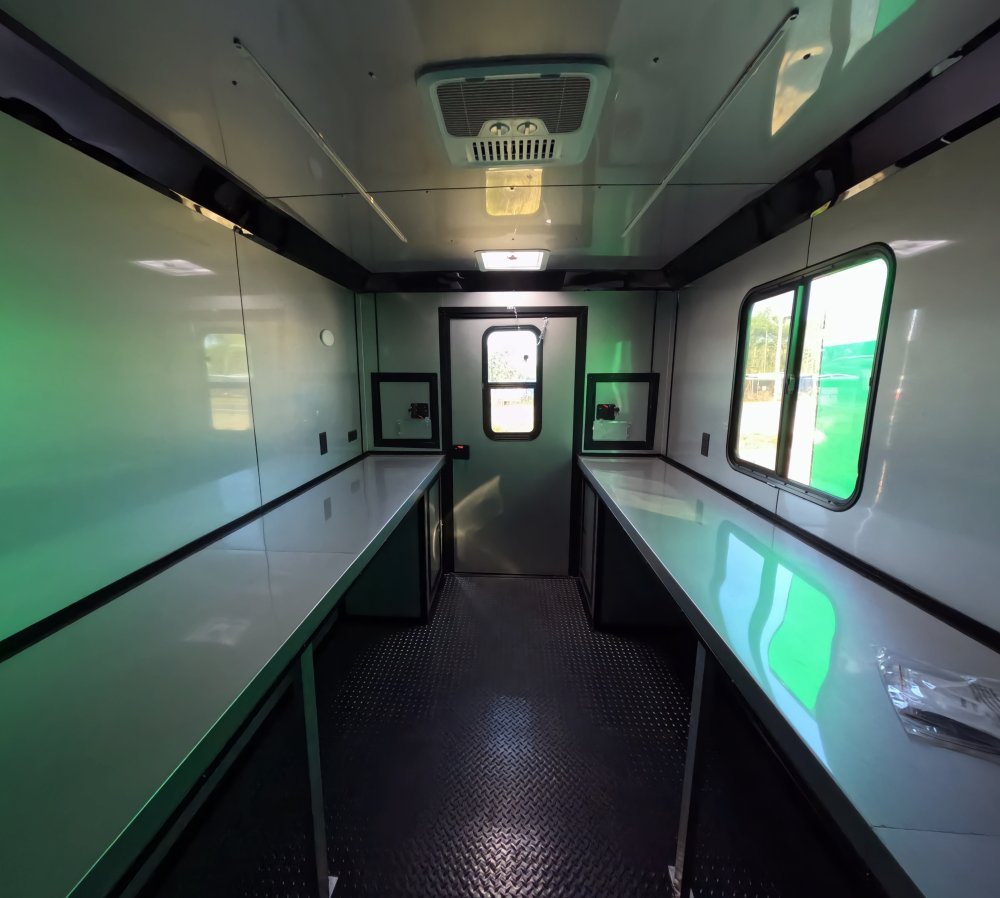

• 36" high counter/workbench on passenger side (smooth edges, no lip; aluminum folded over edge)

• (1) 2' base cabinet beside workbench on passenger side rear

• 36" high counter/workbench on driver side (smooth edges, no lip; aluminum folded over edge)

• (1) 2' base cabinet beside workbench on driver side rear

• All black trim, including cabinets

Electrical:

• 50-amp electrical package with 50-amp motorbase plug

• 8 total receptacles (6 extra)

• 12V battery with converter

• Three 48" 12V LED ceiling lights

• Two amber caution lights in rear

• Three exterior loading lights — one in front, one on passenger side, and one in rear between splicing and RV doors
