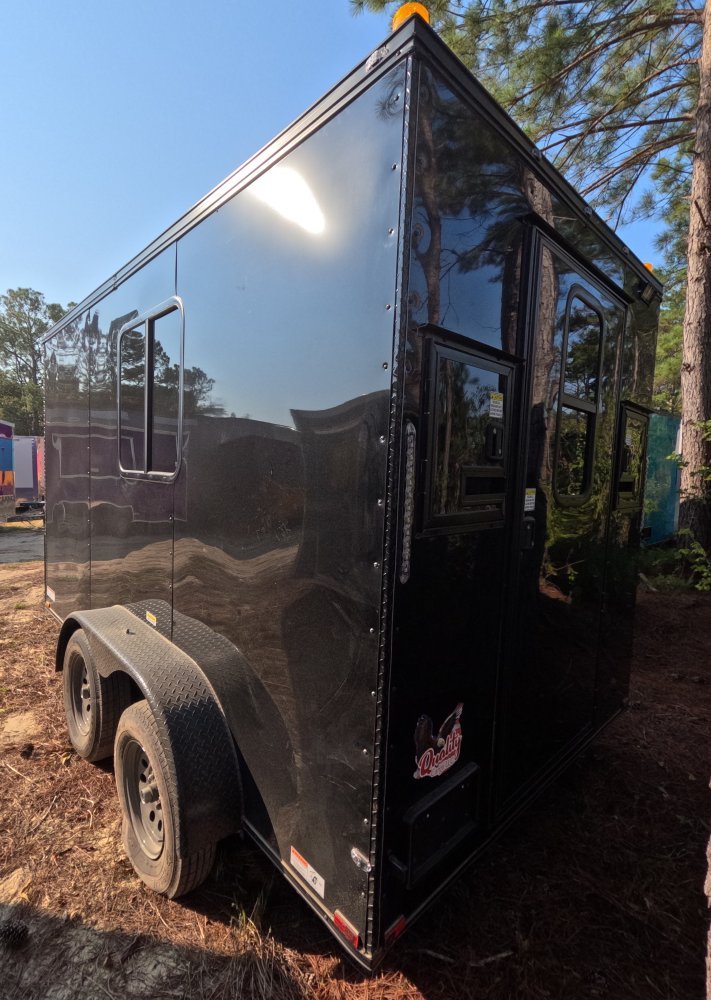

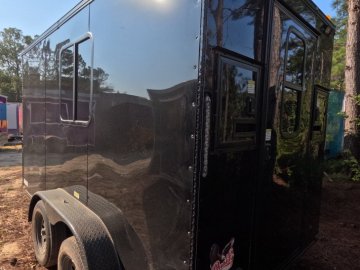

7'x12' Quality Cargo Fiber Splicing Trailer

Standard Specifications:

• 15” Tires

• Silver Mod Wheels

• 32” RV-style side door with flush lock

• V-Nose with vertical ATP trim

• Double rear door with bar lock or ramp

• Tandem 3500 lb spring axles with 4" drop and EZ Lube hubs

• 24” Stoneguard on front

• White metal exterior

• 2” coupler

• Aluminum fenders with lights

• 3/4” plywood floor (painted underneath)

• Premium 3/8” plywood sidewalls

• 1”x1 ½” steel tube in walls and ceiling

• 75” (6’3”) interior height

• 2000 lb tongue jack

• 2x4” steel tube main rails

• Non-powered roof vent or sidewall vent

• LED strip tail lights

• Wall members 16” O.C.

• Floor crossmembers 16” O.C.

• Roof members 24” O.C.

• Screwed metal exterior

• Galvalume roof

• 7-way Bargman plug

Structure:

• V-Nose with ATP vertical trim

• 9" extra height

• 66" tongue-to-tongue (TTT)

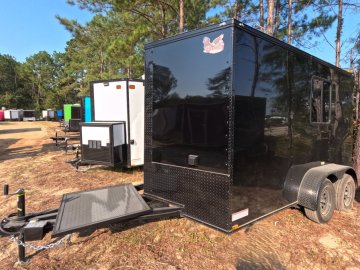

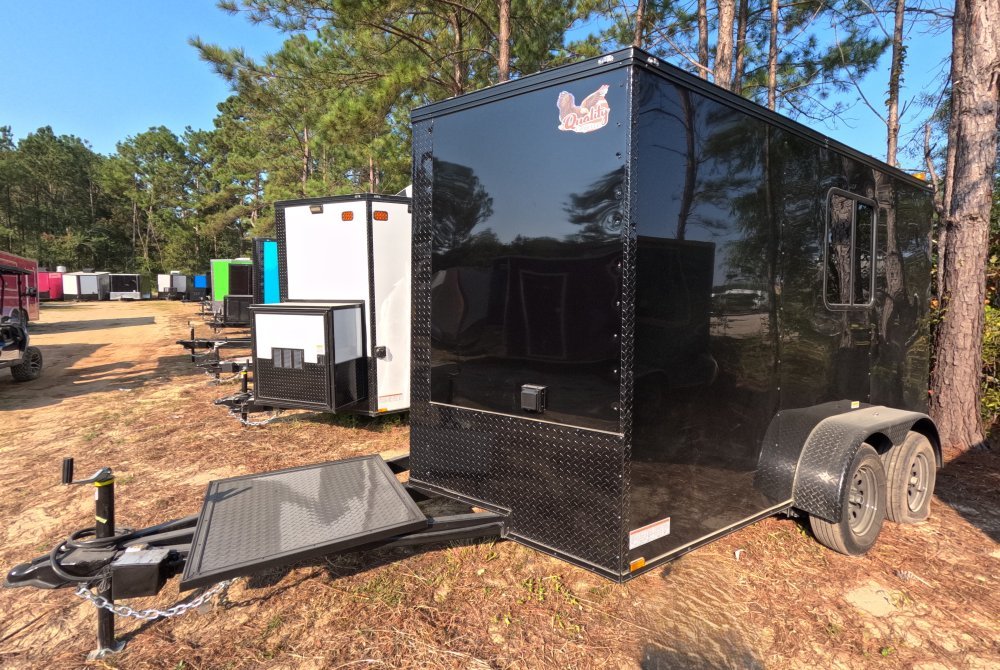

• Generator platform on tongue

Tires & Wheels:

• Silver Mod

• Chrome center lug covers

• Sand foot

Doors, Ramps, Windows:

• 36" RV door in rear with 15"x30" window

• One 30"x30" window on driver side

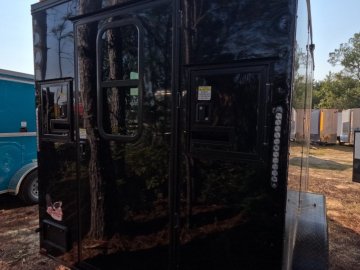

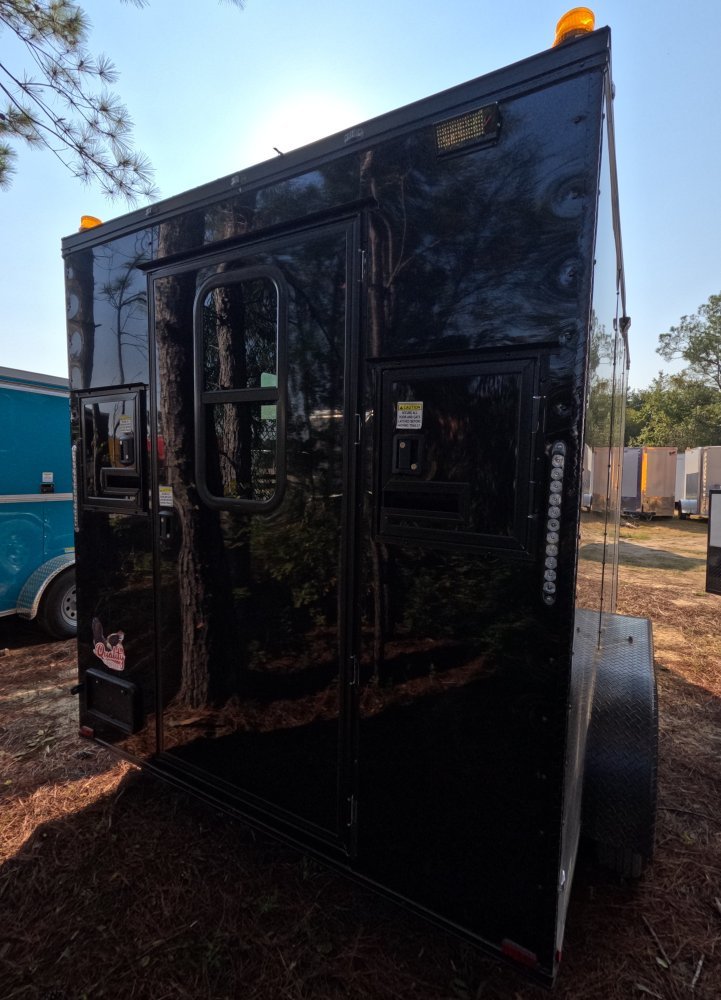

• Two 16"x18" splicing doors with brush (one on each side of the rear RV door)

Vents & A/C:

• One roof vent

• 13,500 BTU A/C unit

Exterior:

• .080 Polycore Black

• Blackout package

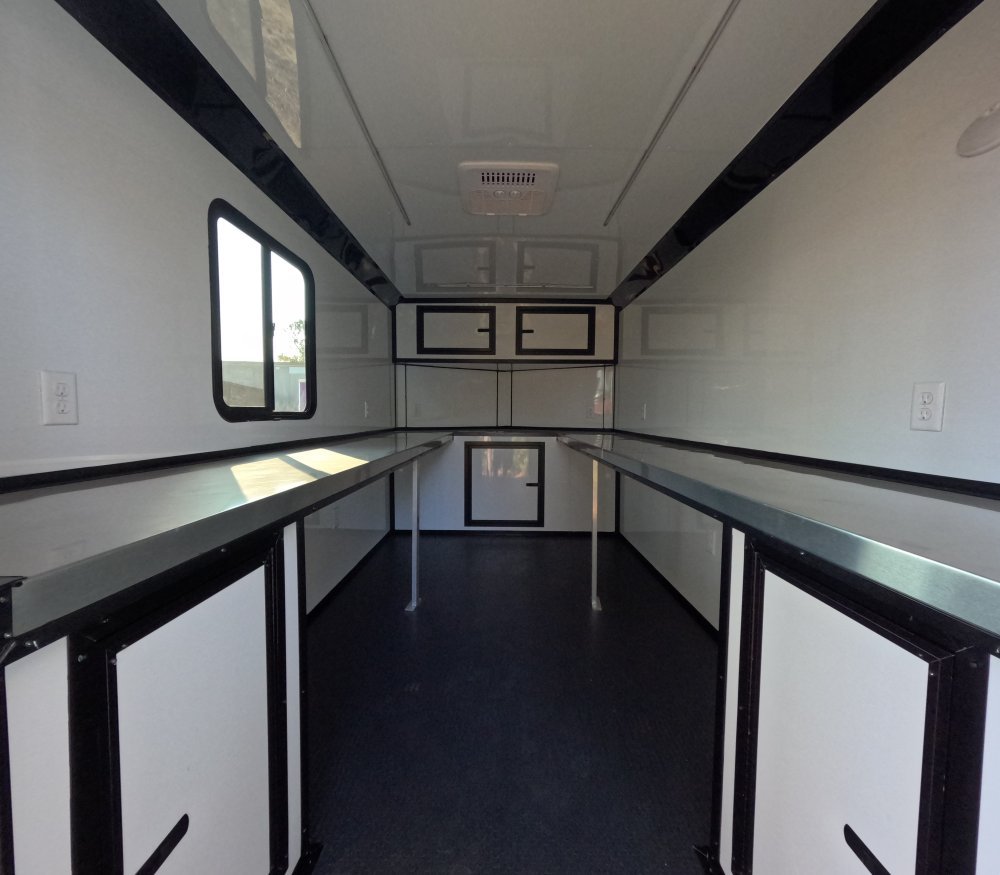

Interior:

• Insulated walls

• Insulated ceiling

• White metal walls

• White metal ceiling

• Coin floor

• Overhead and base cabinets in V-nose

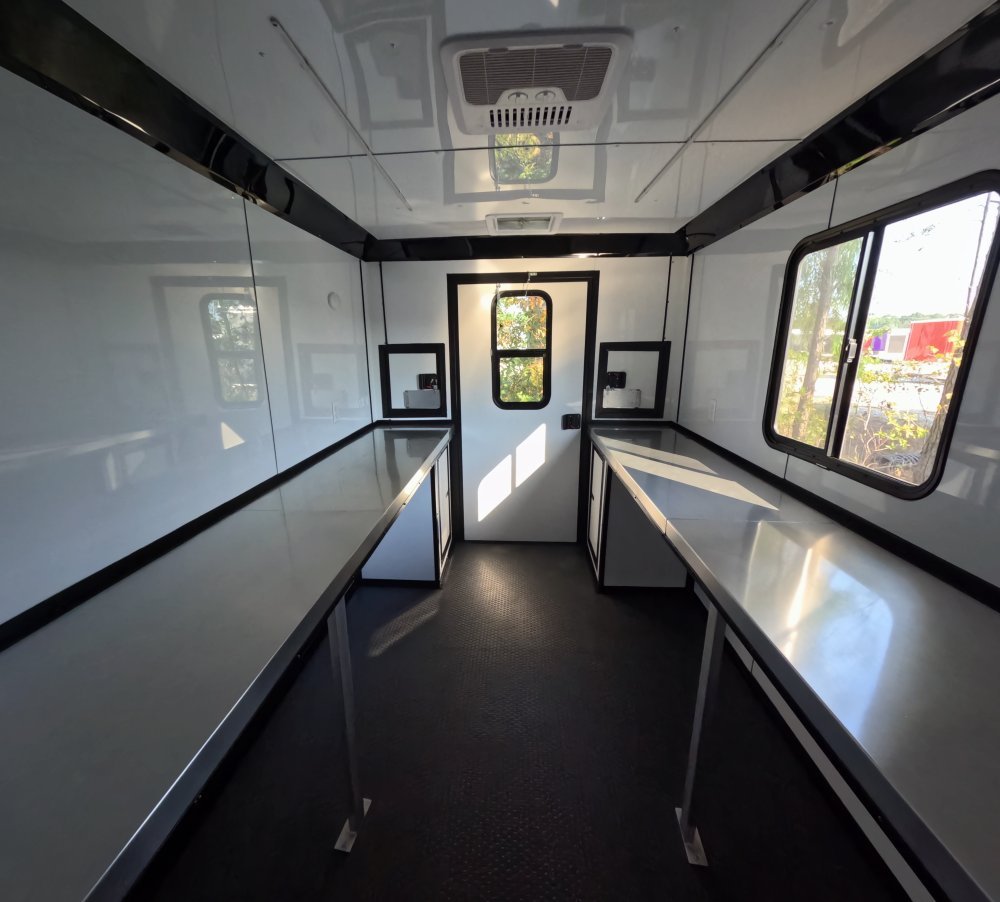

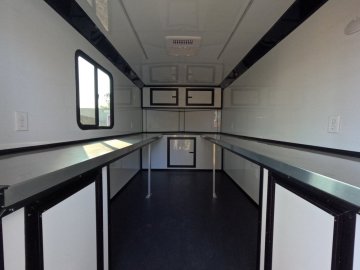

• 36" high counter/workbench on passenger side (smooth edges, aluminum folded over edge — no lip)

• One 2' base cabinet beside the workbench on passenger side (rear)

• 36" high counter/workbench on driver side (smooth edges, aluminum folded over edge — no lip)

• One 2' base cabinet beside the workbench on passenger side (rear)

• All black trim, including cabinets

Electrical:

• 50 amp electrical package with 50 amp motorbase plug

• 8 total receptacles (6 additional)

• 12V battery with converter

• Three 48" 12V LED lights

• Two amber caution lights in rear

• Three loading lights — one in front, one on passenger side, and one in rear between splicing & RV door
