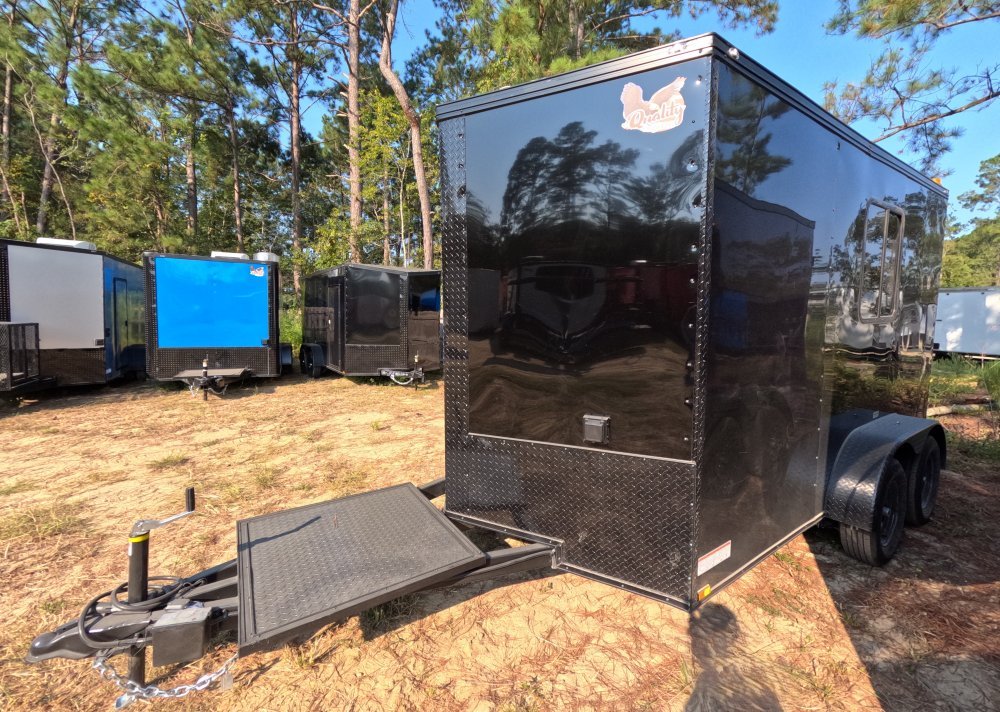

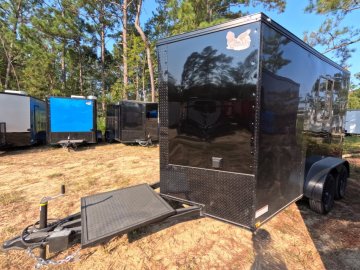

7'x12' Quality Cargo Fiber Splicing Trailer
Standard Specifications:
-
15” Tires
-
Silver Mod Wheels
-
32” RV-style side door with flush lock
-
V-Nose with vertical ATP trim
-
Double rear door with bar lock or ramp
-
Tandem 3500 lb spring axles with 4" drop and EZ Lube hubs
-
24” Stoneguard on front
-
White metal exterior
-
2” coupler
-
Aluminum fenders with lights
-
3/4” plywood floor (painted underneath)
-
Premium 3/8” plywood sidewalls
-
1”x1 ½” steel tube in walls and ceiling
-
75” (6’3”) interior height
-
2000 lb tongue jack
-
2x4” steel tube main rails
-
Non-powered roof vent or sidewall vent
-
LED strip tail lights
-
Wall members 16” O.C.
-
Floor crossmembers 16” O.C.
-
Roof members 24” O.C.
-
Screwed metal exterior
-
Galvalume roof
-
7-way Bargman plug
Structure:
-
V-Nose with ATP vertical trim
-
9" extra height
-
66" tongue-to-tongue (TTT)
-
Generator platform on tongue
Tires & Wheels:
-
Silver Mod
-
Chrome center lug covers
-
Sand foot
Doors, Ramps, Windows:
-

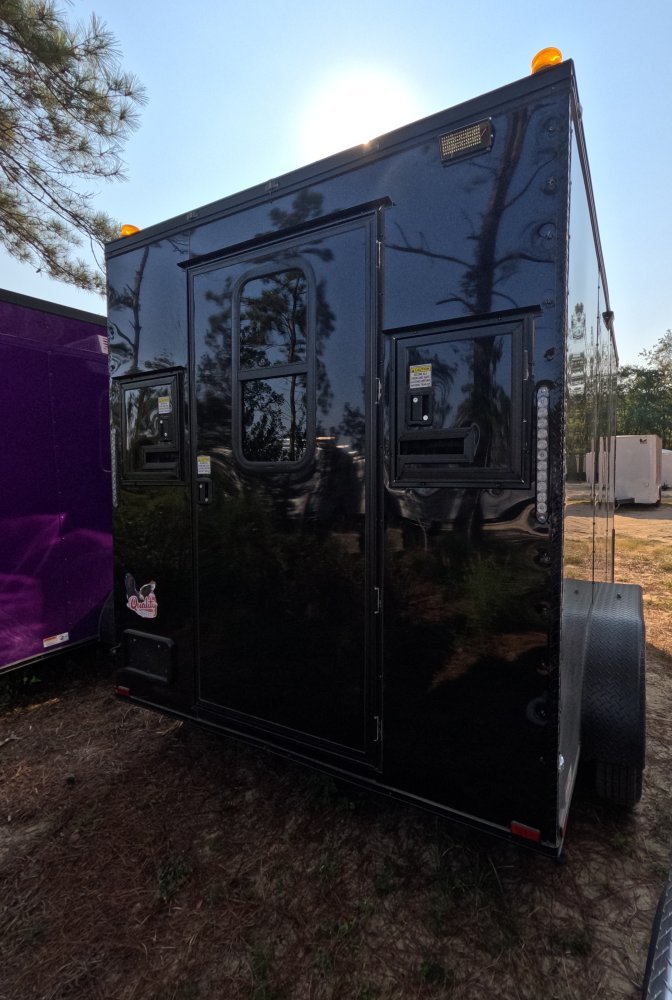

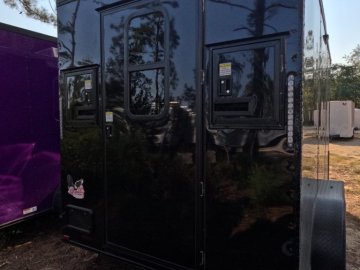

36" RV door in rear with 15"x30" window
-
One 30"x30" window on driver side
-

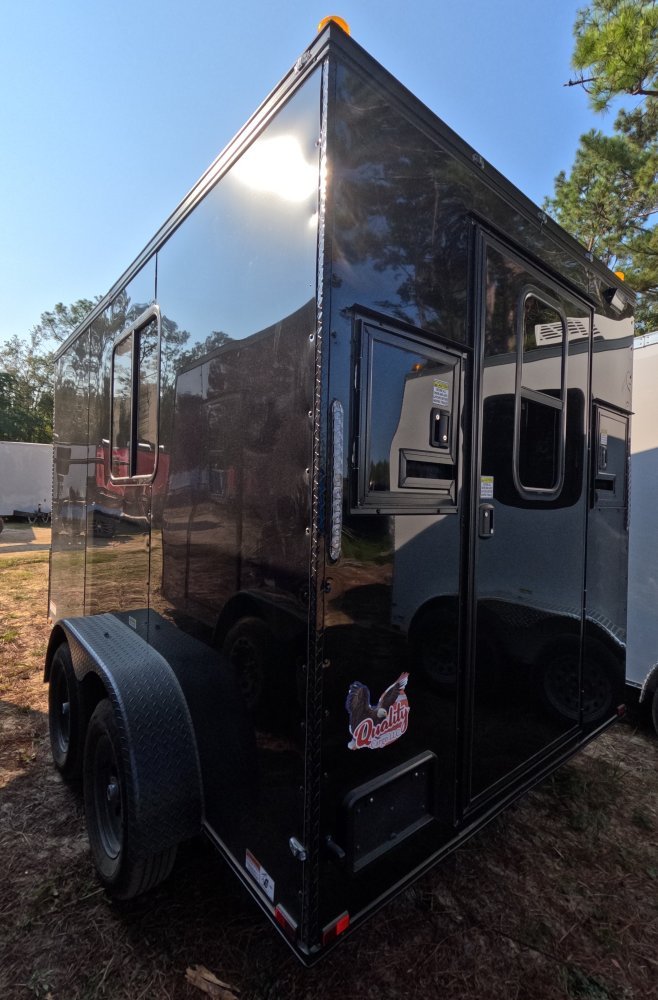

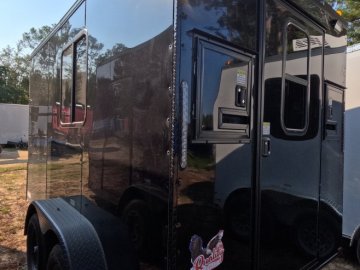

Two 16"x18" splicing doors with brush (one on each side of the RV door)
Vents & A/C:
-
One roof vent
-
13,500 BTU A/C unit
Exterior:
-
.080 Polycore Black
-
Blackout package

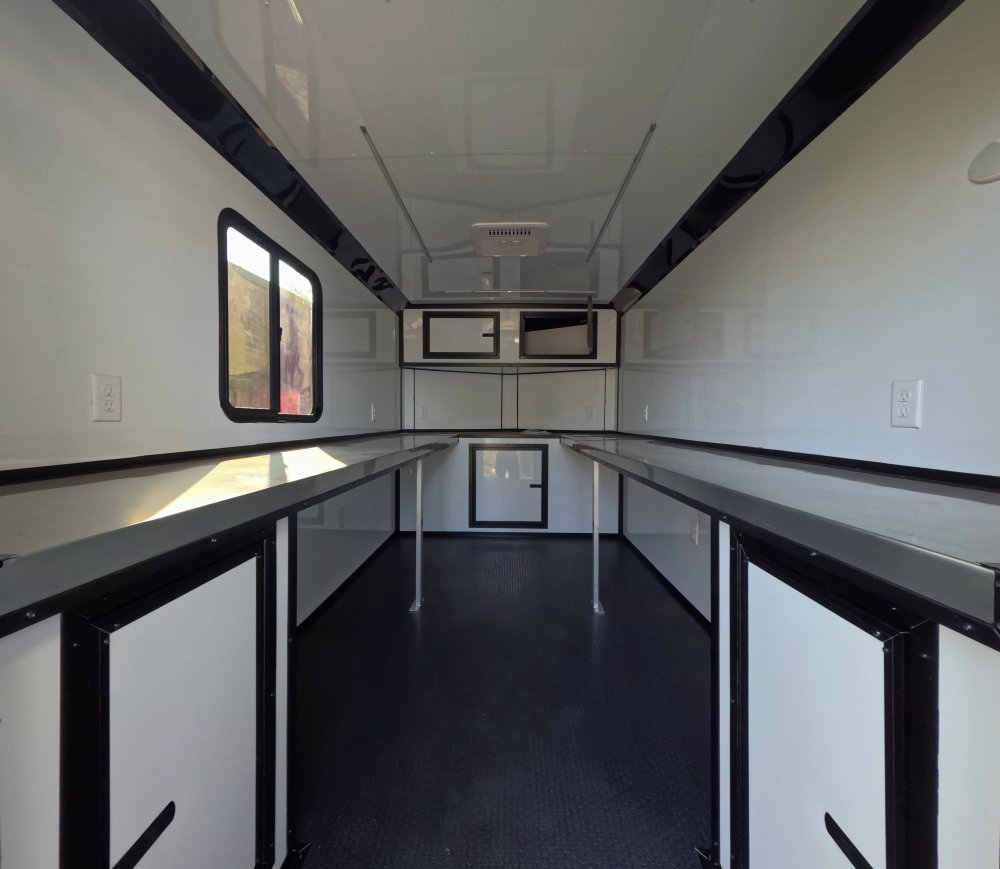

Interior:
-
Insulated walls
-
Insulated ceiling
-
White metal walls
-
White metal ceiling
-
Coin floor
-

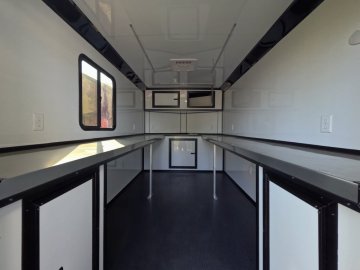

Overhead and base cabinets in V-nose
-

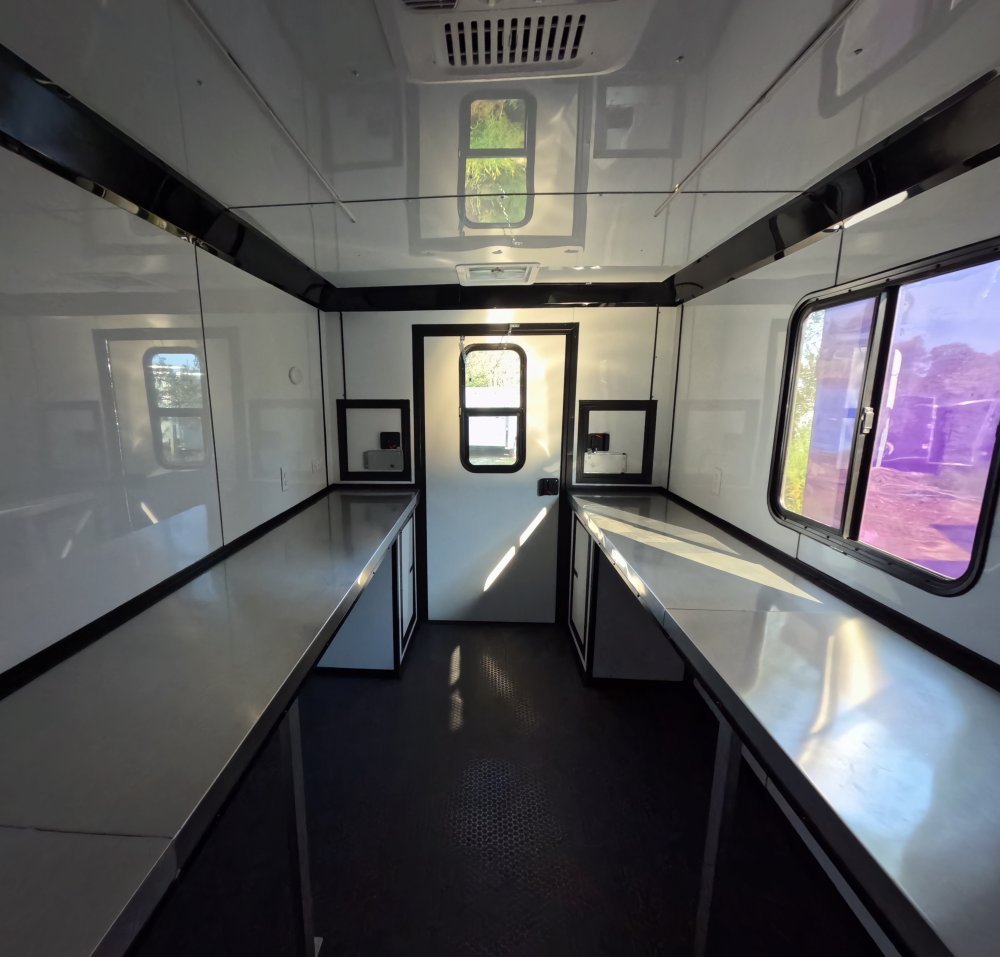

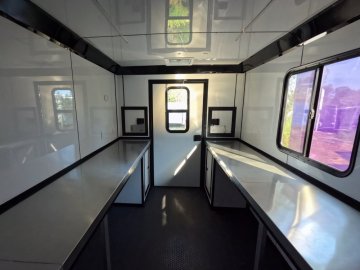

36" high counter/workbench on passenger side (smooth edges; aluminum folded over edge, no lip)
-
One 2' base cabinet beside the workbench on passenger side (rear)
-
36" high counter/workbench on driver side (smooth edges; aluminum folded over edge, no lip)
-
One 2' base cabinet beside the workbench on passenger side (rear)
-
All black trim, including cabinets
Electrical:
-
50 amp electrical package with 50 amp motorbase plug
-
8 total receptacles (6 additional)
-
Three 48" 12V LED lights
-
Two amber caution lights in rear
-
Three loading lights: one in front, one on passenger side, and one in rear (between splicing and RV door)
