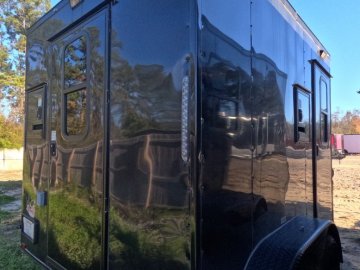

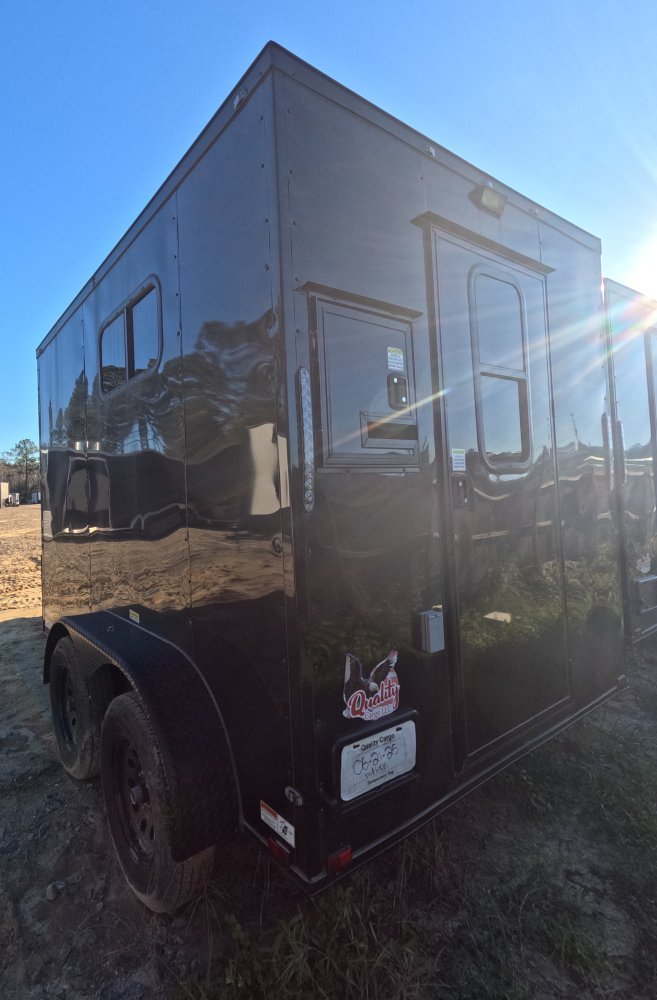

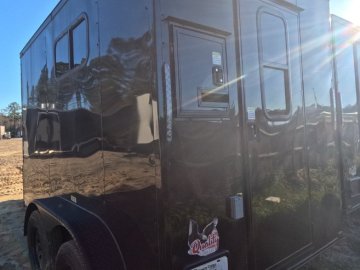

7'x10' Quality Cargo Fiber Splicing Trailer
Standard Specifications
-
15” Tires
-
Silver Mod Wheels
-
32” RV Style Side Door with Flush Lock
-
V-Nose with Vertical ATP Trim
-
Double Rear Door w/ Bar Lock or Ramp
-
Tandem 3500 lb Spring Axles with 4” Drop and EZ Lube Hubs
-
24” Stoneguard on Front
-
White Metal Exterior
-
2” Coupler
-
Aluminum Fender w/ Lights
-
3/4” Plywood Floor (Painted Underneath)
-
Premium 3/8” Plywood Sidewalls
-
1” x 1½” Steel Tube in Walls and Ceiling
-
75” (6’3”) Interior Height
-
2000 lb Tongue Jack
-
2x4” Steel Tube Main Rails
-
12V Dome Light with Switch
-
Non-Powered Roof Vent or Sidewall Vent
-
LED Strip Tail Lights
-
Wall Members 16” O.C.
-
Floor Crossmembers 16” O.C.
-
Roof Members 24” O.C.
-
Screwed Metal Exterior
-
Galvalume Roof
-
7-Way Bargman Plug
Structure
-
V-Nose w/ Vertical ATP Trim
-
9" Extra Interior Height
-
66" Extended Tongue
-
Generator Box on Tongue with Slide-Out
Tires & Wheels
-
Silver Mod Wheels
-
Chrome Center Lug Covers
-
Sand Foot
-
Radial Tires
Doors, Ramps & Windows
-
32" RV Side Door
-
Additional 32" RV Door
-
(2) 15" x 30" Windows — One in Each Door
-
(1) 30" x 15" Window
-
(2) 16" x 18" Cable Splicing Doors
Vents & A/C
-
13,500 BTU A/C Unit
Exterior
-
Black
-
Blackout Package
-

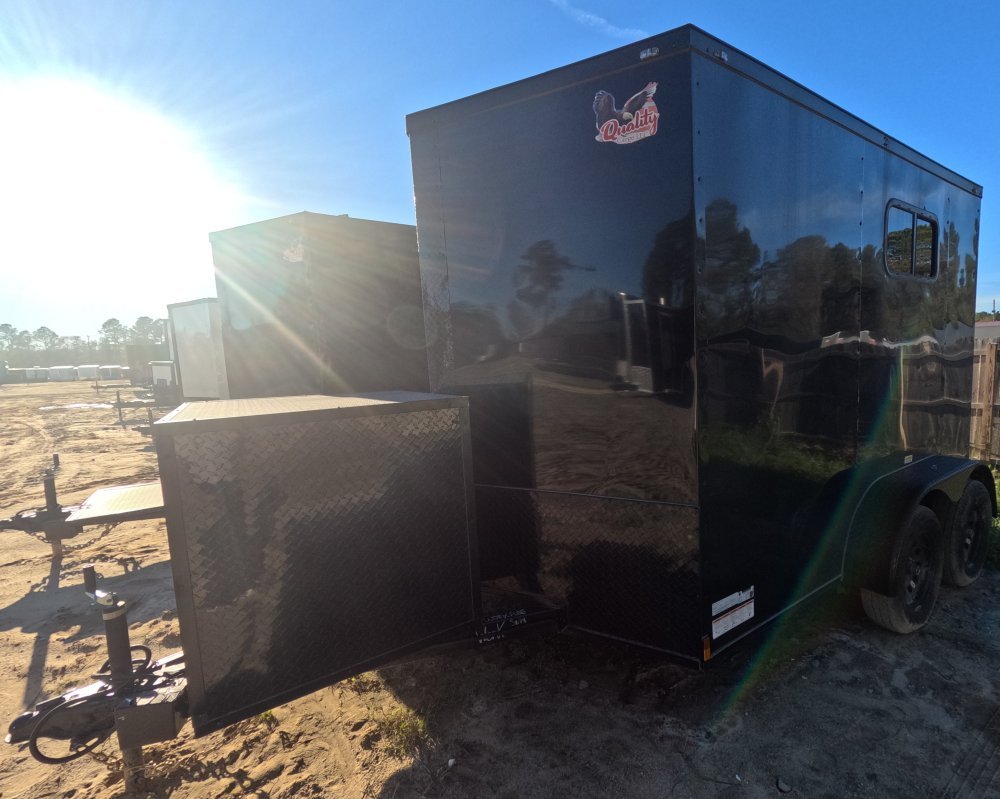

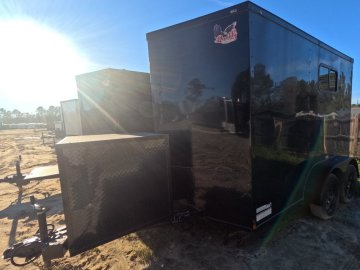

Generator Box with Slide-Out

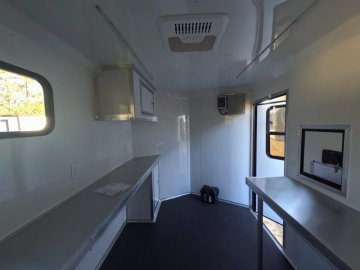

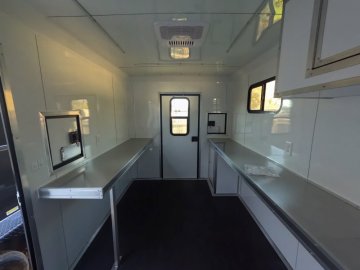

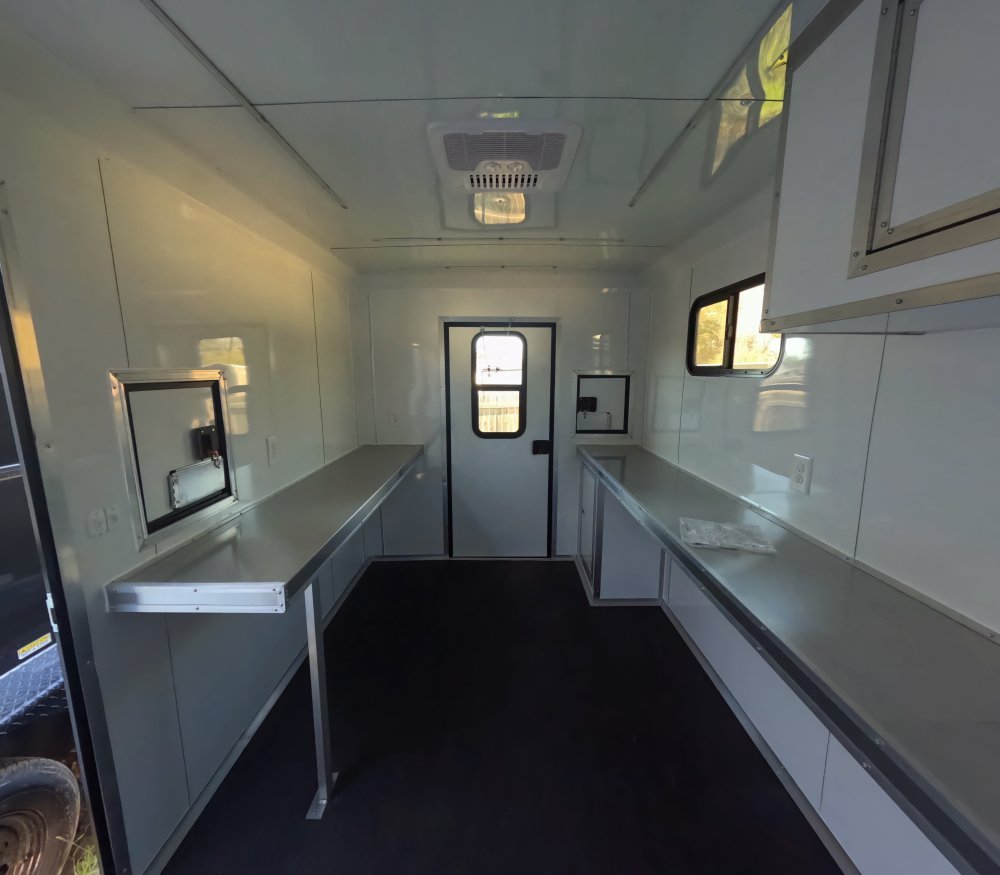

Interior
-
White Metal Walls
-
White Metal Ceiling
-
Insulated Walls
-
Insulated Ceiling
-
Rubber Coin Flooring
-
10" x 18" Mill Finish Counter
-
7" x 18" Mill Finish Counter
-
(2) 24" Base Cabinets with Shelf Inside
-
One Each Side Under Countertop (Driver Side)
-
-
(4') Overhead Cabinets (White)
Electrical
-
All LED Exterior Lights
-
(2) Extra LED Lights
-
50 Amp Electrical Package
-
50 Amp Motor Base Plug
-
12V Battery with Converter
-
(2) Race Lights
-
(1) Exterior GFI Outlet
-
(4) Total 110V Receptacles
