8' 5"x12' Quality Cargo Fiber Splicing Trailer
Standard Specifications:
-
15” Tires
-
Silver Mod Wheels
-
32” RV-style side door with flush lock
-
V-Nose with vertical ATP trim
-
Rear ramp with spring assists and flap
-
Tandem 3500 lb spring axles with 4” drop and EZ Lube hubs
-
24” Stoneguard on front
-
White metal exterior
-
Beavertail frame
-
(4) D-rings in floor
-
3/4” Plywood floor (painted underneath)
-
Premium 3/8” Plywood sidewalls
-
1” x 1½” Steel tube in walls and ceiling
-
78” (6’6”) Interior height
-
2000 lb Tongue jack
-
6” I-beam main frame
-
12V Dome light with switch
-
Non-powered roof or sidewall vent
-
LED strip tail lights
-
Wall members 16” O.C.
-
Floor crossmembers 16” O.C.
-
Roof members 24” O.C.
-
Screwed metal exterior
-
Galvalume roof
-
7-way round electrical plug
-
2-5/16” Coupler
Structure:
-
V-Nose with ATP vertical trim
-
6” Extra height
-
12” TTT frame upgrade
Tie-Downs & Stabilizers:
-
(4) D-rings
Tires & Wheels:
-
Silver Mod
-
Chrome center lug covers
-
Sand foot
Doors, Ramps, Windows:
-
36” RV side door with screen
-
Solid rear wall with RV door
-
(2) 30”x30” Windows over fenders, mounted as high as possible
Vents & A/C:
-
Roof vent
-
13,500 BTU A/C unit with heat strip

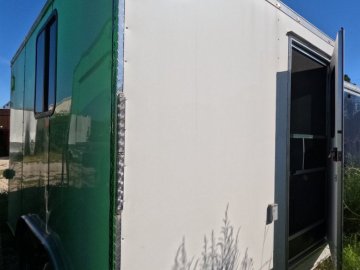

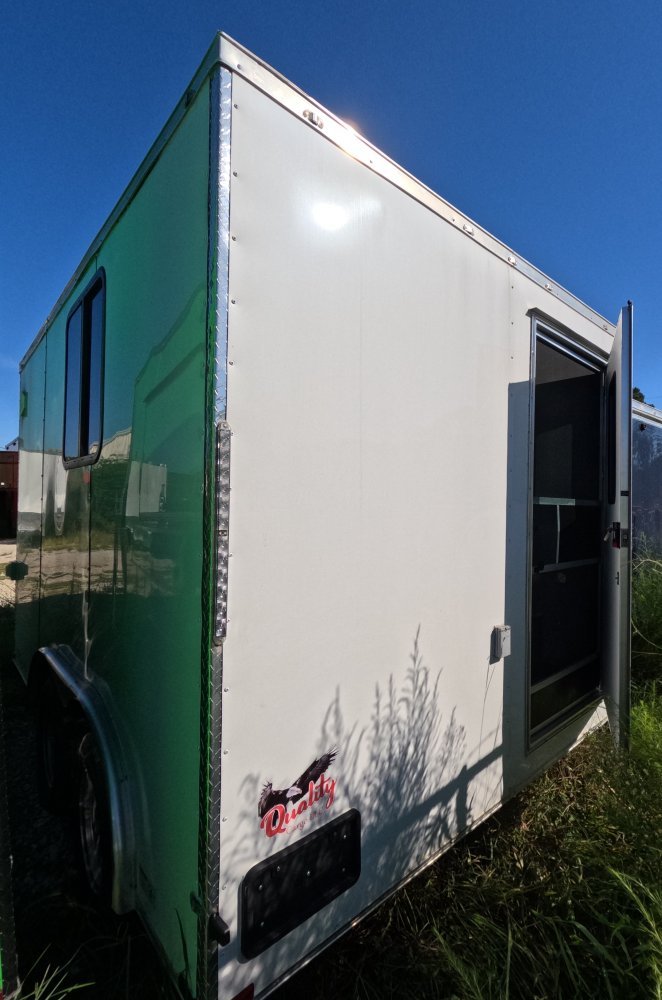

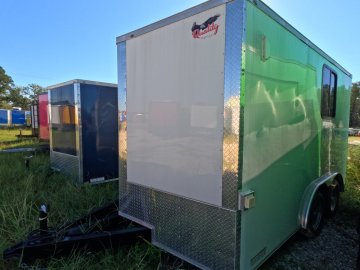

Exterior:
-
Piedmont white (semi-gloss finish)
-
Galvanized underbelly

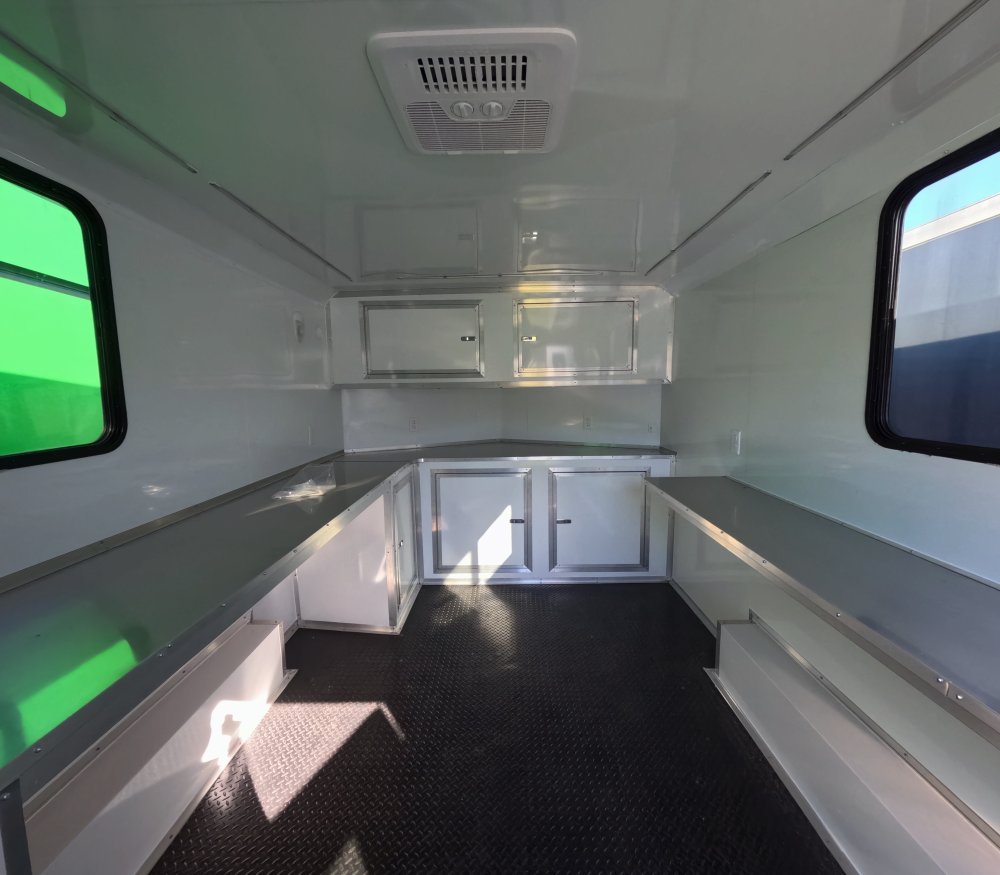

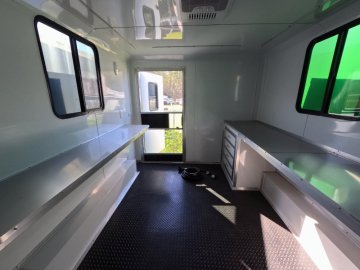

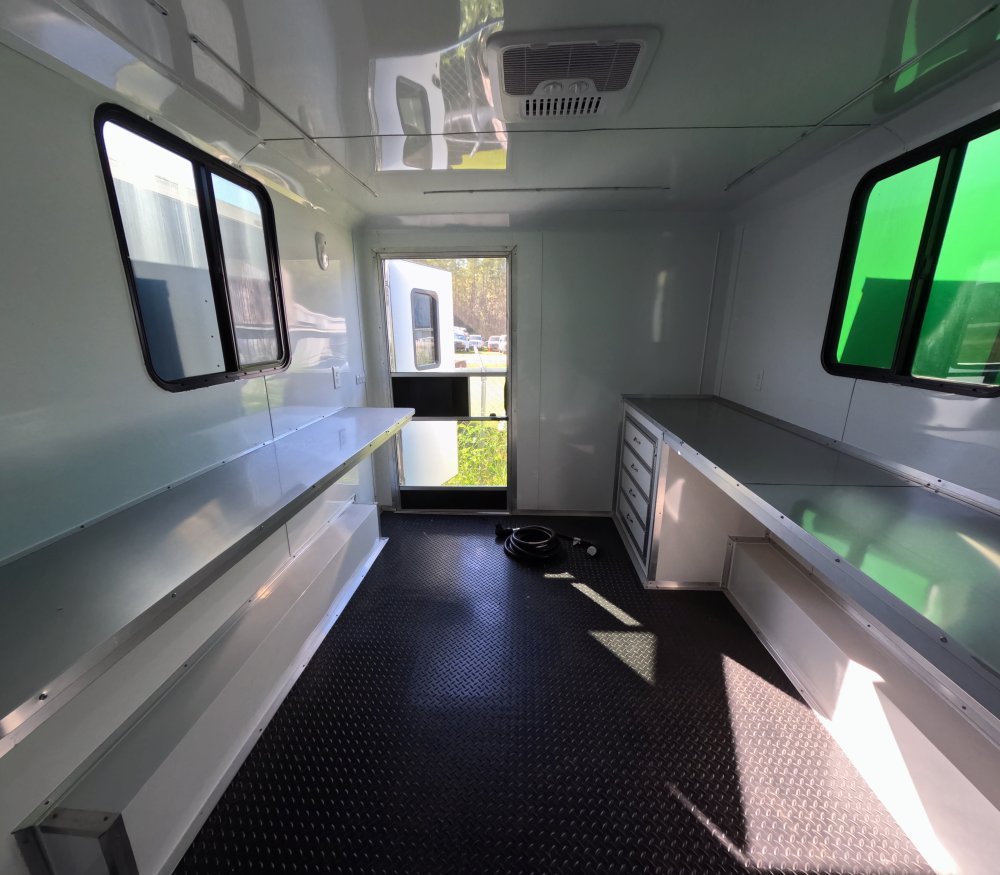

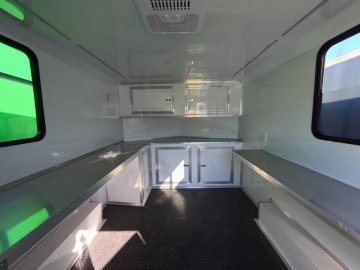

Interior:
-
Cool seal coating
-
Pressure-treated plywood floor
-
Luan ceiling
-
White metal walls and ceiling
-
RTP flooring
-
Base cabinet (white finish)
-
Stationary shelf on driver-side wall (24” x 10 ft)
-
(3) 3-ft drawers under driver-side counter (side by side)
-
Overhead cabinet with (2) large doors
-
Stationary shelf on passenger-side wall (rear to side)
Electrical:
-
All LED 12V lighting
-
12V loading light over tongue
-
LED backup lights
-
50-amp electrical package
-
50-amp motor base plug
-
(4) Extra receptacles:
-
(1) Front center above base cabinet
-
(2) Over shelf, evenly spaced, 12” above shelf
-
(1) Centered under shelf on passenger wall
-
-
Add GFCI outlets by each door
