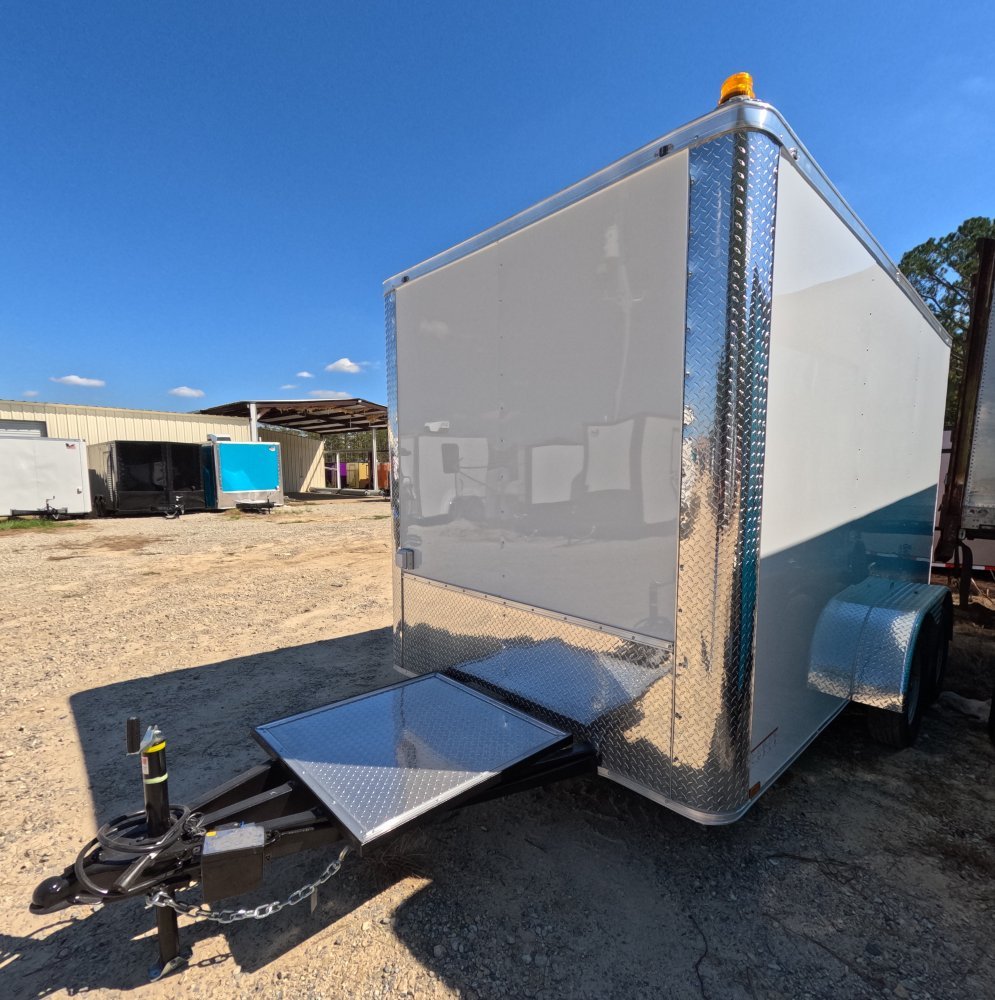

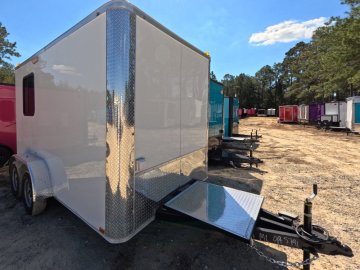

7'x12' Quality Cargo Fiber Splicing Trailer



Standard Specifications

• 15” Tires

• Silver Mod Wheels

• 32” RV Style Side Door with Flush Lock

• V-Nose with Vertical ATP Trim

• Double Rear Door with Bar Lock or Ramp

• Tandem 3500 lb Spring Axles with 4” Drop and EZ Lube Hubs

• 24” Stoneguard on Front

• White Metal Exterior

• 2” Coupler

• Aluminum Fenders with Lights

• 3/4” Plywood Floor (Painted Underneath)

• Premium 3/8” Plywood Sidewalls

• 1” x 1½” Steel Tube in Walls and Ceiling

• 75” (6’3”) Interior Height

• 2000 lb Tongue Jack

• 2”x4” Steel Tube Main Rails

• 12V Dome Light with Switch

• Non-Powered Roof Vent or Sidewall Vent

• LED Strip Tail Lights

• Wall Members 16” O.C.

• Floor Crossmembers 16” O.C.

• Roof Members 24” O.C.

• Screwed Metal Exterior

• Galvalume Roof

• 7-Way Bargman Plug

Structure

• Flat Front

• 9” Extra Height

• Generator Platform on Tongue

• 66” Tongue-to-Tail (TTT)

Tires & Wheels

• Silver Mod Wheels

• Chrome Center Lug Covers

• Sand Foot

Doors, Ramps & Windows

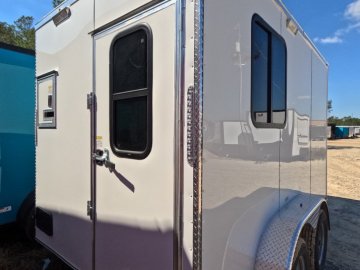

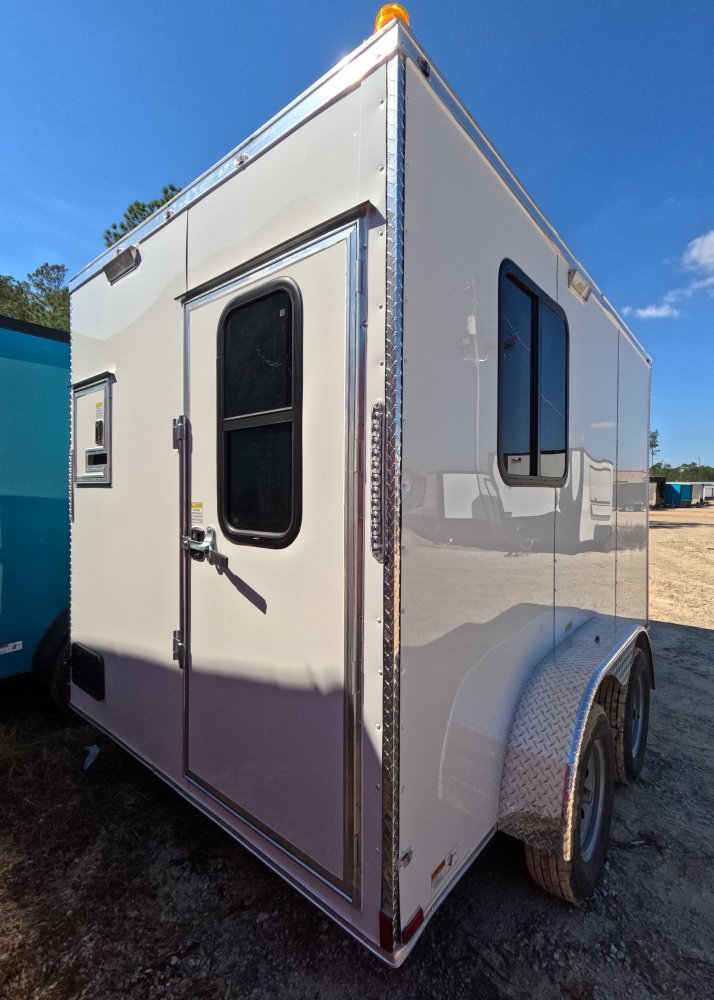

• 32” RV Side Door with 15”x30” Window

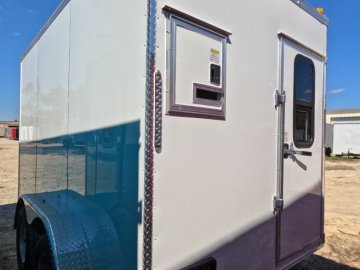

• 16”x18” Splicing Door with Brushes

• 30”x30” Window on Passenger Side

• Bar Lock on Side Door

Vents & A/C

• 15K BTU A/C with Heat

Exterior

• .080 Polycore White

Interior

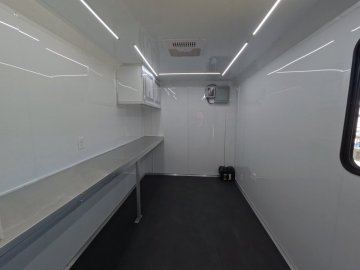

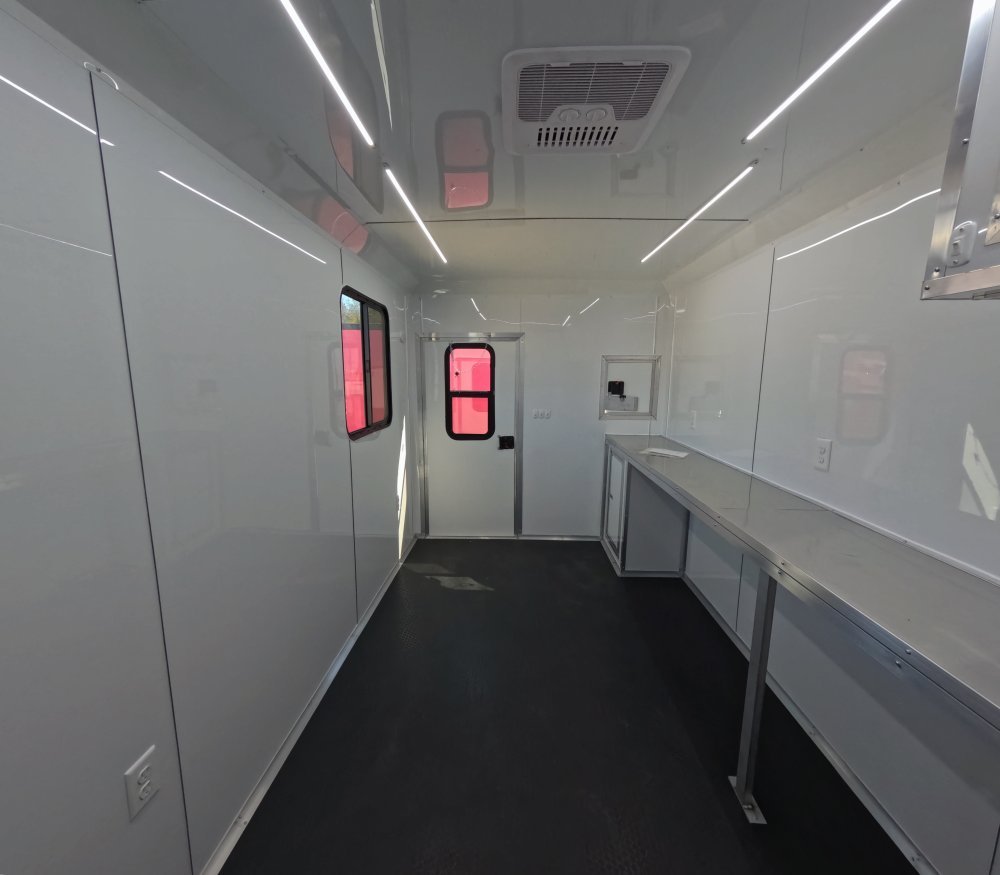

• Insulated Walls

• Insulated Ceiling

• White Metal Walls

• White Metal Ceiling

• Rubber Coin Floor

• 10’x18” Workbench on Passenger Side with 2’ Base Cabinet

• 4’ Upper Cabinet Above Rear Counter with Shocks

Electrical

• 50 Amp Electrical Package with 50 Amp Motorbase Plug

• 5 Total Receptacles

• 2 Amber Strobe Lights

• (2) 10” Race Lights — 1 in Rear, 1 on Passenger Side Near Window

• (6) LED Lights — 5 in Ceiling, 1 Under Upper Cabinet

• 12V Battery
