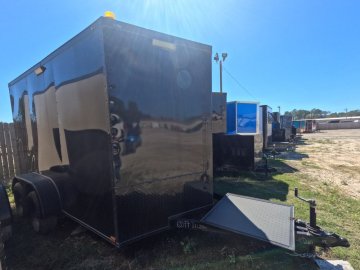

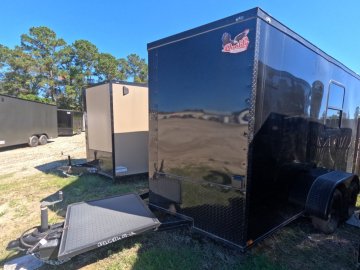

7'x12' Quality Cargo Fiber Splicing Trailer
Standard Specifications
-
15” Tires
-
Silver Mod Wheels
-
32” RV Style Side Door with Flush Lock
-
V-Nose with Vertical ATP Trim
-
Double Rear Door with Bar Lock or Ramp
-
Tandem 3,500 lb Spring Axles with 4” Drop and EZ Lube Hubs
-
24” Stoneguard on Front
-
White Metal Exterior
-
2” Coupler
-
Aluminum Fender with Lights
-
3/4” Plywood Floor (Painted Underneath)
-
Premium 3/8” Plywood Sidewalls
-
1” x 1½” Steel Tube in Walls and Ceiling
-
75” (6’3”) Interior Height
-
2000 lb Tongue Jack
-
2” x 4” Steel Tube Main Rails
-
12V Dome Light with Switch
-
Non-Powered Roof Vent or Sidewall Vent
-
LED Strip Tail Lights
-
Wall Members: 16” O.C.
-
Floor Crossmembers: 16” O.C.
-
Roof Members: 24” O.C.
-
Screwed Metal Exterior
-
Galvalume Roof
-
7-Way Bargman Plug
Structure
-
V-Nose with ATP Vertical Trim
-
9” Extra Height
-
66” Tongue
-

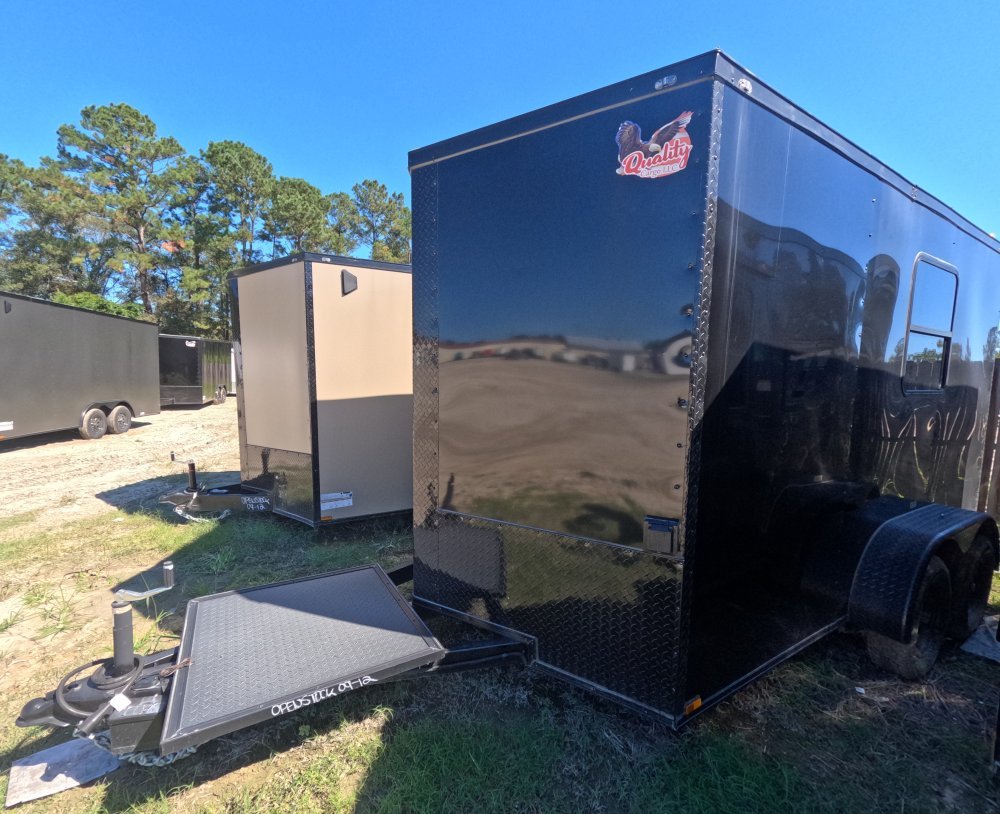

Generator Platform on Tongue
Tires & Wheels
-
Silver Mod Wheels
-
Chrome Center Lug Covers
-
Sand Foot
Doors, Ramps, & Windows
-

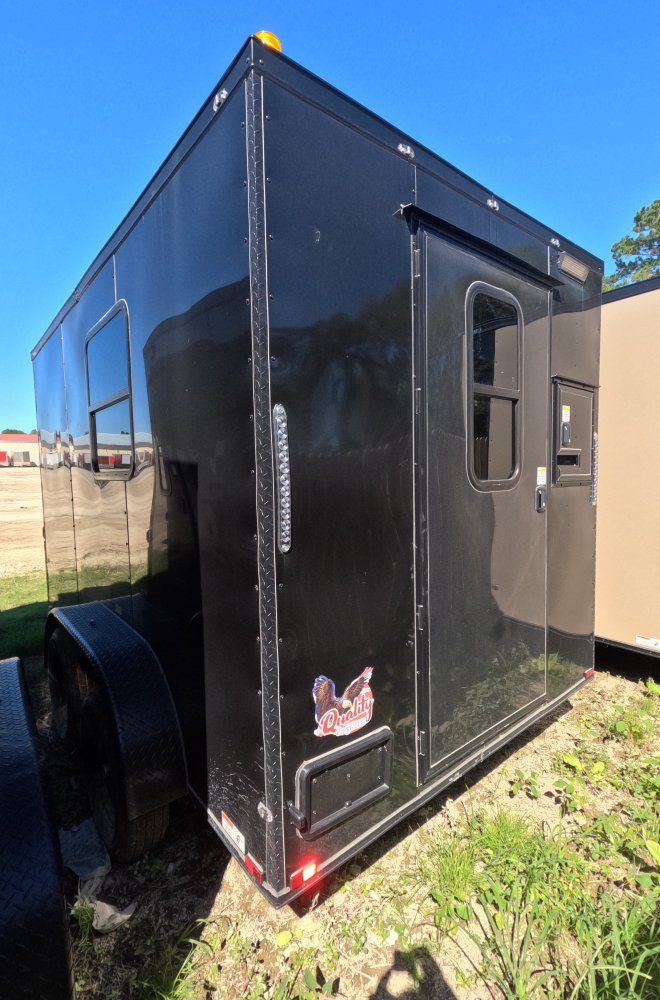

36” Rear RV Door with 15” x 30” Window
-
One 30” x 30” Window on Driver Side
-

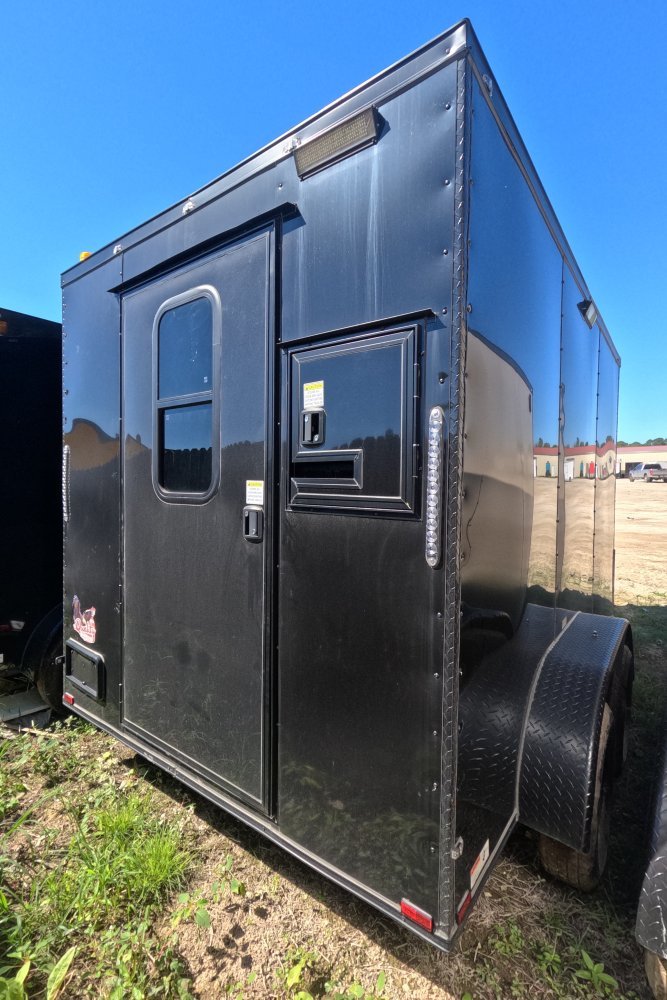

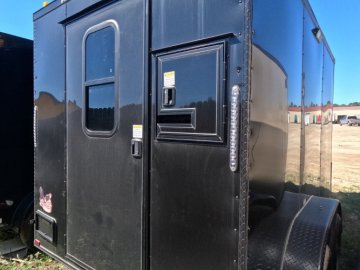

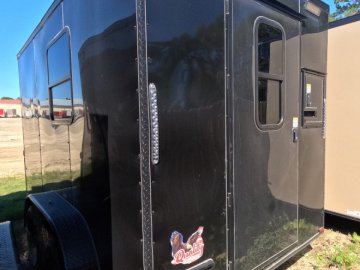

One 16” x 18” Splicing Door with Brush (Beside RV Door)
Vents & A/C
-
One Manual Roof Vent
-
13,500 BTU A/C with Heat Strip
Exterior
-
0.080 Polycore Black Exterior
-
Blackout Package

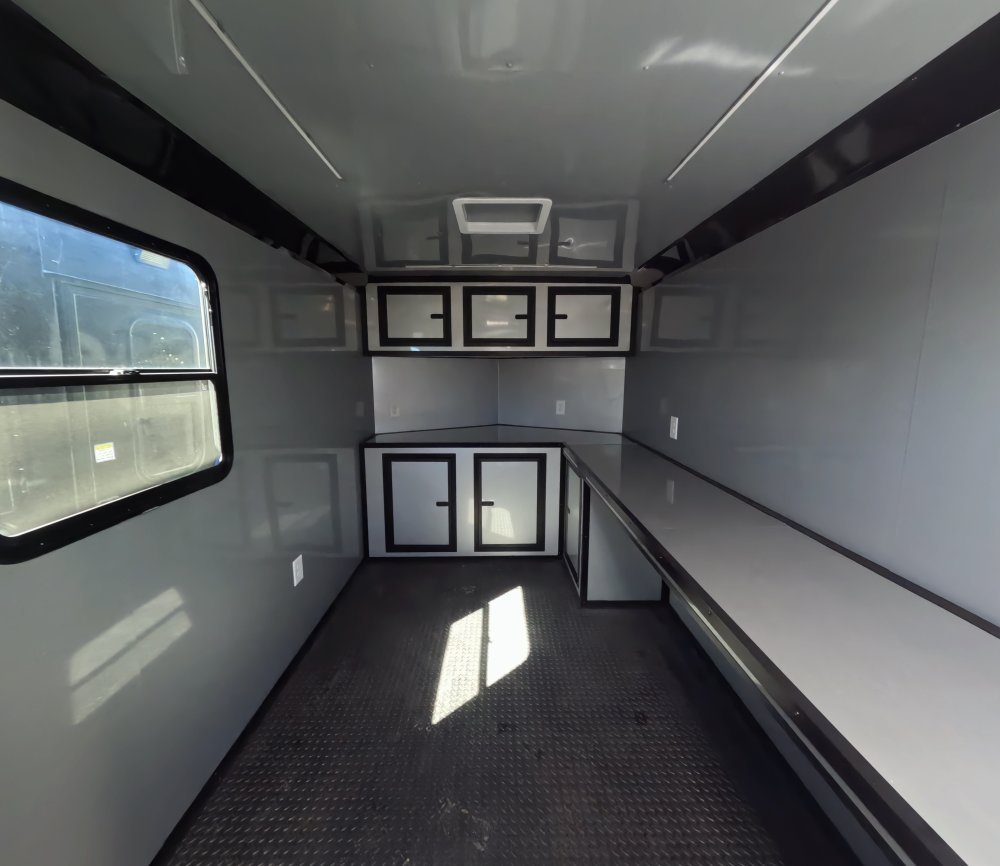

Interior
-
Insulated Walls and Ceiling
-
Silver Metal Walls
-
Silver Metal Ceiling
-
RTP (Rubber Tread Plate) Floor
-

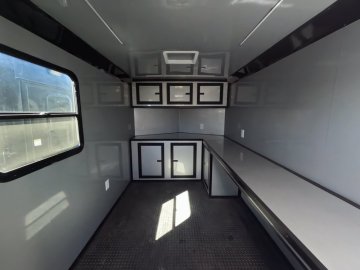

Overhead and Base Cabinets in V-Nose
-

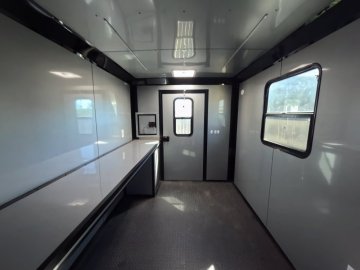

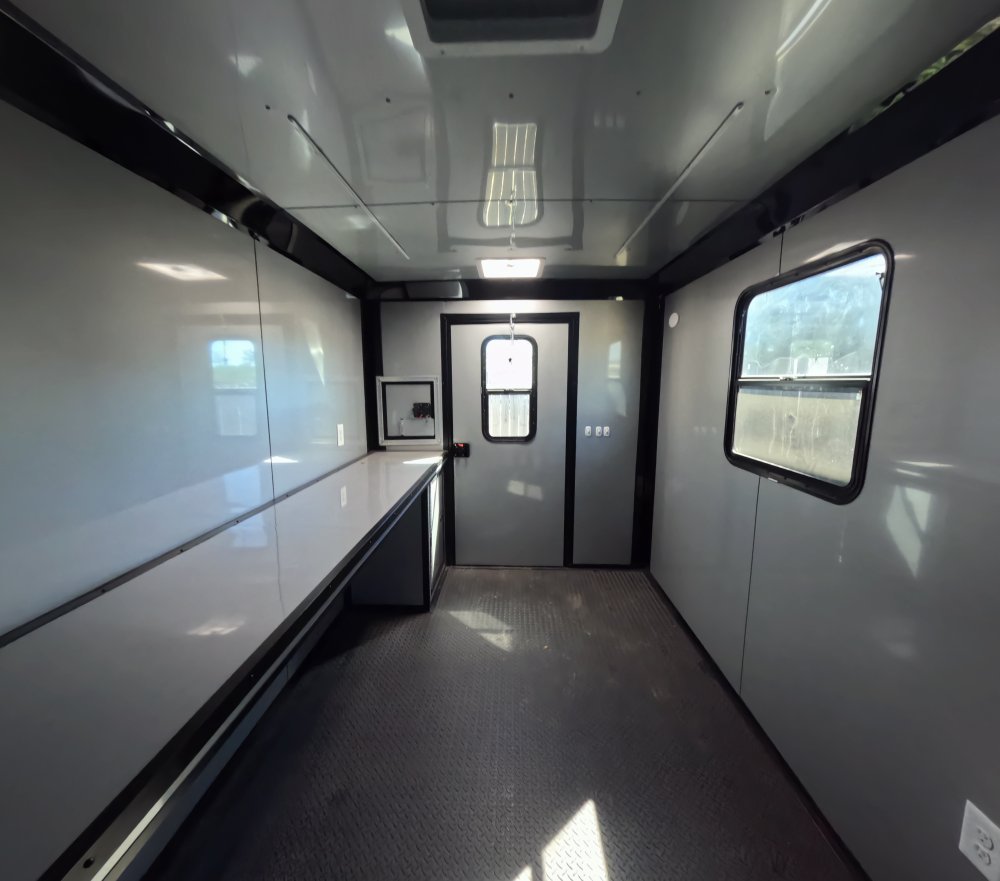

24” Deep x 36” High Counter/Workbench on Passenger Side
-
Smooth Edge, No Lip, Aluminum Wrapped Edge (No Exposed Screws)
-
-
Two 2’ Base Cabinets (One on Each End of Workbench) with Two Drawers Each
-
All Black Trim Including Cabinets
Electrical
-
50 AMP Electrical Package with 50 AMP Motorbase Plug
-
(6) Total Receptacles (Including 4 Extras)
-
12V Battery with Converter
-
(3) Total 48” 12V LED Lights
-
(2) Amber Caution Lights
-
(3) Exterior Loading Lights:
-
One Front, One Passenger Side, One Rear (Between Splicing & RV Door)
-
-
Battery and Converter Installed
